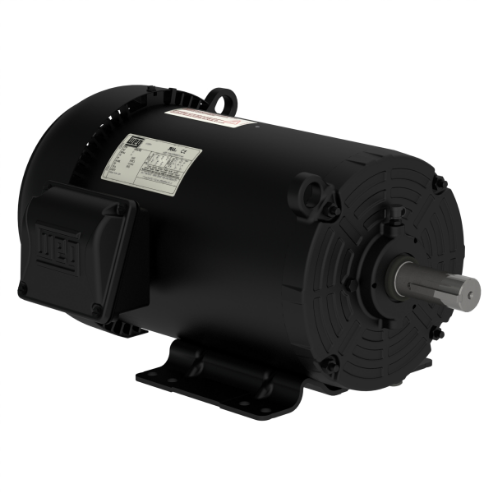

WEG 00536ET3E184T-SRT Electric Motor, 5Hp, 60Hz, 3600 Rpm | BB9GLN

WEG 00536ET3E184T-SRT 13185154 General Purpose Motor, 5 HP, 3600 RPM, 208-230/460 V, 3 Phase, TEFC, 184T Frame, Footed

Item: BB9GLNModel: 00536ET3E184T-SRTCross Ref: 13185154
Check Availability
In Stock

Get it by Monday, Jul 6

€966.40 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 13-11.8/5.9A
Balancing Method 1/2" Key
Bearing Cap No
Bolt Material Carbon Steel
Break Down Torque 350%
Cold Locked Rotor Time 39 sec.
Composition Steel
Connection Cables Quantity 9
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle Continuous
Efficiency 50% 76%
Efficiency @ 1 % 89%
Efficiency @ 75 % 85%
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange Type Without
Frame 182/4T
Frame Material Rolled Steel
Frame Size 184T
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 22 sec.
Hp 5 hp
Impregnation Method Dip And Bake Polyester
L. R. Amps 107-96.8/48.4A
Locked Rotor Torque 220%
Lrc 8.2X(Code J)
Main Terminal Box Hole Size 1.118"
Moment Of Inertia 0.2079 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 3490 RPM
Mounting Foot Mounted
No Load Amps 0-4.6/2.3A
No. Of Poles 2
Output 5 hp
Output Rating 5 hp
Overload Protector Without Overload Protector
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 3
Power Factor @ 1 % 88.5
Power Factor @ 50 % 87.5
Power Factor @ 75 % 88.5
Resilient Base Without
Rotation CW, CCW
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 3.06%
Speed 3400-3600 RPM
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 7.52 lbs.-ft.
Tropicalized Painting Without
Voltage 208-230/460V AC , 230/460V

Shipping Info:

Ship weight (kg) 38.7
Ship height (cm)77.98
Ship length (cm)115.06
Ship width (cm)85.09
Country of OriginUS

Product Variants

ProductModelVoltageFrequencyHpService FactorMotor Enclosure DesignFull Load AmpsMotor TypeMounting TypePrice
WEG 01836ET3Y160LFF-W22 Metric Motor, 25Hp, 230/460v Cw / Ccw | AA2GEN 10G894 01836ET3Y160LFF-W22380-415/460V50 Hz25 hp1.25Totally Enclosed Fan Cooled29.9A-Face, Base€5,367.05
WEG 03736ET3Y200LFF-W22 Metric Motor, 50Hp, 230/460v Cw / Ccw | AA2GEY 10G904 03736ET3Y200LFF-W22380-415/460V60 Hz50 hp1.25Totally Enclosed Fan Cooled59.8A-Face, Base€9,770.55
WEG 05536ET3Y250S/MFF-W2 Metric Motor, 75Hp, 230/460V, Cw / Ccw | AA2GFD 10G909 05536ET3Y250S/MFF-W2460V AC50/60 Hz75 hp1.25Totally Enclosed Fan Cooled80.3A-Face, Base€16,526.29
WEG 00156ET3H143TC-W22 General Purpose Motor, 3-phase Tefc 1-1/2 Hp, 3495 Rpm 143tc | AA4JCX 12N885 00156ET3H143TC-W22575V AC60 Hz1 1/2 hp1.25Totally Enclosed Fan Cooled1.57AThree PhaseRigid Base€840.81
WEG 00236ET3H145TC-W22 General Purpose Motor, 3-phase Tefc 2 Hp, 3490 Rpm 145tc | AA4JCZ 12N887 00236ET3H145TC-W22575V AC60 Hz2 hp1.25Totally Enclosed Fan Cooled2.05AThree PhaseRigid Base€853.67
WEG 00336ET3H182TC-W22 General Purpose Motor, 3-phase Tefc 3 Hp, 3510 Rpm 182tc | AA4JDB 12N889 00336ET3H182TC-W22575V60 Hz3 hp1Totally Enclosed Fan Cooled2.9AThree PhaseRigid Base€1,055.20
WEG 00536ET3H184TC-W22 General Purpose Motor, 3-phase Tefc 5 Hp, 3510 Rpm 184t | AA4JDD 12N891 00536ET3H184TC-W22575V AC60 Hz5 hp1.25Totally Enclosed Fan Cooled4.72AThree PhaseRigid Base€1,251.50
