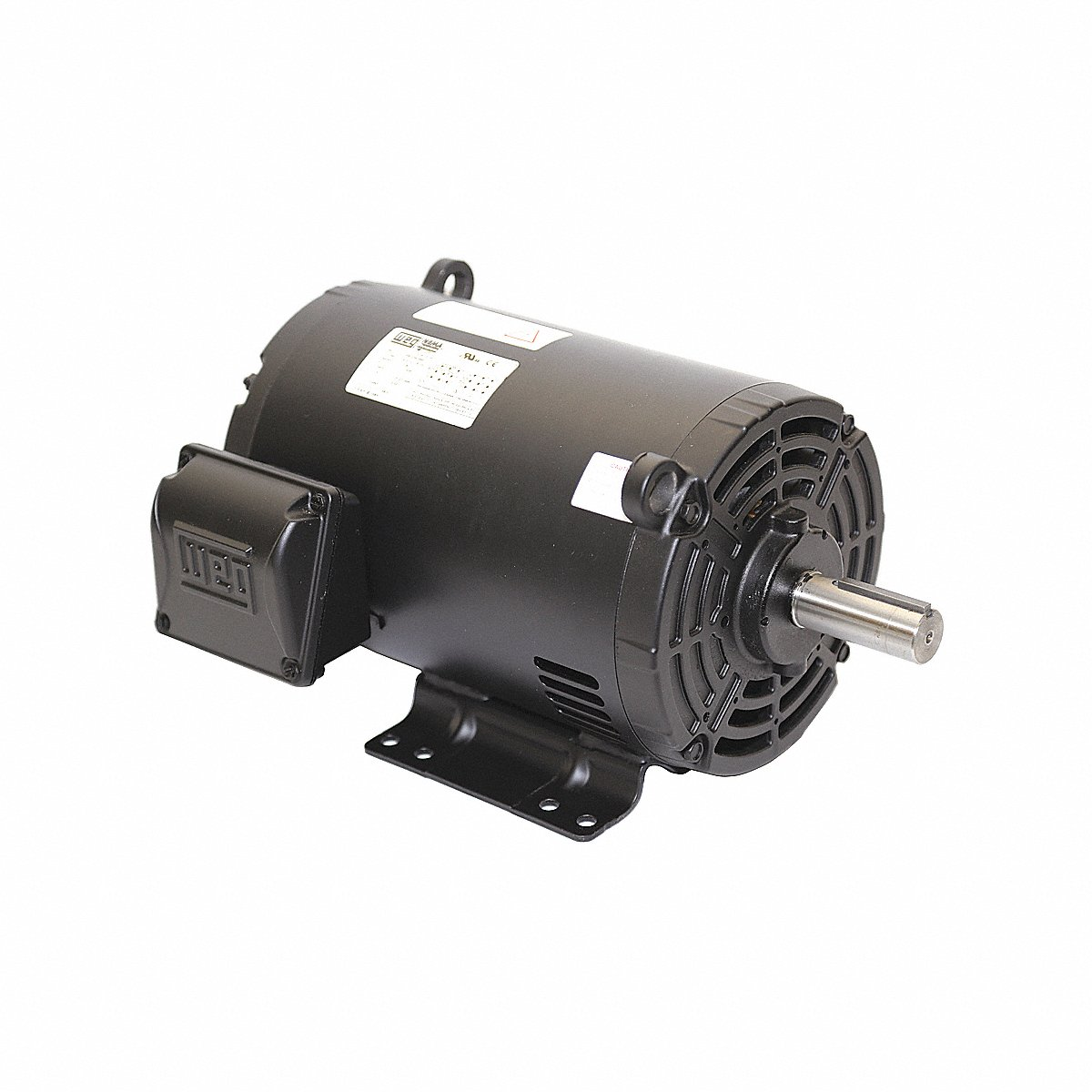

WEG 00518OT3E184T-S 12630271 General Purpose Motor, ODP RolLED Steel 182/4T Frame, 5 HP, 1455 RPM, 415 V
Get it by Wednesday, Feb 18
10.00% off
€772.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Bolt Material | Carbon Steel |
| Capacitor Required | No |
| Cc Number | CC029A |
| Duty Cycle | S1 |
| Efficiency | 89.5% |
| Efficiency Group | Premium |
| Enclosure Type | ODP |
| Frame | 182/4T |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 12.7/6.3A |
| Full Load Amps @ 50hz | 13.8/7.3/15.4/7.71A |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Hp | 5 hp |
| Hp @ 50hz | 5 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length Less Shaft | 13 9/16" |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1760 RPM |
| Nema Design | None |
| No. Of Speeds | 1 |
| Nominal Efficiency | 89.5% |
| Number Of Poles | 4 |
| Overall Length | 16 5/16" |
| Phase | 3 |
| Product Datasheet | weg-00518ot3e184t-s.pdf |
| Rotation | CW/CCW |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 3/4" |
| Shaft Material | Carbon Steel |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Thermal Protection | None |
| Usable @ 208v | Yes |
| Warranty | 3 yrs. |
Shipping Info:
| Ship weight (kg) | 38.23 |
| Ship height (cm) | 31.5 |
| Ship length (cm) | 41.43 |
| Ship width (cm) | 37.59 |
| HS code | 8501406040 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Phase | Service Factor | Frequency | Hp | Full Load Amps | Nameplate Rpm | Frame | Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 01518OT3H254TC | 3 | 1.15 | 60 Hz | 15 hp | 14.9A | 1775 RPM | 254TC | - | €1,909.02 | |
| 02018OT3H256TC | 3 | 1.15 | 60 Hz | 20 hp | 19.8A | 1770 RPM | 256TC | - | €2,237.16 | |
| 02518OT3H284TC | 3 | 1.15 | 60 Hz | 25 hp | 23.9A | 1770 RPM | 284TC | - | €3,659.77 | |
| 03018OT3H286TC | 3 | 1.15 | 60 Hz | 30 hp | 28.3A | 1770 RPM | 286TC | - | €3,744.49 | |
| 20018OT3G445T | 3 | 1.15 | 60 Hz | 200 hp | 229A | 1780 RPM | 445T | - | €17,928.59 | |
| 15036OT3G405TS | 3 | 1.15 | 60 Hz | 150 hp | 162A | 3555 RPM | 405TS | - | €15,787.11 | |
| 20036OT3G444TS | 3 | 1.15 | 60 Hz | 200 hp | 228A | 3575 RPM | 444TS | - | €20,850.80 |
