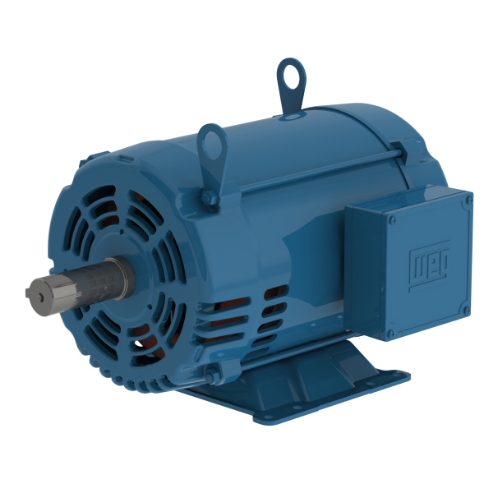

WEG 00318OT3E182TF2 10360658 Electric Motor, 3Hp, 60Hz, 1800 Rpm
Get it by Thursday, Dec 18
€623.97 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | No |
| Break-down Torque | 300% |
| Cold Locked Rotor Time | 21 sec. |
| Connection Cables Quantity | 9 |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 76% |
| Efficiency At 50 % | 54% |
| Efficiency At 75 % | 68% |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange Type | Without |
| Frame | 182T |
| Frame Material | Rolled Steel |
| Frame Size | 182T |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Horsepower | 3 hp |
| Hot Locked Rotor Time | 12 sec. |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 65.8/32.9A |
| Locked Rotor Torque | 240% |
| Lrc | 8.1X(Code K) |
| Main Terminal Box Hole Size | 3/4" |
| Main Terminal Box Hole Type | NPT |
| Moment Of Inertia | 0.2541 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 1760 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 4.74/2.37A |
| No. Of Poles | 4 |
| Noise Level | 53 dBA |
| Output | 3 hp |
| Output Rating | 3 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 207A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 89.5 |
| Power Factor At 50 % | 85.5 |
| Power Factor At 75 % | 88.5 |
| Rated Current | 8.12/4.06A |
| Rated Torque | 8.95 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Resilient Base | Without |
| Rotation | Clockwise/Counter Clockwise |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.22% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Right Position |
| Tropicalized Painting | Without |
| Voltage | 208-230/460V |
Shipping Info:
| Ship weight (kg) | 28.8 |
| Ship height (cm) | 24.38 |
| Ship length (cm) | 39.88 |
| Ship width (cm) | 30.99 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Phase | Service Factor | Hp | Frame | No. Of Poles | Synchronous Speed | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00218OT3E145TF2 | 208-230/460V | 3 | 1.15 | - | E143/5T | 4 | 1800 RPM | Foot Mounted | €587.00 | |
 |
01018OT3P215TF3 | 200V | 3 | 1.15 | - | 213/5T | 4 | 1800 RPM | Foot Mounted | €1,313.57 | |
 |
00518OT3P184TF3 | 200V | 3 | 1.15 | - | 184T | 4 | 1800 RPM | Foot Mounted | €750.45 | |
|
01018OT3E215TF3 | 208-230/460V | 3 | 1.15 | - | 213/5T | 4 | 1800 RPM | Foot Mounted | €1,314.78 | |
|
00218OT3P145TF2 | 200V | 3 | 1.15 | - | E143/5T | 4 | 1800 RPM | Foot Mounted | €585.81 | |
|
00718OT3E213TF3 | 208-230/460V | 3 | 1.15 | 7 1/2 hp | 213T | 4 | 1800 RPM | Foot Mounted | €1,016.40 | |
|
00158OT3E145TF2 | 208-230/460V | 3 | 1.15 | 1 1/2 hp | E143/5T | 4 | 1800 RPM | Foot Mounted | €534.49 |
