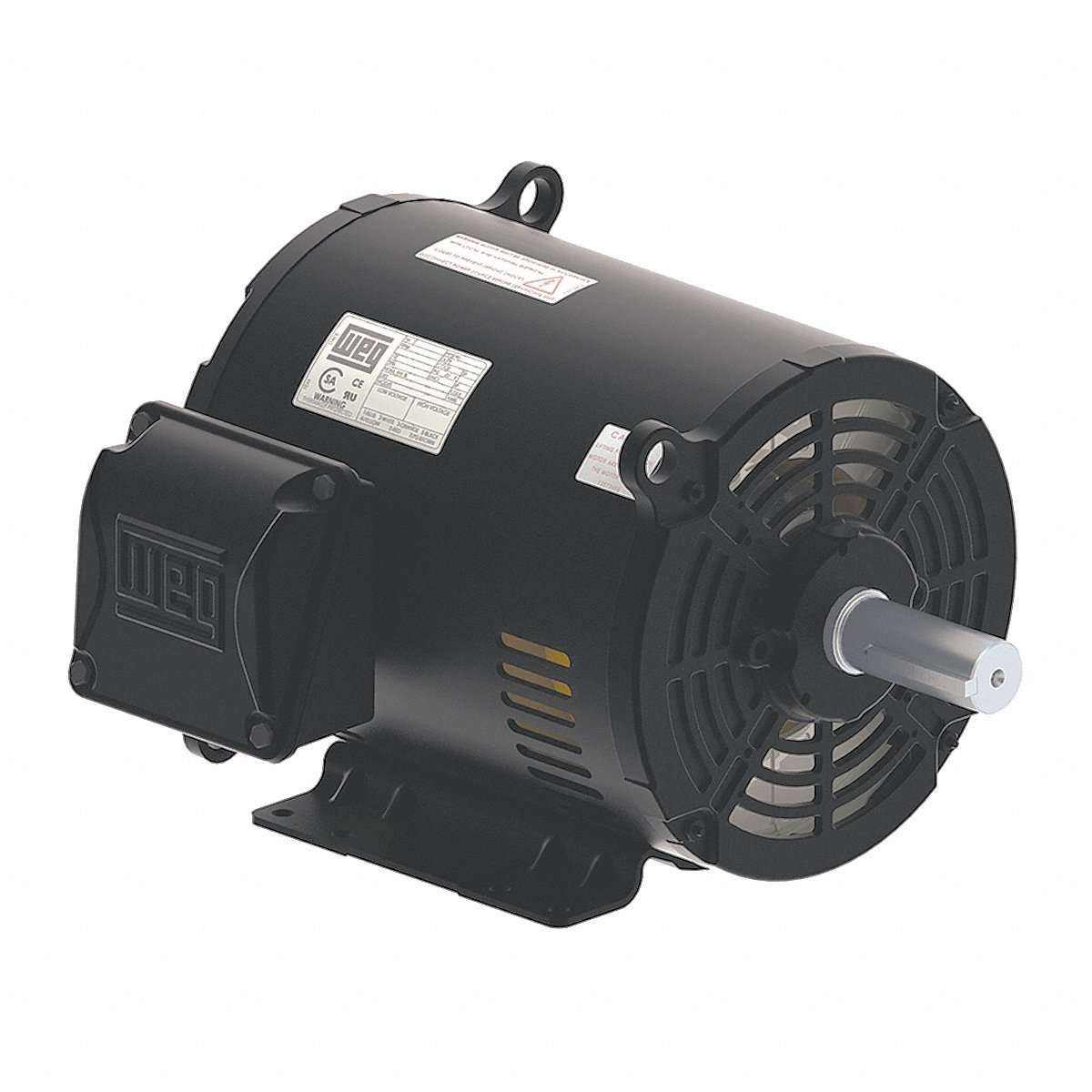

WEG 02018OT3E256T-S 12636472 General Purpose Motor, ODP RolLED Steel 254/6T Frame, 20 HP, 1465 RPM, 415 V
1800 rpm
20 hp
256T
Get it by Tuesday, Aug 18
5.00% off
€2,305.22 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C , 104°F |
| Amps | 28.1A |
| Balancing Method | 1/2 Key |
| Base Type | Rigid Base |
| Bearing Cap | No |
| Bearing Type | Ball |
| Bolt Material | Carbon Steel |
| Break Down Torque | 270% |
| Cc Number | CC029A |
| Cold Locked Rotor Time | 0 sec. |
| Connection Cables Quantity | 12 |
| De Bearing Seal | No |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) , Continuous |
| Efficiency | 93% |
| Efficiency Group | Premium |
| Enclosure | IC01 |
| Enclosure Rating | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | Without |
| Frame | 254/6T |
| Frame Material | Rolled Steel , Steel |
| Frame Size | 256T |
| Frequency | 50/60 Hz , 60 Hz |
| Full Load Amps | 50/25A |
| Full Load Amps @ 50 Hz | 54/28.6/59.8/29.9A |
| Grade | Grade 1010/20 |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Green Environmental Attribute | Does Not Contain Formaldehyde |
| Grounding Lugs Type | Superior |
| Hp | 20 hp |
| Hp @ 50 Hz | 20 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F , F |
| Inverter Rated | Yes |
| L. R. Amps | 174A |
| Length Less Shaft | 16 1/2" |
| Locked Rotor Time(hot) | 0 sec. |
| Locked Rotor Torque | 220% |
| Lrc | 6.2x(Code G) |
| Main Terminal Box Hole Size | 1.732" |
| Material | Carbon Steel |
| Max. Ambient Temp. | 40°C |
| Moment Of Inertia | 2.23 lbs.-sq. ft. |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | None |
| Motor Type | Three Phase |
| Mounting | F-1 |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1770 RPM |
| Nde Bearing Seal | No |
| Nema Design | None |
| No Load Amps | 13.5A |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Noise Level | 62 dBA |
| Nominal Efficiency | 93% |
| Output Rating | 20 hp |
| Overall Length | 20 1/2" |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Product Datasheet | weg-02018ot3e256t-s.pdf |
| Regreasing System | At Drive End And Non-Drive End |
| Resilient Base | Without |
| Rotation | CW And CCW |
| Service Factor | 1.15 |
| Shaft Dia. | 1 5/8" |
| Shaft Length | 4" |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 2.33% |
| Speed | 1465 RPM , 1700-1800 RPM , 1701-1800 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Thermal Protection | None |
| Torque | 71.7 lbs.-ft. |
| Tropicalized Painting | Without |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 190-220/230/380-415/460V , 415V |
Shipping Info:
| Ship weight (kg) | 109.35 |
| Ship height (cm) | 33.02 |
| Ship length (cm) | 52.07 |
| Ship width (cm) | 40.64 |
| HS code | 8501524000 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Phase | Frequency | Service Factor | Hp | Full Load Amps | Frame | Frame Material | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 01518OT3H254TC | 3 | 60 Hz | 1.15 | 15 hp | 14.9A | 254TC | Cast Iron | - | €1,909.02 | |
| 02018OT3H256TC | 3 | 60 Hz | 1.15 | 20 hp | 19.8A | 256TC | Cast Iron | - | €2,237.16 | |
| 02518OT3H284TC | 3 | 60 Hz | 1.15 | 25 hp | 23.9A | 284TC | Cast Iron | - | €3,659.77 | |
| 03018OT3H286TC | 3 | 60 Hz | 1.15 | 30 hp | 28.3A | 286TC | Cast Iron | - | €3,744.49 | |
| 20018OT3G445T | 3 | 60 Hz | 1.15 | 200 hp | 229A | 445T | Cast Iron | - | €17,928.59 | |
| 15036OT3G405TS | 3 | 60 Hz | 1.15 | 150 hp | 162A | 405TS | Cast Iron | - | €15,787.11 | |
| 20036OT3G444TS | 3 | 60 Hz | 1.15 | 200 hp | 228A | 444TS | Cast Iron | - | €20,850.80 |
