WEG 00518NT3FVD184TC-W22 12678202 Vector Duty Line-TENV Motor, 5 HP, 4 Poles, 182/4TCZ Frame, 3 Phase, 230/460 V, 60 Hz, IC410-TENV, Foot Mounted
Get it by Tuesday, Jul 7
€1,638.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 14.2/7.11A |
| Balancing Method | Without Key |
| Bearing Cap | Yes |
| Break Down Torque | 450% |
| Cold Locked Rotor Time | 55 sec. |
| Connection Cables Quantity | 9 |
| Design | A |
| Dimensions C | 16.569" |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency 50% | 51% |
| Efficiency @ 1 % | 73% |
| Efficiency @ 75 % | 64% |
| Enclosure Type | Tenv |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Fl Amps | 6.98A |
| Fl Efficiency | 89.5% |
| Flange Type | C |
| Frame | 182/4TCZ , 184 TC |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 31 sec. |
| Hp | 5 hp |
| Impregnation Method | Dip And Bake Polyester |
| Kw | 3.7 kW |
| L. R. Amps | 135/67.5A |
| Locked Rotor Torque | 290% |
| Lrc | 9.5X(Code M) |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Moment Of Inertia | 0.4627 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Speed | 1765 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 8.6/4.3A |
| No. Of Poles | 4 |
| Output | 5 hp |
| Output Rating | 5 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 207A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor @ 1 % | 89.5 |
| Power Factor @ 50 % | 87.5 |
| Power Factor @ 75 % | 89.5 |
| Rotation | CW, CCW |
| Service Factor | 1 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 1.94% |
| Speed | 1700-1800 RPM |
| Starting Method | VFD |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 105 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 14.9 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 230/460V , 230/460V AC |
| Winding Thermal Protection | Thermostat - 2 wires 1 per phase 155°C |
Shipping Info:
| Ship weight (kg) | 52.2 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 25.4 |
| Country of Origin | US |
Product Variants
| Model | Voltage | Hp | Frame | Duty Cycle | No Load Amps | Mounting | Output Rating | Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

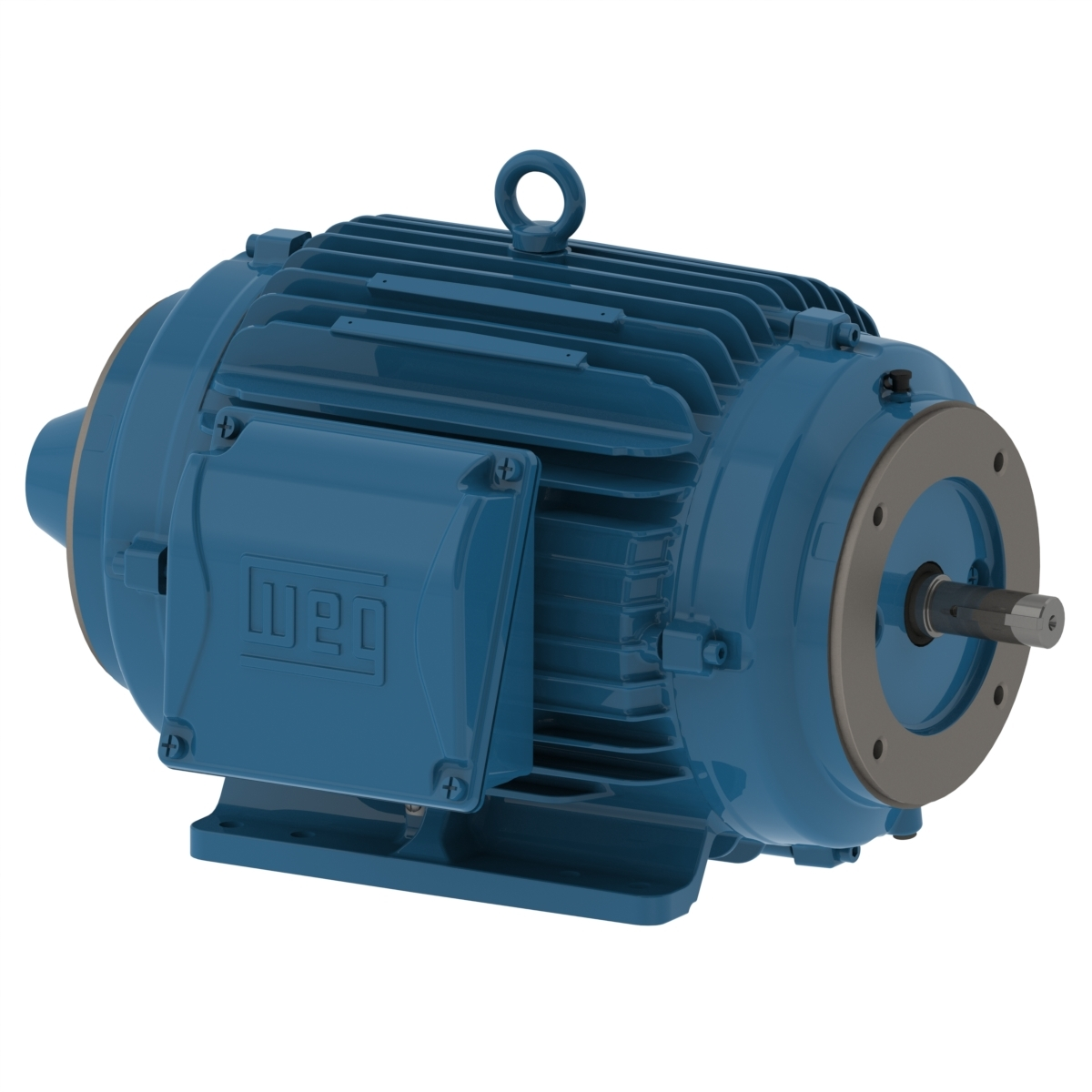

| 00218NT3FVD145TC-W22 | 230/460V | - | 143/5TC | S1 | 3.1/1.55A | Foot Mounted | 2 hp | B | €1,107.18 | |
| 00118NT3FVD143TC-W22 | 230/460V | 1 hp | 143/5TC | S1 | 1.58/0.79A | Foot Mounted | 1 hp | B | €831.59 | |
| 02018NT3FVD256TC-W22 | 230/460V | - | 254/6TC | S1 | 29.5/14.8A | Foot Mounted | 20 hp | A | €4,331.64 | |
| 00158NT3FVD145TC-W22 | 230/460V | - | 143/5TC | Continuous | 2.15/1.08A | Foot Mounted | 1 1/2 hp | B | €841.11 | |
| 00318NT3FVD182TC-W22 | 230/460V | - | 182/4T | S1 | 4/2A | Foot Mounted | 3 hp | B | €1,372.04 | |
| 00718NT3FVD213TC-W22 | 230/460V | - | 213/5TCZ | S1 | 8/4A | Foot Mounted | 7 1/2 hp | B | €2,084.31 | |
| 01018NT3FVD215TC-W22 | 230/460V | 10 hp | 213/5TC | S1 | 11.9/5.95A | Foot Mounted | 10 hp | A | €2,493.55 |
