MARTIN SPROCKET Taper Bushed Type Timing Pulleys, H Belt Type
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1| Style | Model | Outside Dia. | Face Width | Bore Dia. | Material | Type | Pitch | Pitch Dia. | Flange Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | TB14H150 | 2.174" | 1.563" | 1/2" to 1" | Steel | Solid Type KF-1 | 1/2" | 2.228" | 2.461" | €148.03 | |
| B | TB14H100 | 2.174" | 1.063" | 1/2" to 1" | Steel | Solid Type KF-1 | 1/2" | 2.228" | 2.461" | €97.34 | |
| C | TB16H100 | 2.492" | 1.063" | 1/2" to 1" | Steel | Solid Type KF-1 | 1/2" | 2.546" | 2.779" | €115.36 | |
| D | TB16H150 | 2.492" | 1.563" | 1/2" to 1" | Steel | Solid Type KF-1 | 1/2" | 2.546" | 2.779" | €151.55 | |
| E | TB16H200 | 2.492" | 2 11/32" | 1/2" to 1" | Steel | Solid Type KF-1 | 1/2" | 2.546" | 2 51/64" | €170.31 | |
| F | TB18H300 | 2.811" | 3 1/8" | 0.5" to 1.26" | Steel | Solid Type KF-1 | 1/2" | 2.865" | 3.097" | €271.09 | |

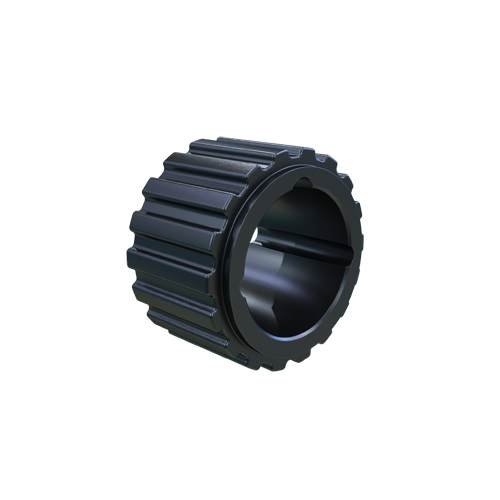

| G | TB18H150 | 2.811" | 1.563" | 1/2" to 1 1/4" | Steel | Solid Type KF-1 | 1/2" | 2.865" | 3.097" | €156.42 | |
| H | TB18H200 | 2.811" | 2.093" | 1/2" to 1 1/4" | Steel | Solid Type KF-1 | 1/2" | 2.865" | 3.097" | €180.72 | |
| I | TB18H100 | 2.811" | 1.063" | 0.5" to 1.26" | Steel | Solid Type KF-1 | 1/2" | 2.865" | 3.097" | €119.54 | |
| J | TB20H200 | 3.129" | 1.063" | 1/2" to 1 1/4" | Steel | Solid Type KF-1 | 1/2" | 3.183" | 3.415" | €198.10 | |
| K | TB20H150 | 3.129" | 1.563" | 1/2" to 1 1/4" | Steel | Solid Type KF-1 | 1/2" | 3.183" | 3.415" | €160.56 | |
| L | TB20H300 | 3.129" | 3 3/8" | 1/2" to 1 1/4" | Steel | Solid Type KF-1 | 1/2" | 3.183" | 3 7/16" | €291.95 | |
| M | TB20H100 | 3.129" | 1.063" | 0.5" to 1.26" | Steel | Solid Type KF-1 | 1/2" | 3.183" | 3.415" | €125.14 | |
| N | TB30H100 | 3.312" | 1.062" | 1/2" to 2" | Cast Iron | Solid Type KF-1 | 3/8" | 4.775" | 5.005" | €208.56 | |

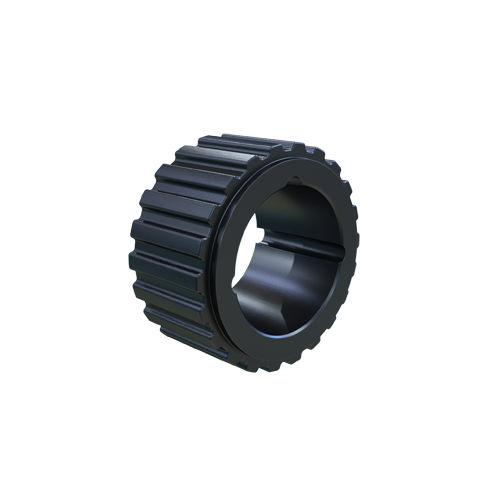

| O | TB22H150 | 3.447" | 1.565" | 1/2" to 1 5/8" | Steel | Solid Type KF-1 | 1/2" | 3.501" | 3.733" | €177.28 | |
| P | TB22H200 | 3.447" | 2.094" | 1/2" to 1 5/8" | Steel | Solid Type KF-1 | 1/2" | 3.501" | 3.733" | €215.50 | |
| Q | TB22H100 | 3.447" | 1.063" | 1/2" to 1 5/8" | Steel | Solid Type KF-1 | 1/2" | 3.501" | 3.733" | €135.56 | |
| R | TB22H300 | 3.447" | 3 1/8" | 1/2" to 1 5/8" | Steel | Solid Type KF-1 | 1/2" | 3.501" | 3.733" | €319.75 | |
| S | TB24H100 | 3.766" | 1.063" | 1/2" to 2" | Steel | Solid Type KF-1 | 1/2" | 3.82" | 4.051" | €140.41 | |
| L | TB24H300 | 3.766" | 3 3/8" | 1/2" to 2" | Steel | Solid Type KF-1 | 1/2" | 3.82" | 4 1/16" | €347.59 | |
| T | TB24H150 | 3.766" | 1.563" | 1/2" to 2" | Steel | Solid Type KF-1 | 1/2" | 3.82" | 4.051" | €198.10 | |
| U | TB24H200 | 3.766" | 2.093" | 1/2" to 2" | Steel | Solid Type KF-1 | 1/2" | 3.82" | 4.051" | €232.88 | |
| V | TB26H200 | 4.084" | 2.094" | 1/2" to 2" | Steel | Solid Type KF-1 | 1/2" | 4.138" | 4.369" | €250.24 | |
| W | TB26H300 | 4.084" | 3 3/8" | 1/2" to 2" | Steel | Solid Type KF-1 | 1/2" | 4.138" | 4 25/64" | €368.43 | |
| X | TB26H100 | 4.084" | 1.063" | 1/2" to 2" | Steel | Solid Type KF-1 | 1/2" | 4.138" | 4.369" | €156.42 | |
| Y | TB26H150 | 4.084" | 1.563" | 1/2" to 2" | Steel | Solid Type KF-1 | 1/2" | 4.138" | 4.369" | €222.45 | |
| Z | TB28H200 | 4.402" | 2.094" | 1/2" to 2" | Steel | Solid Type KF-1 | 1/2" | 4.456" | 4.687" | €274.58 | |
| L | TB28H300 | 4.402" | 3 3/8" | 1/2" to 2" | Steel | Solid Type KF-1 | 1/2" | 4.456" | 4 45/64" | €403.18 | |
| A1 | TB28H100 | 4.402" | 1.062" | 1/2" to 2" | Steel | Solid Type KF-1 | 1/2" | 4.456" | 4.687" | €201.61 | |
| Y | TB28H150 | 4.402" | 1.563" | 1/2" to 2" | Steel | Solid Type KF-1 | 1/2" | 4.456" | 4.687" | €246.78 | |
| L | TB30H150 | 4.721" | 1 13/16" | 1/2" to 2" | Cast Iron | Solid Type KF-1 | 1/2" | 4.775" | 5 1/64" | €257.20 | |
| B1 | TB30H300 | 4.721" | 3 1/8" | 1/2" to 2" | Cast Iron | Solid Type KF-1 | 1/2" | 4.775" | 5.005" | €410.13 | |
| L | TB30H200 | 4.721" | 2 11/32" | 1/2" to 2" | Cast Iron | Solid Type KF-1 | 1/2" | 4.775" | 5 1/64" | €278.04 | |
| C1 | TB32H100 | 5.039" | 1.063" | 1/2" to 2 1/2" | Steel | Solid Type CF-1 | 1/2" | 5.093" | 5.323" | €229.41 | |
| L | TB32H150 | 5.039" | 1 13/16" | 1/2" to 2 1/2" | Cast Iron | Solid Type KF-1 | 1/2" | 5.093" | 5 21/64" | €271.09 | |
| L | TB32H300 | 5.039" | 3 3/8" | 1/2" to 2 1/2" | Cast Iron | Solid Type KF-1 | 1/2" | 5.093" | 5 21/64" | €424.04 | |
| L | TB32H200 | 5.039" | 2 11/32" | 1/2" to 2 1/2" | Cast Iron | Solid Type KF-1 | 1/2" | 5.093" | 5 21/64" | €298.91 | |
| D1 | TB40H150 | 6.312" | 1.563" | 1/2" to 2 1/2" | Cast Iron | Solid Type KF-1 | 1/2" | 6.366" | 6.595" | €286.00 | |
| E1 | TB40H100 | 6.312" | 1.063" | 1/2" to 2 1/2" | Cast Iron | Solid Type CF-1 | 1/2" | 6.366" | 6.595" | €298.91 | |
| F1 | TB40H300 | 6.312" | 3 1/8" | 1/2" to 2 1/2" | Cast Iron | Solid Type KF-1 | 1/2" | 6.366" | 6.595" | €387.29 | |
| L | TB40H200 | 6.312" | 2 11/32" | 1/2" to 2 1/2" | Cast Iron | Solid Type KF-1 | 1/2" | 6.366" | 6 37/64" | €430.98 | |
| G1 | TB48H100 | 7.585" | 1.063" | 1/2" to 2 1/2" | Steel | Solid Type CF-1 | 1/2" | 7.639" | 7.867" | €309.83 | |
| L | TB48H300 | 7.585" | 3 3/8" | 7/8" to 3" | Cast Iron | Solid Type KF-1 | 1/2" | 7.639" | 8 1/64" | €411.14 | |

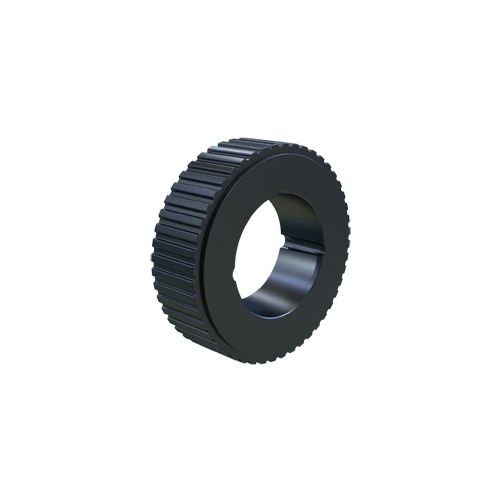

| H1 | TB48H200 | 7.585" | 2.094" | 1/2" to 3" | Cast Iron | Solid Type KF-1 | 1/2" | 7.639" | 7.867" | €387.29 | |
| L | TB48H150 | 7.585" | 1 13/16" | 1/2" to 2 1/2" | Cast Iron | Solid Type AF-1 | 1/2" | 7.639" | 8 1/64" | €345.58 | |
| L | TB60H300 | 9.495" | 3 3/8" | 7/8" to 3" | Cast Iron | Type A-2 Web | 1/2" | 9.549" | - | €524.34 | |
| L | TB60H150 | 9.495" | 1 13/16" | 7/8" to 3" | Cast Iron | Type C-2 Web | 1/2" | 9.549" | - | €388.49 | |
| I1 | TB60H100 | 9.495" | 1 5/16" | 7/8" to 3" | Steel | Type C-2 Web | 1/2" | 9.549" | - | €361.97 | |
| L | TB60H200 | 9.495" | 2 11/32" | 7/8" to 3" | Cast Iron | Type A-2 Web | 1/2" | 9.549" | - | €429.01 |
