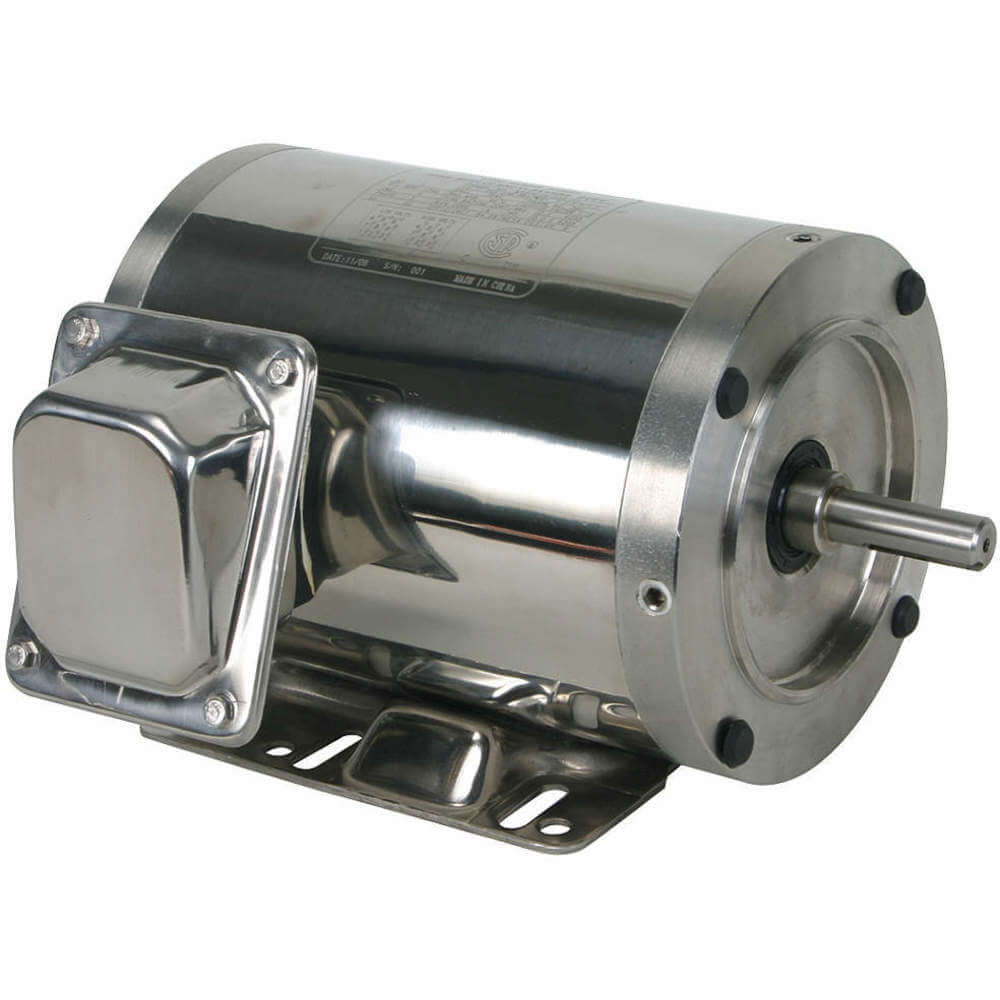

DAYTON 6WY31 Washdown Motor 3-phase Tenv 1/2 Hp 1745 Rpm
Get it by Tuesday, Dec 23
10.00% off
€1,077.44 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Bearing Type | Ball |
| Bearings | Ball |
| Drain Plug | 4 Condensate Drains (At 3, 6, 9 And 12 O'Clock) Plus 2 T-Drains (1 Pre-Installed Opposite Shaft End In 6 O'Clock Position, The Other Loose In The Carton For Customer Installation At Low Point Of Motor |
| Drain Plugs | 4 Condensate Drains (At 3, 6, 9, 12 O'Clock) Plus 2 T Drains (1 Pre Installed Opposite Shaft End In 6 O'Clock Position, The Other Loose In The Carton For Customer Installation At Low Point Of Motor) |
| Drain Plugs | 4 Condensate Drains (at 3, 6, 9 and 12 O'clock) Plus 2 T-drains (1 Pre-installed Opposite Shaft End in 6 O'clock Position, the Other Loose in the Carton for Customer Installation at Low Point of Motor) |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Endshield Grade | 300 Series , Stainless Steel |
| Endshields | 300 Series Stainless Steel |
| Finish | Unfinished |
| Footnotes | 1 |
| Frame | 56C |
| Frame Material | Stainless Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.6-1.8/0.8A |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Type | Face, Base |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1745 RPM |
| Nominal Efficiency | 82.5% |
| Overall Length | 9 7/8" |
| Phase | 3 |
| Product Type | Washdown Motor |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Material | Stainless Steel |
| Thermal Protection | None |
| Voltage | 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 14.15 |
| Ship height (cm) | 26.16 |
| Ship length (cm) | 29.46 |
| Ship width (cm) | 28.96 |
| HS code | 8501514040 |
| Country of Origin | CN |
Product Variants
| Model | Voltage | Hp | Full Load Amps | Nameplate Rpm | Frame | Finish | Phase | Motor Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 11G244 | 115/208-230V AC | 3/4 hp | 7.6/3.8-4A | 1745 RPM | - | - | 1 | Face | €1,067.68 | |
| 11G245 | 115/208-230V AC | 1 hp | 11.2/5.6-5.8A | 1745 RPM | 56C | Unfinished | 1 | Face | €1,117.31 | |
| 11G246 | 115/208-230V AC | 1 1/2 hp | 14.8/7.4-7.6A | 1745 RPM | 56C | - | 1 | Face | €1,202.25 | |
| 11G247 | 208-230V AC | 2 hp | 7.4-8.9A | 3450 RPM | 56C | Unfinished | 1 | Face | €1,309.67 | |
| 11G248 | 208-230V AC | 2 hp | 8.5-9.9A | 1745 RPM | 56C | Unfinished | 1 | - | €1,368.89 | |
| 11G252 | 115/208-230V AC | 1/2 hp | 5/2.5-2.6A | 1745 RPM | 56HC | Unfinished | 1 | - | €1,060.55 | |
| 11G253 | 115/208-230V AC | 3/4 hp | 7.6/3.8-4A | 1745 RPM | 56HC | Unfinished | 1 | Face, Base | €1,115.67 |
