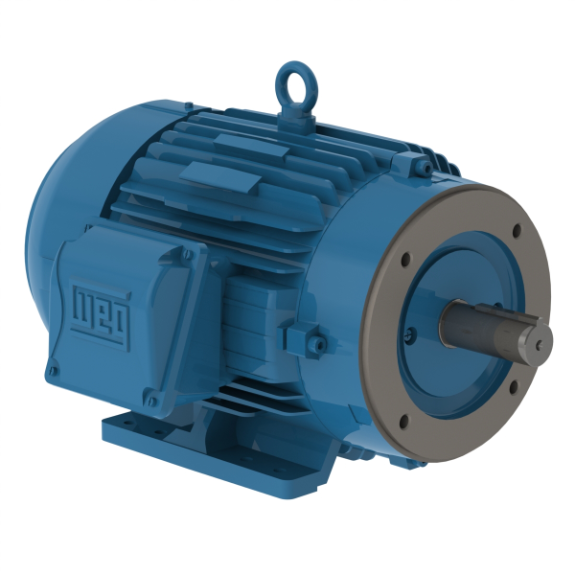

WEG 00512ET3H215TC-W22 Electric Motor, 5Hp, 60Hz, 1200 Rpm | BB9DFG

WEG 00512ET3H215TC-W22 14153912 Electric Motor, 5Hp, 60Hz, 1200 Rpm

Item: BB9DFGModel: 00512ET3H215TC-W22Cross Ref: 14153912
Check Availability
In Stock

Get it by Monday, Dec 22

€1,609.94 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap Yes
Break-down Torque 260%
Cold Locked Rotor Time 102 sec.
Connection Cables Quantity 6
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle Continuous
Efficiency At 1 % 76%
Efficiency At 50 % 58%
Efficiency At 75 % 70%
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange Type C
Frame 213/5TC
Frame Material Cast Iron
Frame Size 215TC
Frequency 60 Hz
Grounding Lugs Single
Horsepower 5 hp
Hot Locked Rotor Time 57 sec.
Impregnation Method Dip And Bake Polyester
L. R. Amps 37.2A
Locked Rotor Torque 170%
Lrc 6.8X(Code J)
Main Terminal Box Hole Size 1"
Main Terminal Box Hole Type NPT
Moment Of Inertia 1.47 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 1170 RPM
Mounting Foot Mounted
No Load Amps 2.76A
No. Of Poles 6
Noise Level 55 dBA
Output 5 hp
Output Rating 5 hp
Overload Protector Without Overload Protector
Painting RAL5009 207A (ISO 12944-C2)
Phase 3
Power Factor At 1 % 89.5
Power Factor At 50 % 88.5
Power Factor At 75 % 89.5
Rated Current 5.46A
Rated Torque 22.4 lbs.-ft.
Rated Voltage 575V AC
Rotation Clockwise/Counter Clockwise
Rpm 1100-1200 RPM
Service Factor 1.25
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.5%
Starting Method Direct On Line
Synchronous Speed 1200 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 575V

Shipping Info:

Ship weight (kg) 78.75
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
