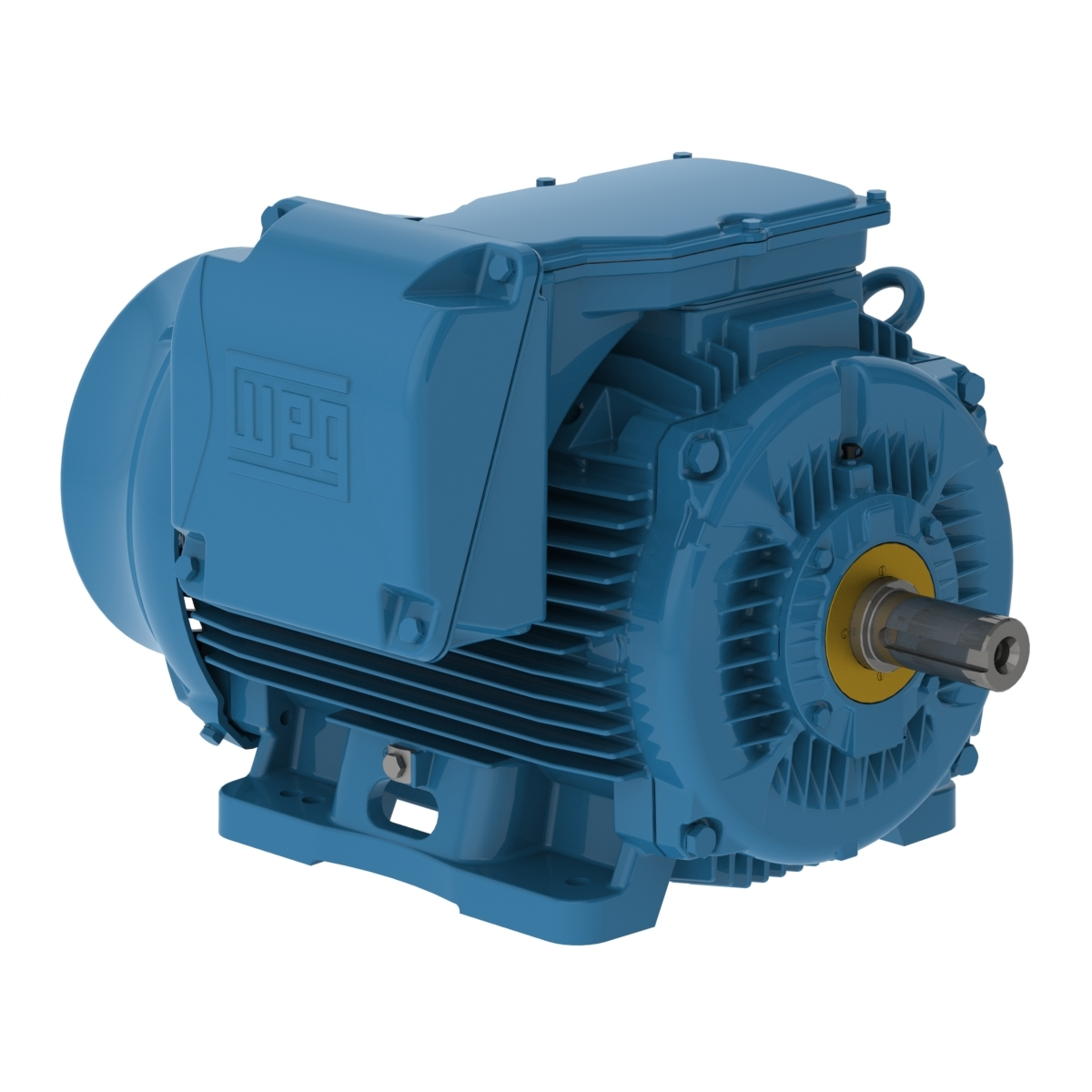

WEG 30012ET3GKD580Z-W22 13500624 Electric Motor, 300Hp, 60Hz, 1200 Rpm
Get it by Tuesday, Dec 23
€50,749.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Break-down Torque | 250% |
| Cold Locked Rotor Time | 54 sec. |
| Connection Cables Quantity | 12 |
| Design | A |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency At 1 % | 80% |
| Efficiency At 50 % | 65% |
| Efficiency At 75 % | 75% |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange Type | Without |
| Frame | 586/7TZ |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grounding Lugs | Double |
| Hot Locked Rotor Time | 30 sec. |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | Class F |
| L. R. Amps | 2124A |
| Locked Rotor Torque | 220% |
| Lrc | 5.9X(Code G) |
| Main Terminal Box Hole Type | NPT |
| Moment Of Inertia | 278 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1193 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 165A |
| No. Of Holes | 2 |
| No. Of Poles | 6 |
| Noise Level | 77 dBA |
| Output | 300 hp |
| Output Rating | 300 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 95.8 |
| Power Factor At 50 % | 95 |
| Power Factor At 75 % | 95.8 |
| Rated Current | 360A |
| Rated Torque | 1320 lbs.-ft. |
| Rated Voltage | 460V |
| Regreasing System | At Drive End And Non Drive End |
| Rotation | CW/CCW |
| Rpm | 1100-1200 RPM |
| Service Factor | 1.15 |
| Shaft Locking Device | With |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 4140 |
| Slip | 0.58% |
| Space Heater Voltage | 200-240V AC |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 460V AC |
| Winding Thermal Protection | Thermostat - 2 wires 1 per phase 155°C |
Shipping Info:
| Ship weight (kg) | 1849.05 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 25.4 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Frequency | Service Factor | Frame | Duty Cycle | No. Of Poles | Break-down Torque | Synchronous Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

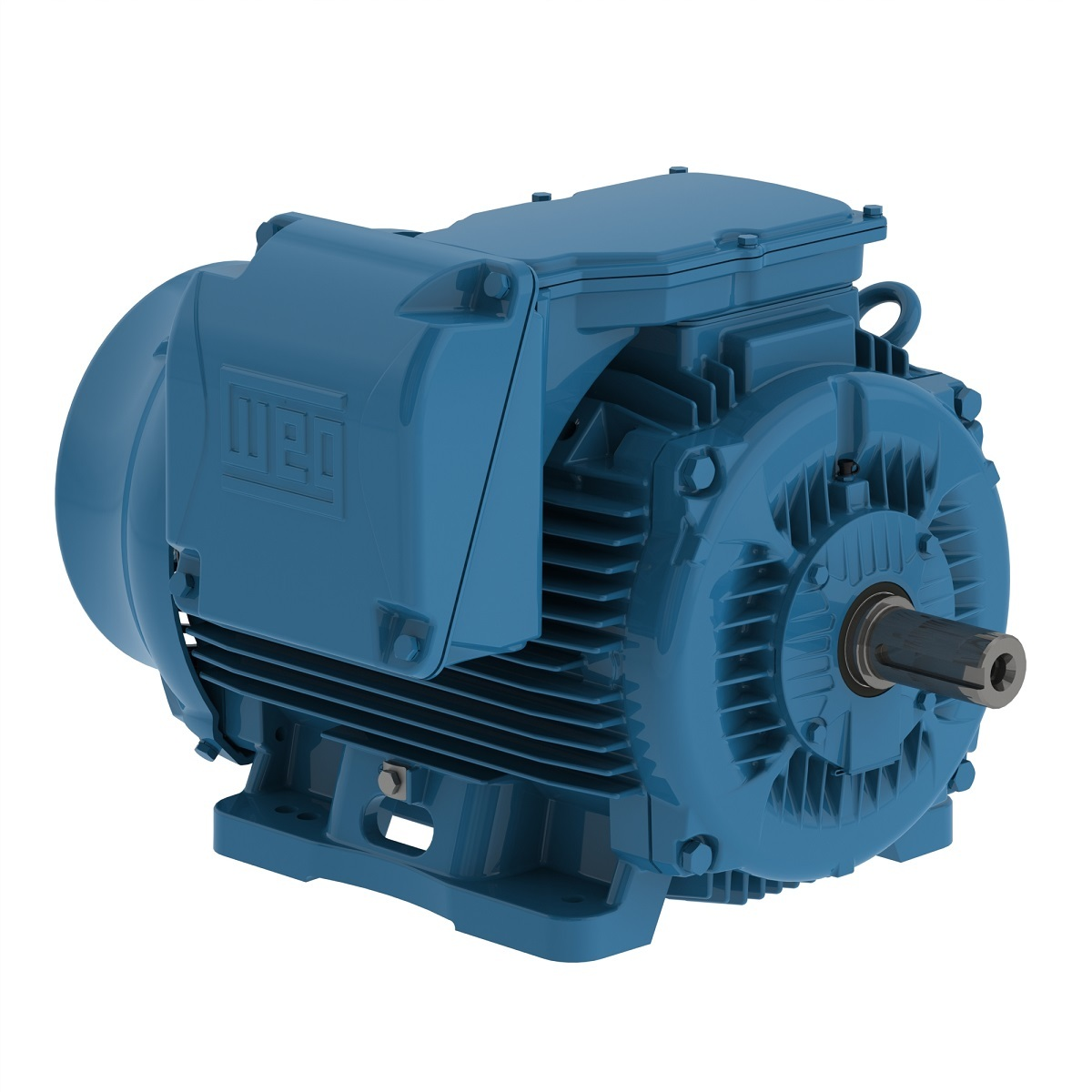

20012ET3HKD505Z-W22 | 575V AC | 60 Hz | 1.15 | 504/5T | S1 | 6 | 280% | 1200 RPM | €29,235.96 | |
|
25018ET3GKD447T-W22 | 460V AC | 60 Hz | - | 445/7T | S1 | 4 | 240% | 1800 RPM | €30,605.09 | |
 |
30012ET3GKD586/7-W22 | 460V AC | 60 Hz | 1.15 | 586/7T | S1 | 6 | 250% | 1200 RPM | €50,749.96 | |
 |
40018ET3GKD580Z-W22 | 460V | 60 Hz | 1.15 | 586/7TZ | Continuous | 4 | 240% | 1800 RPM | - | RFQ
|
|
25012ET3GKD580Z-W22 | 460V AC | 60 Hz | - | 586/7TZ | S1 | 6 | 229% | 1200 RPM | €45,400.14 | |
|
40012ET3GKD580Z-W22 | 460V AC | 60 Hz | 1.15 | 586/7TZ | S1 | 6 | 250% | 1200 RPM | €66,683.72 | |
|
50018ET3GKD580Z-W22 | 460V AC | 60 Hz | 1 | 586/7TZ | S1 | 4 | 250% | 1800 RPM | €59,124.09 |
