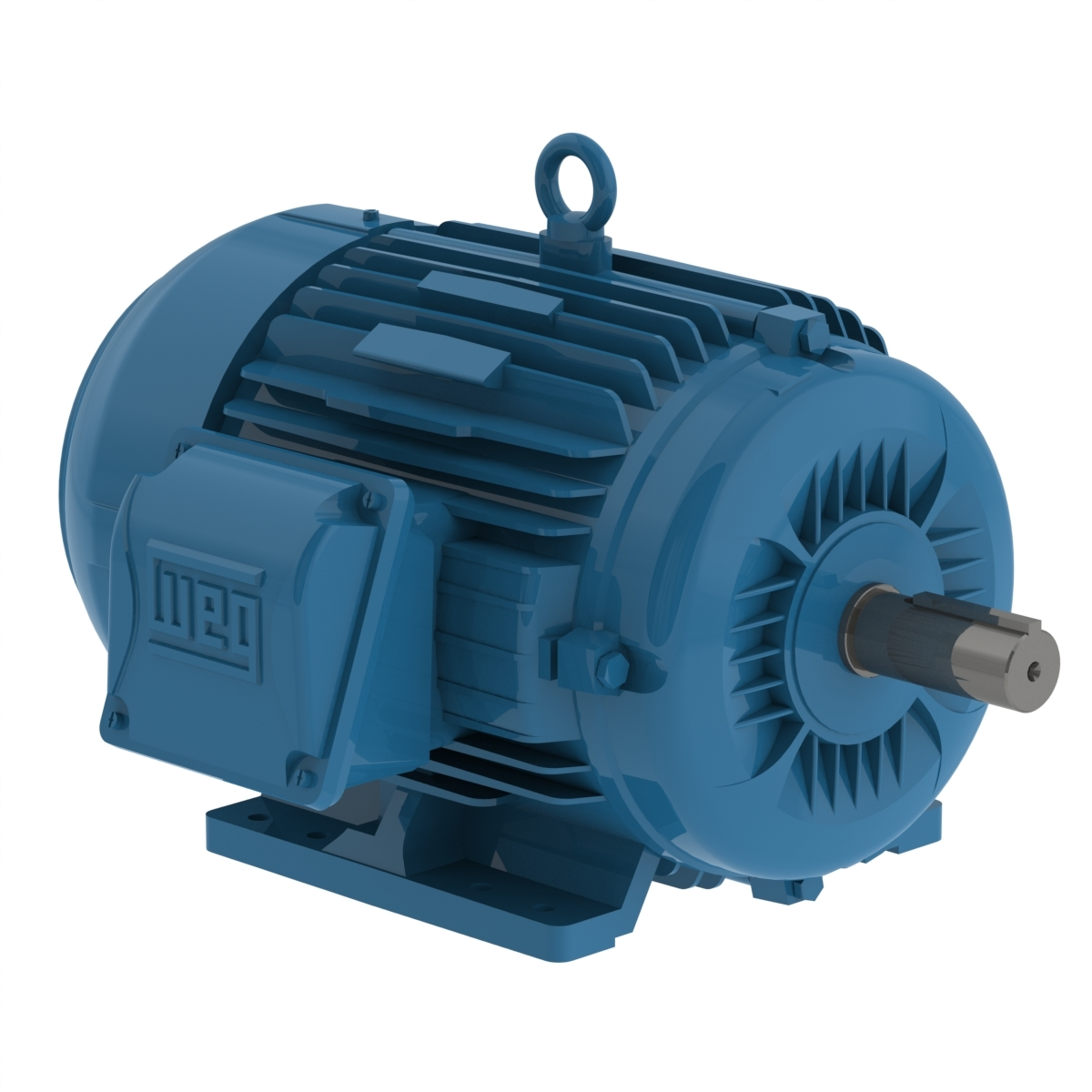

WEG 00109ET3H182T-W22 12438229 General Purpose Motor, TEFC Cast Iron 182/4T Frame, 1 HP, 880 RPM, 575 V
900 rpm
1 hp
184T
Get it by Tuesday, Jul 14
€1,244.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 1.84A , 1.85A |
| Bearing Cap | No |
| Break Down Torque | 350% |
| Cold Locked Rotor Time | 39 sec. |
| Connection Cables Quantity | 6 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 50% |
| Efficiency 50% | 32% , 72.5% |
| Efficiency 75% | 77% |
| Efficiency @ 1 % | 52% |
| Efficiency @ 100% | 78.5% |
| Efficiency @ 75 % | 42% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | Without |
| Flange Type | Without |
| Frame | 182/4T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 1.84A |
| Grade | Grade 1010/20 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hot Locked Rotor Time | 22 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 11.6A , 11A |
| Locked Rotor Time (cold) | 39 sec. |
| Locked Rotor Time(hot) | 22 sec. |
| Locked Rotor Torque | 300% |
| Lrc | 6.0X(Code M) , 6.3x(Code N) |
| Main Terminal Box Hole | 1" |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 0.3991 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.3991 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 875 RPM |
| Mounting | F-1 , Foot Mounted |
| Nde Bearing Seal | V Ring |
| No Load Amps | 1.36A , 1.6A |
| No. Of Poles | 8 |
| Noise | 50 dBA |
| Noise Level | 50 dBA |
| Output | 1 hp |
| Output Hp | 1 hp |
| Output Rating | 1 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer , RAL5009 207A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor 100% | 0.52 |
| Power Factor 50% | 0.32 |
| Power Factor 75% | 0.42 |
| Power Factor @ 1 % | 78.5 |
| Power Factor @ 50 % | 74 |
| Power Factor @ 75 % | 77 |
| Product Datasheet | weg-00109et3h182t-w22.pdf |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.22% , 2.78% |
| Speed | 875 RPM , 880 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 900 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 5.92 lbs.-ft. , 6 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 575V , 575V AC |
Shipping Info:
| Ship weight (kg) | 46.8 |
| Ship height (cm) | 77.98 |
| Ship length (cm) | 40.28 |
| Ship width (cm) | 85.09 |
| Country of Origin | BR |
Documentation:
Product Variants
| Product | Model | Voltage | Frequency | Motor Enclosure Design | Service Factor | Hp | Full Load Amps | Frame | Duty Cycle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00109ET3E182T-W22 | 230/460/380V | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 1 hp | 4.6/2.3A | 182T | S1 | €1,106.24 | |
 |
00159ET3E184T-W22 | 230/460/380V | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 1 1/2 hp | 5.4/2.7A | 182/4T | S1 | €1,282.62 | |
|
00209ET3E213T-W22 | 230/460/380V | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 2 hp | 6.8/3.4A | 213T | S1 | €2,102.66 | |
|
00309ET3E215T-W22 | 230/460V AC | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 3 hp | 9.1/4.55A | 215T | S1 | €2,583.09 | |
 |
00509ET3E254T-W22 | 208-230/460V | 60 Hz | Totally Enclosed Fan Cooled | 1 | 5 hp | 15.2/7.6A | 254T | Continuous | €3,747.26 | |
 |
01509ES3EOW324T-W22 | 208-230/460V | 60 Hz | Totally Enclosed Fan Cooled | 1 | 15 hp | 43-38.9/19.5A | 324T | Continuous | - | RFQ
|
|
01009ES3EOW286T-W22 | 208-230/460V AC | 60 Hz | Totally Enclosed Fan Cooled | 1 | 10 hp | 30.7-27.8/13.9A | 286T | S1 | - | RFQ
|
