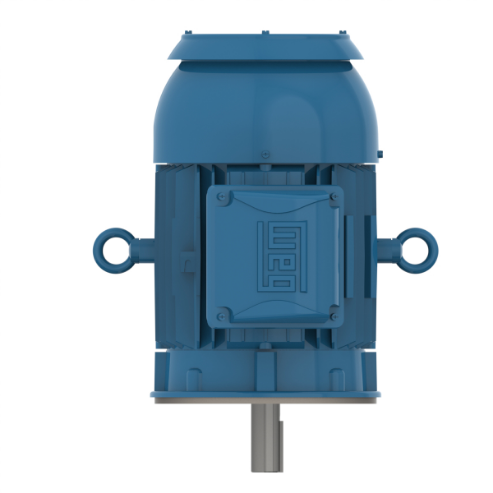

WEG 00336ET3ER182TC-W22 12821975 General Purpose Motor, TEFC Cast Iron 182TC Frame, 3 HP, 2910 RPM, 415 V
3600 rpm
3 hp
182TC
Get it by Tuesday, Jul 14
€985.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 3.71/7.42A |
| Bearing Cap | Yes |
| Break Down Torque | 350% |
| Cold Locked Rotor Time | 30 sec. |
| Composition | Cast Iron |
| Connection Cables Quantity | 9 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | With |
| Duty Cycle | S1 |
| Efficiency 50% | 82.5% |
| Efficiency 75% | 86.5% |
| Efficiency @ 100% | 86.5% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Feet | No |
| Flange | C |
| Flange Type | C |
| Frame Material | Cast Iron |
| Frame Size | 182TC |
| Frequency | 50 Hz , 50/60 Hz , 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hp | 3 hp |
| Impregnation Method | Dip and Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 31.9/63.8A , 33.7A |
| Locked Rotor Time (cold) | 37 sec. |
| Locked Rotor Time(hot) | 17 sec. , 21 sec. |
| Locked Rotor Torque | 220% |
| Lrc | 8.1x(Code K) |
| Main Terminal Box Hole | 1" |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia (j) | 0.1889 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Mounting | Footless , W-6 |
| Nde Bearing Seal | V Ring |
| No Load Amps | 1.45/2.9A |
| No. Of Poles | 2 |
| Noise Level | 66 dBA |
| Output Rating | 3 hp |
| Overload Protection | No |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor 100% | 0.86 |
| Power Factor 50% | 0.72 |
| Power Factor 75% | 0.82 |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Slip | 2.36% |
| Speed | 3515 RPM , 3600 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 4.48 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 230/460/380V , 230/460/380V AC , 415V |
Shipping Info:
| Ship weight (kg) | 48.6 |
| Ship height (cm) | 77.98 |
| Ship length (cm) | 41.14 |
| Ship width (cm) | 85.09 |
| Country of Origin | BR |
Product Variants
| Product | Model | Voltage | Frequency | Service Factor | Hp | Full Load Amps | Duty Cycle | Frame Material | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00218ET3ER145TC-W22 | 230/460V AC | 50/60 Hz | 1.25 | - | - | S1 | Cast Iron | 4 | €786.23 | |
 |
01518ET3ER254TC-W22 | 230/460V AC | 60 Hz | 1.25 | - | - | S1 | Cast Iron | 4 | €2,283.15 | |
 |
01018ET3ER215TC-W22 | 230/460V AC | 60 Hz | 1.25 | - | - | S1 | Cast Iron | 4 | €1,650.91 | |
|
00318ET3ER182TC-W22 | 230/460V AC | 50/60 Hz | 1.25 | - | - | Continuous | Cast Iron | 4 | €860.21 | |
|
00518ET3ER184TC-W22 | 230/460V AC | 60 Hz | 1.25 | - | 6.45/12.9-14.3A | S1 | Cast Iron | 4 | €995.02 | |
|
00512ET3ER215TC-W22 | 230/460V AC | 60 Hz | 1.25 | - | 6.83/13.7-15.1A | S1 | Cast Iron | 6 | €1,658.80 | |
 |
00236ET3E56CFL-S | 208-230/460V AC | 60 Hz | 1.15 | - | - | S1 | Rolled Steel | 2 | €844.20 |
