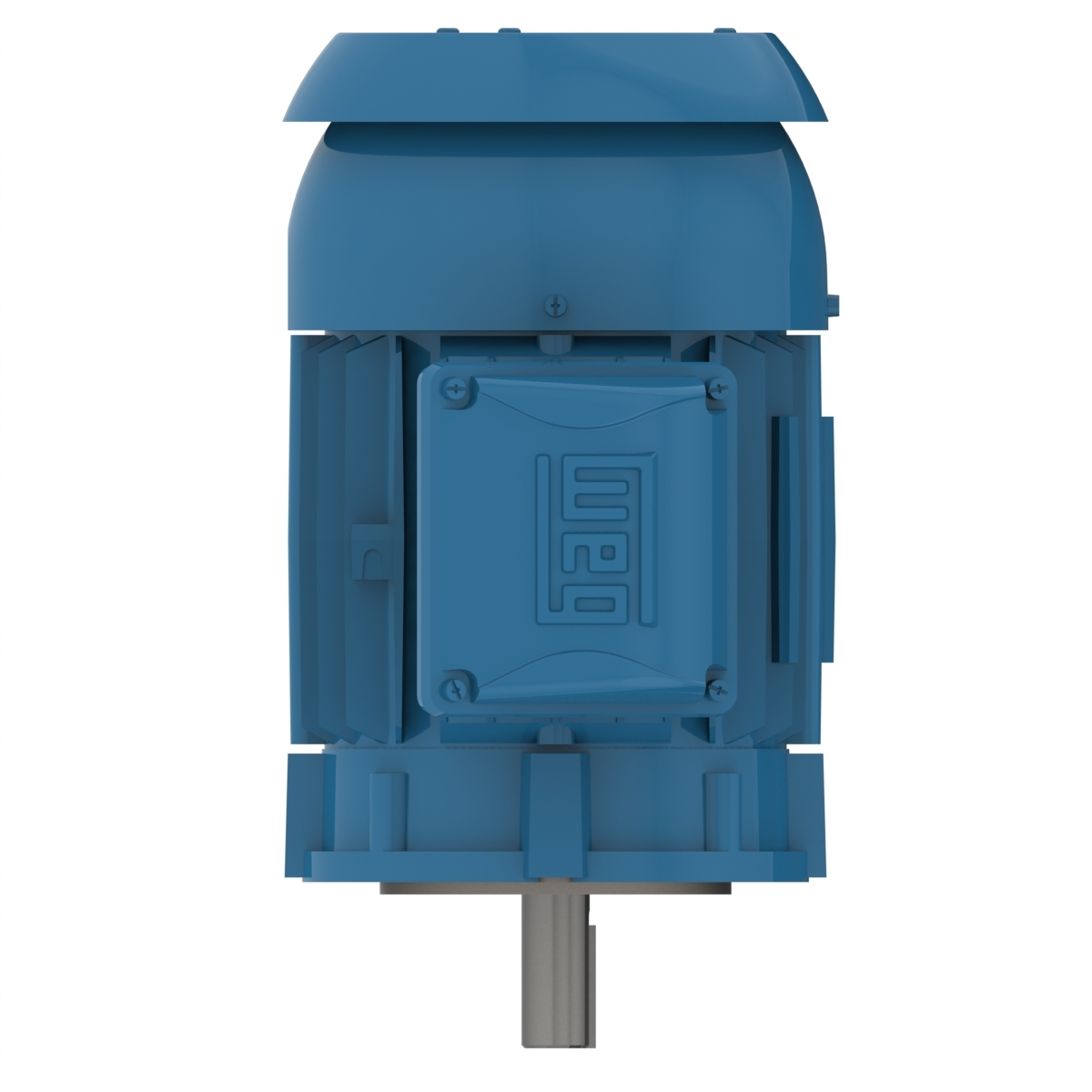

WEG 00336ET3ER145TC-W22 13468368 Electric Motor, 3Hp, 60Hz, 3600 Rpm
Get it by Thursday, Dec 18
€807.73 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Break-down Torque | 360% |
| Cold Locked Rotor Time | 25 sec. |
| Connection Cables Quantity | 9 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | With |
| Duty Cycle | S1 |
| Efficiency At 1 % | 86% |
| Efficiency At 50 % | 70% |
| Efficiency At 75 % | 81% |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange Type | C |
| Frame | 145TC |
| Frame Material | Cast Iron |
| Frame Size | 145TC |
| Frequency | 50/60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 14 sec. |
| Hz | 60 Hz |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 60.1/30.1A |
| Locked Rotor Torque | 330% |
| Lrc | 8.1X(Code J) |
| Main Terminal Box Hole Size | 3/4" |
| Main Terminal Box Hole Type | NPT |
| Moment Of Inertia | 0.0605 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 3460 RPM |
| Mounting | Footless |
| No Load Amps | 2.6/1.3A |
| No. Of Poles | 2 |
| Noise Level | 68 dBA |
| Output | 3 hp |
| Output Rating | 3 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 207A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 86.5 |
| Power Factor At 50 % | 85.5 |
| Power Factor At 75 % | 86.5 |
| Rated Current | 7.42/3.71A |
| Rated Torque | 4.55 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Rotation | CW/CCW |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 3.89% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 208-230/460/380V AC |
Shipping Info:
| Ship weight (kg) | 26.1 |
| Ship height (cm) | 77.98 |
| Ship length (cm) | 35.76 |
| Ship width (cm) | 85.09 |
| Country of Origin | BR |
Product Variants
| Product | Model | Voltage | Frequency | Service Factor | Hp | Nameplate Rpm | Full Load Amps | Duty Cycle | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00218ET3ER145TC-W22 | 230/460/380V AC | 50/60 Hz | 1.25 | - | - | - | S1 | Cast Iron | €786.23 | |
|
00118ST3QIER143TC-W2 | 460V AC | 60 Hz | 1.25 | - | - | - | S1 | Cast Iron | €1,193.08 | |
 |
01518ET3ER254TC-W22 | 230/460/380V AC | 50/60 Hz | 1.25 | - | - | - | S1 | Cast Iron | €2,283.15 | |
 |
01018ET3ER215TC-W22 | 230/460/380V AC | 50/60 Hz | 1.25 | - | - | - | S1 | Cast Iron | €1,650.91 | |
|
00318ET3ER182TC-W22 | 230/460/380V AC | 50/60 Hz | 1.25 | - | - | - | Continuous | Cast Iron | €860.21 | |
|
00518ET3ER184TC-W22 | 230/460/380V AC | 60 Hz | 1.25 | - | - | 6.45/12.9-14.3A | S1 | Cast Iron | €995.02 | |
|
00518ST3QIER184TC-W2 | - | 60 Hz | 1.25 | - | - | - | S1 | Cast Iron | €1,763.36 |
