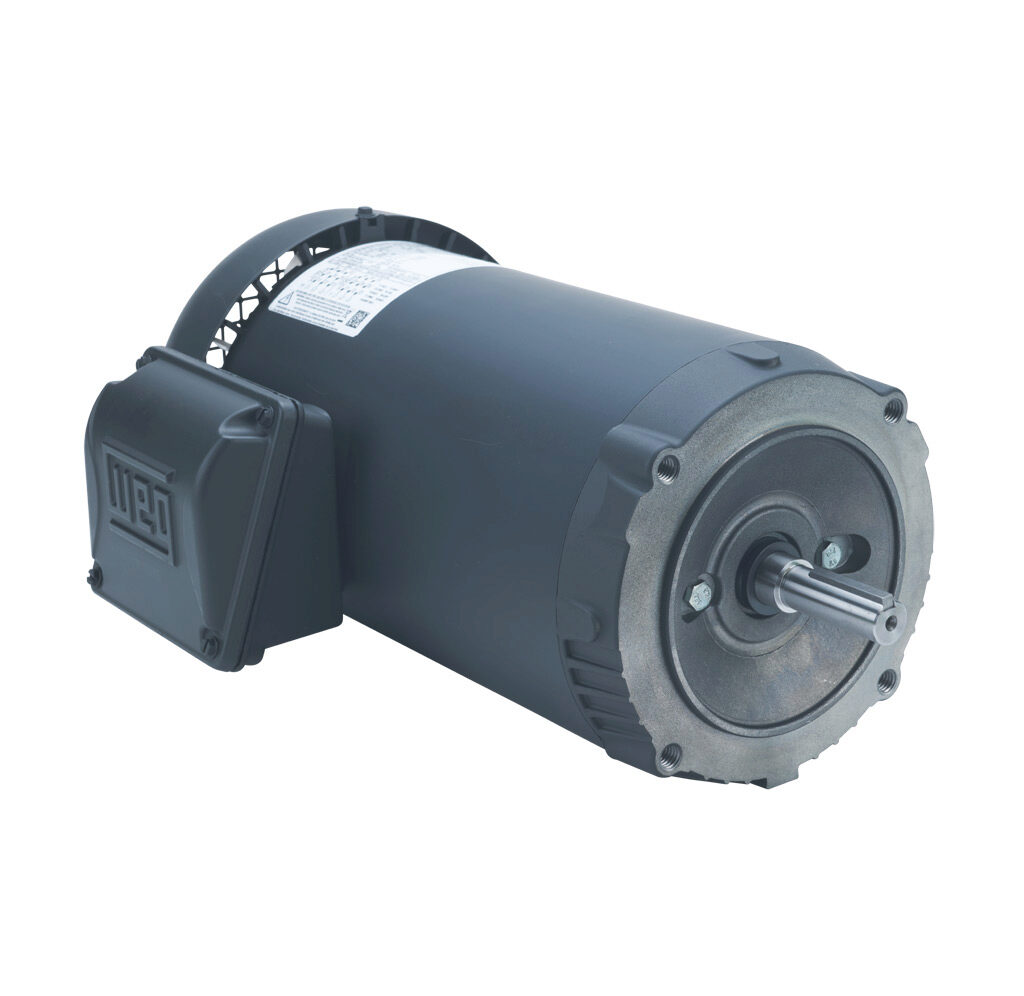

WEG 00336ET3E56CFL-S Electric Motor, 3Hp, 60Hz, 3600 Rpm | BB9GLH

WEG 00336ET3E56CFL-S 14786574 Fractional Motor, 3 HP, 3600 RPM, 208-230/460 V, 3 Phase, TEFC, 56CFL Frame, Footless

Item: BB9GLHModel: 00336ET3E56CFL-SCross Ref: 14786574
Check Availability
In Stock

Get it by Tuesday, Feb 17

€990.00 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 380%
Cold Locked Rotor Time 18 sec.
Composition Steel
Connection Cables Quantity 9
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle Continuous
Efficiency 86.5%
Efficiency At 1 % 87%
Efficiency At 50 % 71%
Efficiency At 75 % 82%
Enclosure Type Tefc
Fan Cover Material Polymer
Fan Material Plastic
Flange Type C
Frame 56
Frame Material Rolled Steel
Frequency 50/60 Hz
Grade Grade 1045
Grounding Lugs Single
Hot Locked Rotor Time 10 sec.
Hp 3 hp
Hz 60 Hz
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
Ip Rating IP55
L. R. Amps 68.3/34.1A
Locked Rotor Torque 280%
Lrc 9.3X(Code L)
Main Terminal Box Hole Size 0.881"
Moment Of Inertia 0.1663 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame 56C
Motor Speed 3505 RPM
Motor Type Induction
Mounting Footless
Mounting Orientation Horizontal, Vertical
No Load Amps 2.7/1.35A
No. Of Poles 2
Noise Level 68 dBA
Number Of Phases 3
Output 3 hp
Output Rating 3 hp
Overload Protector Without Overload Protector
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 3
Power Factor At 1 % 86.5
Power Factor At 50 % 81
Power Factor At 75 % 84
Product Datasheet weg-00336et3e56cfl-s.pdf
Rated Current 7.34/3.67A
Rated Torque 4.49 lbs.-ft.
Rated Voltage 230/460V AC
Rotation Clockwise/Counter Clockwise
Rpm 3400-3600 RPM
Service Factor 1.15
Shaft Diameter 5/8"
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.64%
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 230/460V

Shipping Info:

Ship weight (kg) 23.4
Ship height (cm)77.98
Ship length (cm)38.3
Ship width (cm)85.09
Country of OriginBR

Documentation:

Datasheet

Product Variants

ProductModelVoltageFrequencyService FactorHpNameplate RpmFull Load AmpsDuty CycleFrame MaterialPrice

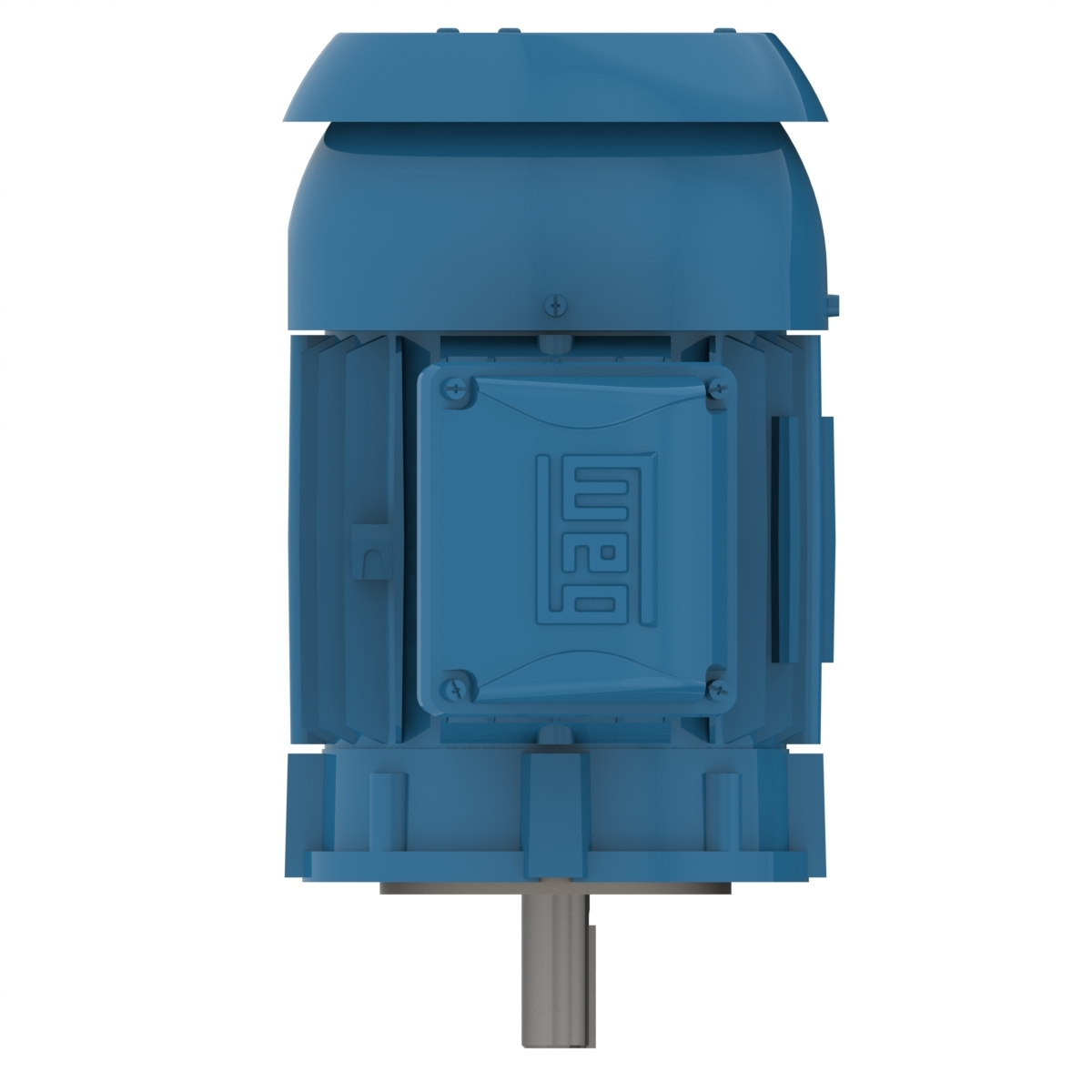

WEG 00218ET3ER145TC-W22 Electric Motor, 2Hp, 60Hz, 1800 Rpm | BA9YYJ 00218ET3ER145TC-W22230/460/380V AC50/60 Hz1.25---S1Cast Iron€786.23
WEG 01518ET3ER254TC-W22 Electric Motor, 15Hp, 60Hz, 1800 Rpm | BB2CAD 01518ET3ER254TC-W22230/460/380V AC50/60 Hz1.25---S1Cast Iron€2,283.15

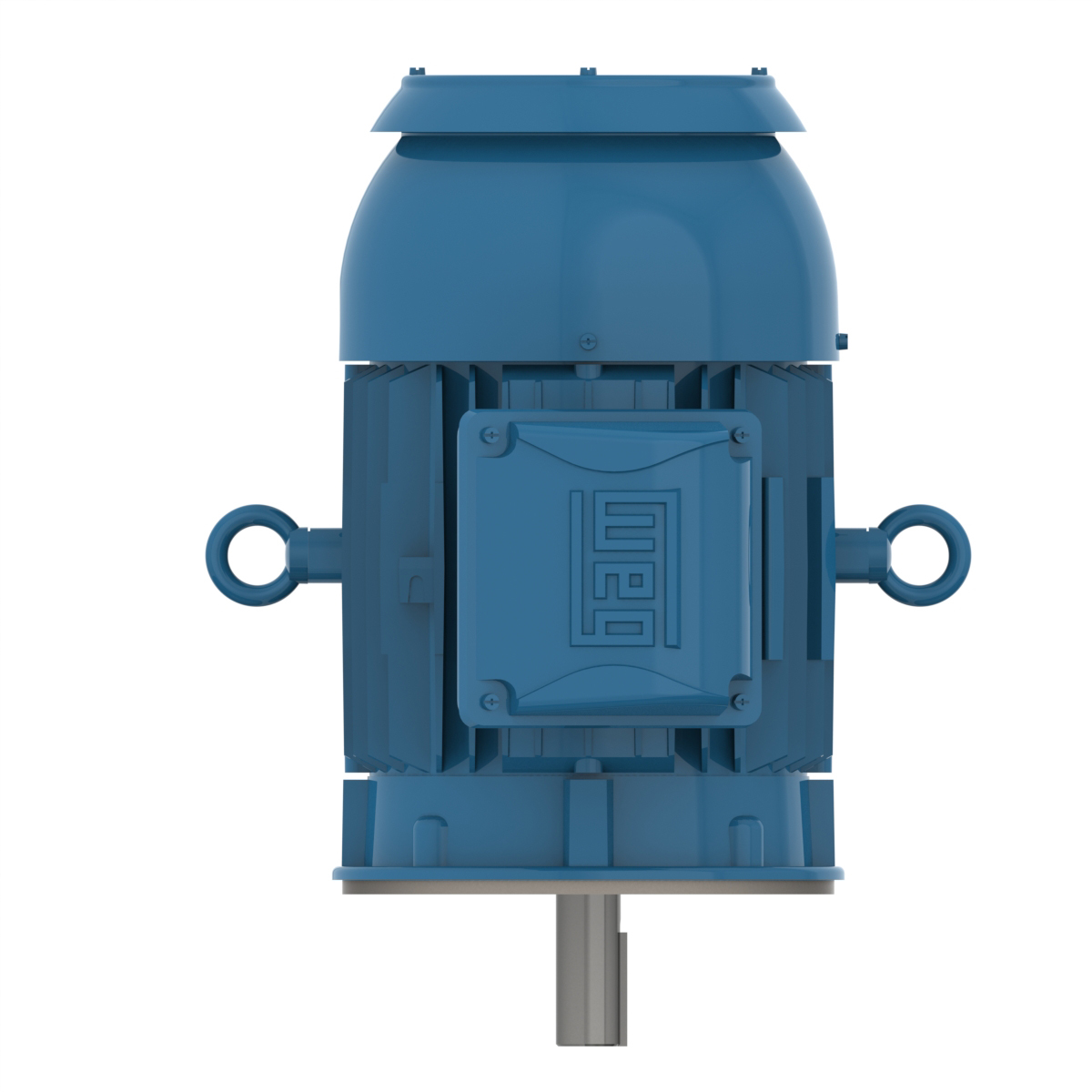

WEG 01018ET3ER215TC-W22 Electric Motor, 10Hp, 60Hz, 1800 Rpm | BB2QFP 01018ET3ER215TC-W22230/460/380V AC50/60 Hz1.25---S1Cast Iron€1,650.91
WEG 00318ET3ER182TC-W22 Electric Motor, 3Hp, 60Hz, 1800 Rpm | BB2QRY 00318ET3ER182TC-W22230/460/380V AC50/60 Hz1.25---ContinuousCast Iron€860.21
WEG 00518ET3ER184TC-W22 Electric Motor, 5Hp, 60Hz, 1755 Rpm | BB2RAE 00518ET3ER184TC-W22230/460/380V AC60 Hz1.25--6.45/12.9-14.3AS1Cast Iron€995.02
WEG 00512ET3ER215TC-W22 Electric Motor, 5Hp, 60Hz, 1170 Rpm | BB3JYT 00512ET3ER215TC-W22230/460/380V AC60 Hz1.25--6.83/13.7-15.1AS1Cast Iron€1,658.80

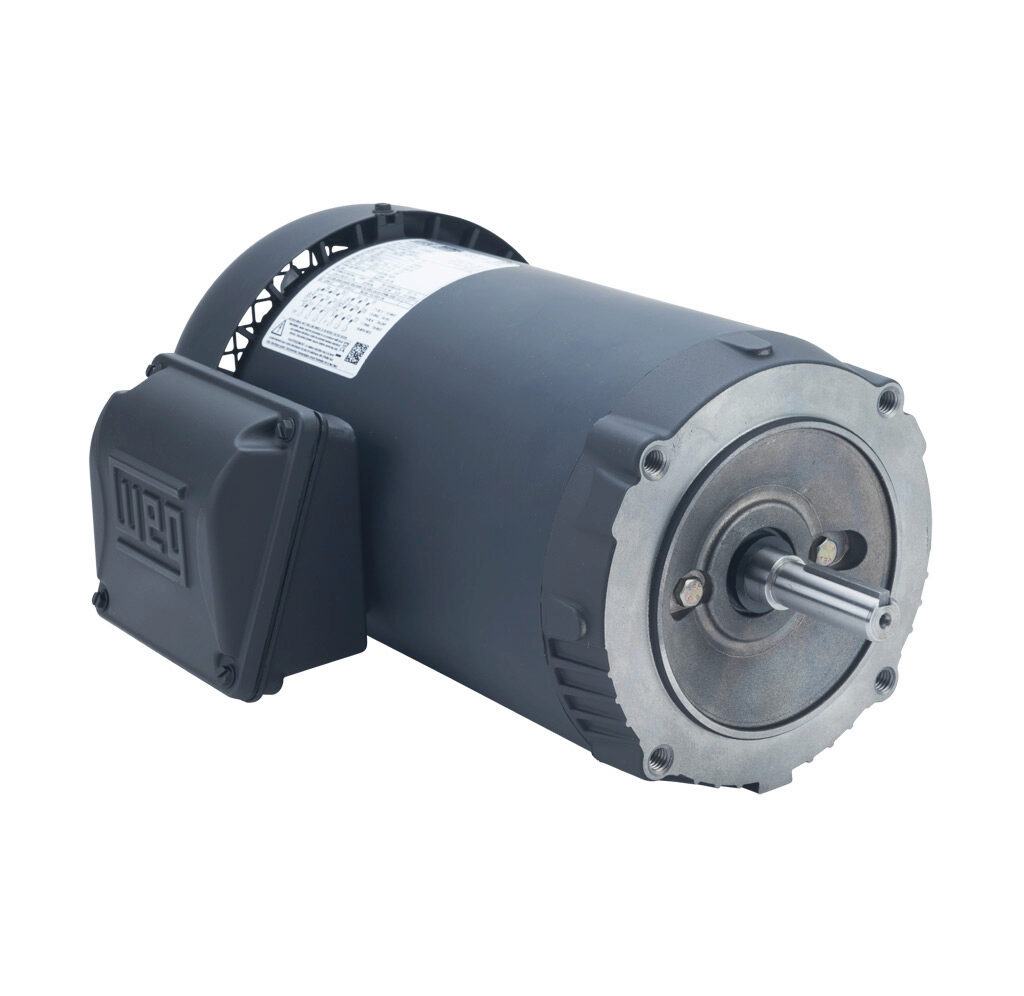

WEG 00236ET3E56CFL-S Electric Motor, 2Hp, 60Hz, 3600 Rpm | BB3LWY 00236ET3E56CFL-S230/460/190-220/380-415V AC50/60 Hz1.15-3520 RPM-S1Rolled Steel€844.20
