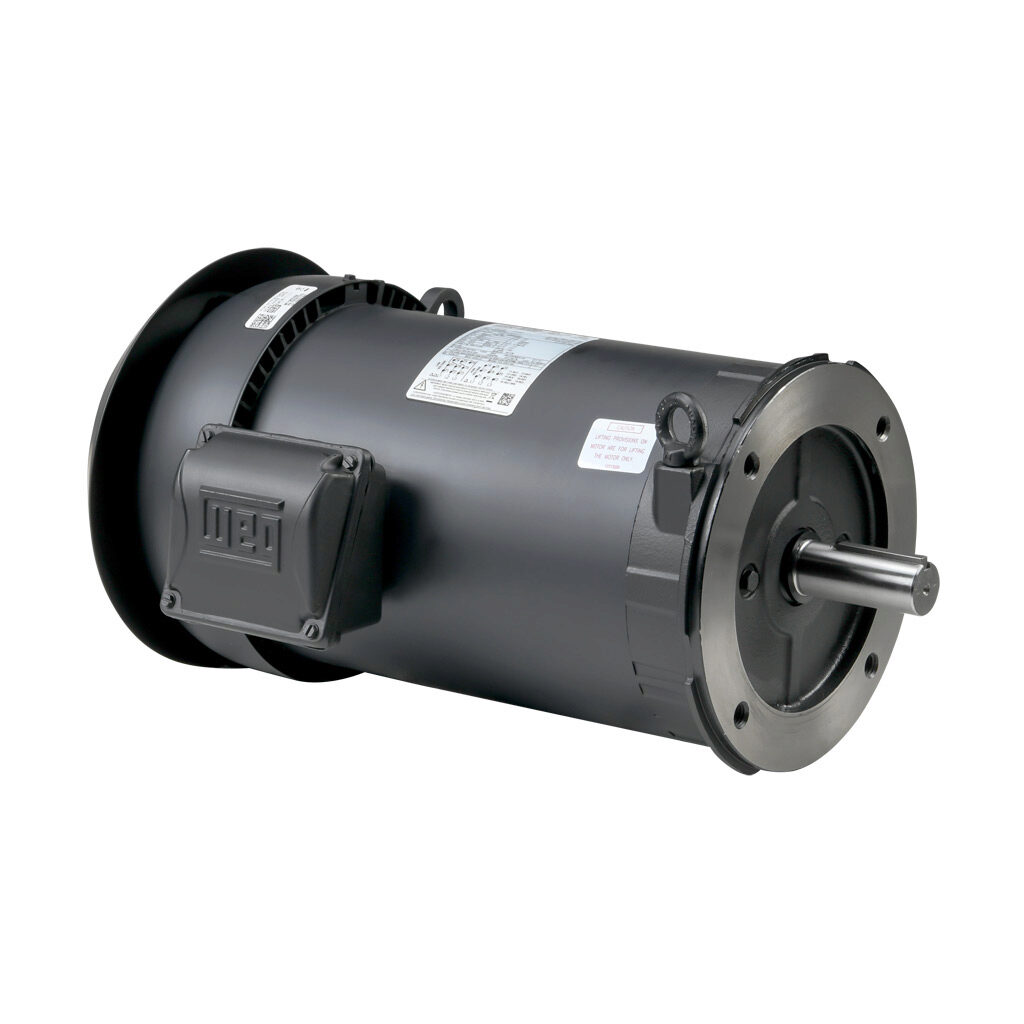

WEG 00318ET3ER182TC-S 12677332 General Purpose Motor, 3 HP, 1800 RPM, 208/230/460 V, 3 Phase, TEFC, 182/4TC Frame, Footless
1800 rpm
3 hp
184TC
Get it by Friday, Aug 28
€727.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 3.81/7.62A , 7.62/3.81A |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 32 sec. |
| Connection Cables Quantity | 9 |
| Constant Torque Rating | 4:1 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | With |
| Duty Cycle | S1 |
| Efficiency | 89.5% |
| Efficiency 50% | 61% , 87.5% |
| Efficiency 75% | 88.5% |
| Efficiency @ 1 % | 81% |
| Efficiency @ 100% | 89.5% |
| Efficiency @ 75 % | 74% |
| Efficiency Group | Premium Efficiency |
| Electrically Reversible | Yes |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame | 182/4TC |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz , 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 18 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Included | Drip cover |
| Insulation Class | Class F |
| Integrated Brake | No |
| Ip Rating | IP55 |
| L. R. Amps | 33.5/67.1A , 67.1/33.5A |
| Locked Rotor Time (cold) | 32 sec. |
| Locked Rotor Time(hot) | 18 sec. |
| Locked Rotor Torque | 220% |
| Lrc | 8.8X(Code K) |
| Main Terminal Box Hole | 1.118" |
| Main Terminal Box Hole Size | 1.118" |
| Moment Of Inertia | 0.4017 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.4017 lbs.-sq. ft. |
| Motor Application | General Purpose And Inverter Rated |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame | 182TC |
| Motor Speed | 1765 RPM |
| Motor Type | Induction |
| Mounting | Footless , W-6 |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Speed | 1765 RPM |
| Nema Design | Design B |
| No Load Amps | 2/4A , 4/2A |
| No. Of Phase | 3 |
| No. Of Poles | 4 |
| Noise Level | 56 dBA |
| Output | 3 hp |
| Output Rating | 3 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 100% | 0.81 |
| Power Factor 50% | 0.61 |
| Power Factor 75% | 0.74 |
| Power Factor @ 1 % | 89.5 |
| Power Factor @ 50 % | 87.5 |
| Power Factor @ 75 % | 88.5 |
| Product Datasheet | weg-00318et3er182tc-s.pdf |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Series | S Series |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Shaft Type | Round With Square Key |
| Slip | 1.94% |
| Speed | 1700-1800 RPM , 1765 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 8.93 lbs.-ft. |
| Tropicalized Painting | Without |
| Variable Torque Rating | 1000:1 |
| Voltage | 190-220/230/380-415/460V , 208-230/460V AC , 230/460/190-220/380-415V AC , 230/460V AC |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 39.15 |
| Ship height (cm) | 24.38 |
| Ship length (cm) | 39.88 |
| Ship width (cm) | 30.99 |
| Country of Origin | BR |
Documentation:
Product Variants
| Product | Model | Voltage | Frequency | Service Factor | Hp | Full Load Amps | Duty Cycle | Frame Material | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00218ET3ER145TC-W22 | 230/460V AC | 50 Hz | 1.25 | - | - | S1 | Cast Iron | 4 | €786.23 | |
 |
01518ET3ER254TC-W22 | 230/460V AC | 60 Hz | 1.25 | - | - | S1 | Cast Iron | 4 | €2,283.15 | |
 |
01018ET3ER215TC-W22 | 230/460V AC | 60 Hz | 1.25 | - | - | S1 | Cast Iron | 4 | €1,650.91 | |
|
00318ET3ER182TC-W22 | 230/460V AC | 50 Hz | 1.25 | - | - | Continuous | Cast Iron | 4 | €860.21 | |
|
00518ET3ER184TC-W22 | 230/460V AC | 60 Hz | 1.25 | - | 6.45/12.9-14.3A | S1 | Cast Iron | 4 | €995.02 | |
|
00512ET3ER215TC-W22 | 230/460V AC | 60 Hz | 1.25 | - | 6.83/13.7-15.1A | S1 | Cast Iron | 6 | €1,658.80 | |
 |
00236ET3E56CFL-S | 208-230/460V AC | 60 Hz | 1.15 | - | - | S1 | Rolled Steel | 2 | €844.20 |
