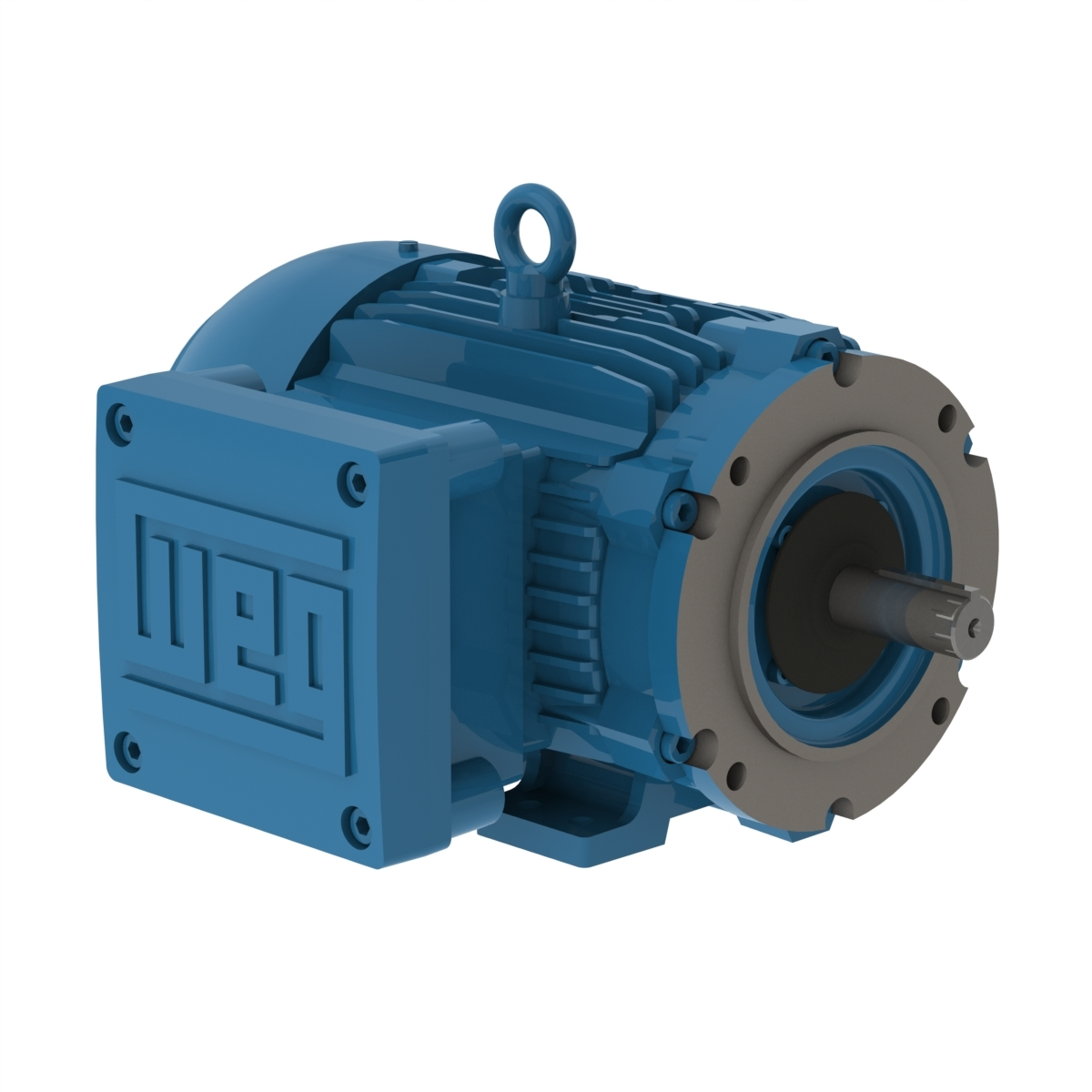

WEG 00236XT3E145TC 14296383 Electric Motor, 2Hp, 60Hz, 3495 Rpm

Item: BB4UDLModel: 00236XT3E145TCCross Ref: 14296383

Check Availability

In Stock

Get it by Thursday, Dec 18

€1,246.77 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Hazardous Location Motor
Altitude	1000 MASL
Ambient Temp.	-20°C to +40°C
Balancing Method	1/2" Key
Bearing Cap	Yes
Bolt Material	Carbon Steel
Break-down Torque	420%
Cold Locked Rotor Time	27 sec.
Connection Cables Quantity	9
Cooling	IC411
Design	B
Drip Cover	Without
Duty Cycle	Continuous
Efficiency	50%
Efficiency At 1 %	82%
Efficiency At 50 %	64%
Efficiency At 75 %	76%
Enclosure Type	Tefc
Fan Cover Material	Steel
Fan Material	Plastic
Flange	C
Frame	143/5TC
Frame Material	Cast Iron
Frame Size	145T
Frequency	50/60 Hz
Grounding Lugs	Single
Hot Locked Rotor Time	15 sec.
Hz	60 Hz
Impregnation Method	Dip And Bake Polyester
Insulation Class	Class F
L. R. Amps	49.5/24.7A
Locked Rotor Torque	370%
Lrc	9.2XA
Main Terminal Box Hole Size	3/4"
Main Terminal Box Hole Type	NPT
Moment Of Inertia	0.0551 lbs.-sq. ft.
Motor Enclosure Design	Totally Enclosed Fan Cooled
Motor Shaft Rotation	Clockwise/Counter Clockwise
Mounting Type	Foot Mounted
Nameplate Rpm	3495 RPM
No Load Amps	2.40/1.2A
No. Of Poles	2
Noise Level	68 dBA
Output	2 hp
Output Hp	2 hp
Output Rating	1.5 kW
Overload Protector	Without Overload Protector
Painting	RAL 5009 202P (ISO 12944 - C4)
Phase	3
Power Factor At 1 %	85.5
Power Factor At 50 %	80
Power Factor At 75 %	84
Rated Current	5.38/2.69A
Rated Torque	3.01 lbs.-ft.
Rated Voltage	230/460V AC
Rpm	3400-3600 RPM
Service Factor	1
Shaft Locking Device	Without
Shaft Material	Carbon Steel
Shaft Material Grade	Grade 1040/45
Slip	2.92%
Starting Method	Direct On Line
Synchronous Speed	3600 RPM
Temp. Rise	80 K
Terminal Block	Without
Terminal Box	Left Position
Tropicalized Painting	Without
Voltage	230/460/380V
Winding Thermal Protection	Thermostat - 2 wires 1 per phase 155°C

Shipping Info:

Ship weight (kg)	36.45
Ship height (cm)	27.94
Ship length (cm)	45.72
Ship width (cm)	35.56
Country of Origin	US

Product Variants

Model	Voltage	Frame	Nameplate Rpm	Hp	Motor Application	Mounting Type	Frame Material	Output Rating	Price
00518XT3E184TC	230/460/380V	182/4TC	1750 RPM	5 hp	Hazardous Application	F-1	Cast Iron	3.7 kW	€2,274.81
02018XT3E256TC	230/460/380V	-	-	-	-	Foot Mounted	Cast Iron	20 hp	€3,850.71
01018XT3E215TC	208-230/460/380V	L215TC	-	-	-	Foot Mounted	Cast Iron	10 hp	€2,520.13
00736XT3E213TC	230/460V	213/5TC	3535 RPM	7 1/2 hp	-	F-1	Cast Iron	5.5 kW	€1,990.68
00218XT3E145TC	230/460/380V	143/5TC	1750 RPM	-	-	Foot Mounted	Cast Iron	1.5 kW	€1,369.66
00718XT3E213TC	230/460/380V	213/5TC	1765 RPM	-	-	F-1	Cast Iron	5.5 kW	€2,404.52
01518XT3E254TC	230/460/380V	254TC	1770 RPM	-	-	Foot Mounted	Cast Iron	11 kW	€3,440.34
