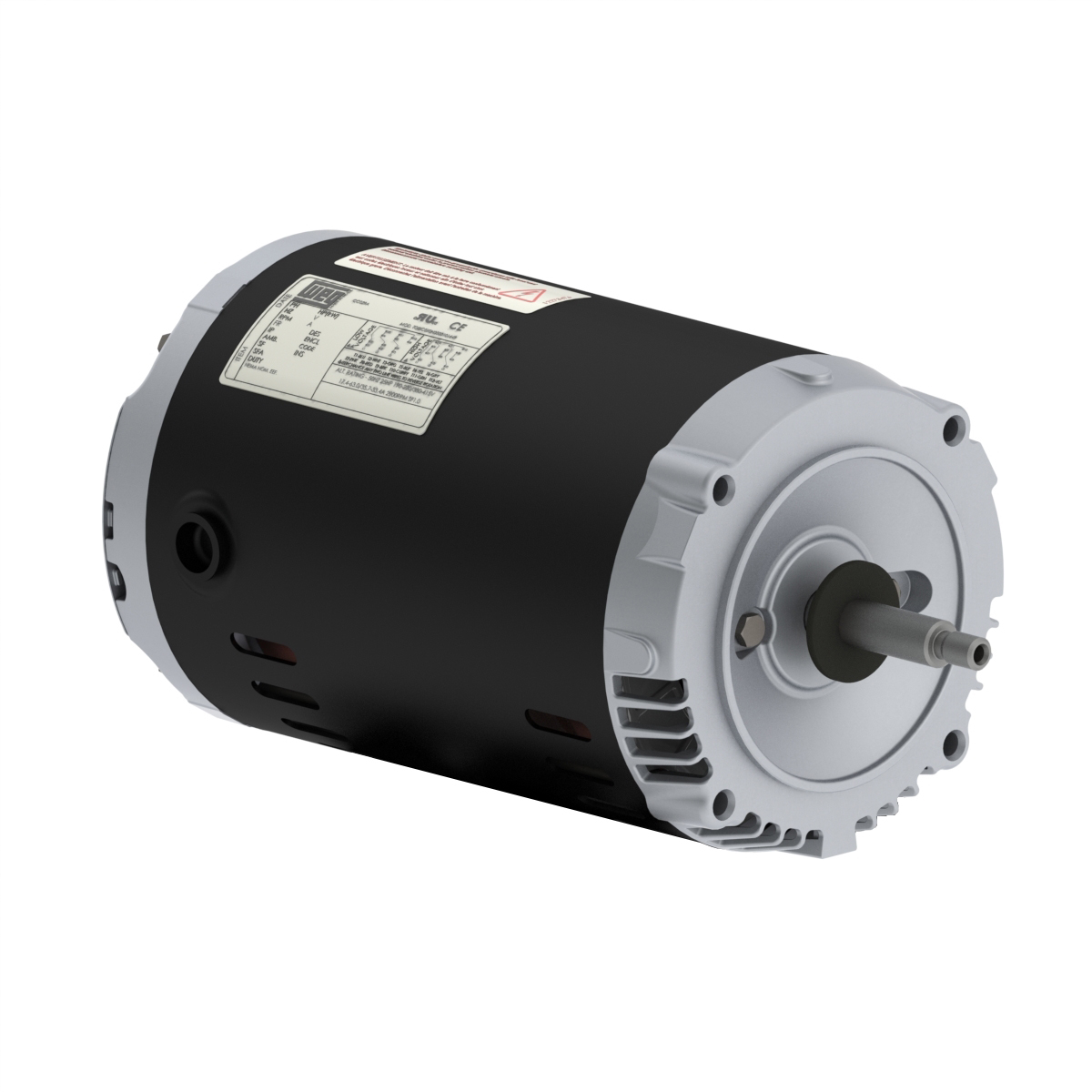

WEG 00236OS3HJPR56J-S 14497837 General Purpose Motor, ODP RolLED Steel 56J Frame, 2 HP, 3470 RPM, 575 V
2 hp
56J
575V
Get it by Tuesday, Sep 1
€382.97 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 2.26A |
| Balancing Method | Without Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Composition | Steel |
| Connection Cables Quantity | 3 |
| De Bearing Seal | No |
| Design | A |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 66% , 77% |
| Efficiency 75% | 78.5% |
| Efficiency @ 1 % | 85% |
| Efficiency @ 100% | 78.5% |
| Efficiency @ 75 % | 79% |
| Enclosure | IC01 |
| Enclosure Rating | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Flange Type | C |
| Frame | 56J |
| Frame Material | Rolled Steel |
| Frame Size | 56J |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hot Locked Rotor Time | 10 sec. |
| Hp | 2 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| Locked Rotor Time (cold) | 18 sec. |
| Locked Rotor Torque | 229% |
| Lrc | 7.0X(Code J) , 7x(Code J) |
| Moment Of Inertia | 0.0774 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.0774 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 3470 RPM |
| Mounting | F-1 , Footless |
| Nde Bearing Seal | No |
| No Load Amps | 1.04A |
| No. Of Poles | 2 |
| Noise Level | 62 dBA |
| Output | 2 hp |
| Output Rating | 2 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor 100% | 0.85 |
| Power Factor 50% | 0.66 |
| Power Factor 75% | 0.79 |
| Power Factor @ 1 % | 78.5 |
| Power Factor @ 50 % | 77 |
| Power Factor @ 75 % | 78.5 |
| Resilient Base | Without |
| Rotation | CCW |
| Service Factor | 1.2 |
| Shaft Material | Stainless Steel |
| Shaft Material Grade | Grade 304 |
| Slip | 3.61% |
| Speed | 3400-3600 RPM , 3470 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Torque | 3.03 lbs.-ft. |
| Tropicalized Painting | Without |
Shipping Info:
| Ship weight (kg) | 14.4 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 30.5 |
| Ship width (cm) | 25.4 |
| Country of Origin | BR |
Product Variants
| Product | Model | Frequency | Service Factor | Hp | Mounting | Output Rating | Duty Cycle | No Load Amps | Altitude | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00136OS3EJPR56J-S | 60 Hz | 1.4 | - | Footless | 1 hp | S1 | 1.9/0.95A | 1000 MASL | €342.43 | |
|
00236OS3EJPR56J-S | 60 Hz | 1.2 | - | Footless | 2 hp | S1 | 2.6/1.3A | 1000 MASL | €382.97 | |
 |
.7536OS3EJPR56J-S | 60 Hz | 1.5 | 3/4 hp | Footless | 3/4 hp | S1 | 1.38-1.6/0.8A | 1000 MASL | €331.66 | |
|
00156OS3EJPR56J-S | 60 Hz | 1.3 | - | Footless | 1 1/2 hp | S1 | 2.2/1.1A | 1000 MASL | €363.88 | |
 |
00156OS3HJPR56C-S | 60 Hz | 1.3 | 1 1/2 hp | Footless | 1 1/2 hp | S1 | 0.88A | 1000 MASL | €346.00 | |
|
00336OS3EJPR56J-S | 60 Hz | 1.15 | - | Footless | 3 hp | S1 | 3.2/1.6A | 1000 MASL | €417.58 | |
|
00336OS3EJPR56C-S | 60 Hz | 1.15 | - | Footless | 3 hp | S1 | 3.2/1.6A | 1000 MASL | €396.11 |
