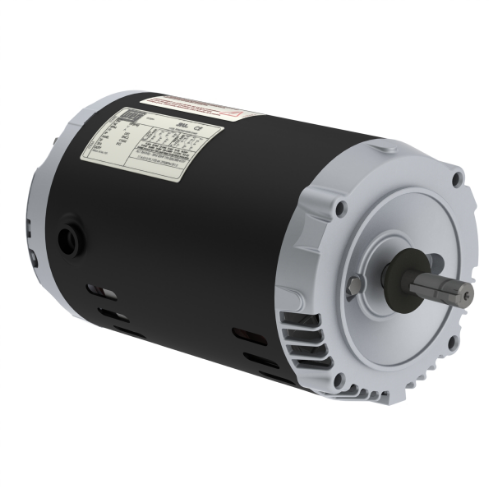

WEG .7536OS3EJPR56C-S 12676384 Electric Motor, 0.75Hp, 60Hz, 3600 Rpm
Get it by Thursday, Dec 18
€306.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 260% |
| Cold Locked Rotor Time | 48 sec. |
| Composition | Steel |
| Connection Cables Quantity | 9 |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 79% |
| Efficiency At 50 % | 57% |
| Efficiency At 75 % | 70% |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange Type | C |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frame Size | 56C |
| Frequency | 50/60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 27 sec. |
| Hp | 3/4 hp |
| Hz | 60 Hz |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 17-15.4/7.69A |
| Locked Rotor Torque | 210% |
| Lrc | 6.2X(Code K) |
| Moment Of Inertia | 0.0453 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 3475 RPM |
| Mounting | Footless |
| No Load Amps | 1.38-1.6/0.8A |
| No. Of Poles | 2 |
| Noise Level | 62 dBA |
| Output | 3/4 hp |
| Output Rating | 3/4 hp |
| Overload Protector | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor At 1 % | 70 |
| Power Factor At 50 % | 64 |
| Power Factor At 75 % | 68.5 |
| Rated Current | 2.74-2.48/1.24A |
| Rated Torque | 1.13 lbs.-ft. |
| Rated Voltage | 208-230/460V AC |
| Resilient Base | Without |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.5 |
| Shaft Material | Stainless Steel |
| Shaft Material Grade | Grade 304 |
| Ships Factory Direct | No |
| Slip | 3.47% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Tropicalized Painting | Without |
| Voltage | 208-230/460V |
Shipping Info:
| Ship weight (kg) | 10.8 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 25.4 |
| Country of Origin | US |
Product Variants
| Product | Model | Frequency | Service Factor | Hp | Mounting | Output Rating | Duty Cycle | No Load Amps | Altitude | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00136OS3EJPR56J-S | 50/60 Hz | 1.4 | - | Footless | 1 hp | S1 | 1.9/0.95A | 1000 MASL | €342.43 | |
|
00236OS3EJPR56J-S | 50/60 Hz | 1.2 | - | Footless | 2 hp | S1 | 2.6/1.3A | 1000 MASL | €382.97 | |
 |
.7536OS3EJPR56J-S | 50/60 Hz | 1.5 | 3/4 hp | Footless | 3/4 hp | S1 | 1.38-1.6/0.8A | 1000 MASL | €331.66 | |
|
00156OS3EJPR56J-S | 60 Hz | 1.3 | - | Footless | 1 1/2 hp | S1 | 2.2/1.1A | 1000 MASL | €363.88 | |
 |
00156OS3HJPR56C-S | 60 Hz | 1.3 | 1 1/2 hp | Footless | 1 1/2 hp | S1 | 0.88A | 1000 MASL | €346.00 | |
|
00336OS3EJPR56J-S | 60 Hz | 1.15 | - | Footless | 3 hp | S1 | 3.2/1.6A | 1000 MASL | €417.58 | |
|
00336OS3EJPR56C-S | 60 Hz | 1.15 | - | Footless | 3 hp | S1 | 3.2/1.6A | 1000 MASL | €396.11 |
