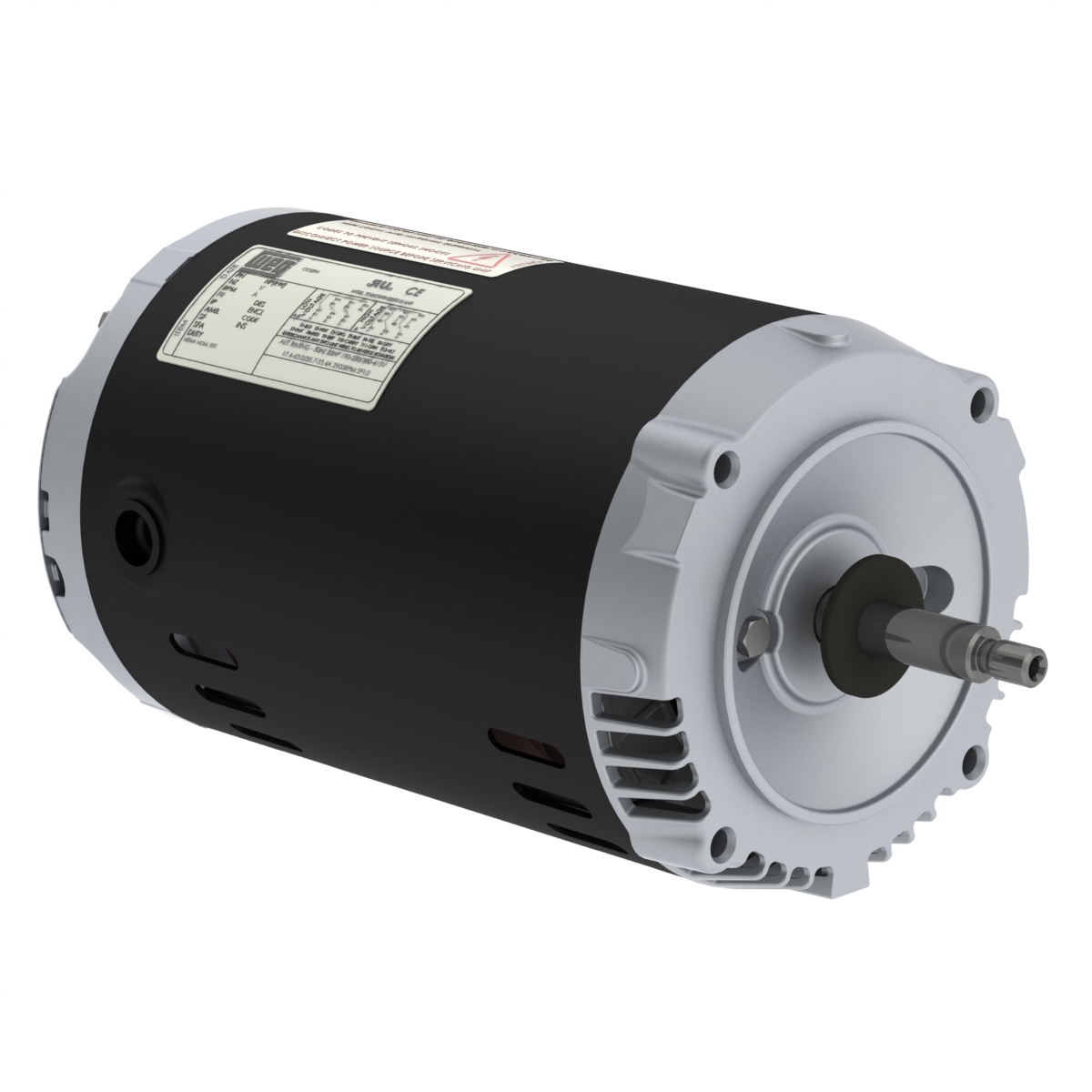

WEG 00136OS3EJPR56J-S 12676609 Jet Pump Motor, 1 HP, 3600 RPM, 208/230/460 V, 3 Phase, ODP, 56J Frame, Footless
1 hp
56J
208/230/460V
Get it by Monday, Apr 6
€342.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | Without Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 250% |
| Breakdown Torque | 250% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 41 sec. |
| Connection Cables Quantity | 9 |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency @ 100% | 75.5% |
| Efficiency @ 50% | 70% |
| Efficiency @ 75% | 74% |
| Efficiency At 1 % | 81% |
| Efficiency At 50 % | 60% |
| Efficiency At 75 % | 73% |
| Enclosure | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Flange Type | C |
| Frame | 56J |
| Frame Material | Rolled Steel |
| Frame Size | 56J |
| Frequency | 50/60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 23 sec. |
| Hz | 60 Hz |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 19.7/9.86A |
| L.r. Amperes | 9.86/19.7A |
| Locked Rotor Time (cold) | 41 sec. |
| Locked Rotor Time (hot) | 23 sec. |
| Locked Rotor Torque | 220% |
| Lrc | 6.4X(Code J) |
| Moment Of Inertia | 0.0517 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.0517 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 3470 RPM |
| Mounting | F-1 , Footless |
| No Load Amps | 0.95/1.9A , 1.9/0.95A |
| No. Of Poles | 2 |
| Noise Level | 62 dBA |
| Output | 1 hp |
| Output Rating | 1 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor 50% | 0.6 |
| Power Factor 75% | 0.73 |
| Power Factor At 1 % | 75.5 |
| Power Factor At 50 % | 70 |
| Power Factor At 75 % | 74 |
| Power Factor_100% | 0.81 |
| Product Datasheet | weg-00136os3ejpr56j-s.pdf |
| Rated Current | 1.54/3.08A , 3.08/1.54A |
| Rated Speed | 3470 RPM |
| Rated Torque | 1.51 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Resilient Base | Without |
| Rotation | CCW |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.4 |
| Shaft Material | Stainless Steel |
| Shaft Material Grade | Grade 304 |
| Slip | 3.61% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Tropicalized Painting | Without |
| Voltage | 190-220/230/380-415/460V , 230/460/190-220/380-415V AC |
Shipping Info:
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 28.5 |
| Ship width (cm) | 25.4 |
| Country of Origin | BR |
Documentation:
Product Variants
| Product | Model | Frequency | Service Factor | Hp | Mounting | Output Rating | Duty Cycle | No Load Amps | Altitude | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
00236OS3EJPR56J-S | 50/60 Hz | 1.2 | - | Footless | 2 hp | S1 | 2.6/1.3A | 1000 MASL | €382.97 | |
 |
.7536OS3EJPR56J-S | 50/60 Hz | 1.5 | 3/4 hp | Footless | 3/4 hp | S1 | 1.38-1.6/0.8A | 1000 MASL | €331.66 | |
|
00156OS3EJPR56J-S | 60 Hz | 1.3 | - | Footless | 1 1/2 hp | S1 | 2.2/1.1A | 1000 MASL | €363.88 | |
 |

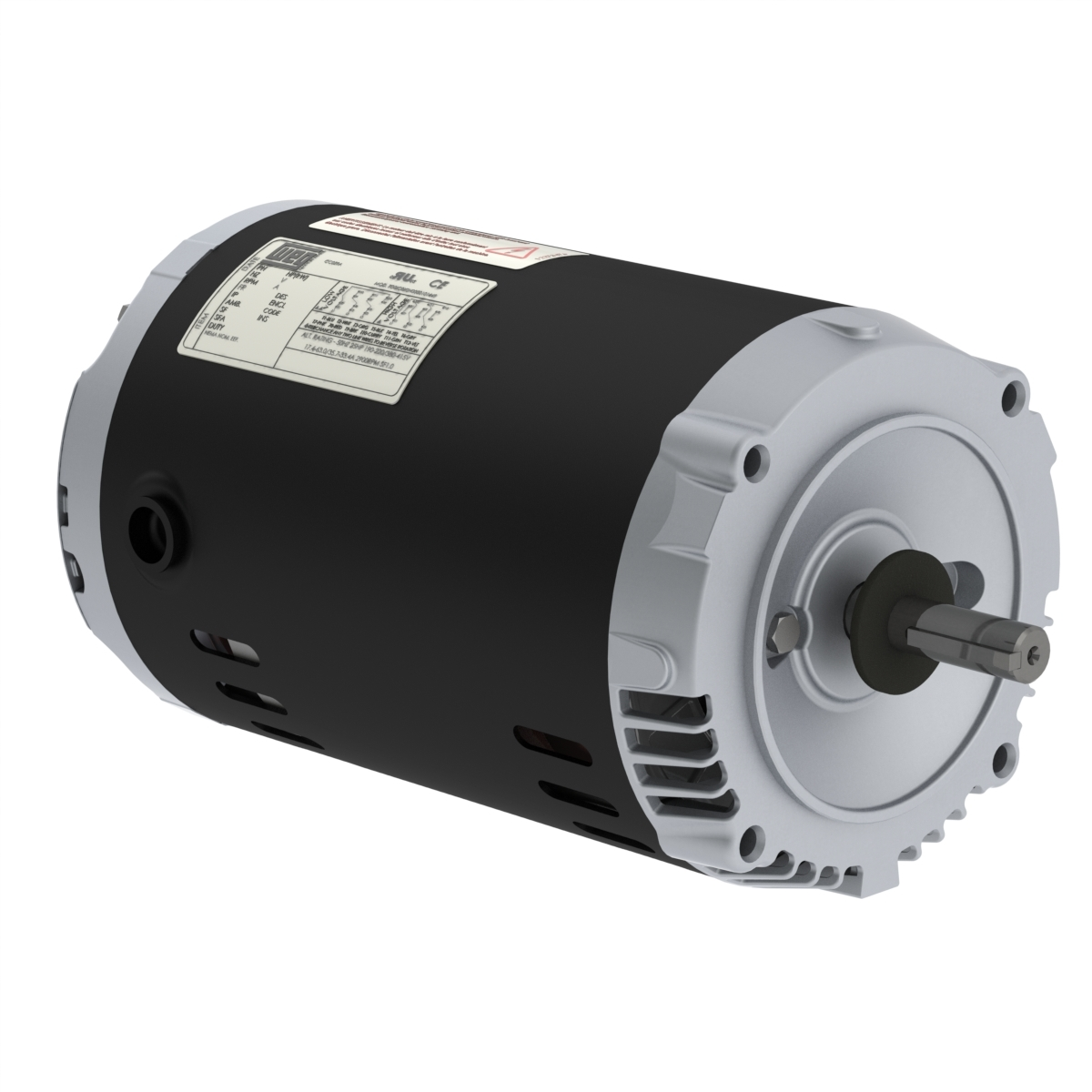

00156OS3HJPR56C-S | 60 Hz | 1.3 | 1 1/2 hp | Footless | 1 1/2 hp | S1 | 0.88A | 1000 MASL | €346.00 | |
|
00336OS3EJPR56J-S | 60 Hz | 1.15 | - | Footless | 3 hp | S1 | 3.2/1.6A | 1000 MASL | €417.58 | |
|
00336OS3EJPR56C-S | 60 Hz | 1.15 | - | Footless | 3 hp | S1 | 3.2/1.6A | 1000 MASL | €396.11 | |
|
00236OS3HJPR56C-S | 60 Hz | 1.2 | 2 hp | Footless | 2 hp | S1 | 1.04A | 1000 M.A.S.L. | €371.05 |
