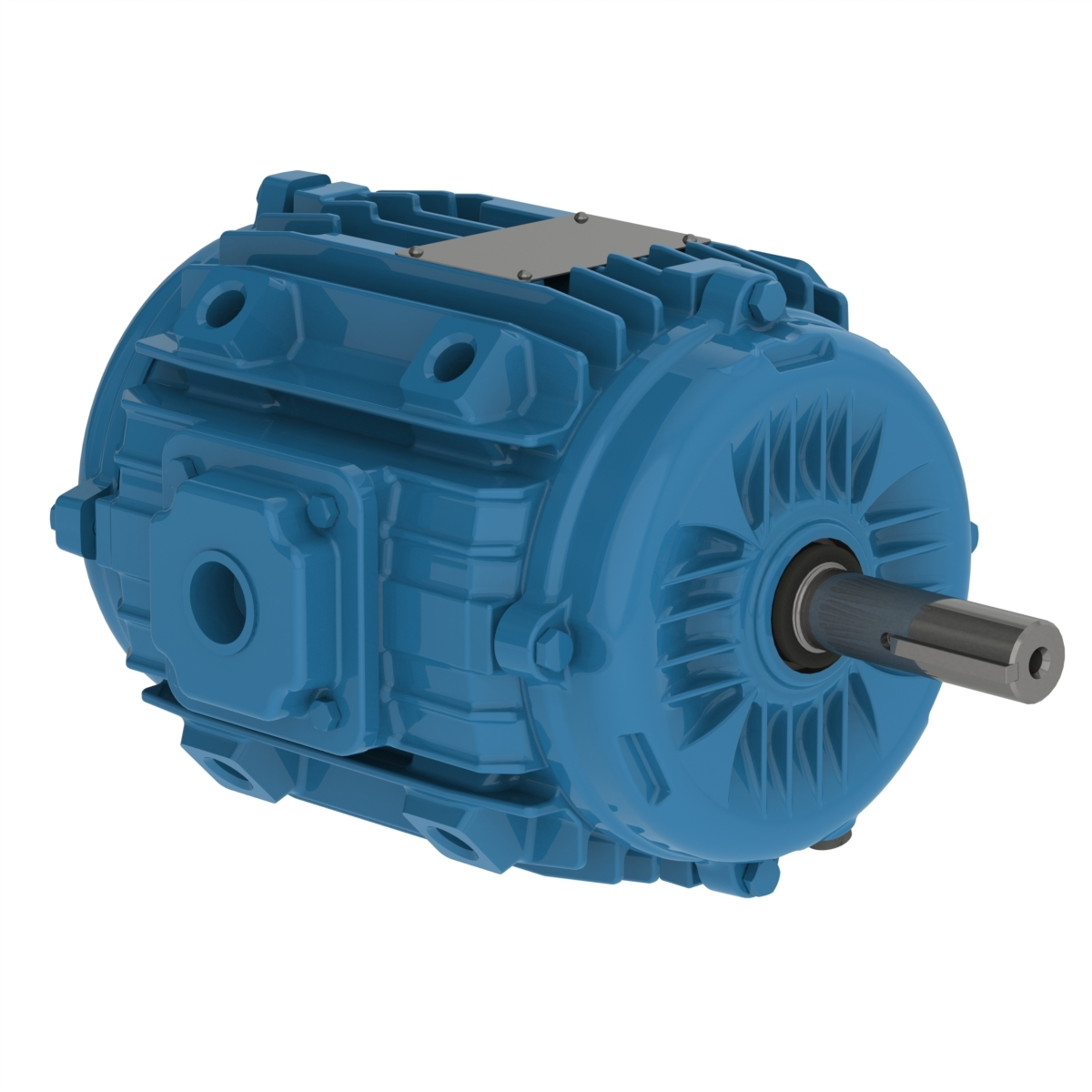

WEG 00218ET3EPM143/5Y-W2 13629665 Air Handling Motor, Pad Mount, 2 HP, 1800 RPM, 208-230/460 V

Item: BC3HCXModel: 00218ET3EPM143/5Y-W2Cross Ref: 13629665

Check Availability

In Stock

2 hp

HP

145Y

Frame

1800 rpm

RPM

Get it by Wednesday, Jul 15

€817.25 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Electric Motor
Altitude	1000 M.A.S.L. , 1000 MASL
Ambient Temp.	-20°C to +40°C
Amps	2.76/5.51-6.09A , 6.09-5.51/2.76A
Balancing Method	1/2 Key , 1/2" Key
Bearing Cap	No
Break Down Torque	320%
Cold Locked Rotor Time	19 sec.
Connection Cables Quantity	9
De Bearing Seal	V Ring
Degree Of Protection	IP55
Design	B
Drain	Rubber, Automatic
Drip Cover	Without
Duty Cycle	S1
Efficiency 50%	57% , 85.5%
Efficiency 75%	86.5%
Efficiency @ 1 %	79%
Efficiency @ 100%	86.5%
Efficiency @ 75 %	70%
Enclosure	IC418
Enclosure Rating	IC418
Enclosure Type	Teao
Fan Cover Material	Without Fan Cover
Fan Material	Without Fan
Flange	Without
Flange Type	Without
Frame	145YZ
Frame Material	Cast Iron
Frequency	60 Hz
Grade	Grade 1010/20
Grounding Lugs	Single
Grounding Lugs Type	Single
Hot Locked Rotor Time	11 sec.
Impregnation Method	Dip And Bake Polyester
Insulation Class	Class F
L. R. Amps	22.9/45.7-50.5A , 50.5-45.7/22.9A
Locked Rotor Time (cold)	19 sec.
Locked Rotor Time(hot)	11 sec.
Locked Rotor Torque	270%
Lrc	8.3X(Code L)
Main Terminal Box Hole	3/4"
Main Terminal Box Hole Size	3/4"
Main Terminal Box Hole Type	NPT
Main Terminal Box Type	NPT
Material	Carbon Steel
Moment Of Inertia	0.1566 lbs.-sq. ft.
Moment Of Inertia (j)	0.1566 lbs.-sq. ft.
Motor Enclosure Design	Totally Enclosed Air Over
Motor Speed	1755 RPM
Mounting	F-1 , Pad Mounted
Nde Bearing Seal	V Ring
No Load Amps	1.63/2.81-3.26A , 2.81-3.26/1.63A
No. Of Poles	4
Output	2 hp
Output Rating	2 hp
Overload Protection	No
Overload Protector	Without Overload Protector
Overload Protector (phenolic)	Without Overload Protector
Painting	Only Primer , RAL5009 207A (ISO 12944-C2)
Phase	3
Power Factor 100%	0.79
Power Factor 50%	0.57
Power Factor 75%	0.7
Power Factor @ 1 %	86.5
Power Factor @ 50 %	85.5
Power Factor @ 75 %	86.5
Rotation	CW, CCW
Screw Cap	Carbon Steel
Service Factor	1.25
Shaft Locking Device	Without
Shaft Material	Carbon Steel
Shaft Material Grade	Grade 1040/45
Slip	2.5%
Speed	1700-1800 RPM , 1755 RPM
Starting Method	Direct On Line
Synchronous Speed	1800 RPM
Temp. Rise	80 K
Terminal Block	Without
Terminal Box	Left Position
Torque	5.98 lbs.-ft.
Tropicalized Painting	Without
Voltage	208-230/460V , 208-230/460V AC

Shipping Info:

Ship weight (kg)	23.4
Ship height (cm)	25.4
Ship length (cm)	50.8
Ship width (cm)	25.4
Country of Origin	US

Product Variants

Model	Voltage	Motor Enclosure Design	Hp	Frame	Duty Cycle	No. Of Poles	Synchronous Speed	Mounting	Price
00156ET3EPM143/5Y-W2	208-230/460V AC	Totally Enclosed Air Over	1 1/2 hp	143Y	S1	2	3600 RPM	Pad Mounted	€492.39
04012ET3EPM364/5Y	208-230/460V	-	40 hp	364Y	-	-	-	-	€6,333.24
00518EP3EPM182/4Y	230/460V	Totally Enclosed Fan Cooled	5 hp	184Y	S1	4	1800 RPM	Footless	€772.90
00318ET3EPM182/4Y-W2	208-230/460V AC	Totally Enclosed Air Over	3 hp	182Y	S1	4	1800 RPM	Pad Mounted	€590.40
00136EP3EPM143/5Y	230/460V	Totally Enclosed Air Over	-	145Y	S1	2	3600 RPM	Footless	€500.39
04018ET3EPM324/6Y-W2	208-230/460V AC	Totally Enclosed Air Over	40 hp	324Y	S1	4	1800 RPM	Pad Mounted	€3,609.74
06012EP3EPM404/5Y	230/460V	Totally Enclosed Air Over	60 hp	404/5T	S1	6	1200 RPM	Footless	€10,625.18
