WEG 00518EP3EPM182/4Y Electric Motor, 5Hp, 1800 Rpm | BB2UUP

WEG 00518EP3EPM182/4Y 10672503 Air Handling Motor, Pad Mount, 5 HP, 3.7 kW, 1800 RPM, 184Y Frame, 230/460 V

Item: BB2UUPModel: 00518EP3EPM182/4YCross Ref: 10672503
Check Availability
In Stock
HP
RPM

Get it by Tuesday, Apr 7

€772.90 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -40°C to +40°C , 40°C
Balancing Method 1/2" Key
Bearing Cap No
Break-down Torque 300%
Breakdown Torque 300%
Cold Locked Rotor Time 32 sec.
Composition Cast Iron
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency @ 100% 87.5%
Efficiency @ 50% 85.5%
Efficiency @ 75% 87.5%
Efficiency At 1 % 81%
Efficiency At 50 % 63%
Efficiency At 75 % 75%
Enclosure IC411
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Feet No
Flange Without
Flange Type Without
Frame 184Y
Frame Material Cast Iron
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 18 sec.
Hp 5 hp
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 91.7/45.8A
L.r. Amperes 45.8/91.7A
Locked Rotor Time (cold) 32 sec.
Locked Rotor Time (hot) 18 sec.
Locked Rotor Torque 210%
Lrc 7.0X(Code J)
Main Terminal Box Hole 3/4"
Main Terminal Box Hole Size 3/4"
Main Terminal Box Hole Type NPT
Main Terminal Box Type NPT
Material (fert) 50006910
Moment Of Inertia 0.3389 lbs.-sq. ft.
Moment Of Inertia (j) 0.3389 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 1750 RPM
Mounting F-1 , Footless
No Load Amps 3.1/6.2A , 6.2/3.1A
No. Of Poles 4
Noise Level 56 dBA
Output 5 hp
Output Rating 5 hp
Overload Protection No
Overload Protector Without Overload Protector
Painting RAL5009 207A (ISO 12944-C2)
Phase 3
Power Factor 50% 0.63
Power Factor 75% 0.75
Power Factor At 1 % 87.5
Power Factor At 50 % 85.5
Power Factor At 75 % 87.5
Power Factor_100% 0.81
Rated Current 13.1/6.55A , 6.55/13.1A
Rated Speed 1750 RPM
Rated Torque 15 lbs.-ft.
Rated Voltage 230/460V , 230/460V AC
Rotation CW/CCW
Rpm 1800 RPM
Screw Cap Carbon Steel
Service Factor 1.25
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.78%
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 230/460V AC

Shipping Info:

Ship weight (kg) 38.25
Ship height (cm)24.38
Ship length (cm)39.88
Ship width (cm)30.99
Country of OriginUS

Product Variants

ProductModelVoltageMotor Enclosure DesignHpFrameDuty CycleNo. Of PolesSynchronous SpeedMountingPrice
WEG 00156ET3EPM143/5Y Electric Motor, 1.5Hp, 3600 Rpm | BB2BKH 00156ET3EPM143/5Y-W2208-230/460V-1 1/2 hp143Y----€492.39
WEG 04012ET3EPM364/5Y Electric Motor, 40Hp, 60Hz, 1200 Rpm | BB2RPJ 04012ET3EPM364/5Y208-230/460V-40 hp364Y----€6,333.24
WEG 00318ET3EPM182/4Y Electric Motor, 3Hp, 1800 Rpm | BB2WCK 00318ET3EPM182/4Y-W2208-230/460V ACTotally Enclosed Air Over3 hp184YZS141800 RPMPad Mounted€590.40
WEG 00136EP3EPM143/5Y Electric Motor, 1Hp, 3600 Rpm | BB3RBY 00136EP3EPM143/5Y230/460V ACTotally Enclosed Air Over-145YS123600 RPMFootless€500.39
WEG 04018ET3EPM324/6Y Electric Motor, 40Hp, 1800 Rpm | BB3UML 04018ET3EPM324/6Y-W2208-230/460V ACTotally Enclosed Air Over40 hp-S141800 RPMPad Mounted€3,609.74
WEG 06012EP3EPM404/5Y Electric Motor, 60Hp, 60Hz, 1200 Rpm | BB3WKB 06012EP3EPM404/5Y230/460V ACTotally Enclosed Air Over60 hp404/5TS161200 RPMFootless€10,625.18

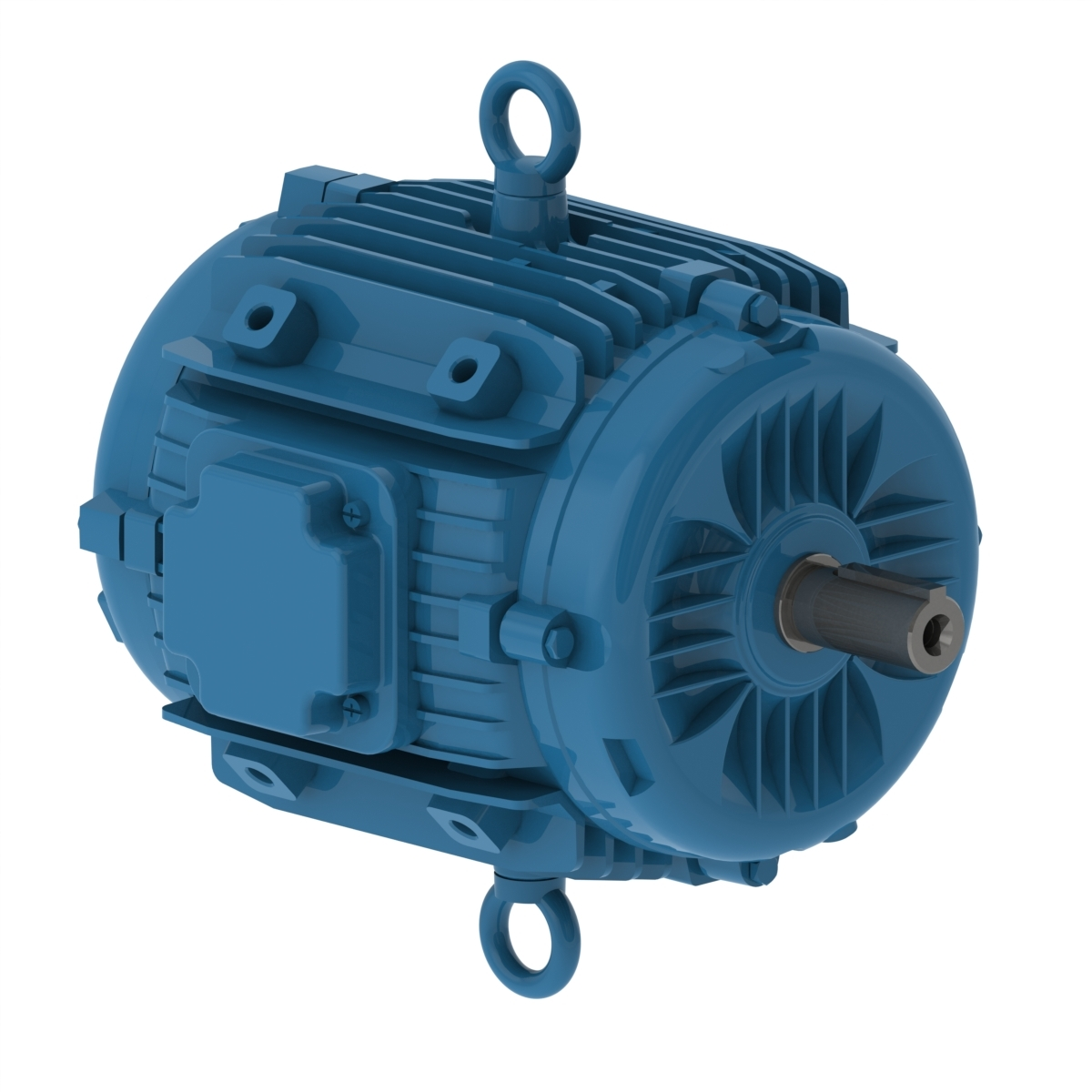

WEG 02512ET3EPM324/6Y Electric Motor, 25Hp, 1200 Rpm | BB4LKR 02512ET3EPM324/6Y-W2208-230/460V ACTotally Enclosed Air Over25 hp326YZS161200 RPMPad Mounted-
