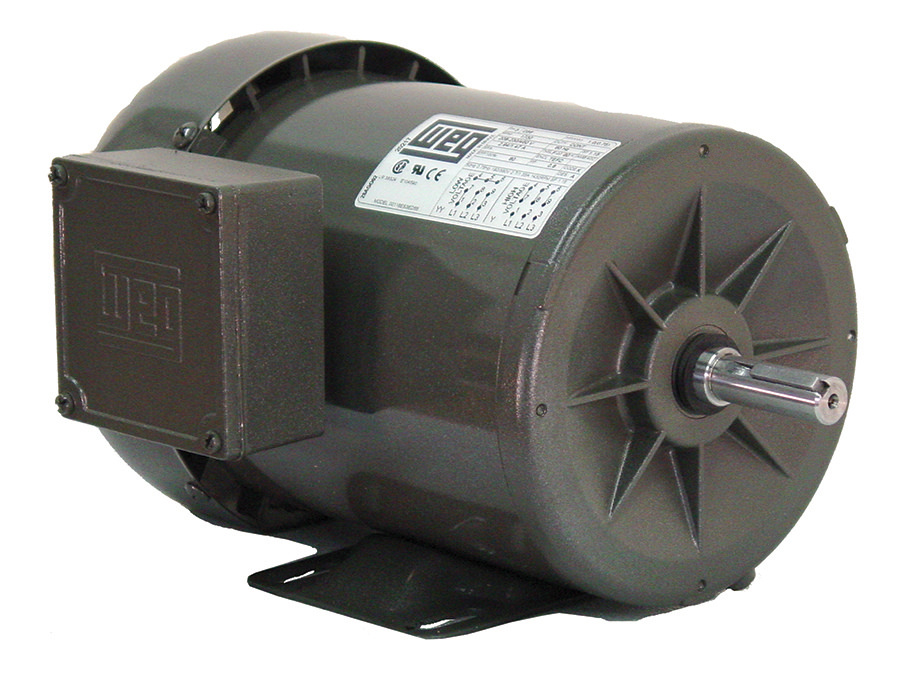

WEG 00218ES3EF56 Electric Motor, 2Hp, 60Hz, 1740 Rpm
1800 rpm
2 hp
56H
Get it by Tuesday, Jun 30
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Bearing Type | Ball |
| Composition | Steel |
| Efficiency | 50% |
| Efficiency @ 100% | 82% |
| Frame | 56H , F56H |
| Frequency | 60 Hz |
| Full Load Amps | 2.9/5.8-6.15A |
| Hp | 2 hp |
| Insulation Class | Class F |
| Inverter Duty | Yes |
| No Load Amps | 1.7/3.4A |
| No. Of Poles | 4 |
| Output Hp | 2 hp |
| Overall Length | 13.464" |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor 100% | 0.79 |
| Product Datasheet | weg-00218es3ef56.pdf |
| Service Factor | 1 |
| Speed | 1700-1800 RPM |
| Torque | 5.96 lbs.-ft. |
| Voltage | 208-230/460V |
Shipping Info:
| Ship weight (kg) | 20.25 |
Documentation:
Product Variants
| Model | Frequency | Service Factor | Hp | Motor Enclosure Design | Full Load Amps | Motor Type | Mounting Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3W90L-W22 | 60 Hz | 1 | 2 hp | Totally Enclosed Fan Cooled | 2.8A | - | Rigid Base | 90L | €914.46 | |
| 00218ET3W100L-W22 | 60 Hz | 1 | 3 hp | Totally Enclosed Fan Cooled | 4.1A | - | Rigid Base | 100L | €1,095.12 | |
| 00418ET3Y112M-W22 | 60 Hz | 1 | 5 1/2 hp | Totally Enclosed Fan Cooled | 7.3A | - | Rigid Base | 112M | €1,177.86 | |
| 00518ET3Y132S-W22 | 60 Hz | 1 | 7 1/2 hp | Totally Enclosed Fan Cooled | 9.1A | - | Rigid Base | 132S | €1,613.01 | |
| 00718ET3Y132M-W22 | 60 Hz | 1 | 10 hp | Totally Enclosed Fan Cooled | 12.2A | - | Rigid Base | 132M | €1,918.09 | |
| 01818ET3Y180MFF-W22 | 50/60 Hz | 1.25 | 25 hp | Totally Enclosed Fan Cooled | 30.6A | - | Face, Base | 180M | €4,486.20 | |
| 02218ET3Y180LFF-W22 | 50/60 Hz | 1.25 | 30 hp | Totally Enclosed Fan Cooled | 36A | - | Face, Base | 180L | €5,926.53 |
