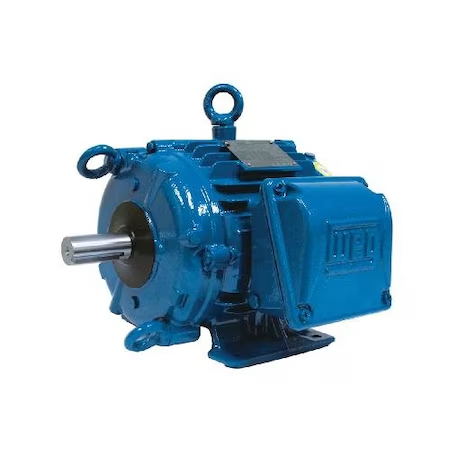

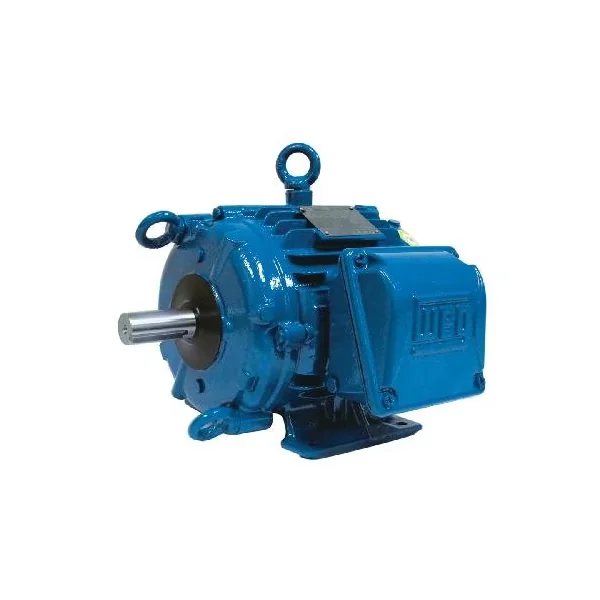

WEG 00212AT3ECT184TF1-W2 Cooling Tower Motor, 2 HP, 1200 RPM, 230/460 V, 3 Phase, TEAO, 184T Frame, Footed, Premium
2 hp
184T
230/460V
Get it by Monday, Apr 6
€1,205.02 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cooling Tower Motor |
| Application | General Purpose |
| Body Material | Cast Iron |
| Ct Speed Range | 20:1 |
| Efficiency | 91% |
| Enclosure Nema Rating | IC418 - TEAO |
| Enclosure Type | Teao |
| Frame | 254/6T |
| Frame Size | 184T |
| Frequency | 50/60 Hz |
| Horsepower | 2 hp |
| Hz | 60 Hz |
| Inverter Rating | Inverter Duty |
| Ip Enclosure Rating | IP55 |
| Mounting Arrangement | F1, F2 |
| Mounting Orientation | Horizontal/Vertical |
| Nema Mount | With Base |
| Output Hp | 2 hp |
| Output Kw | 5.5 kW |
| Output Rpm | 1175 RPM |
| Phase | 3 |
| Product Datasheet | weg-00212at3ect184tf1-w2.pdf |
| Rpm | 1100-1200 RPM |
| Service Factor | 1.25 |
| Space Heater Voltage | 110-127/200-240V AC |
| Temp Code | T3 = 200°C |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 43.65 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 38.86 |
| Ship width (cm) | 40.64 |
| Country of Origin | BR |
Documentation:
Product Variants
| Model | Voltage | Frame | Rpm | Hp | Service Factor | No Load Amps | Full Load Amps | Output Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 01518AT3HCT254TF1-W2 | 575V | 254T | 1700-1800 RPM | - | 1 | 6.4A | 14.4A | - | €2,527.07 | |
| 00212AT3HCT184TF1-W2 | 575V | 184T | 1100-1200 RPM | - | 1 | 1.8A | 2.58A | 2 hp | €1,205.02 | |
| 01018AT3PCT215T-W22 | 200V | 213/5T | 1700-1800 RPM | - | 1 | 13A | 28.5A | 10 hp | €1,766.98 | |
| 00718AT3HCT213T-W22 | 575V | 213T | 1700-1800 RPM | 7 1/2 hp | 1 | 3.24A | 7.34A | 7 1/2 hp | €1,609.83 | |
| 02018AT3PCT256T-W22 | 200V | 254/6T | 1700-1800 RPM | - | 1 | 23A | 55.4A | 20 hp | €3,034.56 | |
| 00712AT3ECT254TF1-W2 | 208-230/460V | 254T | 1100-1200 RPM | 7 1/2 hp | 1 | 4.5/9A | 9.48/19-21A | 7 1/2 hp | €2,897.01 | |
| 02518AT3HCT284TF1-W2 | 575V | 284T | 1700-1800 RPM | 25 hp | 1 | 9.6A | 23.6A | - | €3,853.02 |
