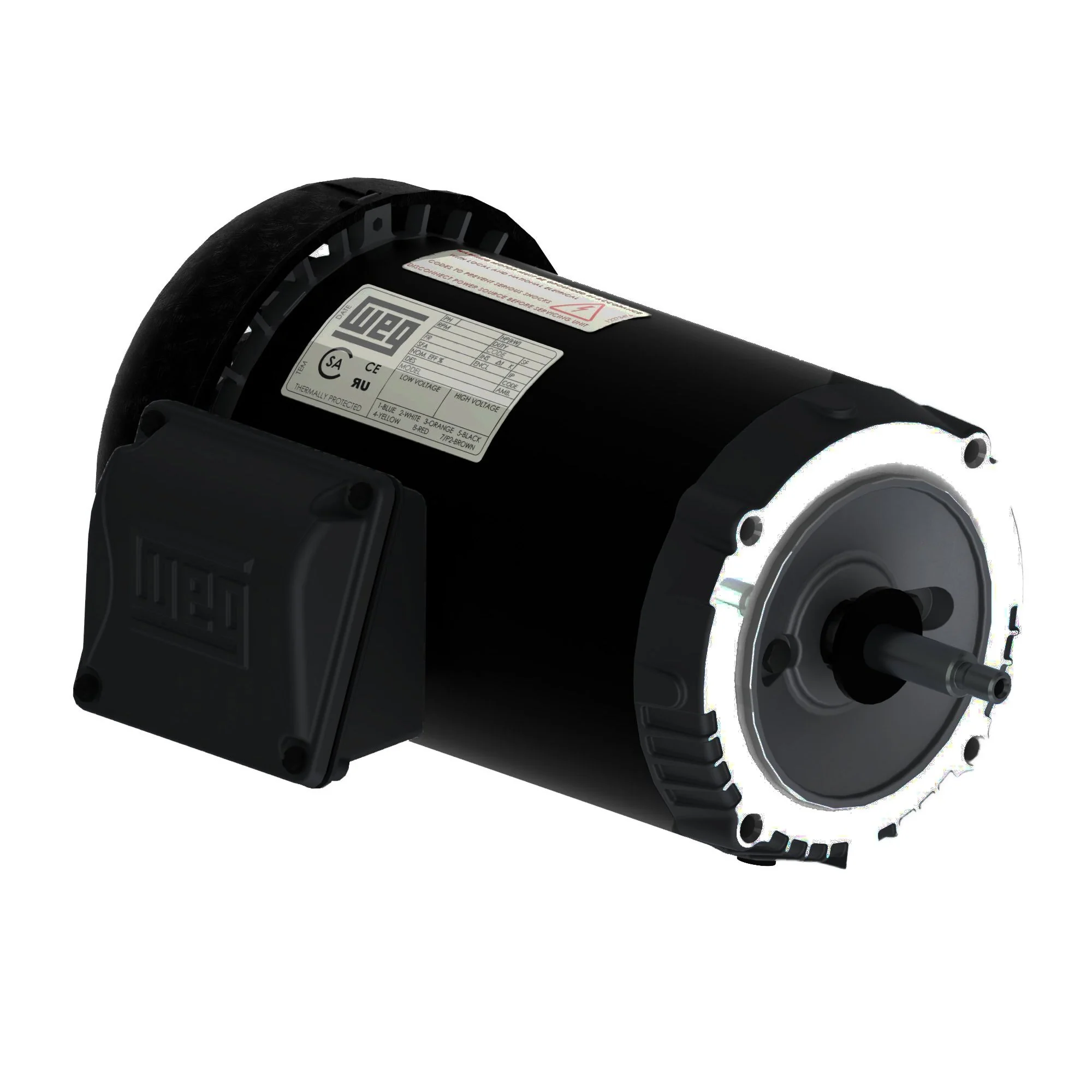

WEG 00156ET3ER143TC-S 14788756 General Purpose Motor, TEAO/TEFC RolLED Steel 143/5TC Frame, 1.5 HP, 2915 RPM, 415V, W-6 Mounting
3600 rpm
1.5 hp
145TC
Get it by Tuesday, Sep 1
€592.97 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 m.a.s.l. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 27A , 3.74/1.87A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 300% |
| Cold Locked Rotor Time | 0 sec. , 30 sec. |
| Connection Cables Quantity | 9 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | With |
| Duty Cycle | Cont.(S1) , Continuous |
| Efficiency 50% | 71% |
| Efficiency @ 1 % | 88% |
| Efficiency @ 75 % | 82% |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Polymer , Steel |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame | 143/5TC |
| Frame Material | Rolled Steel |
| Frame Size | 143TC |
| Frequency | 50 Hz , 50/60 Hz , 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hot Locked Rotor Time | 17 sec. |
| Hp | 1 1/2 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| L. R. Amps | 17.6A , 34/17A |
| Locked Rotor Time(hot) | 0 sec. |
| Locked Rotor Torque | 229% |
| Lrc | 8.5x(Code K) , 9.1X(Code L) |
| Main Terminal Box Hole Size | 1.118" |
| Material | Carbon Steel |
| Moment Of Inertia | 0.1023 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 3520 RPM |
| Mounting | Footless , Footless, W-6 |
| Nde Bearing Seal | No |
| No Load Amps | 0.971A , 1.72/0.859A |
| No. Of Poles | 2 |
| Noise Level | 68 dBA |
| Output | 1 1/2 hp |
| Output Rating | 1 1/2 hp |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) , Only Primer |
| Phase | 3 |
| Power Factor @ 1 % | 84 |
| Power Factor @ 50 % | 80 |
| Power Factor @ 75 % | 82.5 |
| Product Datasheet | weg-00156et3er143tc-s.pdf |
| Resilient Base | Without |
| Rotation | CW And CCW , CW, CCW |
| Service Factor | 1.15 , 1.15 (1 @ 208V) |
| Shaft Material | Carbon Steel , SAE 1040/45 Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.22% |
| Speed | 3400-3600 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 2.24 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 230/460V , 230/460V AC , 415V |
Shipping Info:
| Ship weight (kg) | 17.55 |
| Ship height (cm) | 24.38 |
| Ship length (cm) | 39.88 |
| Ship width (cm) | 30.99 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Voltage | Frequency | Service Factor | Hp | Full Load Amps | Duty Cycle | Frame Material | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00218ET3ER145TC-W22 | 230/460V AC | 50 Hz | 1.25 | - | - | S1 | Cast Iron | 4 | €786.23 | |
 |
01518ET3ER254TC-W22 | 230/460V AC | 60 Hz | 1.25 | - | - | S1 | Cast Iron | 4 | €2,283.15 | |
 |
01018ET3ER215TC-W22 | 230/460V AC | 60 Hz | 1.25 | - | - | S1 | Cast Iron | 4 | €1,650.91 | |
|
00318ET3ER182TC-W22 | 230/460V AC | 50 Hz | 1.25 | - | - | Continuous | Cast Iron | 4 | €860.21 | |
|
00518ET3ER184TC-W22 | 230/460V AC | 60 Hz | 1.25 | - | 6.45/12.9-14.3A | S1 | Cast Iron | 4 | €995.02 | |
|
00512ET3ER215TC-W22 | 230/460V AC | 60 Hz | 1.25 | - | 6.83/13.7-15.1A | S1 | Cast Iron | 6 | €1,658.80 | |
 |
00236ET3E56CFL-S | 208-230/460V AC | 60 Hz | 1.15 | - | - | S1 | Rolled Steel | 2 | €844.20 |
