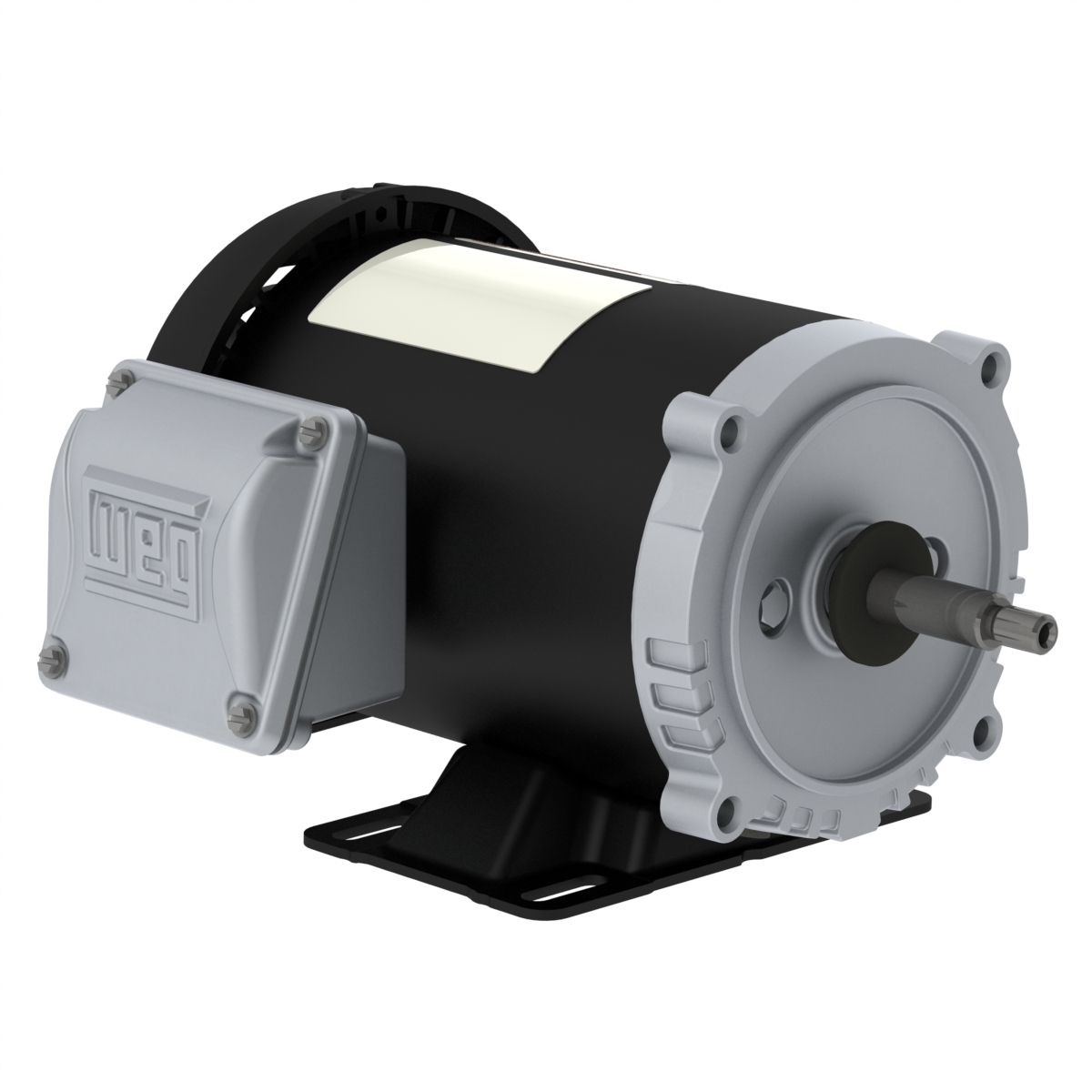

WEG 00136ET3EJPW56J-S Electric Motor, 1Hp, 60Hz, 3470 Rpm | BC2EHJ

WEG 00136ET3EJPW56J-S 13528748 Jet Pump Motor, 1 HP, 3600 RPM, 208/230/460 V, 3 Phase, TEFC, W56J Frame

Item: BC2EHJModel: 00136ET3EJPW56J-SCross Ref: 13528748
Check Availability
In Stock
HP

Get it by Tuesday, Apr 7

€517.80 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method Not Balanced
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 380%
Breakdown Torque 380%
Cold Locked Rotor Time 18 sec.
Composition Steel
Connection Cables Quantity 9
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency @ 100% 78.5%
Efficiency @ 50% 74%
Efficiency @ 75% 77%
Efficiency At 1 % 80%
Efficiency At 50 % 63%
Efficiency At 75 % 75%
Enclosure IC411
Enclosure Type Tefc
Fan Cover Material Industrial Polymer , Polymer
Fan Material Plastic
Flange C
Flange Type C
Frame W56J
Frame Material Rolled Steel
Frequency 60 Hz
Grounding Lugs Single
Hp 1 hp
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 26.4/13.2A
L.r. Amperes 13.2/26.4A
Locked Rotor Time (cold) 18 sec.
Locked Rotor Time (hot) 10 sec.
Locked Rotor Torque 360%
Lrc 8.8X(Code M)
Main Terminal Box Hole 0.881"
Main Terminal Box Hole Size 0.881"
Moment Of Inertia 0.0254 lbs.-sq. ft.
Moment Of Inertia (j) 0.0254 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 3435 RPM
Mounting F-1 , Foot Mounted
No Load Amps 0.798/1.6A , 1.6/0.798A
No. Of Poles 2
Noise Level 65 dBA
Output 1 hp
Output Rating 1 hp
Overload Protection No
Overload Protector Without Overload Protector
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 3
Power Factor 50% 0.63
Power Factor 75% 0.75
Power Factor At 1 % 78.5
Power Factor At 50 % 74
Power Factor At 75 % 77
Power Factor_100% 0.8
Rated Current 1.5/3A , 3/1.5A
Rated Speed 3435 RPM
Rated Torque 1.53 lbs.-ft.
Rated Voltage 230/460V AC
Resilient Base Without
Rotation CCW
Rpm 3400-3600 RPM
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Material Stainless Steel
Shaft Material Grade Grade 304
Slip 4.58%
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 190-220/230/380-415/460V , 230/460/190-220/380-415V AC

Shipping Info:

Ship weight (kg) 11.25
Ship height (cm)25.4
Ship length (cm)29.48
Ship width (cm)25.4
Country of OriginBR

Product Variants

ProductModelFrequencyHpDuty CycleNo Load AmpsMountingOutput RatingFan Cover MaterialAltitudePrice
WEG .7536ES3EJP56J-S Electric Motor, 0.75Hp, 60Hz, 3600 Rpm | BB6CGE .7536ES3EJP56J-S50/60 Hz-S10.948-1.1/0.55AFoot Mounted3/4 hpSteel1000 MASL€359.11
WEG .5036ES3EJP56J-S Electric Motor, 0.5Hp, 60Hz, 3600 Rpm | BB7HKA .5036ES3EJP56J-S60 Hz1/2 hpS10.776-0.9/0.45AFoot Mounted1/2 hpSteel1000 MASL€318.55
WEG 00156ET3EJP56J-S Electric Motor, 1.5Hp, 60Hz, 3600 Rpm | BB7RZQ 00156ET3EJP56J-S50/60 Hz1 1/2 hpS11.72/0.859AFoot Mounted1 1/2 hpSteel1000 MASL€564.31
WEG 00236ET3HJP56J-S Electric Motor, 2Hp, 60Hz, 3600 Rpm | BB8UKJ 00236ET3HJP56J-S60 Hz2 hpS10.85AFoot Mounted2 hpSteel1000 MASL€638.29
WEG .3336ES3EJP56J-S Electric Motor, 0.33Hp, 60Hz, 3600 Rpm | BB8XNL .3336ES3EJP56J-S60 Hz-S10.621-0.72/0.36AFoot Mounted1/3 hpSteel1000 MASL€309.01
WEG 00336ET3EJP56J-S Electric Motor, 3Hp, 60Hz, 3600 Rpm | BB9JZN 00336ET3EJP56J-S50/60 Hz3 hpContinuous3.2/1.6AFoot Mounted3 hpPolymer1000 MASL€756.40
WEG .7536ES3HJP56J-S Electric Motor, 0.75Hp, 60Hz, 3600 Rpm | BB9UYP .7536ES3HJP56J-S60 Hz3/4 hpS10.44AFoot Mounted3/4 hpSteel1000 M.A.S.L.€359.11
