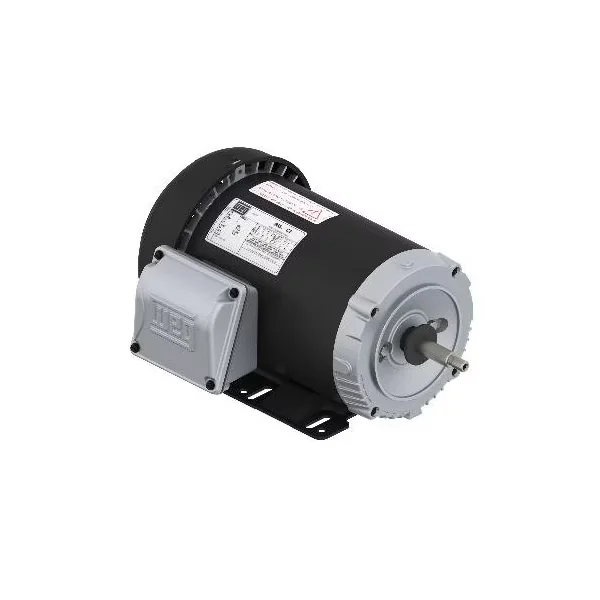

WEG 00336ET3EJP56J-S 14804684 Jet Pump Motor, 3 HP, 3600 RPM, 208-230/460 V, 3 Phase, TEFC, 56J Frame, Footed
Get it by Monday, Aug 24
€756.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 7.34/3.67A |
| Balancing Method | Without Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 380% |
| Composition | Steel |
| Connection Cables Quantity | 9 |
| Design | B |
| Drain | Rubber, Automatic |
| Duty Cycle | Continuous |
| Efficiency 50% | 71% |
| Efficiency @ 1 % | 87% |
| Efficiency @ 75 % | 82% |
| Enclosure Type | Tefc |
| Fan Cover Material | Polymer |
| Fan Material | Plastic |
| Flange Type | C |
| Frame | 56HJ |
| Frame Material | Rolled Steel |
| Frame Size | 56J |
| Frequency | 50/60 Hz , 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 10 sec. |
| Hp | 3 hp |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 68.3/34.1A |
| Locked Rotor Torque | 280% |
| Lrc | 9.3X(Code L) |
| Main Terminal Box Hole Size | 0.881" |
| Moment Of Inertia | 0.1663 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 3505 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 3.2/1.6A |
| No. Of Poles | 2 |
| Noise Level | 68 dBA |
| Output | 3 hp |
| Output Rating | 3 hp |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor @ 1 % | 86.5 |
| Power Factor @ 50 % | 81 |
| Power Factor @ 75 % | 84 |
| Product Datasheet | weg-00336et3ejp56j-s.pdf |
| Resilient Base | Without |
| Service Factor | 1.15 |
| Shaft Material | Stainless Steel |
| Shaft Material Grade | Grade 304 |
| Slip | 2.64% |
| Speed | 3400-3600 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 4.49 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 230/460V , 230/460V AC |
Shipping Info:
| Ship weight (kg) | 19.35 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 39.58 |
| Ship width (cm) | 25.4 |
| Country of Origin | BR |
Documentation:
Product Variants
| Product | Model | Frequency | Hp | Duty Cycle | No Load Amps | Mounting | Output Rating | Fan Cover Material | Altitude | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
.7536ES3EJP56J-S | 60 Hz | - | S1 | 0.948-1.1/0.55A | Foot Mounted | 3/4 hp | Steel | 1000 MASL | €359.11 | |
|
.5036ES3EJP56J-S | 60 Hz | 1/2 hp | S1 | 0.776-0.9/0.45A | Foot Mounted | 1/2 hp | Steel | 1000 MASL | €318.55 | |
 |
00156ET3EJP56J-S | 60 Hz | 1 1/2 hp | S1 | 1.72/0.859A | Foot Mounted | 1 1/2 hp | Steel | 1000 MASL | €564.31 | |
 |
00236ET3HJP56J-S | 60 Hz | 2 hp | S1 | 0.85A | Foot Mounted | 2 hp | Steel | 1000 MASL | €638.29 | |
 |
.3336ES3EJP56J-S | 60 Hz | - | S1 | 0.621-0.72/0.36A | Foot Mounted | 1/3 hp | Steel | 1000 MASL | €309.01 | |
|
.7536ES3HJP56J-S | 60 Hz | 3/4 hp | S1 | 0.44A | Foot Mounted | 3/4 hp | Steel | 1000 M.A.S.L. | €359.11 | |
|
00336ET3HJP56J-S | 60 Hz | - | Continuous | 1.28A | Foot Mounted | 3 hp | Polymer | 1000 MASL | €756.40 |
