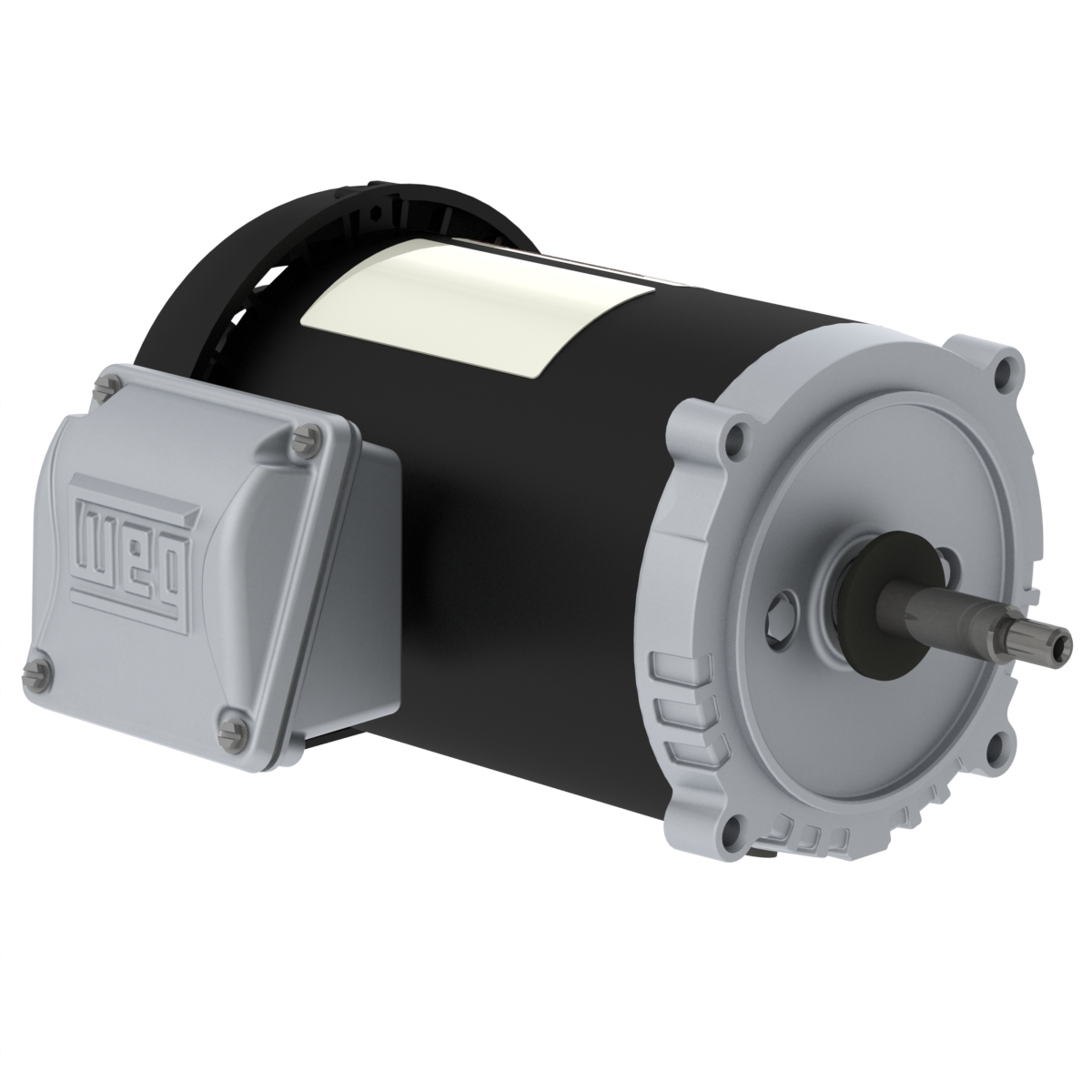

WEG 00136ET3EJPRW56J-S 14410883 Jet Pump Motor, 1 HP, 3600 RPM, 208/230/460 V, 3 Phase, TEFC, 56J Frame, Round Body
Get it by Tuesday, Aug 25
€517.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 1.5/3A , 3/1.5A |
| Balancing Method | Not Balanced |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 380% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 18 sec. |
| Composition | Steel |
| Connection Cables Quantity | 9 |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 63% , 74% |
| Efficiency 75% | 77% |
| Efficiency @ 1 % | 80% |
| Efficiency @ 100% | 78.5% |
| Efficiency @ 75 % | 75% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Industrial Polymer , Polymer |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame | W56J |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 10 sec. |
| Hp | 1 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 13.2/26.4A , 26.4/13.2A |
| Locked Rotor Time (cold) | 18 sec. |
| Locked Rotor Time(hot) | 10 sec. |
| Locked Rotor Torque | 360% |
| Lrc | 8.8X(Code M) |
| Main Terminal Box Hole | 0.881" |
| Main Terminal Box Hole Size | 0.881" |
| Moment Of Inertia | 0.0254 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.0254 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 3435 RPM |
| Mounting | F-1 , Footless |
| No Load Amps | 0.798/1.6A , 1.6/0.798A |
| No. Of Poles | 2 |
| Noise Level | 65 dBA |
| Output | 1 hp |
| Output Rating | 1 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 100% | 0.8 |
| Power Factor 50% | 0.63 |
| Power Factor 75% | 0.75 |
| Power Factor @ 1 % | 78.5 |
| Power Factor @ 75 % | 77 |
| Resilient Base | Without |
| Rotation | CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Material | Stainless Steel |
| Shaft Material Grade | Grade 304 |
| Slip | 4.58% |
| Speed | 3400-3600 RPM , 3435 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 1.53 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 190-220/230/380-415/460V , 230/460/190-220/380-415V AC , 230/460V AC |
Shipping Info:
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 29.48 |
| Ship width (cm) | 25.4 |
| Country of Origin | BR |
Product Variants
| Product | Model | Frequency | Service Factor | Hp | Full Load Amps | Frame | No Load Amps | Torque | Duty Cycle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
.3336ES3EJPR56C | 60 Hz | 1 | 33/100 hp | 0.6/1.2-1.22A | 56C | 0.39/0.78A | 0.493 lbs.-ft. | - | €220.57 | |
 |
00156ES3EJPR56C | 60 Hz | 1 | 1 1/2 hp | 1.95/3.9-4.25A | 56C | 0.86/1.72A | 2.26 lbs.-ft. | - | - | RFQ
|
 |
.7536ES3EJPR56J-S | 60 Hz | 1.15 | 3/4 hp | - | 56J | 0.948-1.1/0.55A | 1.13 lbs.-ft. | S1 | €380.59 | |
|
.3336ES3EJPR56J-S | 60 Hz | 1.15 | 1/3 hp | - | 56J | 0.621-0.72/0.36A | 0.497 lbs.-ft. | S1 | €319.74 | |
 |
.7536ES3EJPR56C-S | 60 Hz | 1.15 | 3/4 hp | - | 56C | 0.948-1.1/0.55A | 1.13 lbs.-ft. | S1 | €349.57 | |
|
.5036ES3EJPR56J-S | 60 Hz | 1.15 | 1/2 hp | - | 56J | 0.776-0.9/0.45A | 0.75 lbs.-ft. | S1 | €336.46 | |
|
.5036ES3EJPR56C-S | 60 Hz | 1.15 | 1/2 hp | - | 56C | 0.776-0.9/0.45A | 0.75 lbs.-ft. | S1 | €322.14 |
