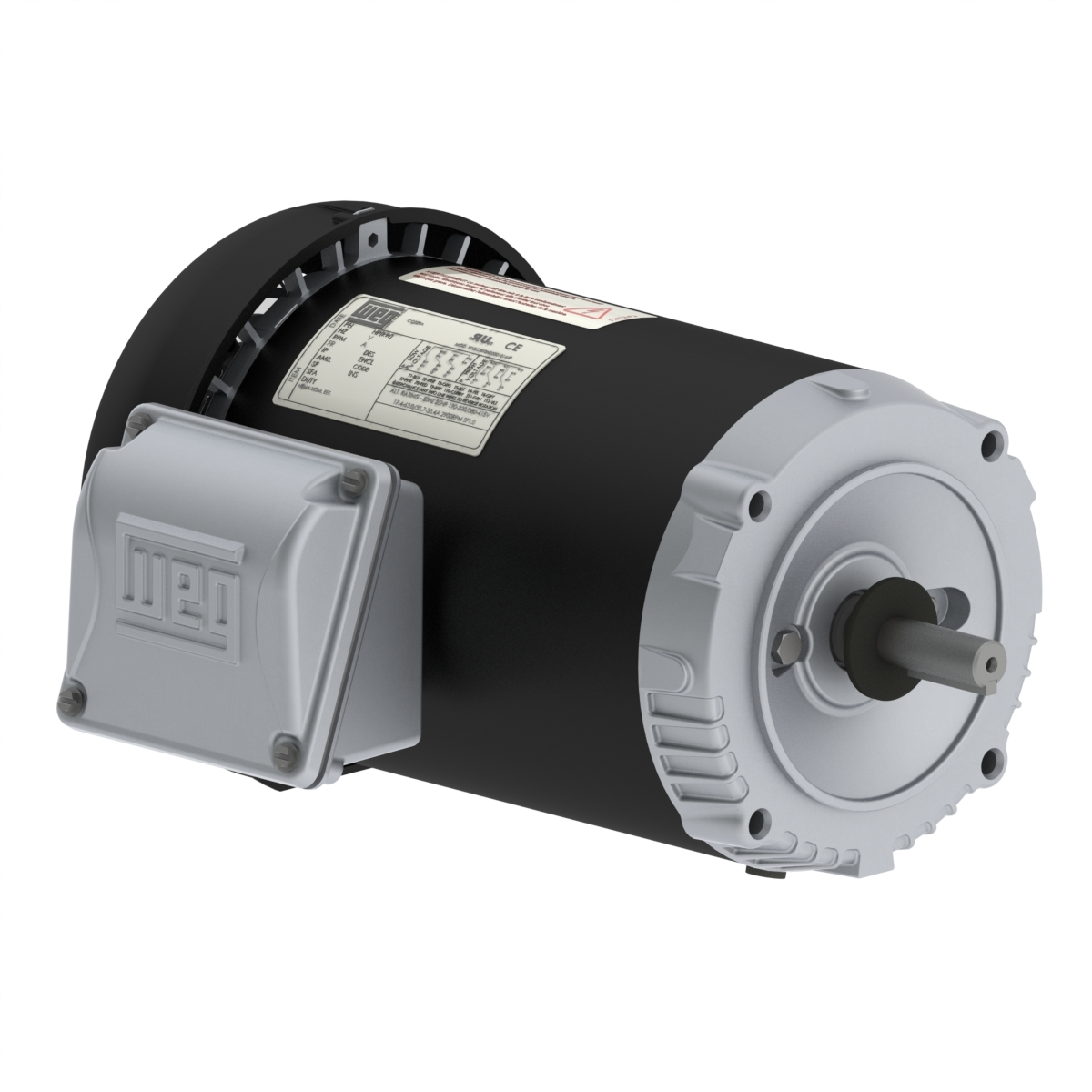

WEG 00156ET3EJPR56C-S Electric Motor, 1.5Hp, 60Hz, 3600 Rpm | BB9XBZ

WEG 00156ET3EJPR56C-S 14788842 Jet Pump Motor, 1.5 HP, 3600 RPM, 208-230/460 V, 3 Phase, TEFC, 56C Frame, Footless

Item: BB9XBZModel: 00156ET3EJPR56C-SCross Ref: 14788842
Check Availability
In Stock
HP
Frame

Get it by Friday, Aug 28

€542.85 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 1.87/3.74A , 3.74/1.87A
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Cold Locked Rotor Time 30 sec.
Composition Steel
Connection Cables Quantity 9
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 50% 71% , 80%
Efficiency 75% 82.5%
Efficiency @ 1 % 88%
Efficiency @ 100% 84%
Efficiency @ 75 % 82%
Enclosure IC411
Enclosure Type Tefc
Fan Cover Material Polymer , Steel
Fan Material Plastic
Flange C
Flange Type C
Frame 56C
Frame Material Rolled Steel
Frame Size 56C
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 17 sec.
Hp 1 1/2 hp
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 17/34A , 34/17A
Locked Rotor Time (cold) 30 sec.
Locked Rotor Time(hot) 17 sec.
Locked Rotor Torque 229%
Lrc 9.1X(Code L)
Main Terminal Box Hole 0.881"
Main Terminal Box Hole Size 0.881"
Moment Of Inertia 0.1023 lbs.-sq. ft.
Moment Of Inertia (j) 0.1023 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 3520 RPM
Mounting F-1 , Footless
No Load Amps 0.859/1.72A , 1.72/0.859A
No. Of Poles 2
Noise Level 68 dBA
Output 1 1/2 hp
Output Rating 1 1/2 hp
Overload Protection No
Overload Protector Without Overload Protector
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 3
Power Factor 100% 0.88
Power Factor 50% 0.71
Power Factor 75% 0.82
Power Factor @ 1 % 84
Power Factor @ 50 % 80
Power Factor @ 75 % 82.5
Product Datasheet weg-00156et3ejpr56c-s.pdf
Resilient Base Without
Rotation CCW
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Material Stainless Steel
Shaft Material Grade Grade 304
Slip 2.22%
Speed 3400-3600 RPM , 3520 RPM
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 2.24 lbs.-ft.
Tropicalized Painting Without
Voltage 190-220/230/380-415/460V , 230/460/190-220/380-415V AC , 230/460V AC

Shipping Info:

Ship weight (kg) 16.65
Ship height (cm)25.4
Ship length (cm)33.31
Ship width (cm)25.4
Country of OriginBR

Documentation:

Datasheet

Product Variants

ProductModelFrequencyService FactorHpFull Load AmpsFrameNo Load AmpsTorqueDuty CyclePrice
WEG .3336ES3EJPR56C Electric Motor, 0.33Hp, 60Hz, 3465 Rpm | BB6HGK .3336ES3EJPR56C60 Hz133/100 hp0.6/1.2-1.22A56C0.39/0.78A0.493 lbs.-ft.-€220.57
WEG 00156ES3EJPR56C Electric Motor, 1.5Hp, 60Hz, 3440 Rpm | BB7GCA 00156ES3EJPR56C60 Hz11 1/2 hp1.95/3.9-4.25A56C0.86/1.72A2.26 lbs.-ft.--
RFQ
WEG .7536ES3EJPR56J-S Electric Motor, 0.75Hp, 60Hz, 3600 Rpm | BB7HWQ .7536ES3EJPR56J-S60 Hz1.153/4 hp-56J0.948-1.1/0.55A1.13 lbs.-ft.S1€380.59
WEG .3336ES3EJPR56J-S Electric Motor, 0.33Hp, 60Hz, 3600 Rpm | BB7ZMD .3336ES3EJPR56J-S60 Hz1.151/3 hp-56J0.621-0.72/0.36A0.497 lbs.-ft.S1€319.74
WEG .7536ES3EJPR56C-S Electric Motor, 0.75Hp, 60Hz, 3600 Rpm | BB8AVT .7536ES3EJPR56C-S60 Hz1.153/4 hp-56C0.948-1.1/0.55A1.13 lbs.-ft.S1€349.57
WEG .5036ES3EJPR56J-S Electric Motor, 0.5Hp, 60Hz, 3600 Rpm | BB8CQT .5036ES3EJPR56J-S60 Hz1.151/2 hp-56J0.776-0.9/0.45A0.75 lbs.-ft.S1€336.46
WEG .5036ES3EJPR56C-S Electric Motor, 0.5Hp, 60Hz, 3600 Rpm | BB8YZF .5036ES3EJPR56C-S60 Hz1.151/2 hp-56C0.776-0.9/0.45A0.75 lbs.-ft.S1€322.14
