Horizontal Handle Toggle Clamps

Filter

To securely locate machine parts or components, a toggle clamp is required. Toggle clamps are available in straight, vertical or horizontal clamp styles. Horizontal toggle clamps are quick...Read more

DESTACO -

206 Series Horizontal Hold Down Clamps

Destaco 206 Series horizontal hold-down clamps have a stainless-steel construction and offer good bar clearance under clamping bar while maintaining a low profile. They are used in light-duty clamping, chemical processing, closures and in the assembling of various commercial tools and equipment. The 206 Series Destaco horizontal hold down clamp is available in high U-bar and low U-bar design variants.

StyleModelClamp Arm StyleHeight Under Clamp ArmHolding CapacityToggle Lock PlusMaterialMounting BaseHandleClamp Arm LengthPrice (ex. VAT)
A206-HSSHigh U-Bar0.75"100 Lbs.NoStainless SteelFlangeHorizonal0.93"€43.48
B206-SSLow U-Bar0.4"100 Lbs.NoStainless SteelFlangeHorizonal0.93"€47.06
DESTACO -

385-M Series Pull Action Latch Clamps

StyleModelHook Adjustble RangeOverall LengthPrice (ex. VAT)
A385-M-2525mm10.6338"€241.23
B385-M-5050mm11.6181"€164.79
C385-M-100100mm13.5866"€241.23
StyleModelHook Adjustble RangeOverall LengthPrice (ex. VAT)
A371-M-2525mm12.874"€97.42
A371-M-5050mm13.8582"€114.73
A371-M-100100mm15.8267"€104.79
DESTACO -

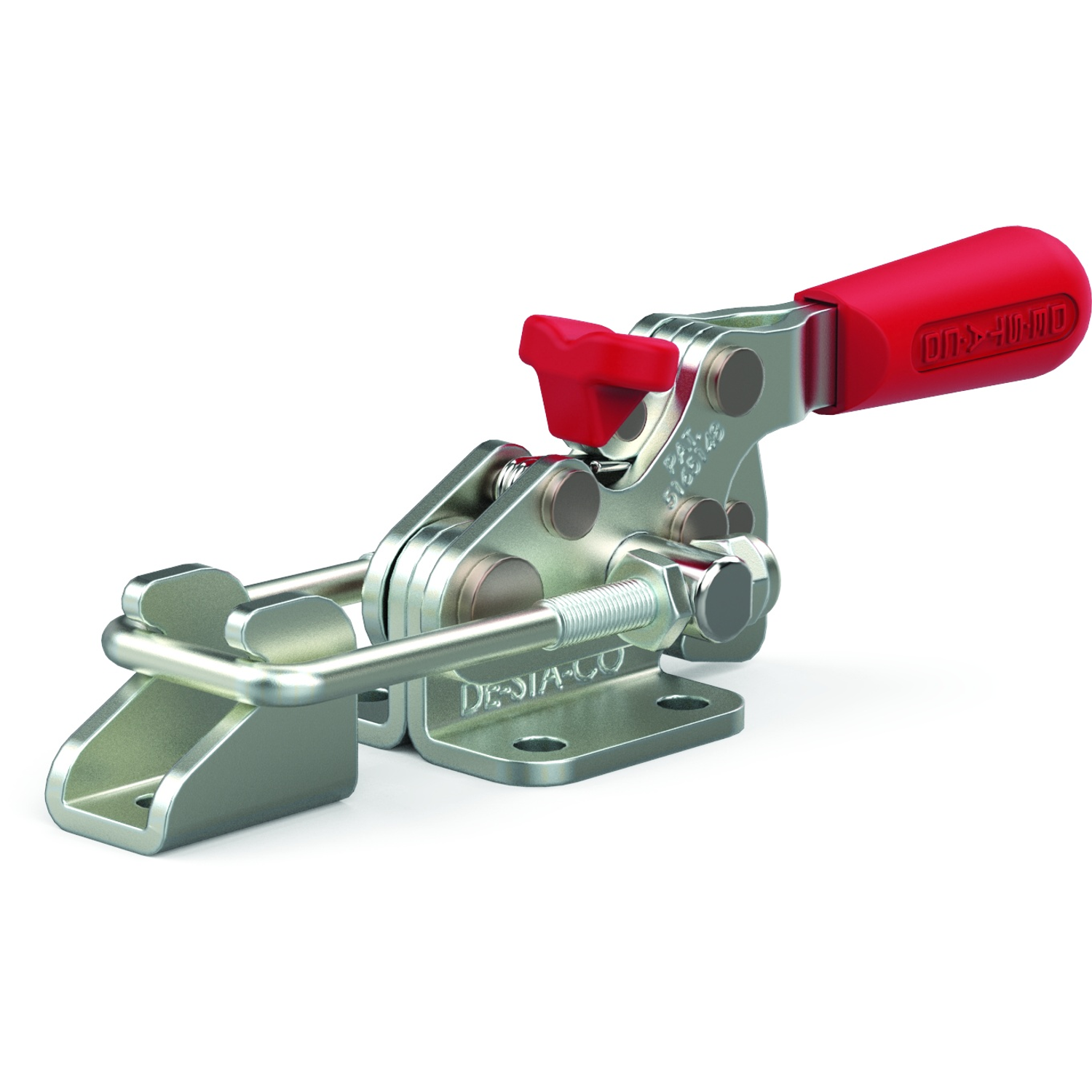

323-R Series Pull Action Latch Clamps

StyleModelHook Adjustble RangeMaterialOverall LengthPrice (ex. VAT)
A323-RSS10.7mmStainless Steel4.25"€71.18
B323-R10.7mmSteel4.25"€37.72
B323-R-M-2525mmSteel5.2323"€91.37
B323-RSS-M-2525mmStainless Steel5.2323"€152.54
B323-R-M-5050mmSteel6.2165"€60.96
B323-RSS-M-5050mmStainless Steel6.2165"€101.14
B323-RSS-M-100100mmStainless Steel8.185"€152.54
B323-R-M-100100mmSteel8.185"€61.42
DESTACO -

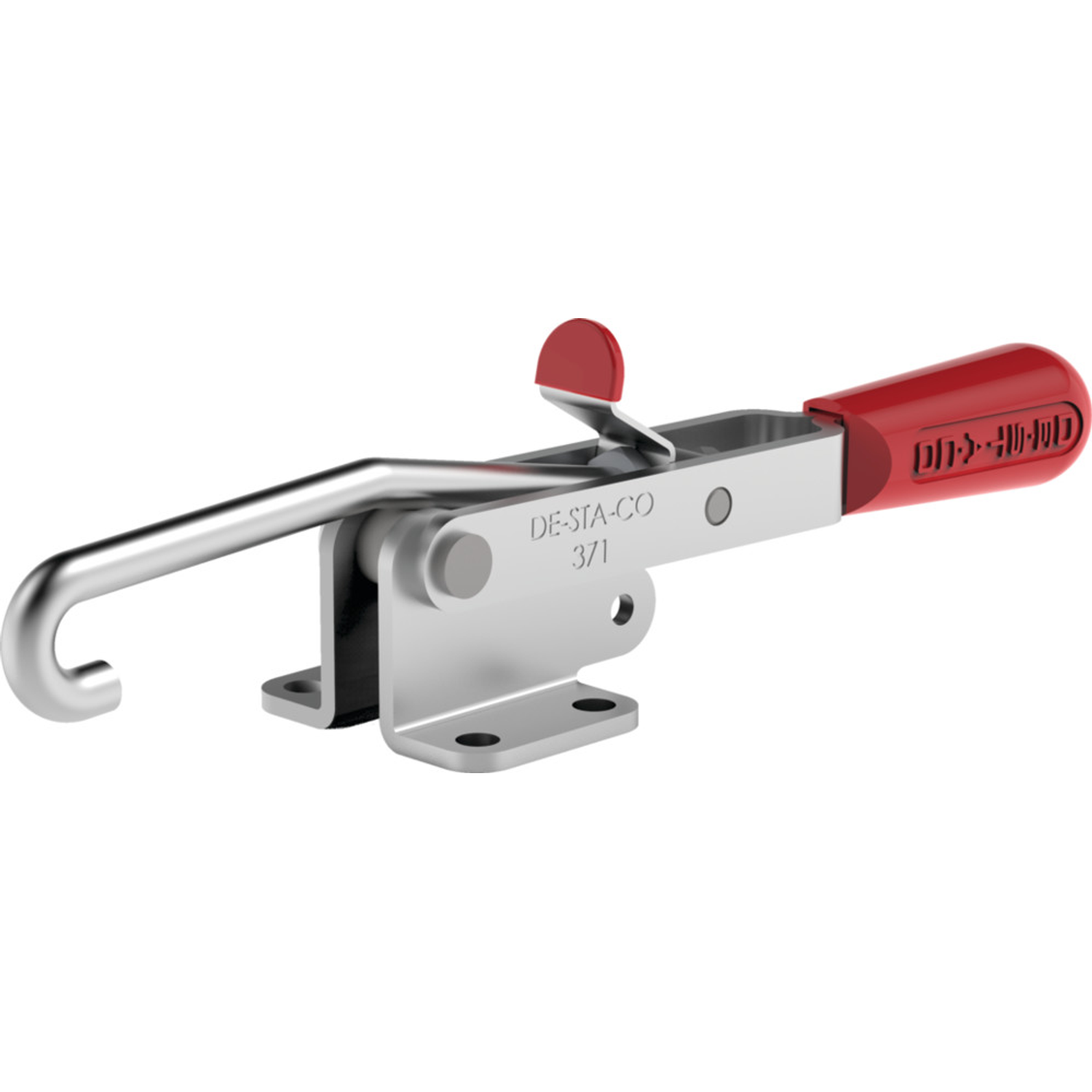

371 Series Pull Action Latch Clamps

StyleModelMaterialOverall HeightPrice (ex. VAT)
A371-SSStainless Steel2.58"€131.04
B371Steel2.580"€47.10
DESTACO -

205 Series Horizontal Hold Down Clamps, Solid Bar

StyleModelThread SizeTypeClamp Arm LengthHeight Under Clamp ArmHolding CapacityMaterialMounting BaseOverall HeightPrice (ex. VAT)
A205-SB--0.69"0.5"60 Lbs.SteelStraight0.84"€25.15

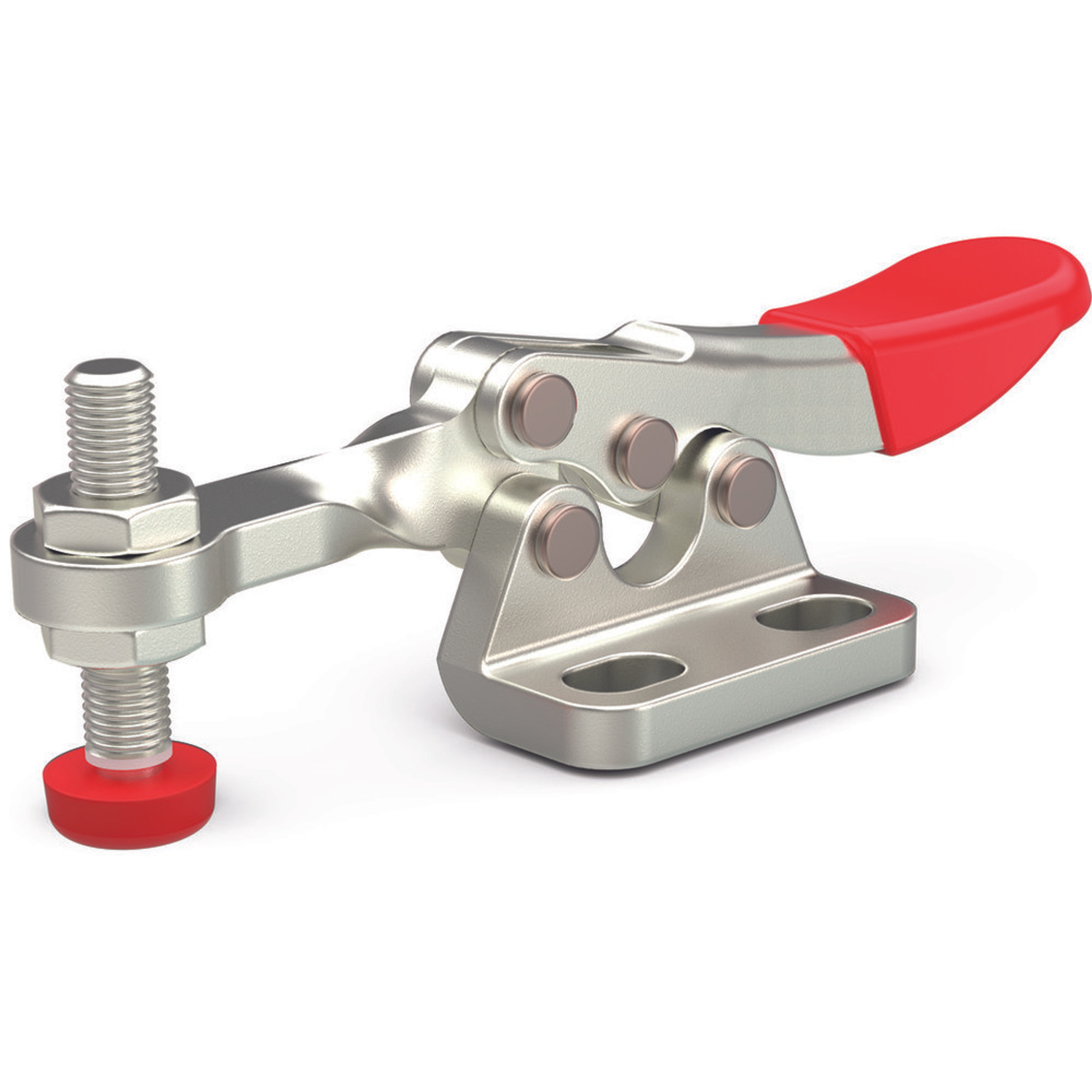

B205-SL--0.88"0.39"60 Lbs.SteelFlange, Left0.67"€28.23

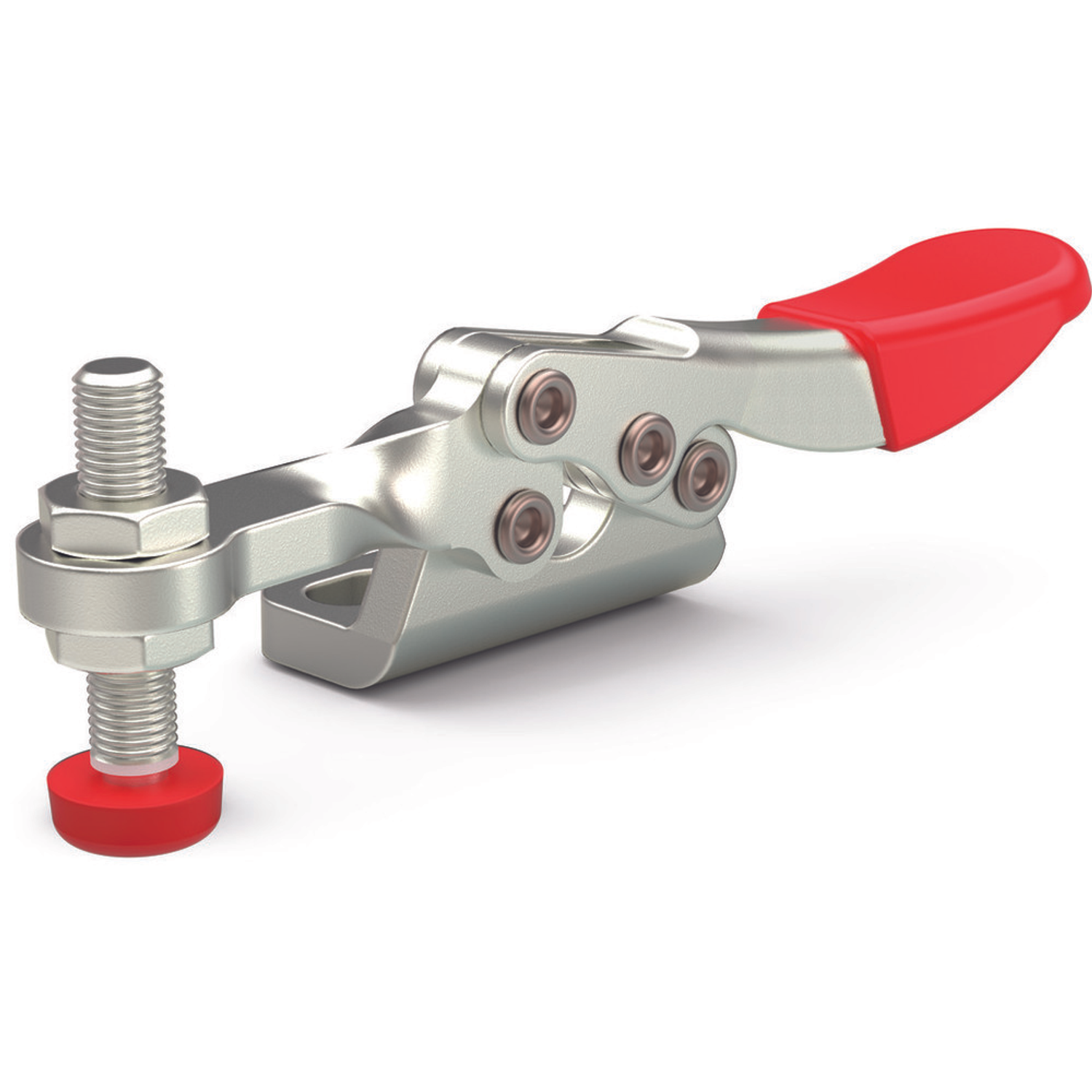

C205-SR--0.88"0.39"60 Lbs.SteelFlange, Right0.67"€26.30
D205-SSS#8-32Stainless Steel, Flanged Base, Solid Bar0.89"0.35"75 Lbs.Stainless SteelFlange0.670"€30.61
E205-SM4Horizontal Handle Hold Down0.88"0.36"60 Lbs.SteelFlange0.670"€12.39
DESTACO -

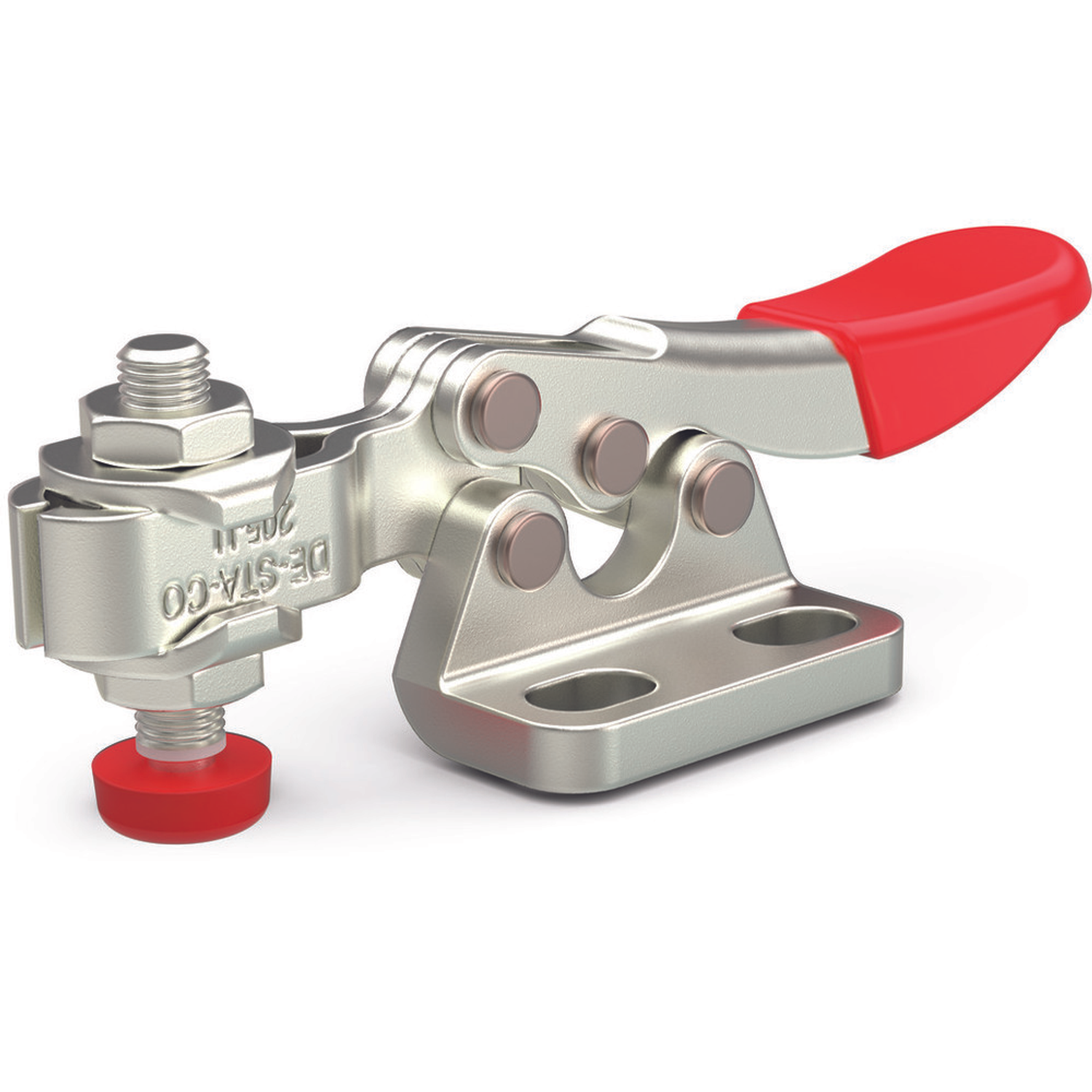

205 Series Horizontal Hold Down Clamps, U Bar

StyleModelOverall HeightThread SizeClamp Arm LengthSpindleHeight Under Clamp ArmTypeHolding CapacityMaterialPrice (ex. VAT)

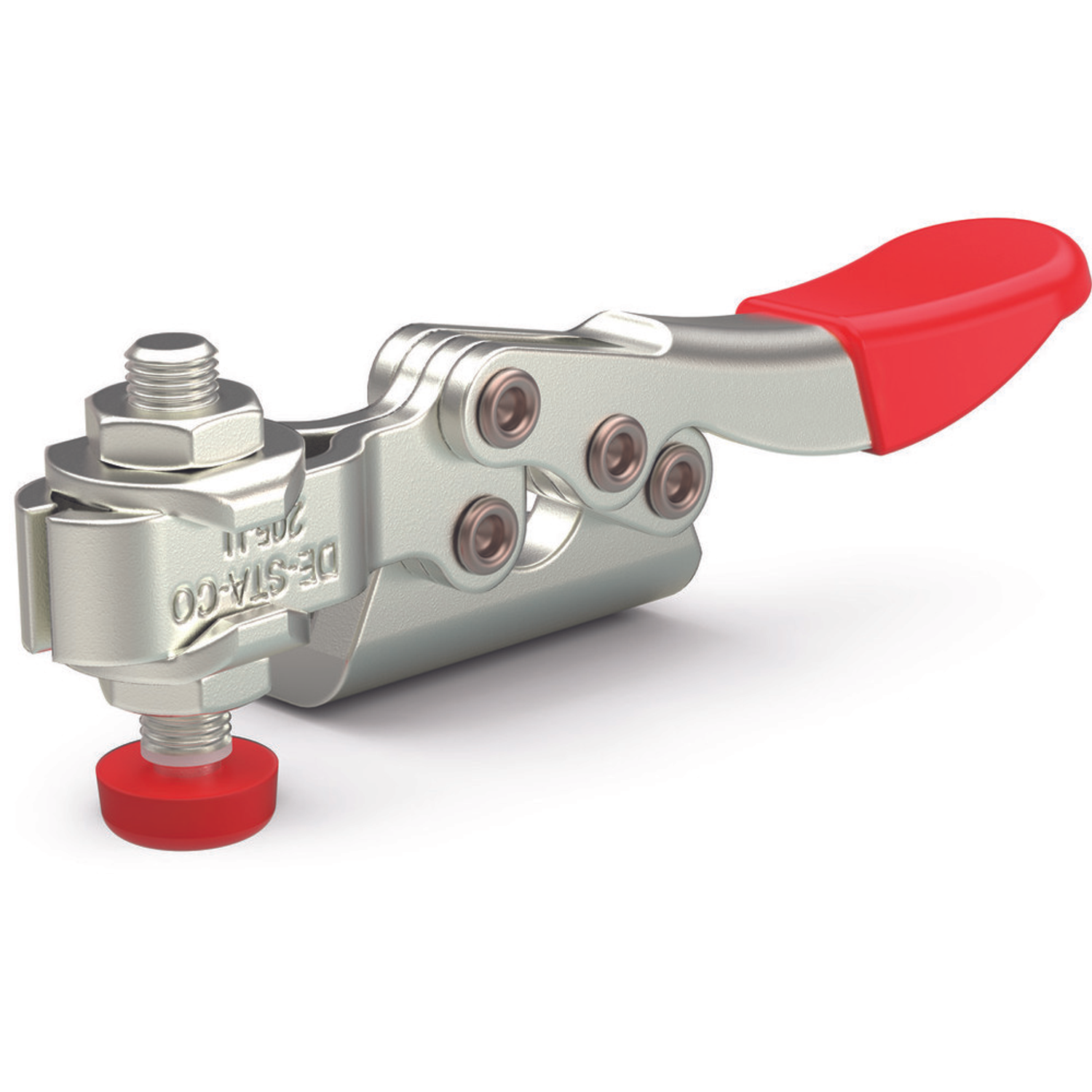

A205-UR0.67"-0.74"-0.32"-60 Lbs.Steel€34.82
B205-UL0.67"-0.74"-0.32"-60 Lbs.Steel€25.67

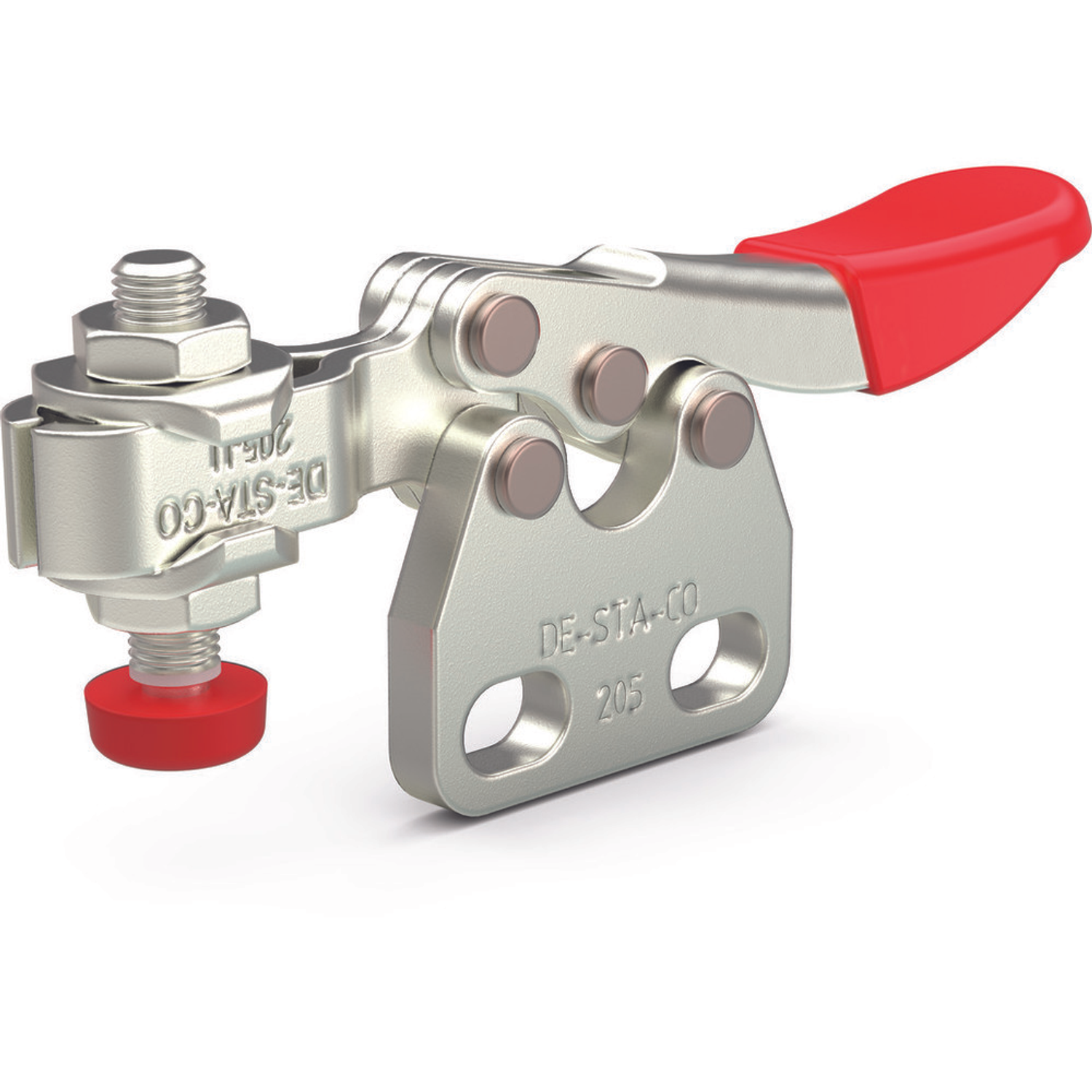

C205-UB0.84"-0.73"-0.44"-60 Lbs.Steel€24.74
D205-USS0.670"8-320.76"Hex Head SS0.29"Horizontal Handle Hold Down, SS75 Lbs.Stainless Steel€31.37
E205-U0.670"M40.74"Flat Cushion Neoprene0.32"Horizontal Handle Hold Down60 Lbs.Steel€12.45
DESTACO -

381 Series Pull Action Latch Clamps

StyleModelMaterialOverall HeightPrice (ex. VAT)

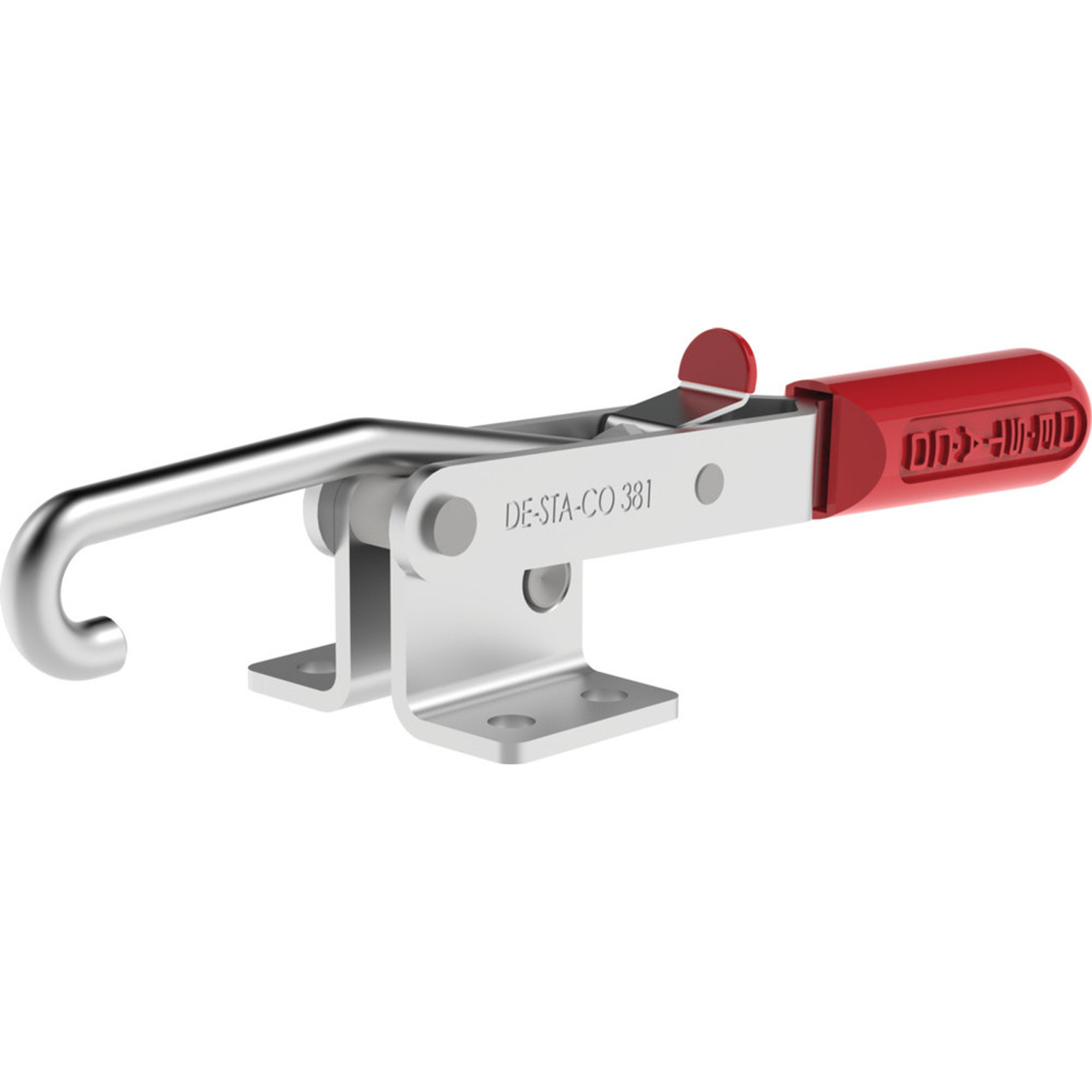

A381-SSStainless Steel2.9"€217.10
B381Steel2.900"€59.44
DESTACO -

331-M Series Pull Action Latch Clamps

StyleModelHook Adjustble RangeOverall LengthPrice (ex. VAT)

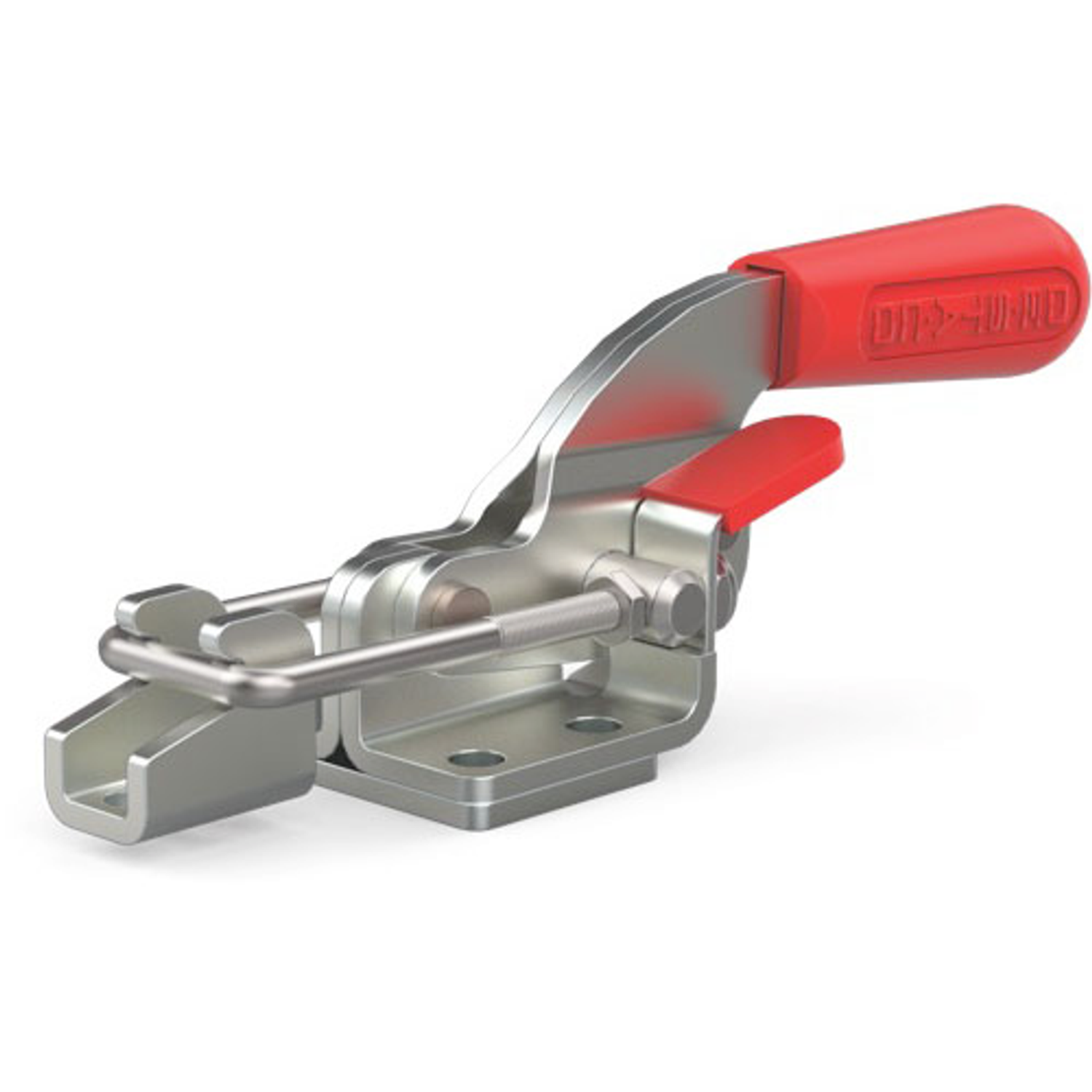

A331-M-2525mm7.5787"€56.62
A331-M-5050mm8.563"€59.16
B331-M-100100mm10.5315"€79.99
StyleModelHook Adjustble RangeOverall LengthPrice (ex. VAT)
A381-M-2525mm14.437"€185.54
A381-M-5050mm15.4212"€185.54
A381-M-100100mm17.3897"€112.01
DESTACO -

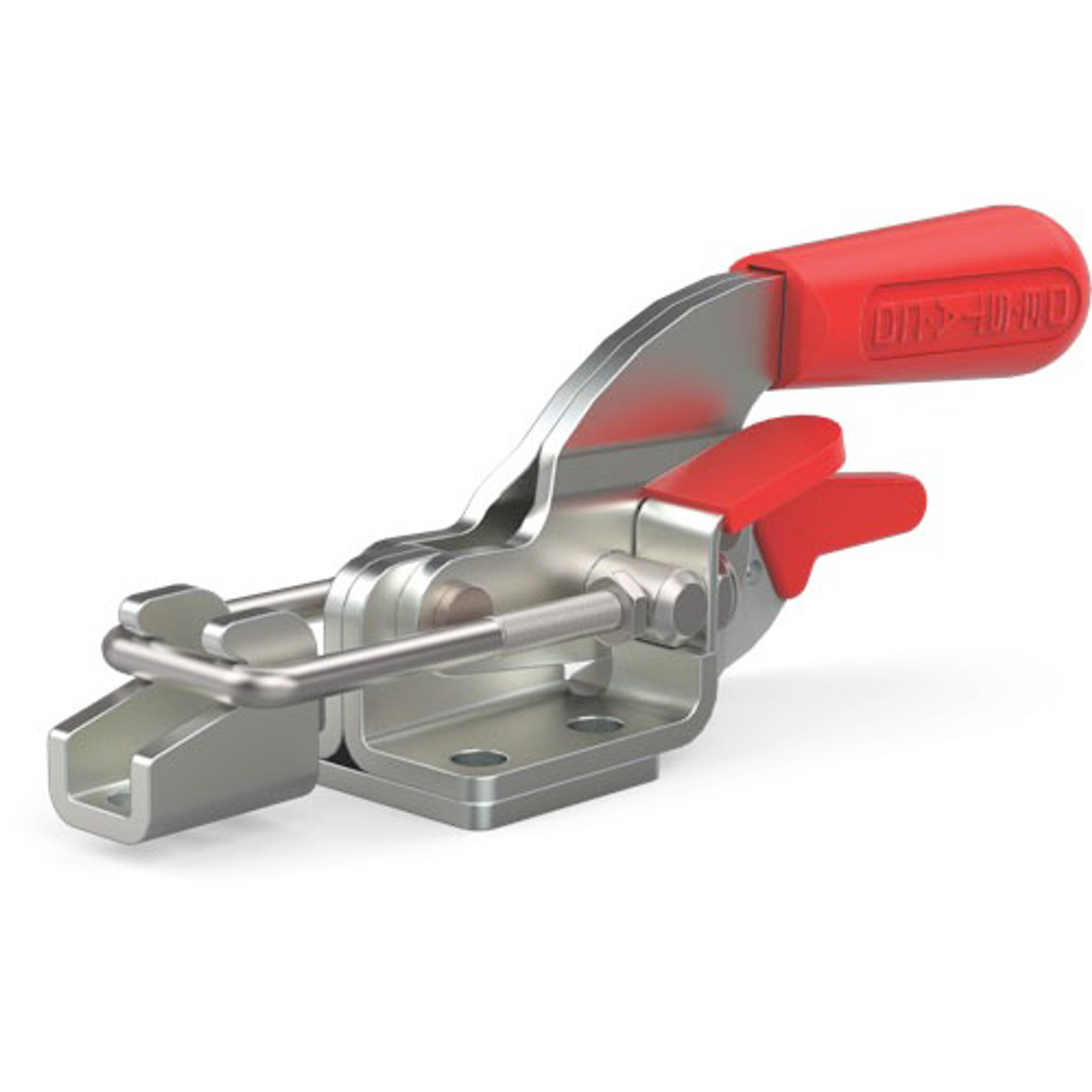

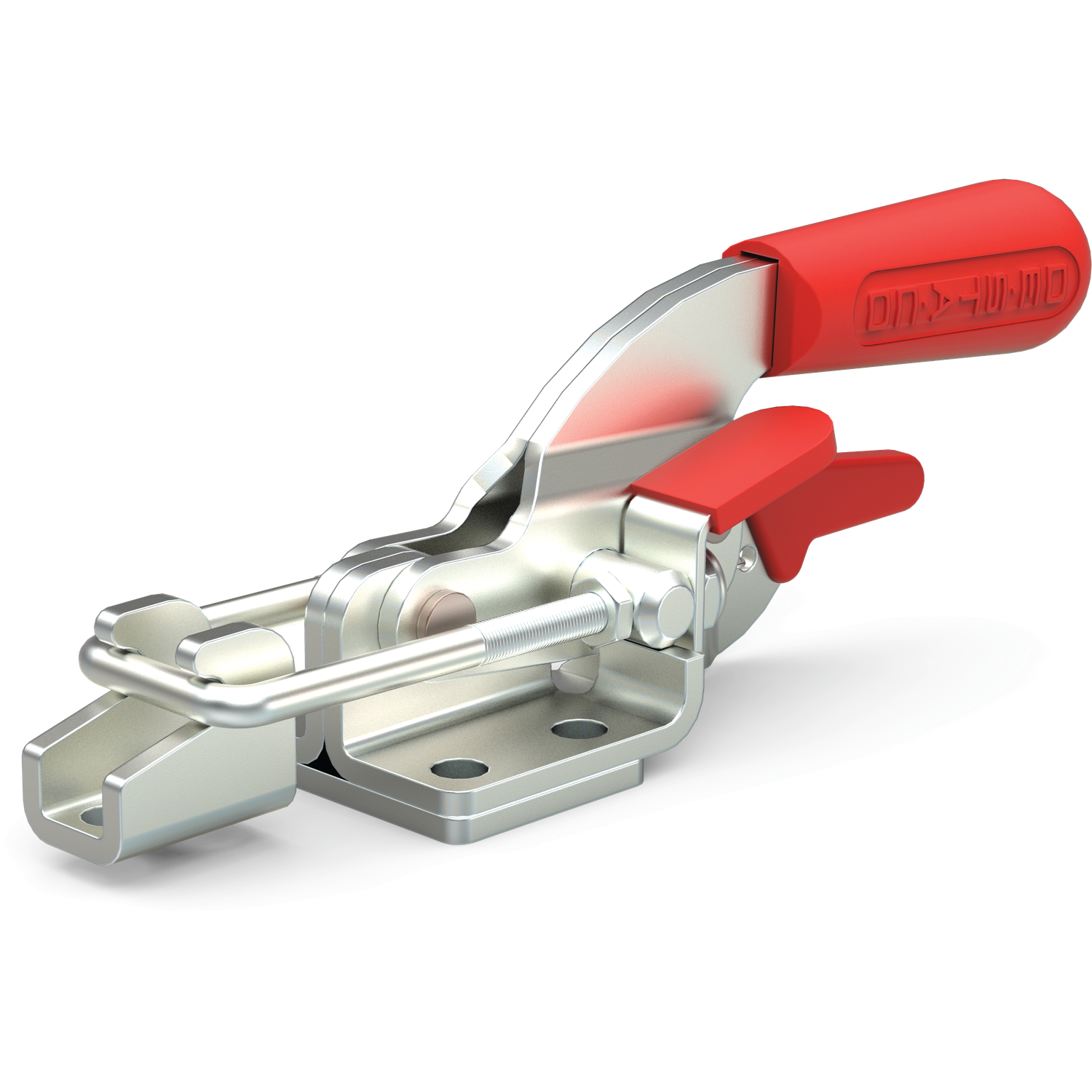

331-R Series Pull Action Latch Clamps

StyleModelHook Adjustble RangeMaterialOverall HeightOverall LengthTypePrice (ex. VAT)
A331-R22.1mmSteel2.010"6.070"Horizontal, w/ release lever€47.67
A331-RSS22.1mmStainless Steel2.010"6.070"Horizontal€83.18
B331-R-M-2525mmSteel2.01"7.5787"-€82.99
C331-R-M-5050mmSteel2.01"8.563"-€85.55
C331-R-M-100100mmSteel2.01"10.5315"-€123.25
DESTACO -

385-R Series Pull Action Latch Clamps

StyleModelHook Adjustble RangeOverall HeightOverall LengthPrice (ex. VAT)
A385-R-M-2525mm3.67"10.6338"€199.54
B385-R36.1mm3.670"9.650"€176.44
C385-R-M-5050mm3.67"11.6181"€309.56
A385-R-M-100100mm3.67"13.5866"€206.28
DESTACO -

375-R Series Pull Action Latch Clamps

StyleModelHook Adjustble RangeOverall HeightOverall LengthPrice (ex. VAT)
A375-R22.1mm4.190"10.190"€128.17
B375-R-M-2525mm4.19"11.1732"€253.87

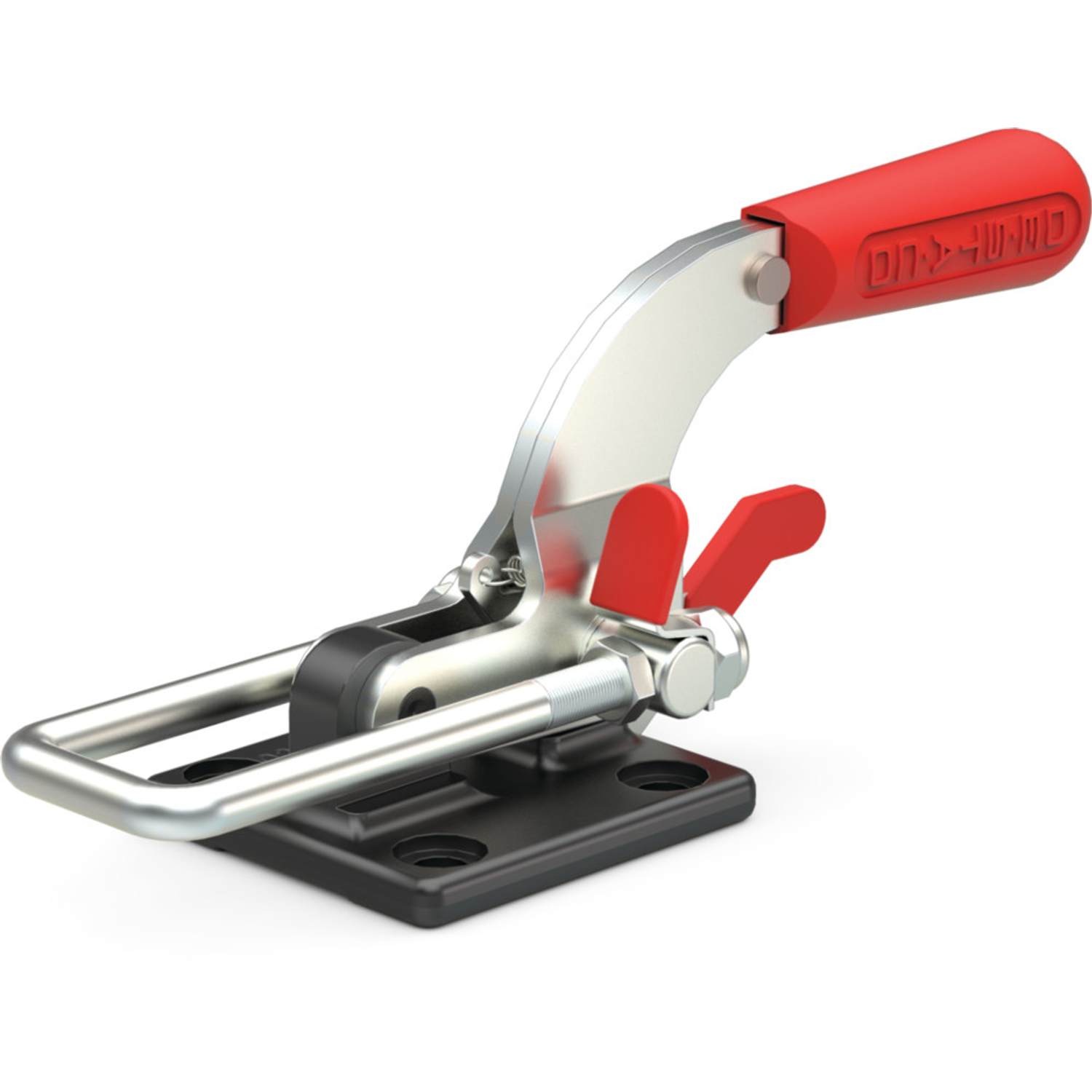

B375-R-M-5050mm4.19"12.1575"€253.87
C375-R-M-100100mm4.19"14.126"€253.87
INSIZE -

Clamps

StyleModelItemPrice (ex. VAT)

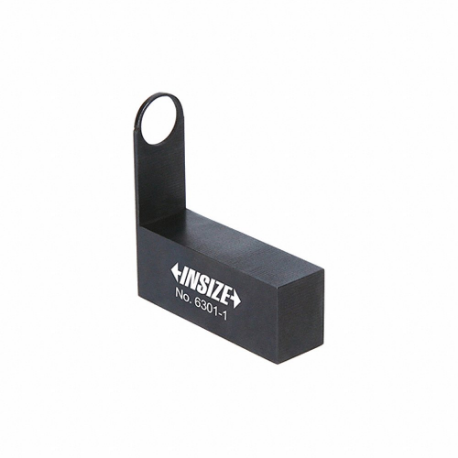

A6301-1Clamp€62.71
B2372-CLAMPClamp€35.52

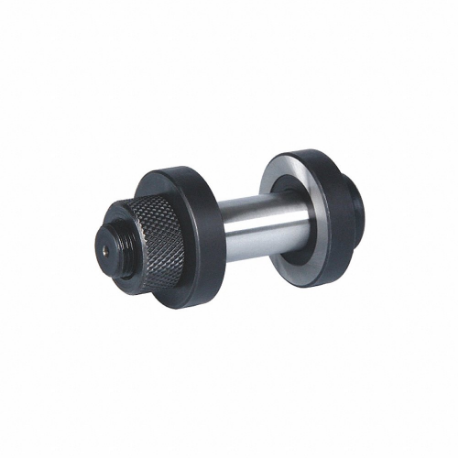

CISQ-TE100-DClamp€1,340.17
DISP-A1000-VBLOCKClamp€667.85
EISY-100-8002Stand€57.55
DESTACO -

Hold Down Toggle Clamps

StyleModelItemPrice (ex. VAT)
A920-MAssembly€50.12
A905-MAssembly€42.41

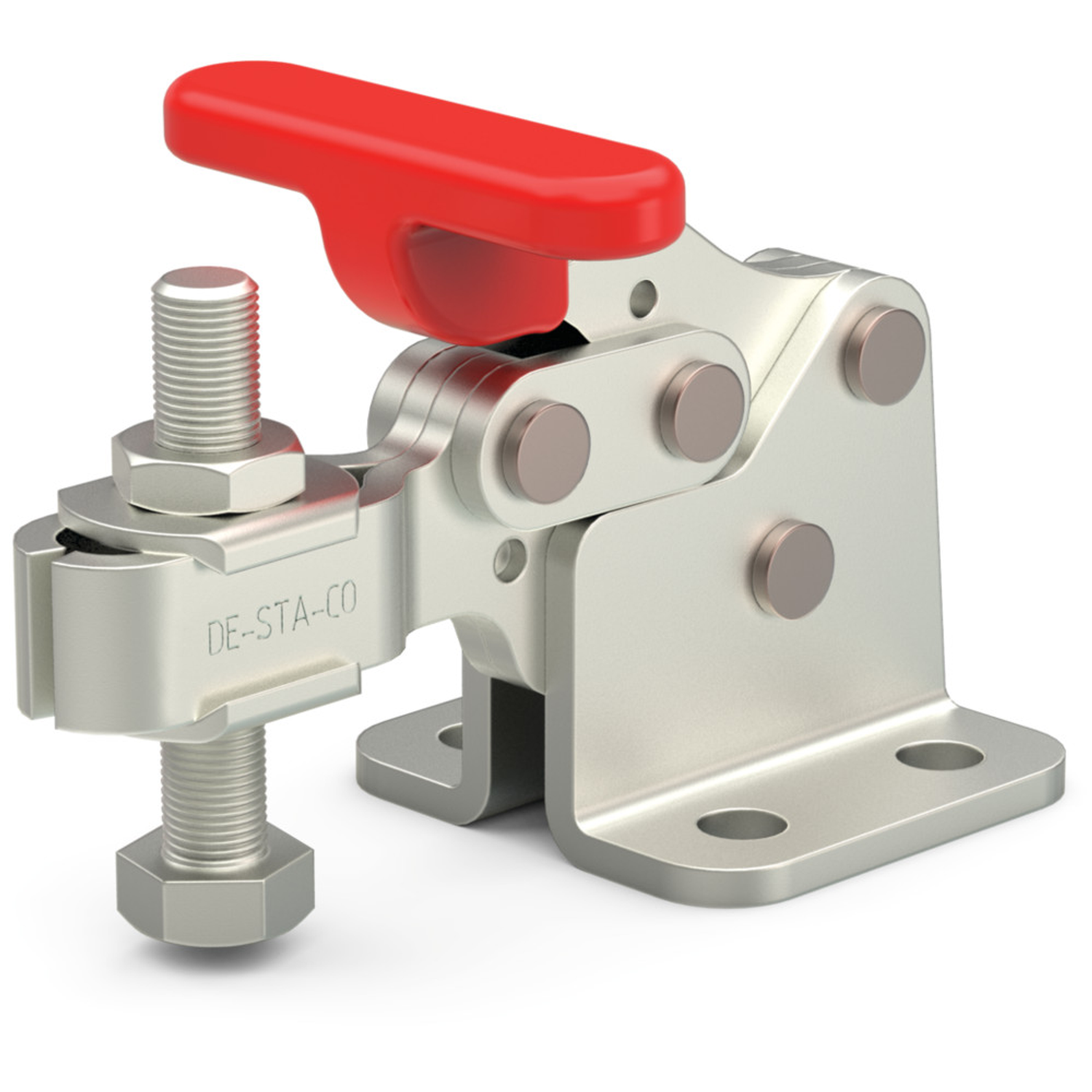

B307-URSSClamp€81.84

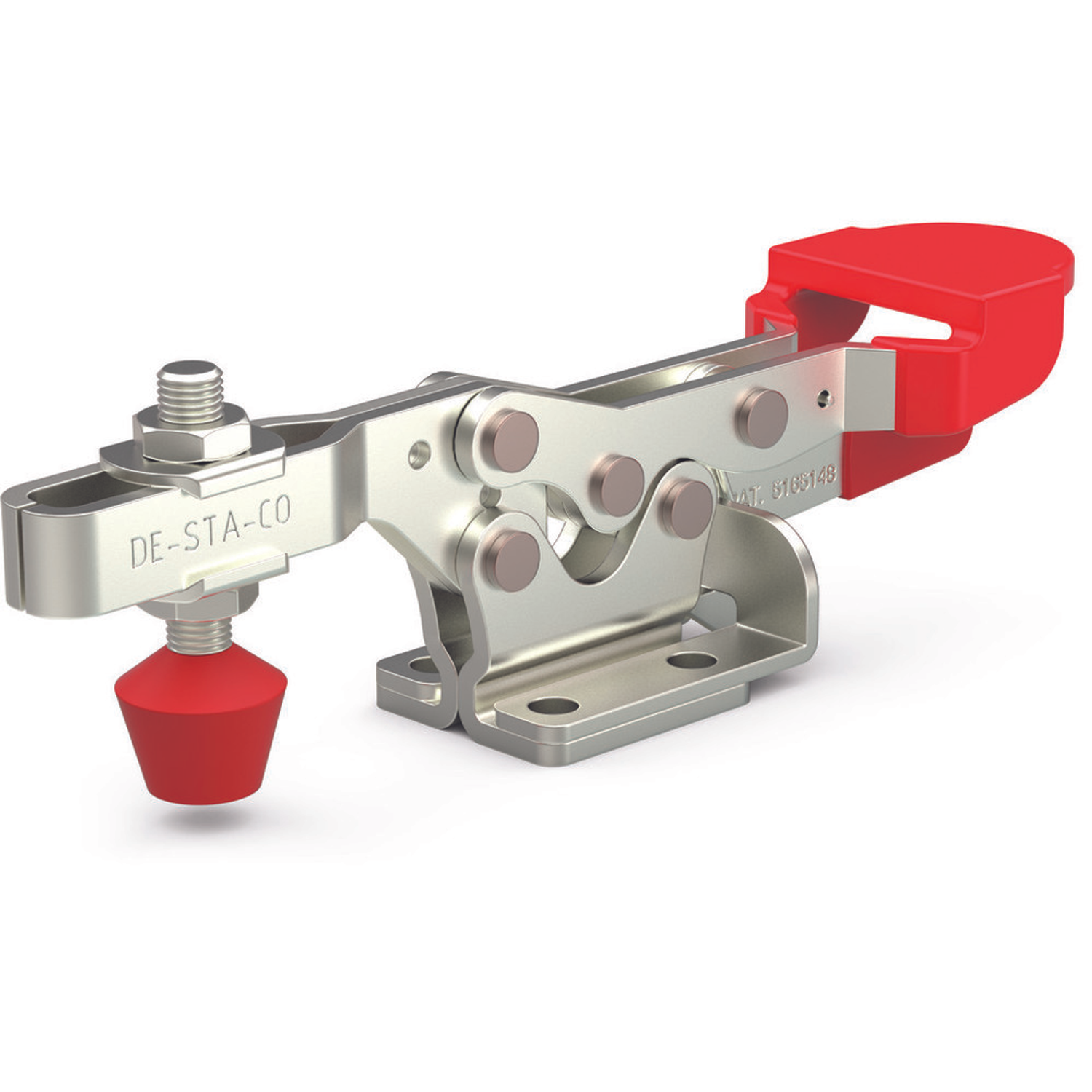

C225-URSSClamp€77.26
D2002-URSSClamp€66.31
E2007-URSSClamp€89.63
F2002-USSClamp€48.53
G2007-USSClamp€68.44
A207-LClamp€26.02

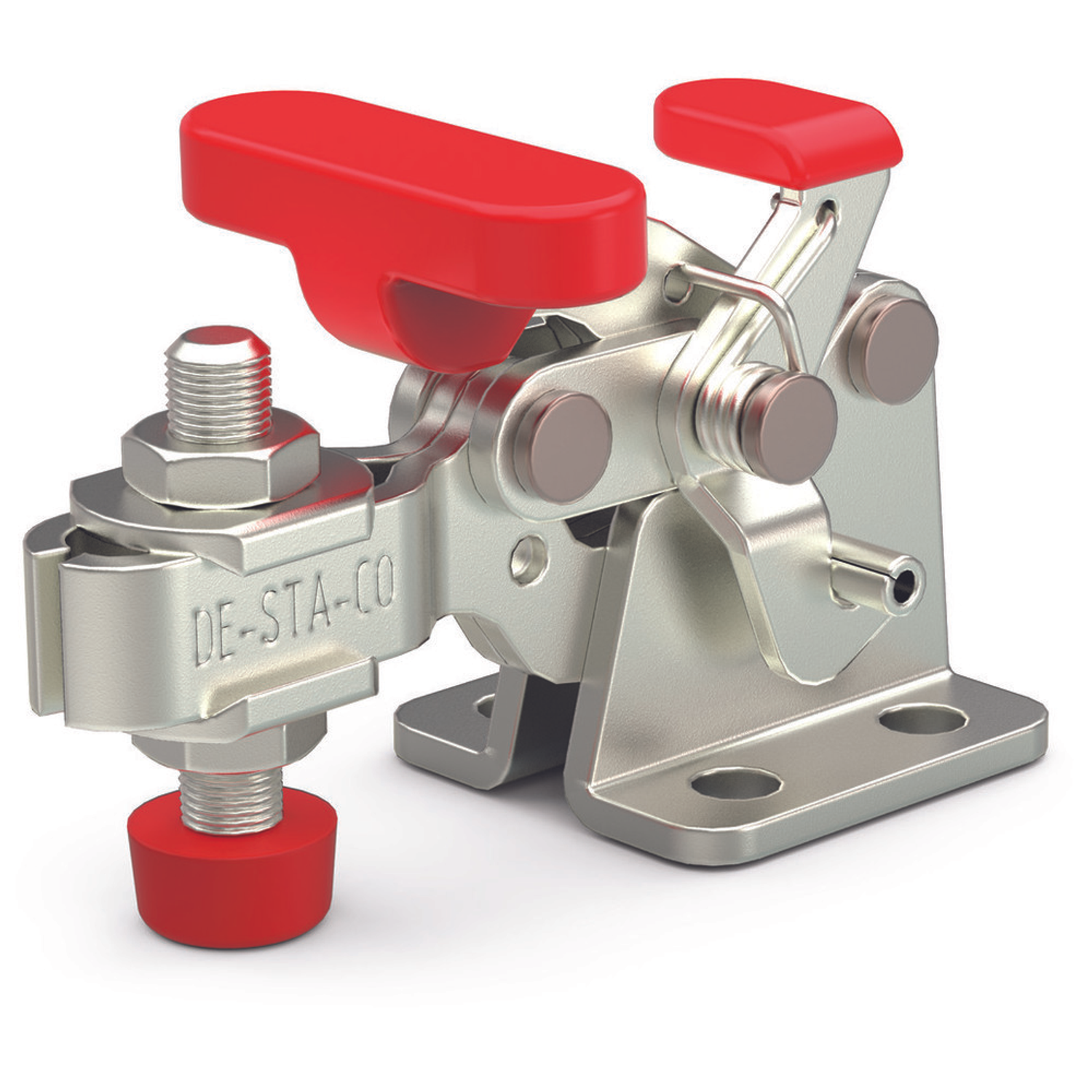

B305-URSSClamp€56.16
A210-SBClamp€49.78
H235-URSSClamp€135.42
BESSEY -

Toggle Clamp

StyleModelOverall HeightPrice (ex. VAT)
ASTC-HH502"€47.15
BSTC-HH702.375"€48.18
DESTACO -

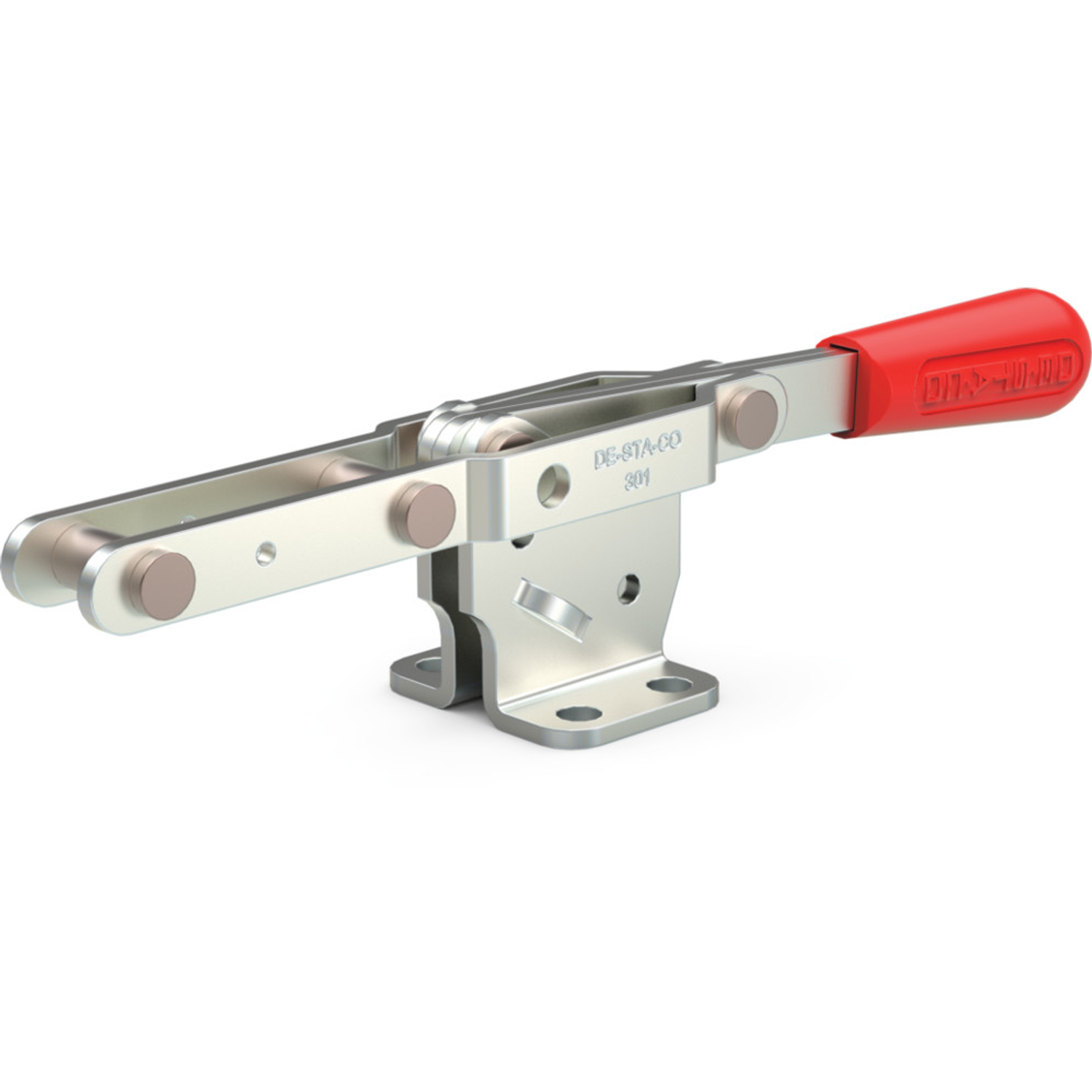

301, 311 Series Pull Action Latch Clamps

Destaco 301, 311 Series pull action latch clamps are designed for securing & molding closures for lids, doors & covers and also for assembling applications in the automotive, aerospace and food & packaging industries. These pull action latch clamps provide a stationary alternative to removable C clamps or spring clamps while securing material to the work surface and holding them in place using a lever handle that is pushed to the upright position when the clamp is engaged & pressed down to reach the locked position, ensuring quick and fatigue less clamping operations. These pull action latch clamps have a patented thumb control lever for single handed operation. These Destaco 301, 311 Series clamps feature a fixed stop that automatically limits handle movement at different clamping positions, and are made of steel / stainless steel for resisting corrosion on exposed surfaces. These pull action latch clamps have a flanged base with threaded holes, allowing the unit to be mounted to a worktable or flat surface. They depend on 3 main components - a base for attaching the clamp to the surface, a clamping arm for contact point between the work item & clamp and a handle for operating the tool. Once the simple linkage system of the clamp is put in the over centre position, the handle is pulled horizontally / vertically to create force parallel to the base and squeeze holding the items.

StyleModelHolding CapacityToggle Lock PlusMaterialMounting BaseHook TypePrice (ex. VAT)
A301375 Lbs.NoSteelFlangeU-Hook (Horizontal)€32.91
A301-SS450 Lbs.NoStainless SteelFlangeU-Hook (Horizontal)€90.93
A3111200 Lbs.NoSteelFlangeU-Hook (Horizontal)€44.89
DESTACO -

385, 385-R, 385-L Series Pull Action Latch Clamps

These Destaco 385, 385-R, 385-L Series pull action latch clamps or manual latch clamps provide powerful closing force & sealing, convenient operation and positive holding, while sealing chamber doors, access doors & mold closures. They can handle loads up to 7500 lb, and are ideal for repetitive closing & opening during latching, moulding & assembling operations in the metalworking, aerospace, transportation and food processing & packaging industries. These Destaco latch clamps feature an ergonomic handle latch design that can be moved to place the hook (i.e. the clamping pull bar) around the opposing latch and pressed down to reach the locked position to ensure fatigue-less and quick clamping operations. The patented thumb control levers enable easy one-handed operation, and threaded U hooks ensure easy adjustments. They can mount to work surfaces easily to hold workpieces in a stationary position. The stainless steel latch plates and flanged bases with mounting holes are designed for easy installation to surfaces. Selected models come with Toggle Lock Plus safety features to prevent accidental opening of clamps. These 385-R, 385-L, 385 pull action latch clamps are available in stainless steel and steel variants to resist corrosion.
If you want to order clamps with longer hooks than the standard ones, simply add -M-25 (25 mm), -M-50 (50 mm) or -M-100 (100 mm) suffix to the MPN (for example, 385-M-100) and request a quote for the same on Raptor Supplies.

StyleModelHook Adjustble RangeToggle Lock PlusHolding Capacitymaterialhook typemounting basePrice (ex. VAT)
A385-V2A26.9mmNo7500 Lbs.SteelU-Hook (Horizontal)Flange€515.49
B38536.1mmNo7500 Lbs.SteelU-Hook (Horizontal)Flange€108.20
DESTACO -

217 Series Horizontal Hold Down Clamps

Destaco 217 Series horizontal hold down clamps feature a low-profile design that offers large handle clearance in open position and a convenient handling operation. These clamps are used in woodworking, fixture checking, closures and assembly operations and offered in different heights, lengths, spindle types and thread sizes.

StyleModelHeight Under Clamp ArmMounting BaseClamp Arm LengthMaterialClamp Arm StyleToggle Lock PlusHolding CapacityHandlePrice (ex. VAT)
A217-U0.92"Flange2.31"SteelU-BarNo200 Lbs.Horizonal€20.64
B217-U-L0.92"Flange1.49"SteelOpen U-BarNo200 Lbs.Horizonal€33.45
C217-USS0.93"Flange2.29"Stainless SteelU-BarNo250 Lbs.Horizonal€50.12
D217-UB-L1.11"Straight1.49"SteelOpen U-BarNo200 Lbs.Horizonal€33.45
E217-UB1.11"Straight2.31"SteelU-BarNo200 Lbs.Horizonal€32.07
DESTACO -

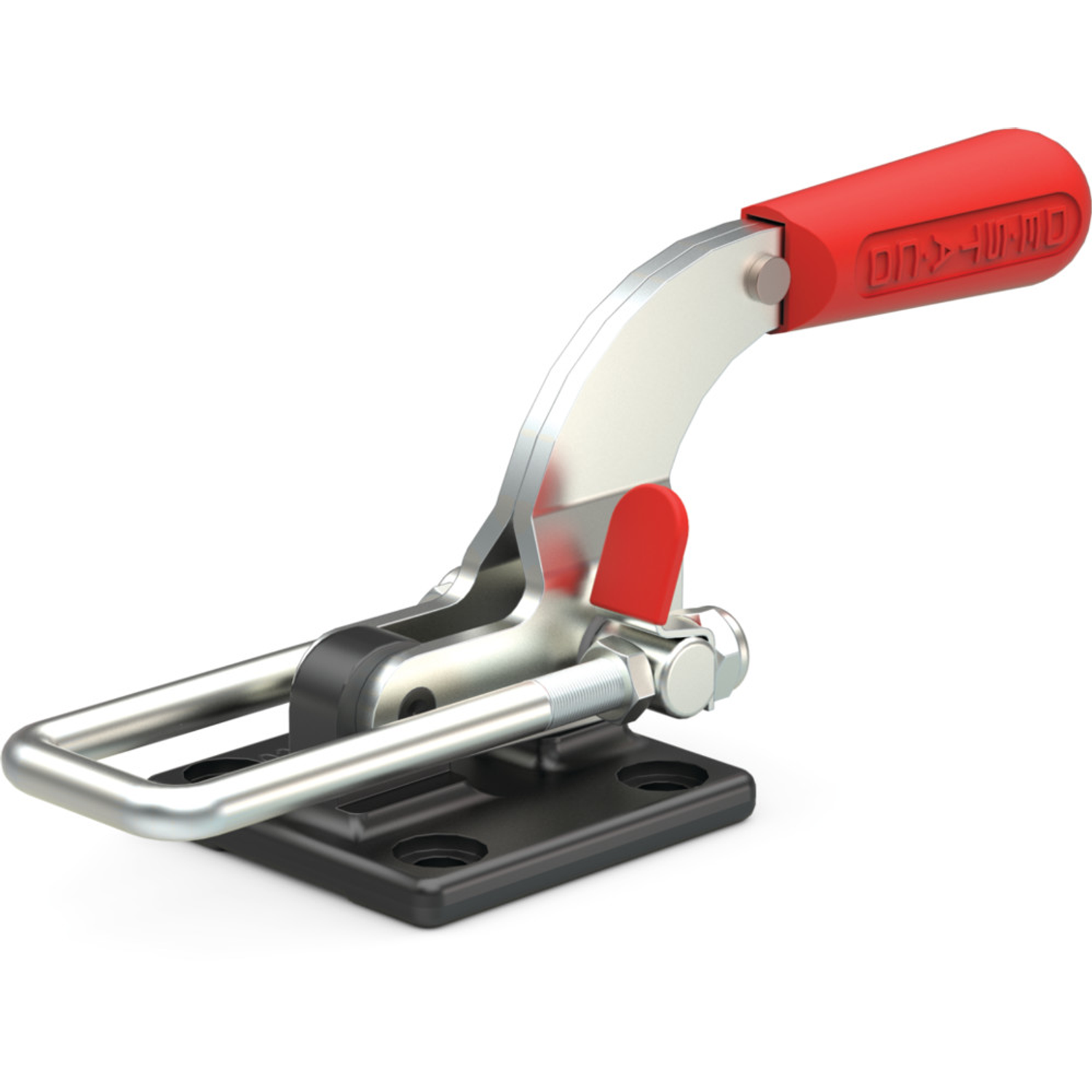

375 Series Pull Action Latch Clamps, Narrow Base

StyleModelBase WidthHook Adjustble RangeOverall LengthToggle Lock PlusPrice (ex. VAT)
A375-B-M-500.49"50mm12.1575"No€173.58

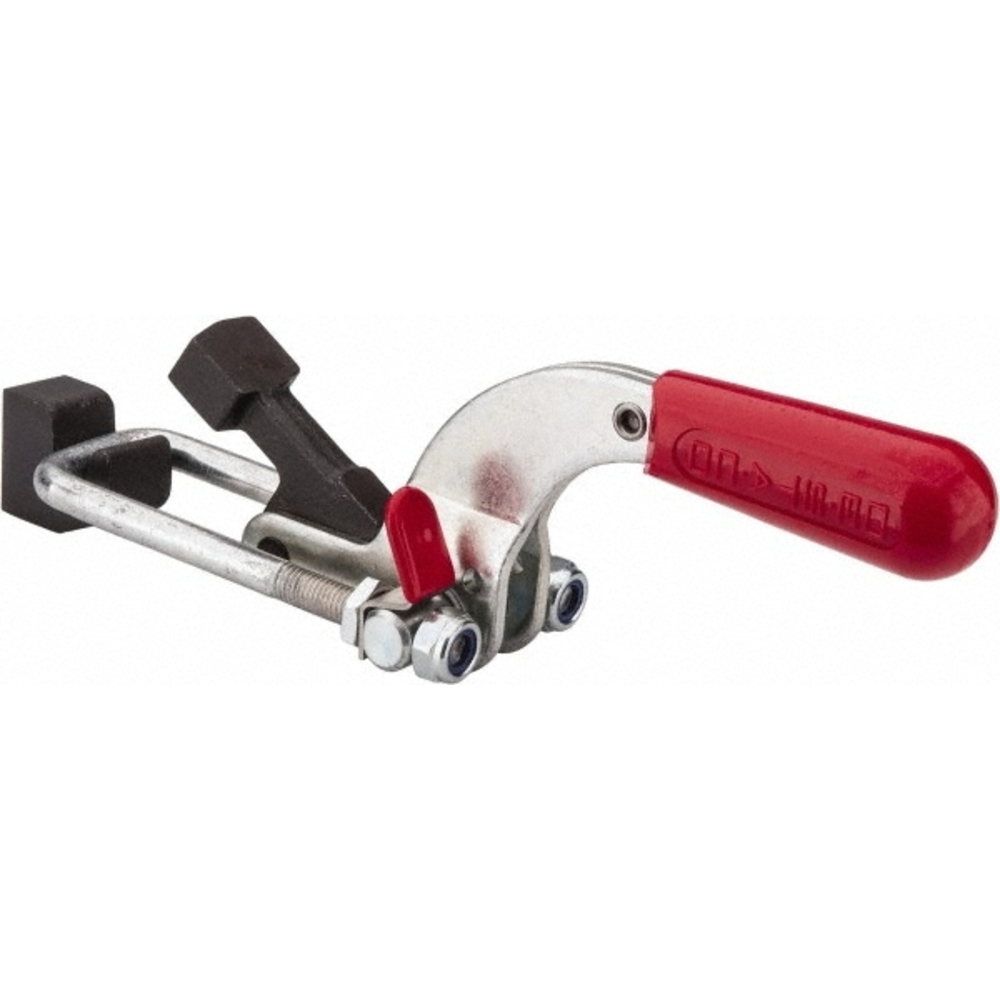

B375-B-M-1000.49"100mm14.126"No€298.40
A375-B-M-250.49"25mm11.1732"No€173.58

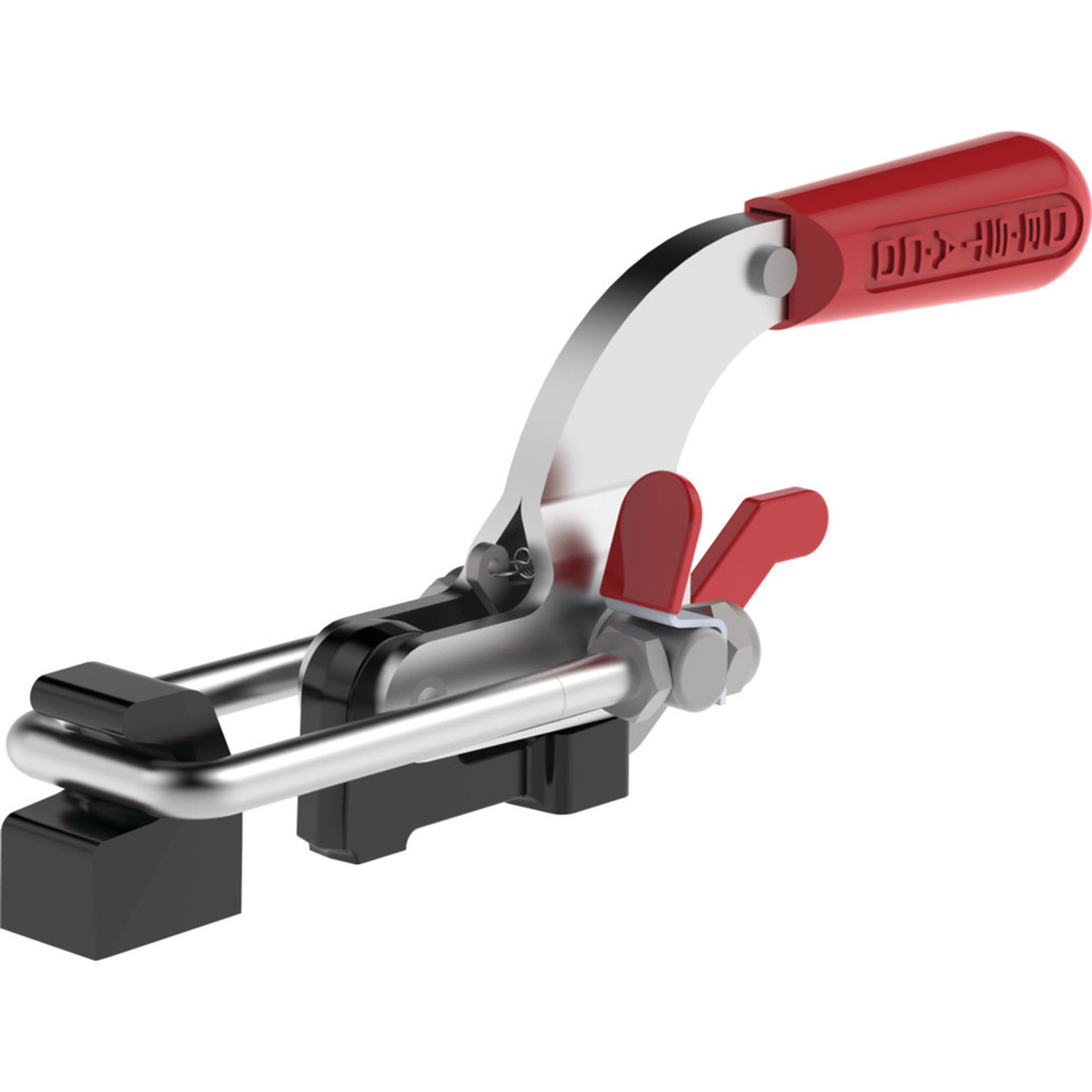

C375-BR0.49"22.1mm10.190"Yes€185.12
B375-B1"22.1mm10.190"No€84.81
BESSEY -

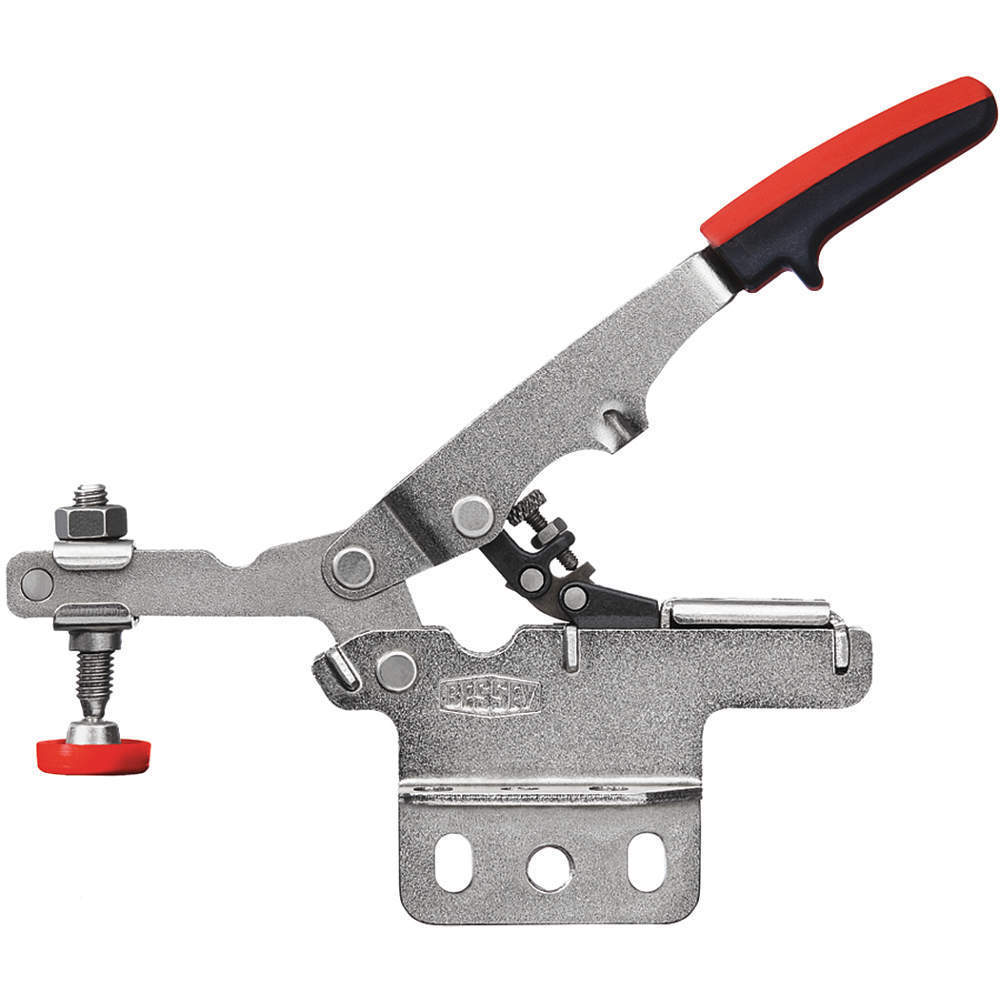

Horizontal Toggle Clamps

Toggle clamps from BESSEY are ideal for firmly holding down a workpiece and keep it stationary. These self-adjusting toggle clamps can maintain clamping force while self-adjusting to variations in the workpiece height (from 20 to 60 mm). They feature an integrated pressure screw which allows clamping force adjustment from 25 to 550 lb. BESSEY STC-HH20 clamps have a load-holding capacity of 700 lb (standard is 450 lb) and are equipped with a heat-resistant handle for operator comfort & safety They have a nickel-plated coating for protection against corrosion & a longer life.

StyleModelPrice (ex. VAT)
ASTC-HV20€45.56
BSTC-HA20€43.54
CSTC-HH20€45.22
DESTACO -

237 Series Horizontal Hold Down Clamps

Destaco 237 Series horizontal hold-down clamps feature a low-profile design with a large handle clearance in open position. They are used in welding, fixture checking and assembling of various tools and equipment. Destaco 237 Series clamp is available in different overall heights and lengths.

StyleModelmaterialholding capacitytoggle lock plusMounting BaseClamp Arm LengthHeight Under Clamp ArmClamp Arm StyleHandlePrice (ex. VAT)
A237-USSStainless Steel750 Lbs.NoFlange4"1.67"U-BarHorizonal€165.35
B237-USteel750 Lbs.NoFlange4"1.67"U-BarHorizonal€42.96
DESTACO -

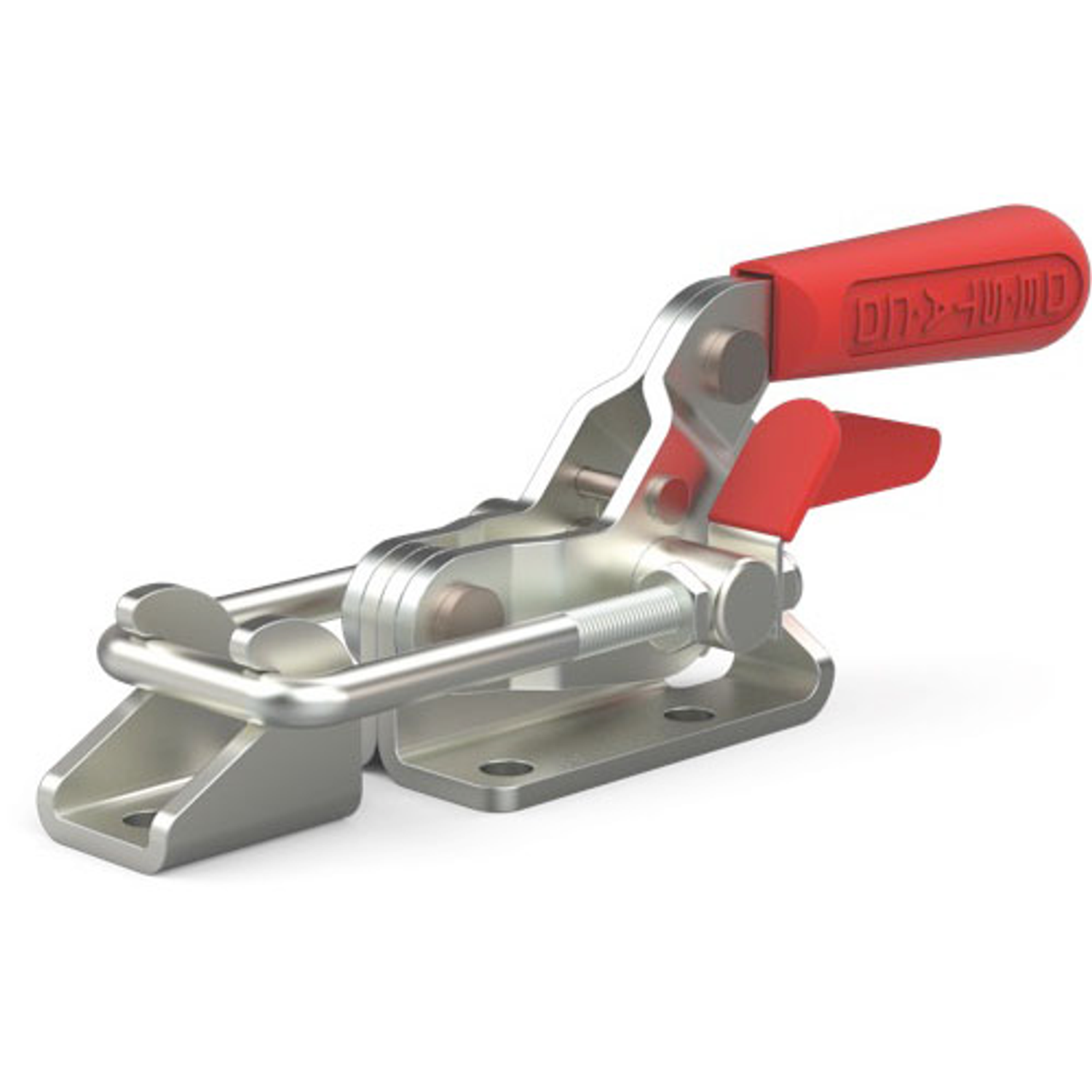

341-R Series Pull Action Latch Clamps

StyleModelHook Adjustble RangeMaterialOverall HeightOverall LengthTypePrice (ex. VAT)
A341-RSS24.6mmStainless Steel2.890"8.200"Horizontal€137.46
A341-R24.6mmSteel2.890"8.200"Horizontal, w/ release lever€70.03
B341-R-M-2525mmSteel2.89"9.937"-€121.80
C341-R-M-5050mmSteel2.89"10.9212"-€125.16
C341-R-M-100100mmSteel2.89"12.8897"-€128.50
KIPP -

Toggle Clamps

StyleModelPrice (ex. VAT)
AK0661.012101€155.96
BK0661.106001€98.66
AK0661.008101€113.02
CK0663.108101€211.48
DK0663.008001€72.25
AK0661.006101€99.29
EK0663.106001€98.62
DK0663.006001€56.71
FK0660.105001€74.63
GK0662.106001€98.62
HK0662.006101€97.35
IK0662.012001€115.89
JK0660.008101€114.94
KK0661.106101€176.85
GK0662.108001€136.84
GK0662.105001€67.07
LK0662.106101€177.66
FK0660.106001€109.12
MK0660.010001€119.15
NK0663.010101€151.82
FK0660.104001€66.83
NK0663.008101€112.39
BK0661.105001€74.63
HK0662.008101€111.23
MK0660.005001€43.71
DESTACO -

330 Series Pull Action Latch Clamps

StyleModelMaterialTypePrice (ex. VAT)

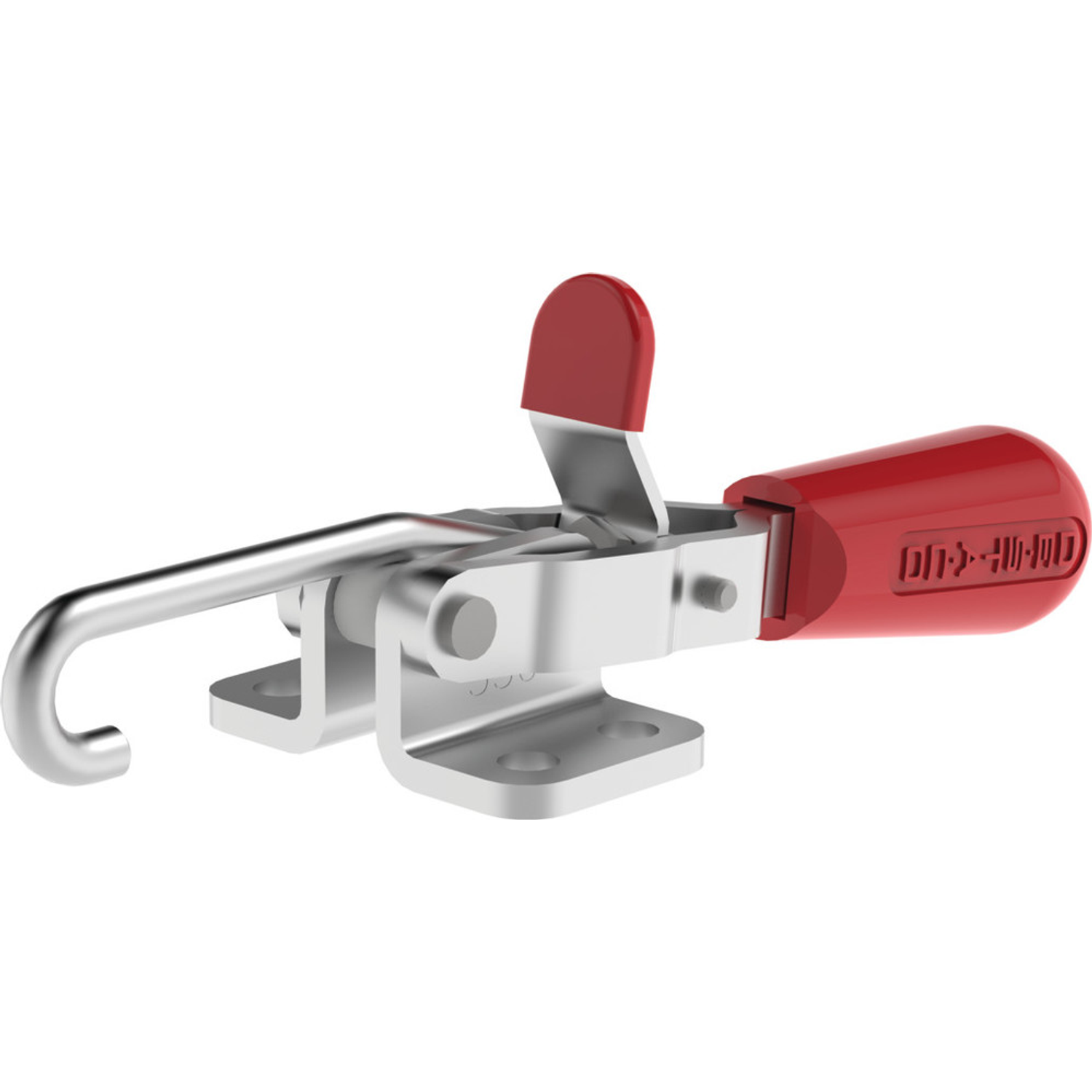

A330-SSStainless SteelHorizontal Handle Hold Down, SS€46.71
B330SteelHorizontal€22.23
StyleModelMaterialPrice (ex. VAT)
A323-SSStainless Steel€43.89
A323Steel€20.96
DESTACO -

331 Series Pull Action Latch Clamps

StyleModelMaterialPrice (ex. VAT)
A331-SSStainless Steel€49.50
B331Steel€24.33
DESTACO -

341 Series Pull Action Latch Clamps

StyleModelMaterialPrice (ex. VAT)
A341-SSStainless Steel€96.56
B341Steel€36.21
DESTACO -

351 Series Pull Action Latch Clamps

StyleModelHolding CapacityMaterialTypePrice (ex. VAT)
A351375 Lbs.SteelHorizontal€17.39

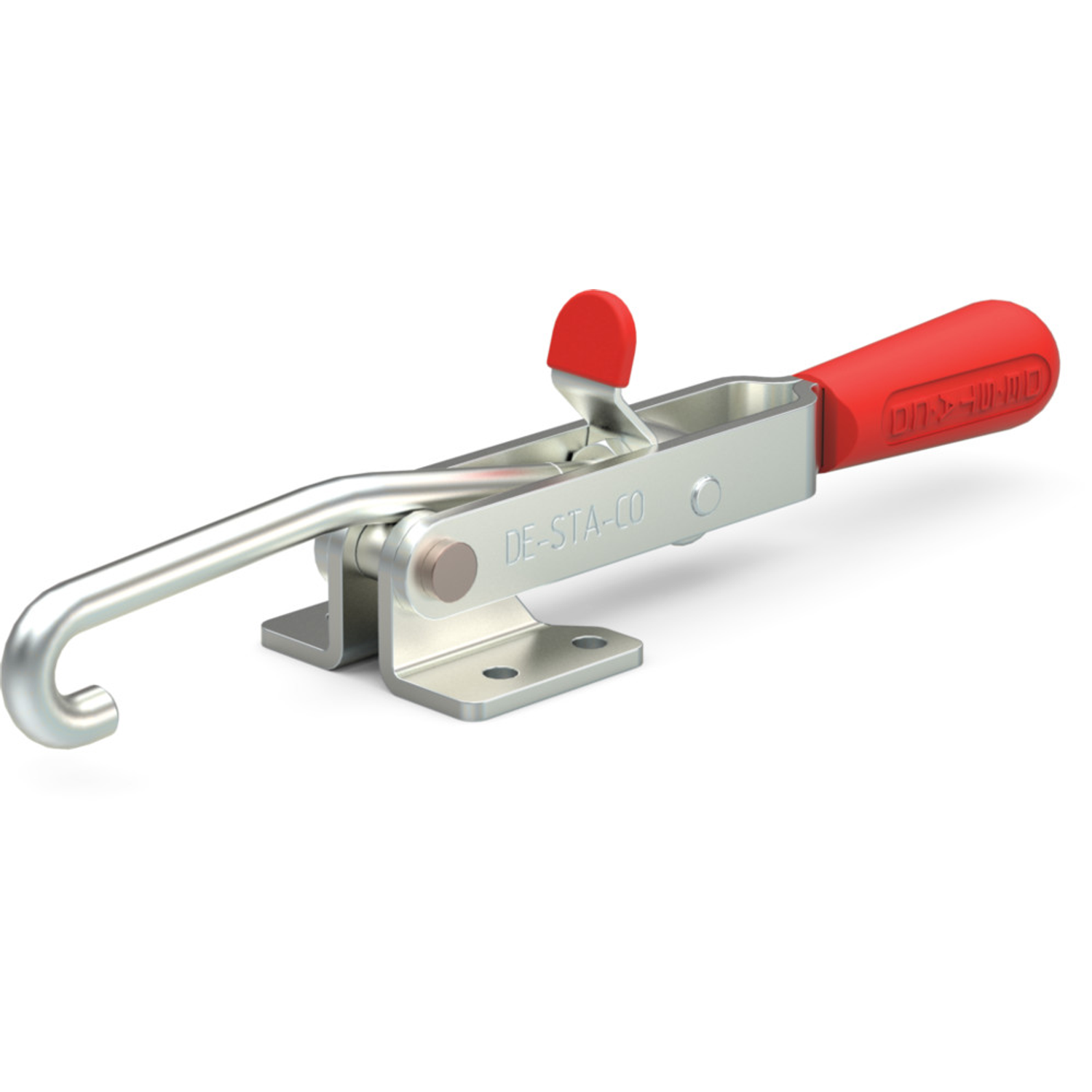

B351-SS450 Lbs.Stainless SteelHorizontal Handle Hold Down, SS€46.49
DESTACO -

385-L Series Pull Action Latch Clamps

StyleModelHook Adjustble RangeOverall LengthPrice (ex. VAT)
A385-L-M-2525mm11.1023"€288.27
B385-L36.1mm10.12"€135.82
C385-L-M-5050mm12.0866"€288.27
A385-L-M-100100mm14.0551"€288.27
StyleModelHook Adjustble RangeOverall LengthPrice (ex. VAT)
A375-M-2525mm11.1732"€147.63
A375-M-5050mm12.1575"€193.59
A375-M-100100mm14.126"€193.59
StyleModelHook Adjustble RangeOverall LengthPrice (ex. VAT)
A371-R23.9mm12.74"€95.50
A371-R-M-2525mm13.7244"€194.67
A371-R-M-5050mm14.7086"€194.67
A371-R-M-100100mm16.6771"€194.67
StyleModelHook Adjustble RangeOverall LengthPrice (ex. VAT)

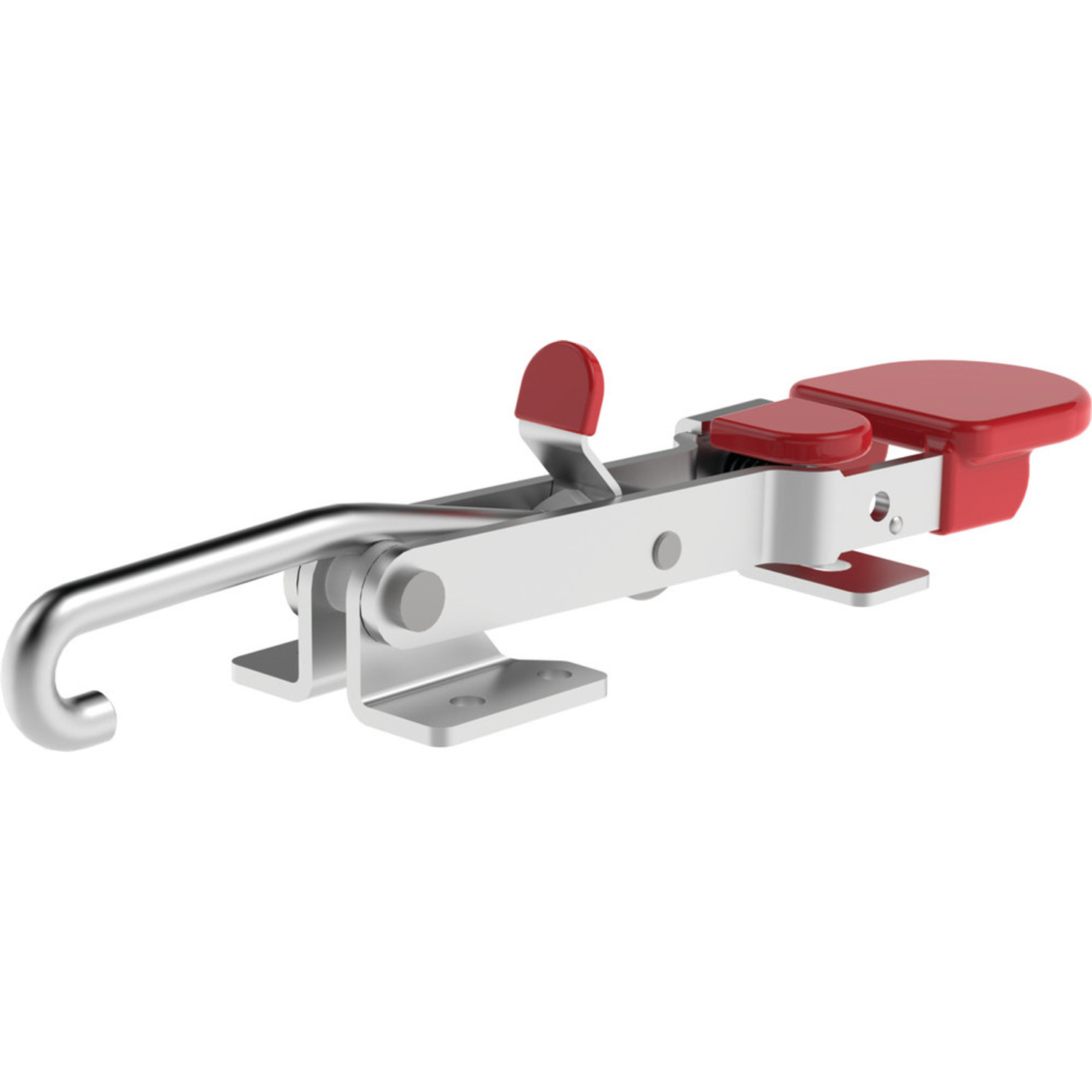

A351-R12.4mm9.45"€48.27
A351-R-M-2525mm10.4331"€144.09
A351-R-M-5050mm11.4173"€144.09
A351-R-M-100100mm13.3858"€115.52
StyleModelHook Adjustble RangeOverall LengthPrice (ex. VAT)
A330-M-2525mm6.9961"€74.78
A330-M-5050mm7.9803"€74.78
A330-M-100100mm9.9488"€74.78
DESTACO -

235 Series Horizontal Hold Down Clamps

These Destaco 201 Series vertical hold down toggle locking clamps, also known as vertical manual hold down clamps, are designed to offer a stationary alternative to removable C clamps or spring clamps when securing materials to a work surface. These manual clamps hold workpieces in place using a lever handle that is pushed to the upright position, to hold workpieces firmly in place when the clamps are engaged. Further, they apply downward clamping force by increasing the applied load via toggle mechanisms and are ideal for fixture checking, assembling & testing, woodworking and light machining in the aerospace, automotive and food & packaging industries. These hold down clamps feature a low profile design for tight spaces and offer the flexibility to position the base, clamp arm & handle by welding them in the desired position. They comprise accurately machined components having hardened & ground pivot pins & bushings. These clamps are supplied with a neoprene spindle for maximum holding force and ergonomic handle grip. Destaco vertical manual hold down clamps feature a straight or flanged base with threaded holes for ease of installation. These weldable vertical toggle clamps provide the flexibility to position the handle as required, and have a fatigue less handle grip. These vertical hold down clamps are made of steel / stainless steel for resisting corrosion on exposed surfaces and are capable of withstanding loads up to 125 lb. Additionally, they have a flanged or straight base with threaded holes for secure surface or blade mounting, respectively. These clamps offer great hand clearance and exhibit a maximum clamp bar opening angle of 100 degrees for additional safety.

StyleModelHolding CapacityToggle Lock PlusMaterialMounting BaseClamp Arm StyleHandleClamp Arm LengthHeight Under Clamp ArmPrice (ex. VAT)
A235-UB750 Lbs.NoSteelStraightU-BarHorizonal4.17"2.09"€62.41
B235-U750 Lbs.NoSteelFlangeU-BarHorizonal4.17"1.69"€34.35
C235-UR750 Lbs.YesSteelFlangeU-BarHorizonal4.16"1.7"€85.75
D235-USS850 Lbs.NoStainless SteelFlangeU-BarHorizonal4.14"1.7"€102.62
DESTACO -

323-M Series Pull Action Latch Clamps

StyleModelHook Adjustble RangeOverall LengthPrice (ex. VAT)
A323-M-2525mm5.2323"€32.40
B323-M-5050mm6.2165"€37.53
C323-M-100100mm8.185"€66.78
DESTACO -

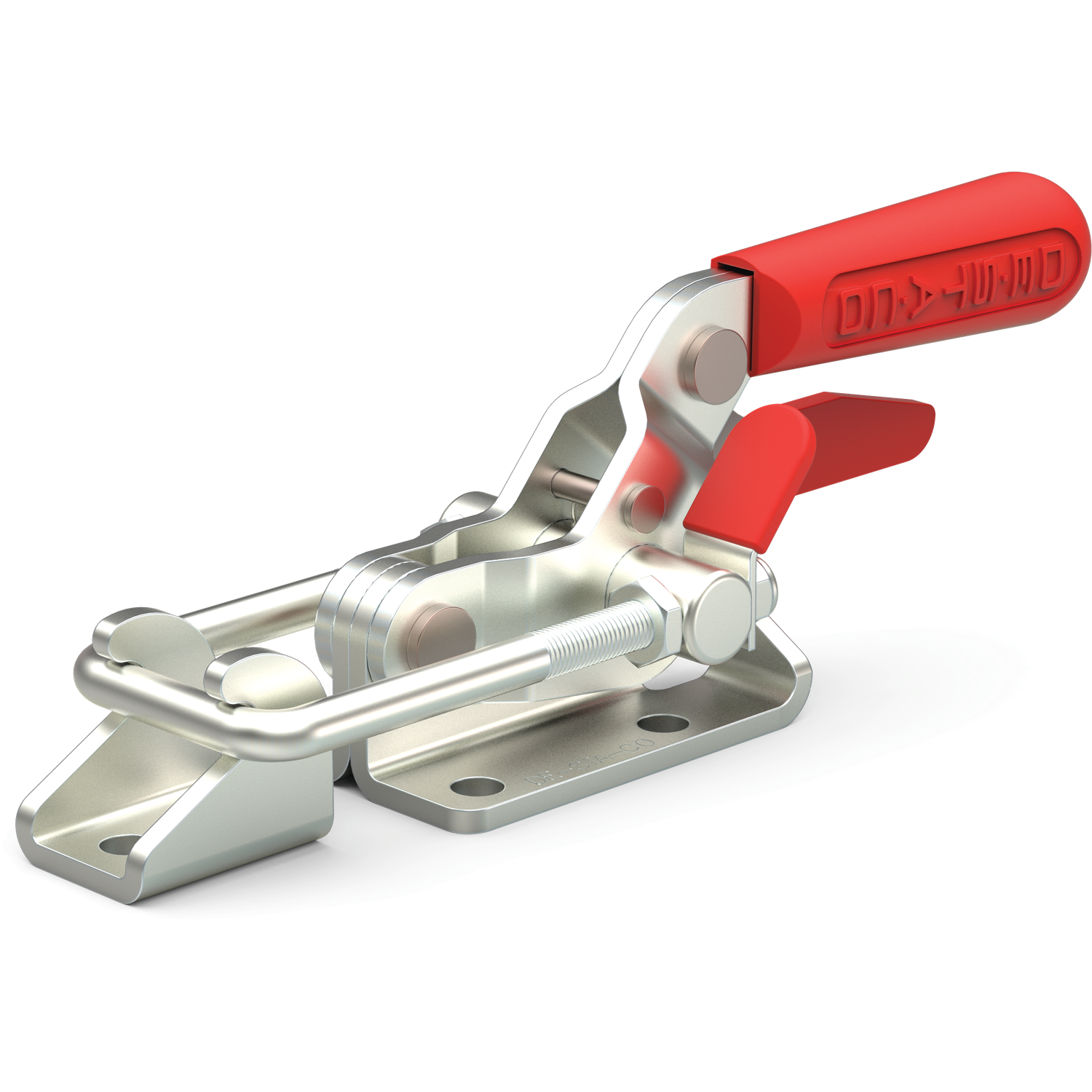

341-M Series Pull Action Latch Clamps

StyleModelHook Adjustble RangeOverall LengthPrice (ex. VAT)
A341-M-2525mm9.937"€101.53
B341-M-5050mm10.9212"€101.53
A341-M-100100mm12.8897"€101.66
DESTACO -

351 Series Pull Action Latch Clamps, Narrow Base

StyleModelBase WidthHook Adjustble RangeMaterialOverall HeightOverall LengthPrice (ex. VAT)
A351-BSS0.56"12.4mmStainless Steel1.83"8.820"€49.26

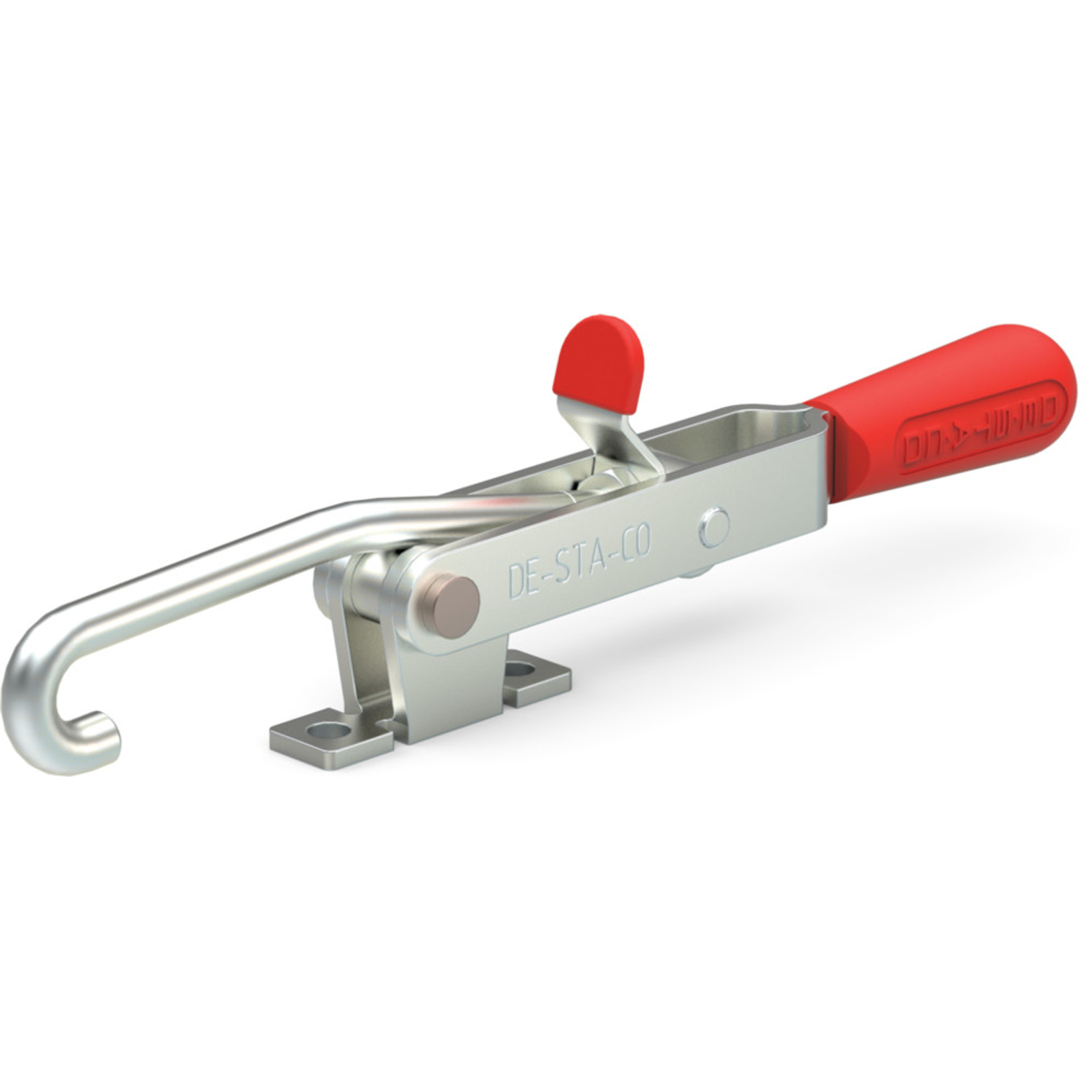

B351-B0.56"12.4mmSteel1.83"8.820"€22.86

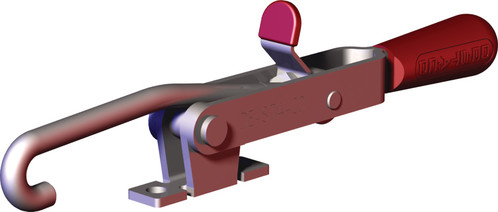

C351-B-M-500.87"50mmSteel1.94"10.7874"€80.60
C351-B-M-1000.87"100mmSteel1.94"12.7559"€80.60
C351-B-M-250.87"25mmSteel1.94"9.8031"€80.60
DESTACO -

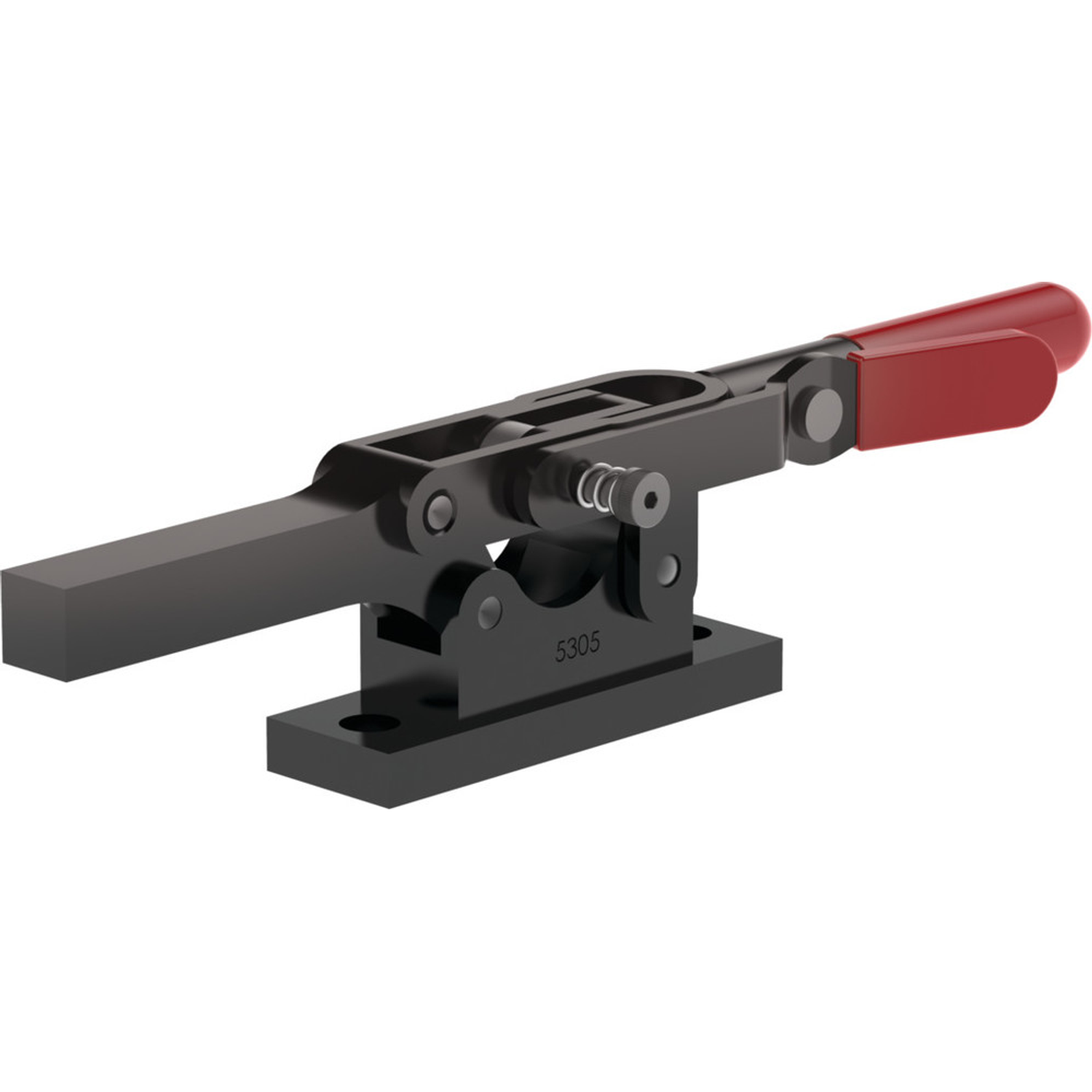

5305 Series Horizontal Hold Down Clamps

StyleModelHeight Under Clamp ArmMounting BaseToggle Lock PlusPrice (ex. VAT)
A53050.81"FlangeNo€70.31
B5305-BR0.81"SolidYes€120.55
B5305-R0.81"FlangeYes€107.77
A5305-B1.12"SolidNo€64.51
DESTACO -

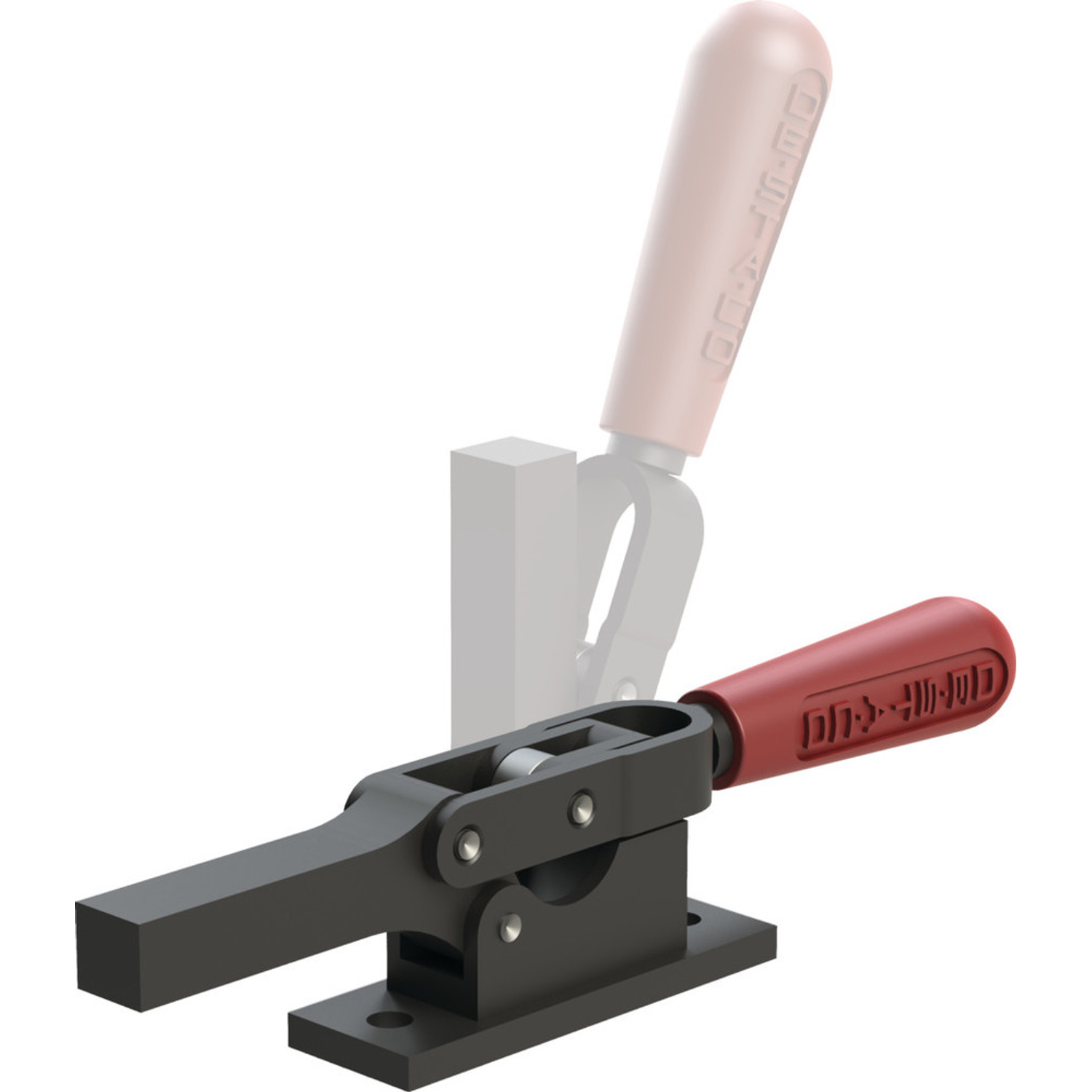

5310 Series Horizontal Hold Down Clamps

StyleModelHeight Under Clamp ArmMounting BaseOverall LengthToggle Lock PlusPrice (ex. VAT)
A53101"Flange11.13"No€103.58
B5310-R1"Flange11.020"Yes€152.44
C5310-B1.31"Solid11.13"No€98.12
D5310-BR1.31"Solid11.020"Yes€177.46
StyleModelHook Adjustble RangeOverall LengthPrice (ex. VAT)
A351-M-2525mm9.8031"€72.68
A351-M-5050mm10.7874"€64.51
A351-M-100100mm12.7559"€72.68
DESTACO -

213 Series Horizontal Hold Down Clamps

Destaco 213 Series horizontal hold-down clamps are used in assembly applications and can replace fasteners in fixture applications. These hold down clamps are available in a stainless-steel body and have a holding capacity of 150 lb (68.039 kg), with an ergonomic handle for better grip.

StyleModelHeight Under Clamp ArmClamp Arm LengthToggle Lock PlusMounting BaseClamp Arm StyleHolding CapacityMaterialHandlePrice (ex. VAT)
A213-U0.65"1.42"NoFlangeU-Bar150 Lbs.SteelHorizonal€16.30
B213-U-L0.65"0.85"NoFlangeOpen U-Bar150 Lbs.SteelHorizonal€27.49
C213-USS0.66"1.42"NoFlangeU-Bar150 Lbs.Stainless SteelHorizonal€41.41
D213-UB0.77"1.42"NoStraightU-Bar150 Lbs.SteelHorizonal€28.04
E213-UB-L0.77"0.85"NoStraightOpen U-Bar150 Lbs.SteelHorizonal€59.13
12

Horizontal Handle Toggle Clamps

Horizontal handle toggle clamps are used in heavy duty horizontal clamping operations owing to their high clamping capacities and reliability. Raptor Supplies is a distributor of horizontal handle toggle clamps from brands like Destaco and Bessey. These heavy duty hold down clamps are designed for holding workpieces in place, with a lever handle that lays flat when the clamp is engaged. When the handle is in the horizontal position, these toggle clamps are in the locked position. These hold down clamps apply downward clamping force. Upon rotating the handle downward, the clamping arm pivots downward in the opposite direction to lock over the centre. These clamps feature a low profile to prevent obstruction.
Selected Destaco toggle clamps, including 213 Series clamps, feature an automatic pressure adjustment system that automatically adjusts the clamp's pressure. This allows the clamping of workpieces of varying sizes to adjust the pressure themselves. Most horizontal hold down toggle clamps are integrated with a linkage system that applies powerful clamping force with little effort to lock or unlock. Since this force is directed along the links, locking or unlocking the toggle does not require any force. The clamps are equipped with a spring in the jaw to hold it in place after a few adjustments.

Uses

Horizontal toggle clamps incorporate a wide combination of features, making them useful for CNC machining, automotive part assembling and fixture checking in the aerospace, automotive and food processing & packaging industries.

Features

Destaco Horizontal Toggle Clamps:

  • Destaco horizontal hold down clamps have a low profile design to prevent obstruction.
  • These hold down clamps have large handle clearance in the open position.
  • They include neoprene / hex head spindles for maximum holding force.
  • The clamps have steel / stainless steel construction for structural rigidity & durability.
  • They are capable of accommodating loads up to 4000 lb.
  • The pull action clamps are equipped with a latch plate & patented thumb control lever for single-handed operation and are integrated with threaded U-hooks for hassle-free adjustment.
  • These latch clamps exhibit a pulling action and feature a flanged base having threaded holes for easy installation
  • The Toggle Lock Plus mechanism prevents accidental opening of clamps.

Bessey Horizontal Toggle Clamps:

  • Bessey toggle clamps have an integrated pressure screw which allows clamping force adjustment from 25 to 550 lb.
  • They have a maximum load holding capacity of 700 lb and are equipped with a heat-resistant handle for operator comfort & safety.
  • These clamps feature nickel-plated coating for durability and protection against corrosion, as well as include removable, plastic, non marring pads for tensile strength.
  • The hole patterns on the base plate are designed to facilitate secure and fast clamping set-up for imperial and metric standards.

Working Mechanism

  • Destaco horizontal latch type toggle clamps need little effort for locking & unlocking, and have a pin connection for resisting movement in different directions, allowing clamp rotation about the axis. Selected models are equipped with a unique lever & pivot system to provide maximum accuracy while clamping and accomodating workpieces of different heights.
  • Horizontal hold down clamps have a lever handle that lays flat when the clamp is engaged, for holding workpieces in a stationary position. They apply downward clamping force when the handle is in the locked position. Upon rotating the handle downward, the clamping arm pivots downward in the opposite direction to lock over the centre.
  • Bessey horizontal toggle clamps are self adjusting units that can maintain clamping force while self-adjusting to variations in the workpiece height. They feature an integrated pressure screw which allows clamping force adjustment from 25 to 550 lb.

Standards and Approvals

Destaco horizontal toggle clamps are manufactured in compliance with industry standards like ISO 9001:2015 & ISO 14001:2015 for environmental health, utmost user safety and superior performance of the clamps.

Frequently Asked Questions

How are straight line action clamps installed?

Destaco straight line action clamps come with through holes on the flanged / straight base that allow quick and secure surface or blade mounting onto flat surfaces / workpieces using simple screwing. They can be removed and installed at a different location by simply unscrewing using a screwdriver.

How are toggle clamps measured?

Toggle clamps are available in multiple variants having different holding capacities. The capacity of a particular toggle clamp can be measured by calculating the distance between the clamping plate (at its highest position) & the workbench.

Does Destaco supply any water resistant clamp sensors?

Yes, Destaco also supplies inductive sensors designed in accordance with IP65 standards to ensure protection from powerful hydraulic jets, dust & heavy rain.

What does clamping force mean?

Clamping force is the amount of force actually applied to the workpiece by closing & locking the clamp. It is normally less than the stated holding capacity. The actual clamping force depends on various factors, including cylinder bore, cylinder area, spindle position (clamping arm length) and available air pressure. In most cases, the clamping force is approximately 2 to 3 times the force exerted by a pneumatic cylinder.

What is the difference between a vertical & horizontal toggle clamp?

The difference lies in the positioning of the clamp handle when it is in the locked position. A vertical clamp handle is positioned vertically (perpendicular to the base) when in the locked position, while in the case of a horizontal toggle clamp, it is positioned horizontally (parallel to the base).

What is the significance of the red colour of the handle of Destaco clamps?

There is no such significance of the colour of the clamp's handle, as it only represents a recognisable area. This helps operators in finding the handle quickly & easily.

What does a clamp's holding capacity signify?

The clamp's holding capacity or holding force represents the capability to hold down mechanical equipment or sheet metal while assembling automotive parts or during manufacturing processes.

How are horizontal toggle clamps used?

Horizontal toggle clamps use an over-centre locking action to hold a workpiece or fixture in the locked position.

What is the Toggle Lock Plus mechanism?

Selected Destaco horizontal clamp models feature the Toggle Lock Plus mechanism to prevent accidental opening of clamps.

Which grease is ideal for Destaco clamps for their rebuilding?

A coupling grease like Mobil XTC should be used when dealing with Destaco mechanical clamps, while the Magnalube G grease is great for use with pneumatic cylinder seals.

We are here to help!

Looking for a part not listed here?
