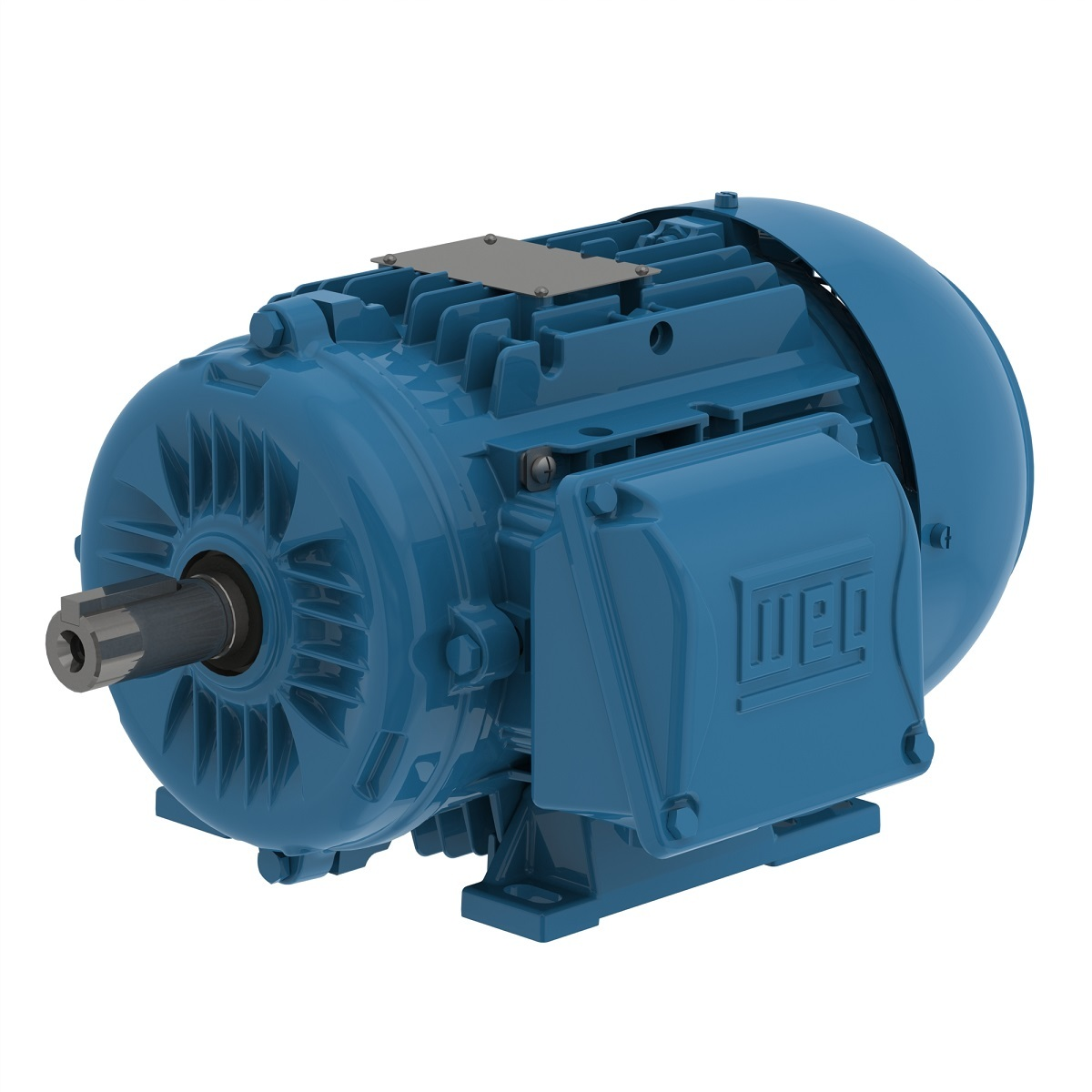

WEG 00118ET3WAL90S-W22 13984004 Electric Motor, 1.1Hp, 60/50Hz, 1800 Rpm
Get it by Wednesday, Dec 17
€560.75 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | No |
| Break-down Torque | 350% |
| Cold Locked Rotor Time | 27 sec. |
| Connection Cables Quantity | 6 |
| Design | N |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency At 1 % | 78% |
| Efficiency At 50 % | 57% |
| Efficiency At 75 % | 70% |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange Type | Without |
| Frame | 90S/L |
| Frame Material | Aluminum |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 15 sec. |
| Hz | 50/60 Hz |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 17.4A |
| Locked Rotor Torque | 290% |
| Lrc | 8.5 |
| Main Terminal Box Hole Size | M25 x 1.5 |
| Moment Of Inertia | 0.1305 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1755 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 1.22A |
| No. Of Holes | 2 |
| No. Of Pins | 6 |
| No. Of Poles | 4 |
| Noise Level | 51 dBA |
| Output | 1 1/2 hp |
| Output Rating | 1 1/2 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 86.5 |
| Power Factor At 50 % | 80 |
| Power Factor At 75 % | 84 |
| Rated Current | 2.05A |
| Rated Torque | 4.49 lbs.-ft. |
| Rated Voltage | 460V AC |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.5% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Right Position |
| Terminal Type | BMC |
| Tropicalized Painting | Without |
| Voltage | 460/220-240/380-415V AC |
Shipping Info:
| Ship weight (kg) | 19.8 |
| Ship height (cm) | 51.46 |
| Ship length (cm) | 32.9 |
| Ship width (cm) | 57.07 |
| Country of Origin | BR |
Product Variants
| Model | Voltage | Frequency | Service Factor | Hp | Full Load Amps | Nameplate Rpm | Mounting Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3W90L-W22 | 460V AC | 50 Hz | 1 | 2 hp | 2.8A | 1755 RPM | Rigid Base | 90L | €914.46 | |
| 00218ET3W100L-W22 | 460V AC | 60 Hz | 1 | 3 hp | 4.1A | 1750 RPM | Rigid Base | 100L | €1,095.12 | |
| 00518ET3Y132S-W22 | 380-415/460V | 60 Hz | 1 | 7 1/2 hp | 9.1A | 1775 RPM | Rigid Base | 132S | €1,613.01 | |
| 00712ET3Y160M-W22 | 380-415/460V | 60 Hz | 1 | 10 hp | 13.8A | 1180 RPM | Rigid Base | 160M | €3,888.09 | |
| 00718ET3Y132M-W22 | 380-415/460V | 50 Hz | 1 | 10 hp | 12.2A | 1770 RPM | Rigid Base | 132M | €1,918.09 | |
| 01112ET3Y160L-W22 | 380-415/460V | 60 Hz | 1 | 15 hp | 18.8A | 1180 RPM | Rigid Base | 160L | €5,328.38 | |
| 01118ET3Y160M-W22 | 380-415/460V | 60 Hz | 1 | 15 hp | 18.2A | 1775 RPM | Rigid Base | 160M | €2,908.96 |
