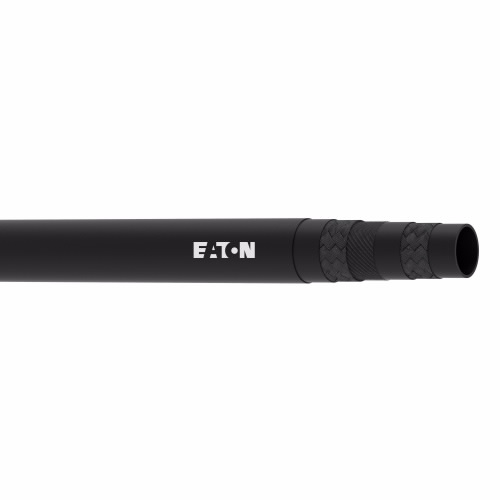

WEATHERHEAD H03916-150 Hydraulic Hose, 250 psi, 1 Inch Hose I.D., 1 1/2 Inch Hose O.D., 150 ft Hose Lg
Get it by Tuesday, Aug 25
13.00% off
€2,594.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Hose |
| Abrasion Resistant | Standard |
| Bend Radius | 3" |
| Burst Pressure | 980 psi |
| Color | Black |
| Compatible Chemicals | Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fresh Water, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Lithium Grease, Lubricated Air, Min.Eral Oil, Motor Oil, Salt Water |
| Compatible Fittings | U, S, 039 K, Z |
| Conductivity | Conductive |
| Construction | Multi Braid |
| Cover Color | Black |
| Cover Material | Synthetic Rubber |
| Dash Size | 16 |
| Factory Crimp | Yes |
| For Media Type | Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fuel Oil, Gasoline, Hydraulic Fluid, Kerosene, Lithium Grease, Lubricated Air, Mineral Oil, Motor Oil, Water |
| Height | 1.51" |
| Hose Color | Black |
| Hose Configuration | Bulk Hose |
| Hose Cover Material | Neoprene |
| Hose Covering Material | Synthetic Rubber |
| Hose Dash Size | -16 |
| Hose Fittings | U, S, 039 K, Z |
| Hose Inside Dia. | 1" |
| Hose Length | 150 ft. |
| Hose Outside Dia. | 1 1/2" |
| Hose Reinforcement | 1 Helical Cable Wire Between Two Textile Layers. 1 Fiber Braid |
| Hose Reinforcement Material | Fiber |
| Hose Tube Material | Synthetic Rubber |
| Hose Weight | 78 lbs. |
| Inside Dia. | 1" |
| Lay Line Style | Ink Wheel |
| Length | 250 ft. |
| Length Configuration | 50, 100, 150 |
| Max. Length | 150 ft. |
| Max. Operating Temp. | 275°F |
| Max. Working Pressure @ 70f | 250 psi |
| Min. Bend Radius | 3" |
| Min. Operating Temp. | -40°F |
| Min. Pressure | 1000 psi |
| Min. Temp. | -40°F |
| Min. Working Temp. | -40°F |
| Notes | When Hose Is Used In Conjunction With Band Clamps, Operating Pressure Shall Not Exceed 5 Bar [70 psi] |
| Operating Pressure | 250 psi |
| Outside Dia. | 1.51" |
| Overall Length | 250 ft. |
| Reinforcement Material | Fabric And Wire |
| Safety Factor | 4:1 |
| Segment Code | B |
| Temp. | -40°F to +275°F |
| Tube Material | Synthetic Rubber |
| Tube Wall Thickness | 1/4" |
| Type | Crimped |
| Wall Thickness | 1/4" |
| Weight Per 100 Feet | 52 lbs. |
| Width | 1.51" |
| Working Pressure | 245 psi |
Shipping Info:
| Ship weight (kg) | 35.1 |
| Ship height (cm) | 3.84 |
| Ship length (cm) | 114.3 |
| Ship width (cm) | 3.84 |
| HS code | 4009410000 |
| Country of Origin | US |
Product Variants
| Model | Hose Inside Dia. | Max. Working Pressure @ 70f | Working Pressure | Burst Pressure | Dash Size | Height | Wall Thickness | Min. Bend Radius | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| H03912-100 | 3/4" | 300 psi | 305 psi | 1220 psi | 12 | 1 7/25" | 0.265" | 2 1/2" | €2,170.72 | |
| H03912-150 | 3/4" | 300 psi | 305 psi | 1220 psi | 12 | 1 7/25" | 0.265" | 2 1/2" | €2,772.99 | |
| H03916-100 | 1" | 250 psi | 245 psi | 980 psi | 16 | 1.51" | 1/4" | 3" | €2,329.90 | |
| H03920-100 | 1 1/4" | 200 psi | 205 psi | 820 psi | 20 | 1.82" | 0.29" | 4" | €2,566.63 | |
| H03920-150 | 1 1/4" | 200 psi | 205 psi | 820 psi | 20 | 1.82" | 0.29" | 4" | €3,737.52 | |
| H03924-100 | 1 1/2" | 150 psi | 150 psi | 600 psi | 24 | 2.07" | 0.29" | 5" | €2,991.17 | |
| H03924-150 | 1 1/2" | 150 psi | 150 psi | 600 psi | 24 | 2.07" | 0.29" | 5" | €4,486.68 |
