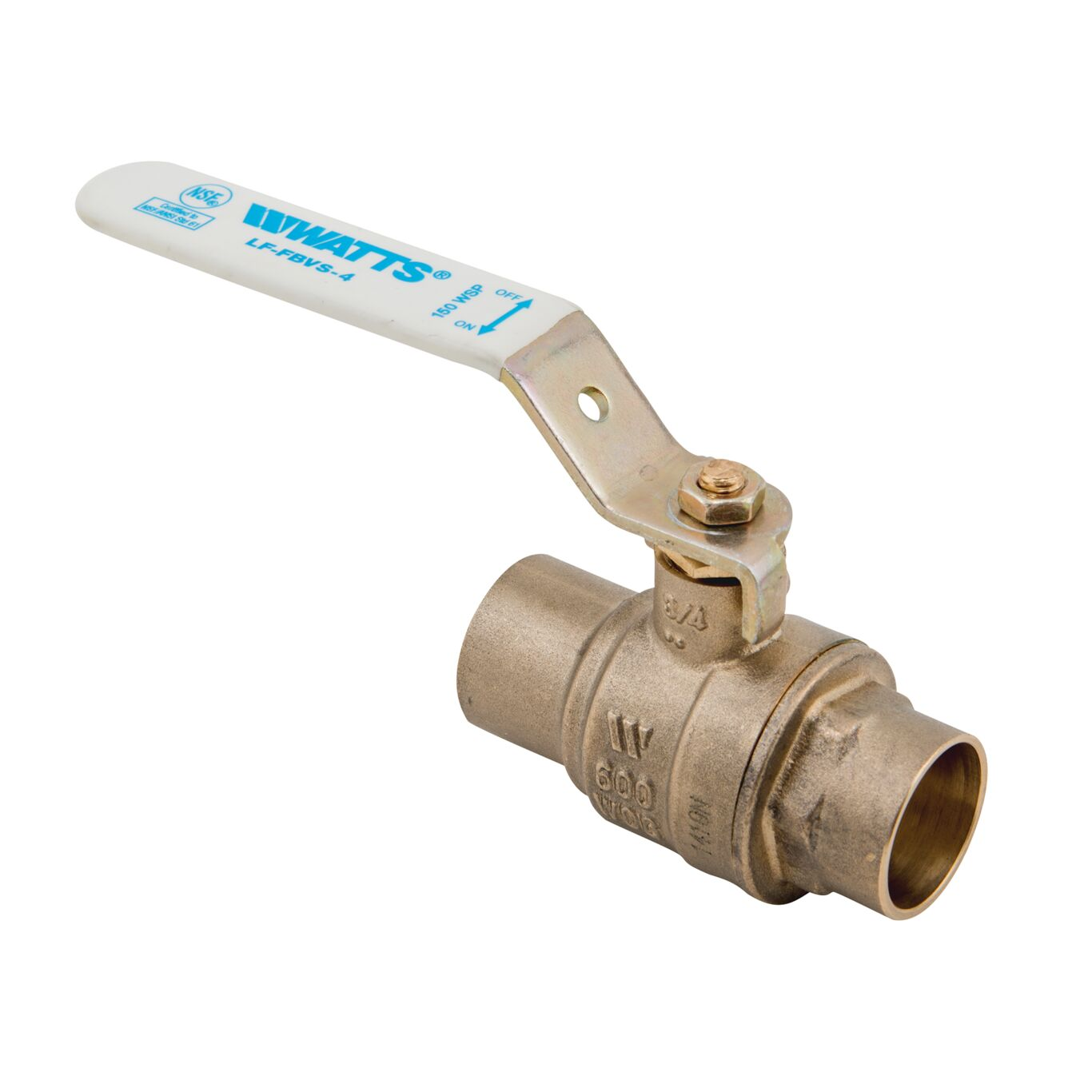

WATTS LFFBVS-4 3 0555135 Ball Valve, 3 Inch Inlet, 400 Psi
Get it by Thursday, Dec 18
€276.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve |
| Actuator | No |
| Actuator Type | No |
| Assembled | Yes |
| Assembled Dry | Yes |
| Balance Stop Plate | No |
| Ball Material | Chrome Plated Brass |
| Body Finish | Brass |
| Body Material | Lead Free Copper Silicon Alloy Brass |
| Buy American Act Compliant | No |
| Class Rating | Not Applicable |
| Control Type | Lever Handle |
| Cv Rating | Not Applicable |
| Electrical Rating | Not Applicable |
| Inlet Connection Size | 3" |
| Inlet Size | 3" |
| Inlet Thread Type | Not Applicable |
| Inlet Type | Socket |
| Lead | Not Present |
| Lead Free | Yes |
| Max. Temp. | 400°F |
| Mfr. Series | LFFBV-4 |
| Min. Temp. | -40°F |
| Minimum Temp. | 0°F |
| Operating Torque | Not Applicable |
| Outlet Connection Thread Type | Socket |
| Outlet Size | 3" |
| Outlet Thread Type | Not Applicable |
| Outlet Type | Socket |
| Port Type | Full |
| Product Datasheet | watts-lfb6400-1.pdf |
| Seat Material | Virgin PTFE |
| Series | LFFBV-4 Series |
| Shaft Material | Brass |
| Stem Packing Material | Virgin PTFE |
| Stem Shaft Material | Brass |
| Stem Type | Bottom Loaded Blowout Proof |
| Thrust Washer Material | Virgin PTFE |
| Valve Design | Two Piece |
| Valve Style | 2 Piece |
| Washer Material | Virgin PTFE |
| Wog (psi) | 400 psi |
Shipping Info:
| Ship weight (kg) | 4.98 |
Product Details:
Ball Valve, 3 Inch Inlet, 400 Psi
Documentation:
Product Variants
| Model | Outlet Size | Outlet Type | Inlet Type | Assembled | Wog (psi) | Min. Temp. | Inlet Size | Inlet Thread Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| LFFBV-4 1/4 | 1/4" | Female Threaded | Female Threaded | No | 600 psi | -40°F | 1/4" | NPT | €9.78 | |
| LFFBV-4 3/8 | 3/8" | Female Threaded | Female Threaded | No | 600 psi | -40°F | 3/8" | - | €9.78 | |

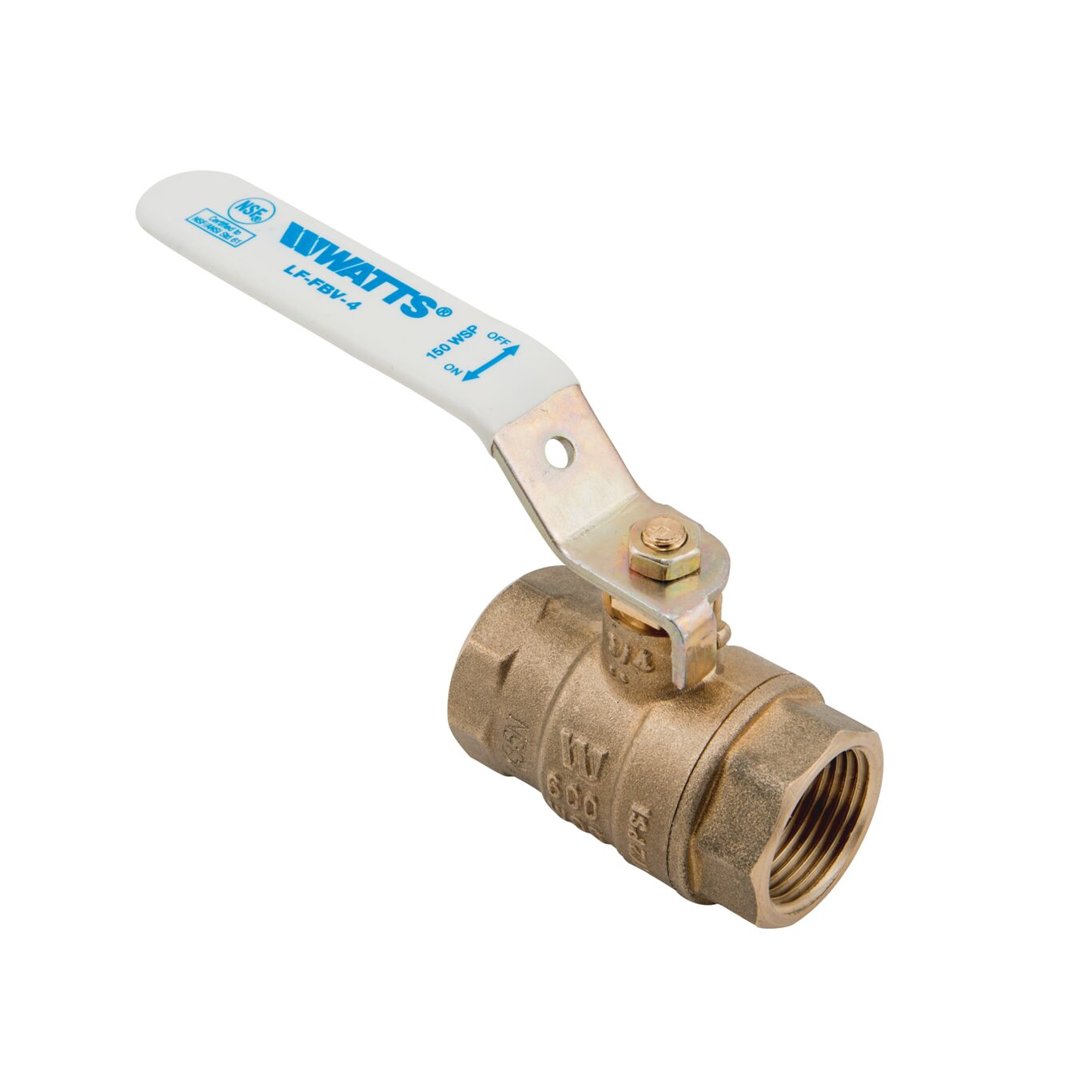

| LFFBV-4 1/2 | 1/2" | Female Threaded | Female Threaded | No | 600 psi | -40°F | 1/2" | NPT | €10.18 | |
| LFFBV-4 3/4 | 3/4" | Female Threaded | Female Threaded | No | 600 psi | 0°F | 20 mm | NPT | €15.88 | |
| LFFBV-4 1 | 1" | Female Threaded | Female Threaded | No | 600 psi | -40°F | 1" | NPT | €22.61 | |
| LFFBV-4 1 1/2 | 1 1/2" | Female Threaded | Female Threaded | No | 600 psi | -40°F | 1 1/2" | NPT | €51.62 | |
| LFFBV-4 1 1/4 | 1 1/4" | Female Threaded | Female Threaded | No | 600 psi | -40°F | 1 1/4" | - | €35.86 |
