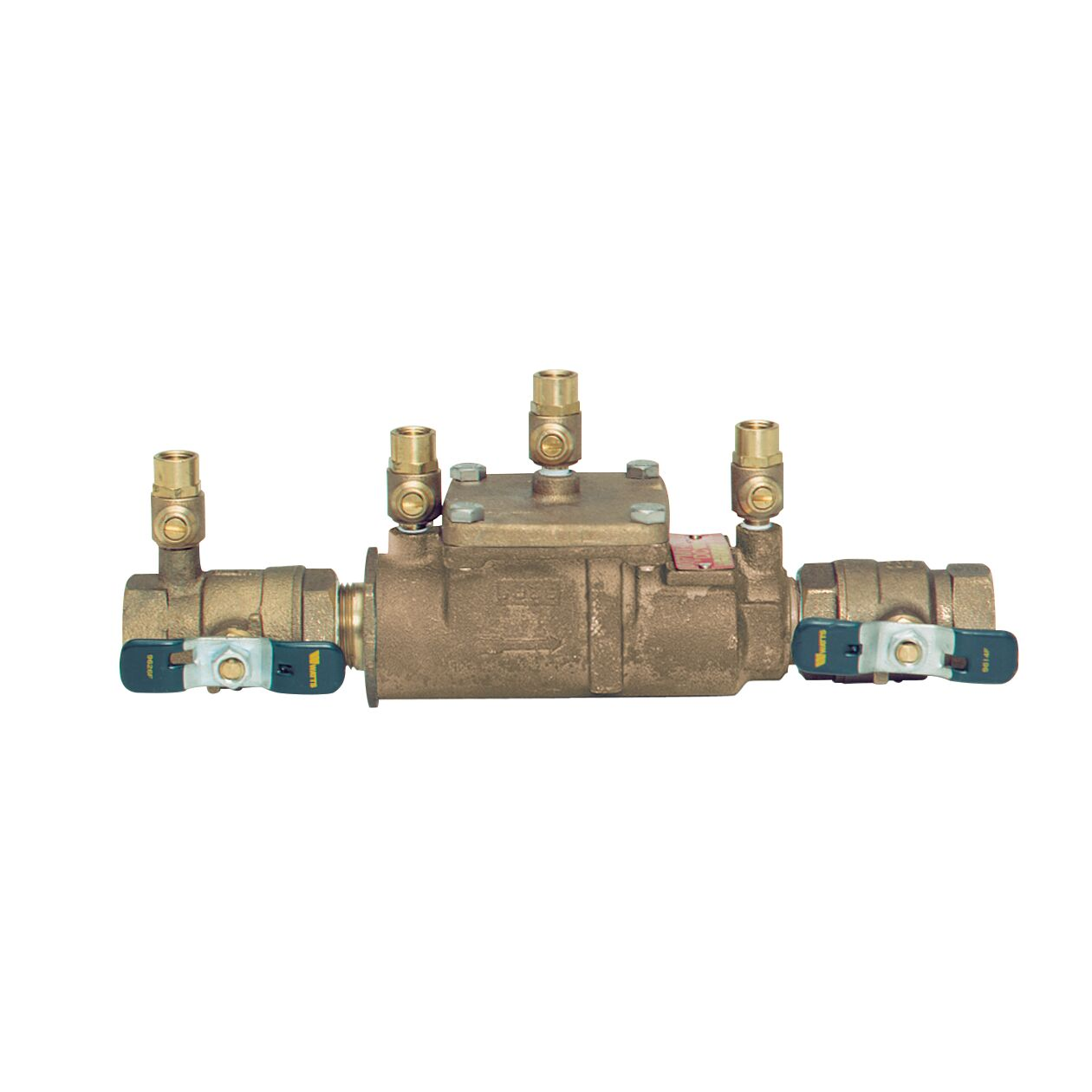

WATTS 007M1-QT-SH 2 0063205 Double Check Valve Assembly, Inline, Quarter Turn Ball Valve, 2 Inch Size
€976.64 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Double Check Valve Assembly |
| Armortek Technology | No |
| Backflow Preventer Type | Dual Check With Atmospheric Vent |
| Body Finish | Cast Bronze |
| Body Material | Cast Bronze |
| Body Pattern | Inline |
| Body Style | Inline |
| By Pass | No |
| Bypass Size | Not Applicable |
| Cap And Tether | No |
| Cross Reference | 0063205 |
| Disc Material | Rubber |
| Elbow Fitting | No |
| Fitting | No |
| Hazard Protection Level | Non Health Hazard |
| Hot And Harsh Water | No |
| Hydrant Connection | No |
| Inlet Connection Size | 2" |
| Inlet Shutoff Valve Type | Quarter Turn Ball Valve |
| Inlet Size | 2" |
| Inlet Thread Type | NPT |
| Inlet Type | Female Threaded |
| Lead Free | No |
| Material | Bronze |
| Max. Temp. | 180°F |
| Max. Working Pressure | 175 psi |
| Meter Type | No Meter |
| Min. Temp. | 33°F |
| Operation | Continuous |
| Outlet Connection Thread Type | Female Threaded |
| Outlet Shutoff Valve Type | Quarter Turn Ball Valve |
| Outlet Size | 2" |
| Outlet Thread Type | NPT |
| Outlet Type | Female Threaded |
| Polymer Coating | No |
| Pressure Operation | Continuous |
| Protection Type | Backpressure, Back Siphonage |
| Seat Material | Rubber |
| Series | 007 Series |
| Strainer | No |
| Technologies | Not Applicable |
| Type | Kit |
| Valve Type | Quarter Turn Ball Valve |
Product Details:
Double Check Valve Assembly, Inline, Quarter Turn Ball Valve, 2 Inch Size
Product Variants
| Product | Model | Body Material | Seat Material | Valve Type | Connection Type | Body Finish | Max. Working Pressure | Min. Temp. | Disc Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
007M2QTS-3/4 | - | - | - | NPT | - | - | - | - | €751.01 | |
|
007MIQTS-1 | Bronze | Plastic | - | FNPT x FNPT | - | - | - | - | €1,009.17 | |
|
007MIQTS-S | Bronze | Plastic | - | FNPT x FNPT | - | - | - | - | €1,593.41 | |
 |
007M1-QT-S 2 | Cast Bronze | Rubber | Quarter Turn Ball Valve | - | Plain | 175 psi | 33°F | Silicone | €1,298.21 | RFQ
|
 |
U007M1-QT 2 | Cast Bronze | - | Quarter Turn Ball Valve | - | Cast Bronze | 12.1 Bar | 33°F | Rubber | €1,648.68 | RFQ
|
 |
007M2-QT-S 1 1/2 | Cast Bronze | Rubber | Quarter Turn Ball Valve | - | Cast Bronze | 12.1 Bar | 0.5°C | Rubber | €1,090.33 | RFQ
|
 |
U007M1-QT-S 2 | Cast Bronze | - | Quarter Turn Ball Valve | - | Cast Bronze | 12.1 Bar | 33°F | Rubber | €1,547.25 | RFQ
|
