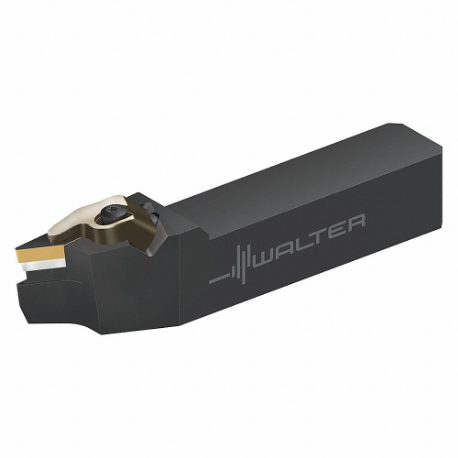

WALTER TOOLS DVJBL2525X16-P 7031671 Indexable Turning and Profiling Tool Holder, DVJB Toolholder, 35 Deg. Diamond
Item: CU9KEZModel: DVJBL2525X16-PCross Ref: 56RA87 / 7031671
7 In Stock
1.909"
VB .. 1604 ..
5.512"
1.26"
Ships within 2 days via
10.00% off
€620.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tool Holder |
| Approach Angle | 93° |
| Coolant Fed | Coolant Through |
| Cutting Direction | Left Hand |
| Insert Angle | 35° |
| Insert Clearance Angle | 5° |
| Insert Cutting Edge Length | 16 mm |
| Insert Holding Type | Top And Hole Clamping |
| Insert Shape | Diamond |
| Iso Number | DVJBL2525X16-P |
| Overall Length | 140 mm |
| Shank Height | 25 mm |
| Shank Width | 25 mm |
| Toolholder Style | DVJB |
Shipping Info:
| Ship weight (kg) | 0.66 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 14 |
| Ship width (cm) | 2.54 |
| Country of Origin | SE |
Product Variants
| Product | Model | Cutting Direction | Insert Shape | Overall Length | Shank Width | Toolholder Style | Approach Angle | Insert Holding Type | Shank Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CRDCN3225P09-A | Neutral | Round | 170 mm | 25 mm | CRDC | 45° | Top Clamp | 32 mm | €475.31 | |
|
CRDCN3225P12-A | Neutral | Round | 170 mm | 25 mm | CRDC | 45° | Top Clamp | 32 mm | €475.31 | |
 |
CRDNN2525M12-ID | Neutral | Round | 150 mm | 25 mm | CRDN | 45° | Top Clamp | 25 mm | €372.44 | |
|
CRDNN3225P12-ID | Neutral | Round | 170 mm | 25 mm | CRDN | 45° | Top Clamp | 32 mm | €372.44 | |
 |
CRSNL3232P15-ID | Left Hand | Round | 170 mm | 32 mm | CRSN | 45° | Top Clamp | 32 mm | €460.05 | |
 |
CRSNL2525X12-P | Left Hand | Round | 130 mm | 25 mm | CRSN | 45° | Top Clamp | 25 mm | €573.15 | |
|
CRSNL2525M12-ID | Left Hand | Round | 150 mm | 25 mm | CRSN | 45° | Top Clamp | 25 mm | €372.44 |
