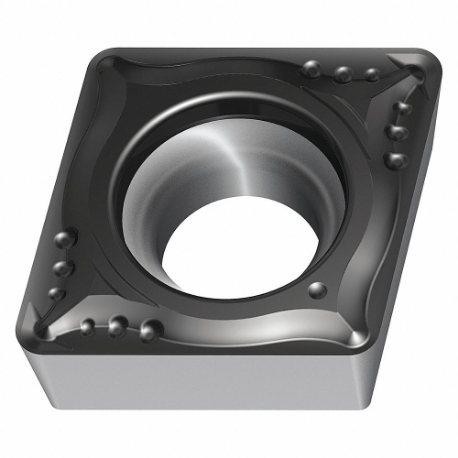

WALTER TOOLS CPMT04T104-MM4 WSM20S 7469031 Diamond Turning Insert, Neutral, 5/64 Inch Thick, 1/64 Inch Corner Radius
Item: CU9MFXModel: CPMT04T104-MM4 WSM20SCross Ref: 56TC53 / 7469031
7 In Stock
280 sfm to 430 sfm
0.002" to 0.006"
Ships within 2 days via
5.00% off
€17.68 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Ansi Code | CPMT1.5(1.2)1-MM4 |
| Chip Breaker | Yes |
| Chip-breaker Code | MM4 |
| Clearance Angle | 11° |
| Coating Process | PVD |
| Corner Radius | 1/64" |
| Cutting Direction | Neutral |
| Cutting Edge Length | 4.84 mm |
| Cutting Speed | 280 SFPM to 430 SFPM |
| Depth Of Cut | 0.012" to 0.059" |
| Dia. Of Inscribed Circle | 0.188" |
| Feed Rate | 0.002" to 0.006" |
| Finish-machining | Tialn+Al2O3+(Al) |
| Included Angle | 80° |
| Inscribed Circle | 0.188" |
| Insert Code | CPMT1.51 |
| Insert Style | CPMT |
| Insert Thickness | 0.078" |
| Iso Number | CPMT04T104-MM4 |
| Major Clearance Angle | 11° |
| Manufacturer Grade | Wsm20S |
| Material | Carbide |
| Material-machining | Carbide |
| No. Of Cutting Edges | 2 |
| Radius | 0.016" |
| Rake | Positive |
| Shape | Diamond |
| Thickness | 5/64" |
| Through Hole Inside Dia. | 0.085" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Model | Cutting Edge Length | Thickness | Material | Manufacturer Grade | Material-machining | Finish-machining | Primary Material Application Iso Code | Cutting Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CCGT060202-X5 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.13 | |
| CCGT060202-X5 WAK15 | 0.254" | - | Carbide | Wak15 | Carbide | Ticn+Al2O3+(Tin) | K | - | €39.70 | |
| CCGT060202-X15 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.13 | |
| CCGT060202-X15 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.70 | |
| CCGT060204-X5 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.28 | |
| CCGT060204-X15 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.23 | |
| CCGT060204-X5 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.70 |
