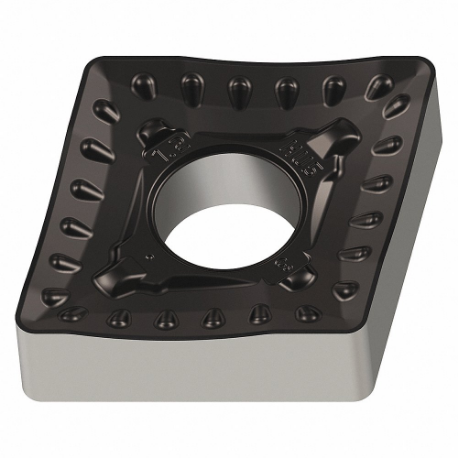

WALTER TOOLS CNMM190616-HU5 WMP20S 7583848 Diamond Turning Insert, Neutral, 1/4 Inch Thick, 0.0630 Inch Corner Radius
Item: CU9MBBModel: CNMM190616-HU5 WMP20SCross Ref: 60AA92 / 7583848
7 In Stock
220 sfm to 480 sfm
0.016" to 0.035"
Ships within 2 days via
5.00% off
€61.00 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Ansi Code | CNMM644-HU5 |
| Chip Breaker | Yes |
| Chip-breaker Code | HU5 |
| Clearance Angle | 0° |
| Coating Process | CVD |
| Corner Radius | 0.063" |
| Cutting Direction | Neutral |
| Cutting Edge Length | 19.34 mm |
| Cutting Speed | 220 SFPM to 480 SFPM |
| Depth Of Cut | 0.079" to 0.394" |
| Dia. Of Inscribed Circle | 3/4" |
| Feed Rate | 0.016" to 0.035" |
| Finish-machining | Ticn+Al2O3+(Ticn) |
| Included Angle | 80° |
| Inscribed Circle | 3/4" |
| Insert Code | CNMM644 |
| Insert Style | CNMM |
| Insert Thickness | 1/4" |
| Iso Number | CNMM190616-HU5 |
| Major Clearance Angle | 0° |
| Manufacturer Grade | WMP20S |
| Material | Carbide |
| Material-machining | Carbide |
| Measurement System | Fractional Inch |
| No. Of Cutting Edges | 2 |
| Radius | 0.063" |
| Rake | Negative |
| Shape | Diamond |
| System Of Measurement | Imperial |
| Thickness | 1/4" |
| Through Hole Inside Dia. | 5/16" |
Shipping Info:
| Ship weight (kg) | 0.26 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Model | Insert Code | Corner Radius | Clearance Angle | Cutting Direction | Insert Style | Thickness | Inscribed Circle | Chip-breaker Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CCGT060202-X5 WTP35 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X5 | €40.13 | |
| CCGT060202-X5 WAK15 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X5 | €39.70 | |
| CCGT060202-X15 WTP35 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X15 | €40.13 | |
| CCGT060202-X15 WXM15 | CCGT.5 | 0.008" | - | Neutral | CCGT | - | - | X15 | €39.70 | |
| CCGT060204-X5 WTP35 | CCGT1 | 1/64" | 7° | Neutral | CCGT | - | - | X5 | €40.28 | |
| CCGT060204-X15 WXM15 | CCGT1 | 1/64" | - | Neutral | CCGT | - | - | X15 | €39.23 | |
| CCGT060204-X5 WXM15 | CCGT1 | 1/64" | 7° | Neutral | CCGT | - | - | X5 | €39.70 |
