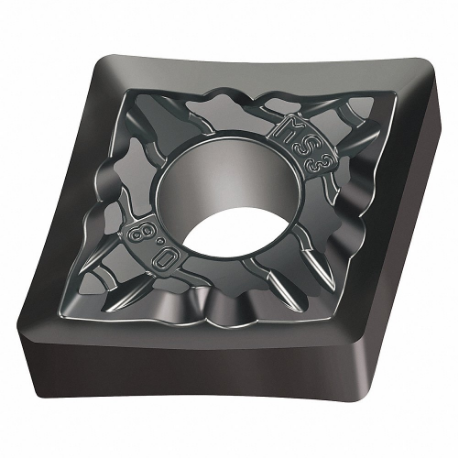

WALTER TOOLS CNGG120401-MS3 WSM01 7021455 Diamond Turning Insert, Neutral, 3/16 Inch Thick, 0.0040 Inch Corner Radius
Item: CU9LNMModel: CNGG120401-MS3 WSM01Cross Ref: 449Y12 / 7021455
7 In Stock
380 sfm to 550 sfm
0.001" to 0.002"
Ships within 2 days via
5.00% off
€42.82 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Ansi Code | CNGG4(3)0.2-MS3 WSM01 |
| Chip Breaker | Yes |
| Chip-breaker Code | MS3 |
| Clearance Angle | 0° |
| Corner Radius | 0.004" |
| Cutting Depth | 0.2 mm to 2.5 mm |
| Cutting Edge Length | 12.9 mm |
| Cutting Speed | 380 SFPM to 550 SFPM |
| Dia. Of Inscribed Circle | 1/2" |
| Feed Rate | 0.001" to 0.002" |
| Finish | Titanium Aluminum Nitride Coating |
| Finish-machining | TiAlN |
| Included Angle | 80° |
| Inscribed Circle | 1/2" |
| Insert Code | CNGG43.2 |
| Insert Holding Type | Straight Hole |
| Insert Style | CNGG |
| Insert Thickness | 0.188" |
| Iso Number | CNGG120401-MS3 WSM01 |
| Major Clearance Angle | 0° |
| Manufacturer Grade | Wsm01 |
| Material | Carbide |
| Material-machining | Carbide |
| Measurement System | Fractional Inch |
| No. Of Cutting Edges | 4 |
| Primary Material Application | Nickel, Stainless Steel, Titanium |
| Primary Material Application Iso Code | M, S |
| Radius | 0.004" |
| Rake | Negative |
| Shape | Rhombic |
| System Of Measurement | Imperial |
| Thickness | 3/16" |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Model | Cutting Edge Length | Thickness | Material | Manufacturer Grade | Material-machining | Finish-machining | Primary Material Application Iso Code | Cutting Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CCGT060202-X5 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.13 | |
| CCGT060202-X5 WAK15 | 0.254" | - | Carbide | Wak15 | Carbide | Ticn+Al2O3+(Tin) | K | - | €39.70 | |
| CCGT060202-X15 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.13 | |
| CCGT060202-X15 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.70 | |
| CCGT060204-X5 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.28 | |
| CCGT060204-X15 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.23 | |
| CCGT060204-X5 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.70 |
