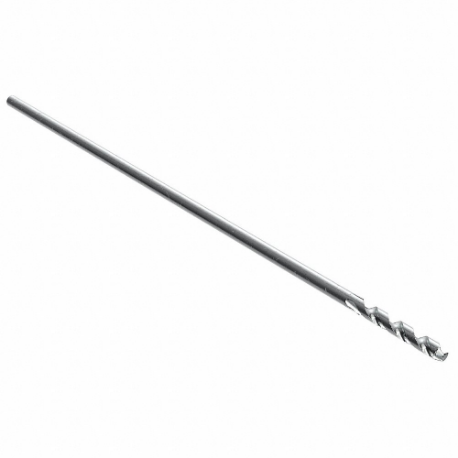

WALTER TOOLS A1244-0.4 5060281 Jobber Length Drill Bit, 0.40 mm Size, 5 mm Flute Length, 20 mm Overall Length

Item: CU8TZVModel: A1244-0.4Cross Ref: 442L75 / 5060281

7 In Stock

0.016"

0.016"
0.012"
0.014"
0.018"
0.02"
0.022"
0.024"
0.026"
0.028"
0.03"
0.031"
0.033"
0.035"
0.037"
0.039"
0.041"
0.043"
0.045"
0.047"
0.049"
0.051"
0.053"
0.055"
0.057"
0.059"
0.061"
0.063"
0.065"
0.067"
0.069"
0.071"
0.075"
0.077"
0.5"
0.25"
0.125"
0.394"
0.402"
0.413"
0.433"
0.344"
0.172"
0.472"
0.492"
0.512"
0.531"
0.406"
0.203"
0.551"
0.571"
0.469"
0.266"
0.297"
0.079"
0.081"
0.083"
0.087"
0.089"
0.091"
0.093"
0.094"
0.098"
0.102"
0.106"
0.11"
0.114"
0.328"
0.422"
0.118"
0.122"
0.126"
0.13"
0.134"
0.138"
0.142"
0.146"
0.15"
0.154"
0.188"
0.375"
0.484"
0.547"
0.157"
0.161"
0.165"
0.169"
0.173"
0.177"
0.181"
0.185"
0.189"
0.193"
0.197"
0.201"
0.205"
0.209"
0.213"
0.217"
0.22"
0.224"

Cutting Edge Diameter

0.165"

0.165"
0.098"
0.134"
0.205"
0.24"
0.272"
0.307"
0.343"
0.374"
0.394"
0.472"
0.551"
0.591"
0.669"
0.748"
0.787"
3.425"
2.047"
1.181"
2.795"
2.992"
2.598"
1.535"
3.701"
1.732"
3.898"
2.244"
2.441"
0.906"
1.024"
1.102"
1.299"
1.417"
1.89"

Cutting Edge Length

Ships within 2 days via

~~€25.55~~

10.00% off

€23.00 /unit

This product can only be shipped in multiples of 10

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Jobber Length Drill Bit
Coolant Fed	Non Coolant Through
Cutting Direction	Right Hand
Decimal Equivalent	0.0157
Depth X Dia. Ratio	8xd
Drill Bit Point Angle	130°
Drill Bit Point Type	4 Facet Point
Drill Bit Size	0.4 mm
Drill Diameter Tolerance	H8
Drill Length Class	Jobber Length
Drill Point Length	0.0933 mm
Finish	Bright
Finish - Machining	Bright (Uncoated)
Flute Length	5 mm
Flute Type	Spiral
Grade	General Purpose
Material	High Speed Steel
Material - Machining	High Speed Steel
Material Grade - Machining	General Purpose
Max. Drilling Depth	5 mm
Mfr. Series	VA
Number Of Flutes	2
Overall Length	20 mm
Point Angle	130°
Point Type	Facet
Primary Material Application	Nickel, Stainless Steel, Titanium
Primary Material Application Iso Code	M, S
Secondary Material Application	Aluminum, Brass, Bronze, Copper, Steel
Secondary Material Application Iso Code	N, P
Series	VA Series
Shank Length	15 mm
Shank Type	Straight
Shank Type - Machining	Straight
Sheeter Drill	No
Size	0.4 mm
System Of Measurement	Metric

Shipping Info:

Ship height (cm)	2.54
Ship length (cm)	2.54
Ship width (cm)	2.54
Country of Origin	FR

Product Variants

Model	Cutting Direction	Decimal Equivalent	Flute Length	Max. Drilling Depth	Finish	Overall Length	Drill Bit Size	Drill Bit Point Angle	Price
A1231-0.5	Left Hand	0.0098	6 mm	6 mm	-	22 mm	0.5 mm	118°	€8.03
A1211-1.21	Right Hand	0.0476	16 mm	16 mm	-	38 mm	1.21 mm	118°	€7.93
A1211-1.27	Right Hand	0.05	16 mm	16 mm	-	38 mm	1.27 mm	118°	€8.82
A1211-10.75	Right Hand	0.4232	94 mm	94 mm	-	142 mm	10.75 mm	118°	€39.91
A1211-11.25	Right Hand	0.4429	94 mm	94 mm	-	142 mm	11.25 mm	118°	€42.87
A1211-14.75	Right Hand	0.5807	114 mm	114 mm	-	169 mm	14.75 mm	118°	€99.26
A1211-3.35	Right Hand	0.1319	36 mm	36 mm	-	65 mm	3.35 mm	118°	€6.87
