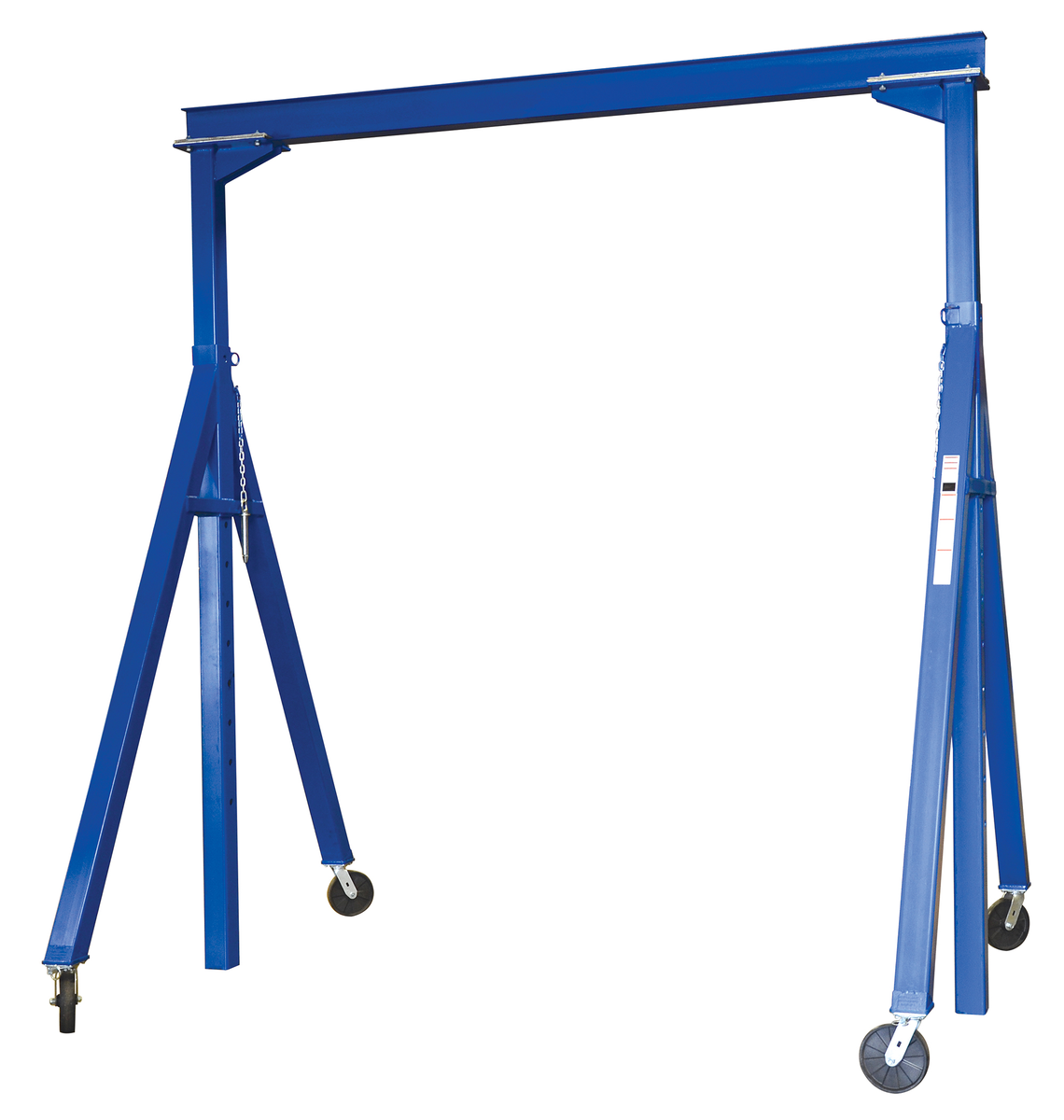

VESTIL AHS-4-15-14 Steel Adjustable Height Gantry Crane with Phenolic Caster, 15 x 14 ft, 4000 lb Capacity, Blue
Get it by Monday, Dec 22
€3,649.88 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Portable Gantry Crane |
| Adjustable Height | Yes |
| Assembly | Assembly Required |
| Base Width | 88 1/2" |
| Batteries Included | No |
| Beam Height | 8.13" |
| Capacity | 4000 lbs. |
| Caster Configuration | Swivel (4) Position Locking Casters |
| Caster Dia. | 8" |
| Caster Lock | Yes |
| Caster Material | Glass Filled Nylon |
| Caster Width | 2" |
| Color | Blue |
| Color Family | Blue |
| Flange Width | 4" |
| Frame Material | Steel |
| Height | 176 1/8" |
| Height Adjustment | 6 In. |
| I Beam Height | 102" to 168" |
| I Beam Length | 180" |
| Length | 179 3/4" |
| Material | Steel |
| Max. Clearance | 168" |
| Measuring Units | EACH |
| Min. Clearance | 102" |
| Number Of Casters | 4 |
| Under I Beam Usable Height | 102" to 168" |
| Usable Beam Length | 149 3/4" |
| Usable Travel Distance | 149 3/4" |
| Wheel Dia. | 8" |
| Wheel Material | Phenolic |
| Wheel Width | 2" |
| Width | 88 1/2" |
Shipping Info:
| Ship weight (kg) | 354.6 |
| Ship height (cm) | 48.26 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 228.6 |
| HS code | 8426190000 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Beam Height | Caster Material | Max. Clearance | Usable Beam Length | Min. Clearance | Under I Beam Usable Height | Usable Travel Distance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AHS-10-15-10 | 132 1/4" | 12.13" | Ductile Steel | 120" | 148 3/4" | 78" | 78" to 120" | 148 3/4" | €5,774.40 | |
 |
AHS-2-10-12 | 149.937" | 6" | Glass Filled Nylon | 144" | 89 3/4" | 90" | 90" to 144" | 89 3/4" | €2,662.37 | |
 |
AHS-2-10-16 | 198.062" | 6" | Glass Filled Nylon | 192" | 89 3/4" | 126" | 126" to 192" | 89 3/4" | €3,544.79 | |
 |
AHS-2-15-10 | 126" | 6" | Glass Filled Nylon | 120" | 149 3/4" | 78" | 78" to 120" | 149 3/4" | €2,546.68 | |
 |
AHS-2-15-12 | 149.937" | 6" | Glass Filled Nylon | 144" | 149 3/4" | 90" | 90" to 144" | 149 3/4" | €2,928.48 | |
 |
AHS-2-15-14 | 174.062" | 6" | Glass Filled Nylon | 168" | 149 3/4" | 102" | 102" to 168" | 149 3/4" | €3,131.15 | |
 |
AHS-2-15-16 | 198.062" | 6" | Glass Filled Nylon | 192" | 149 3/4" | 126" | 126" to 192" | 149 3/4" | €3,734.76 |
