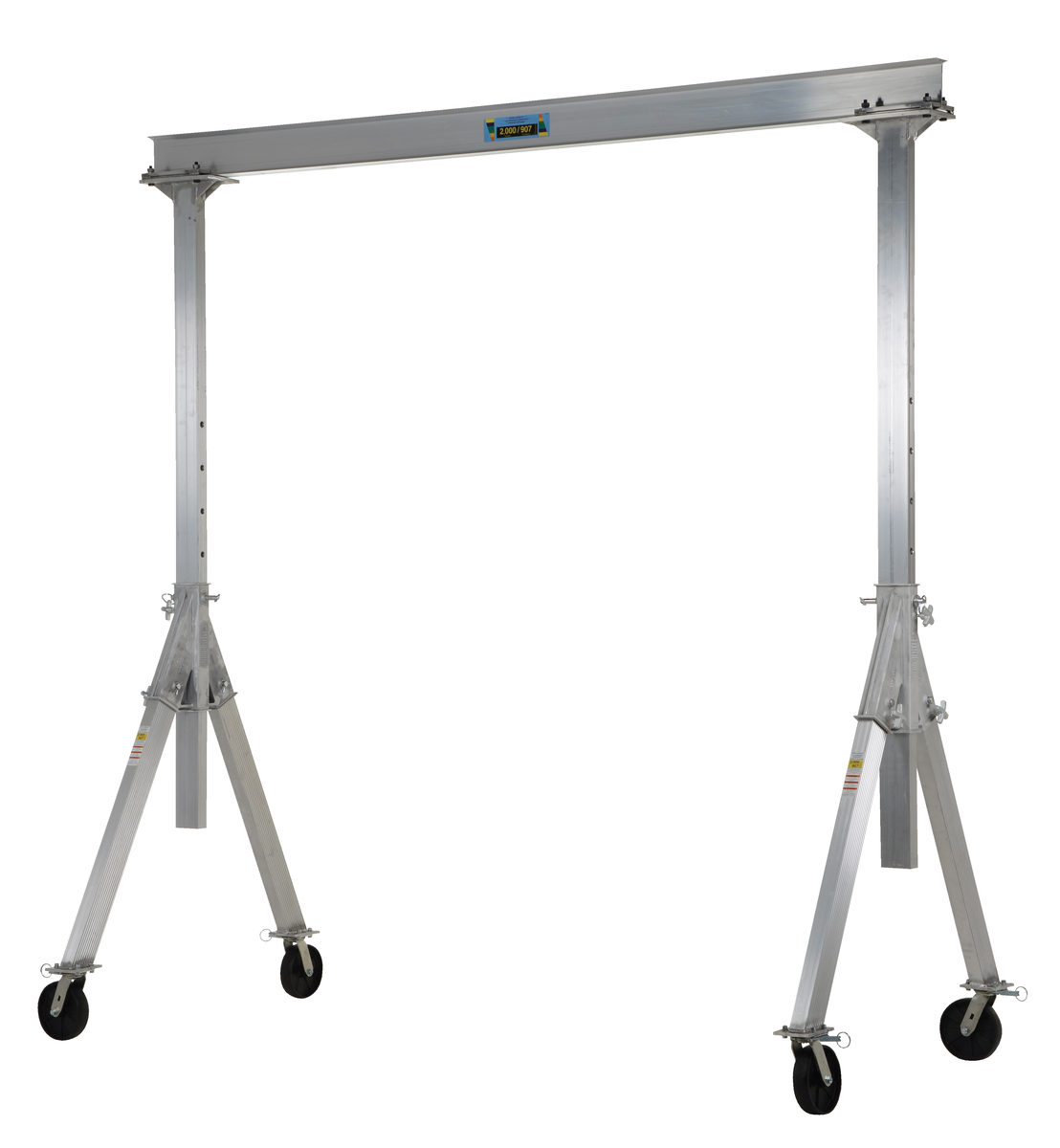

VESTIL AHA-2-8-8 Aluminium Adjustable Height Gantry Crane with Glass Filled Nylon Caster, 8 x 8 ft, 2000 lb Capacity, Silver
96"
104"
Get it by Friday, Aug 28
5.00% off
€3,777.11 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Portable Gantry Crane |
| Adjustable Height | Yes |
| Adjustable Increments | 6" |
| Assembled Depth | 96" |
| Assembled Height | 104" |
| Assembled Width | 53 3/4" |
| Assembly | Assembly Required |
| Base Width | 53 3/4" |
| Beam Flange Width | 3.3" |
| Beam Height | 6" |
| Body Finish | Not Applicable |
| Body Material | Aluminum |
| Capacity | 2000 lbs. |
| Caster Dia. | 8" |
| Caster Lock | Yes |
| Caster Material | Glass Filled Nylon |
| Caster Top Plate | 4" x 4 1/2" |
| Caster Type | (4) Swivel Locking |
| Caster Width | 2" |
| Color | Silver |
| Color Family | Silver |
| Depth | 96" |
| Features | Heavy Duty Welded Aluminum Construction For Long Lasting Use |
| Flange Width | 3.31" |
| Height | 74" |
| Height Adjustability | Adjustable Height |
| Height Adjustment | 6 In. |
| Height Adjustment | Adjustable Height |
| Height Adjustment Increments | 6" |
| Height Under Beam | 5.5 ft. to 8.2 ft. |
| I Beam Flange Width | 3.3" |
| I Beam Height | 6" |
| I Beam Length | 96" |
| Included Components | Straps |
| Leg Connection Type | Bolt On |
| Length | 96" |
| Load Capacity | 2000 lbs. |
| Material | Aluminum |
| Max. Clearance | 98" |
| Max. Height Under Beam | 8.2 ft. |
| Max. I Beam Height | 98" |
| Max. Overall Height | 8.7 ft. |
| Min. Clear Span | Not Applicable |
| Min. Clearance | 68" |
| Min. Height Under Beam | 5.5 ft. |
| Min. I Beam Height | 68" |
| Min. Overall Height | 6 ft. |
| Min. Overall Span | Not Applicable |
| Mobility | Casters |
| Mobility Under Load | Stationary |
| No. Of Casters | 4 |
| Overall Depth | 96" |
| Overall Height | 6 ft. to 8.7 ft. |
| Overall Span | 8 ft. |
| Rotating Legs | No |
| Span Adjustability | Fixed Span |
| Support Width | 4.5 ft. |
| Tonnage-load Capacity | 1 ton. |
| Under I Beam Usable Height | 68" to 98" |
| Usable Beam Length | 72 1/4" |
| Usable Span | 6 ft. |
| Usable Travel Distance | 72 1/4" |
| Wheel Dia. | 8" |
| Wheel Material | Glass Filled Nylon |
| Wheel Width | 2" |
| Width | 53 3/4" |
Shipping Info:
| Ship weight (kg) | 124.2 |
| Ship height (cm) | 45.72 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 73.66 |
| HS code | 8426190000 |
| Country of Origin | US |
Product Variants
| Product | Model | Caster Material | Beam Height | Max. Overall Height | Wheel Material | Assembled Height | Assembled Width | Assembled Depth | Usable Beam Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AHA-2-10-10 | Glass Filled Nylon | 6" | - | - | 128" | 53 3/4" | 120" | 96 1/4" | €4,784.39 | |
 |
AHA-2-10-12 | Glass Filled Nylon | 6" | - | - | 150" | 53 3/4" | 120" | 96 1/4" | €3,437.21 | |
 |
AHA-2-10-8 | Glass Filled Nylon | 6" | 8.7 ft. | Glass Filled Nylon | 104" | 53 3/4" | 120" | 96 1/4" | €5,674.10 | |
 |
AHA-2-12-10 | Glass Filled Nylon | 8" | - | - | 130" | 53 13/16" | 144" | 120 1/4" | €3,696.22 | |
 |
AHA-2-12-12 | Glass Filled Nylon | 8" | - | - | 152" | 53 13/16" | 144" | 120 1/4" | €3,879.98 | |
 |
AHA-2-12-8 | Glass Filled Nylon | 8" | - | - | 106" | 53 13/16" | 144" | 120 1/4" | €5,135.37 | |
 |
AHA-2-15-10 | Glass Filled Nylon | 8" | - | - | 130" | 53 13/16" | 180" | 156 1/4" | €7,353.89 |
