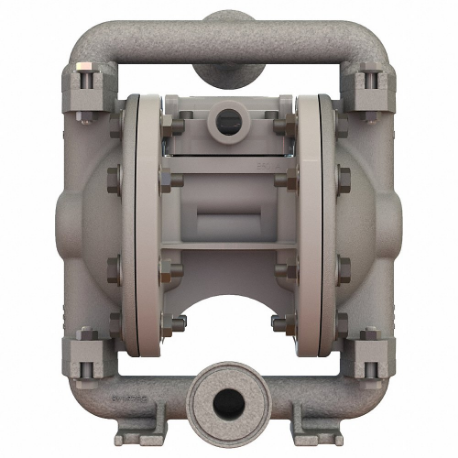

VERSA-MATIC E5SP7X759C Air Operated Double Diaphragm Pump, Air, Stainless Steel, Bolt, Tri-Clamp, Hytrel, Ptfe
Get it by Tuesday, Feb 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€3,468.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Double Diaphragm Pump |
| Air Inlet Size | 3/8" |
| Air Inlet Type | NPT |
| Air Intake Connection Size | 3/8" |
| Center Section Material | Polypropylene |
| Check Seat Material | PTFE |
| Connection Size | 1 1/2" |
| Connection Type | Tri Clamp |
| Diaphragm Material | Hytrel |
| Discharge Port Configuration | Top |
| Discharge Port Size | 1/2" |
| Discharge Port Type | Tri Clamp |
| Display Qty | 1 |
| Feet Of Head (maximum) | 231 ft. |
| Flow Rate (maximum) | 12 GPM |
| Flow Rate @ 100 Psi | 12 GPM |
| Flow Rate @ 20 Psi | 8 GPM |
| Flow Rate @ 40 Psi | 9.5 GPM |
| Flow Rate @ 60 Psi | 11 GPM |
| Flow Rate @ 80 Psi | 11.5 GPM |
| Fluid Connection Size | 1/2" |
| Fluid Connection Type | Tri-Clamp |
| Housing Material | Stainless Steel |
| Inlet Size | 3/8" |
| Inlet Type | NPT |
| Manifold Connection | Single Port |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Discharge Pressure | 100 psi |
| Max. Flow Rate | 12 GPM |
| Max. Head | 231 ft. |
| Max. Media Temp. | 220°F |
| Max. Outlet Pressure | 100 psi |
| Max. Solid Dia. | 0.06" |
| Media Discharge Connection Size | 1/2" |
| Media Discharge Connection Type | Tri Clamp |
| Media Discharge Location | Top |
| Media Intake Connection Size | 1/2" |
| Media Intake Connection Type | Tri Clamp |
| Media Intake Location | Bottom |
| Non-wetted Housing Material | Polypropylene |
| Operating Pressure (maximum) | 100 psi |
| Overall Height | 10 2/5" |
| Overall Length | 8 1/5" |
| Overall Width | 8 1/5" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Bolt |
| Pump Operation Type | Air |
| Solid Diameter (maximum) | 0.06" |
| Suction Port | 1/2" TRI Clamp |
| Suction Port Configuration | Bottom |
| Valve Material | Hytrel |
| Valve Type | Ball |
| Wetted Housing Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 7.61 |
| Ship height (cm) | 26.42 |
| Ship length (cm) | 20.83 |
| Ship width (cm) | 20.83 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Material | Max. Flow Rate | Diaphragm Material | Valve Material | Check Seat Material | Max. Solid Dia. | Max. Media Temp. | Pump Assembly Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
22A593 | Aluminum | 46 GPM | Buna N | Buna N | Aluminum | 3/16" | 180°F | Bolt | €2,365.22 | |
 |
HDB1 1/2,SGN8SS. | Stainless Steel | 122 GPM | Neoprene | PTFE | PTFE | 1/4" | 220°F | - | €12,566.35 | |
 |
SPFG10SSS | Stainless Steel | 41 GPM | Santoprene | Santoprene | Stainless Steel | 0.13" | 180°F | Clamp | €9,556.57 | |
 |
E1SJ7X759C-FP-ATEX | Stainless Steel | 49 GPM | Hytrel | Hytrel | PTFE | 0.13" | 220°F | Bolt | €7,790.13 | |
|
E1SJ5F559C-FP-ATEX | Stainless Steel | 49 GPM | PTFE | PTFE | PTFE | 0.13" | 220°F | Bolt | €8,540.34 | |
|
E1SJ5T559C-FP-ATEX | Stainless Steel | 49 GPM | PTFE | PTFE | PTFE | 0.13" | 220°F | Bolt | €8,135.89 | |
|
E1SJYX559C-FP-ATEX | Stainless Steel | 49 GPM | Santoprene | PTFE | PTFE | 0.13" | 220°F | Bolt | €7,467.07 |
