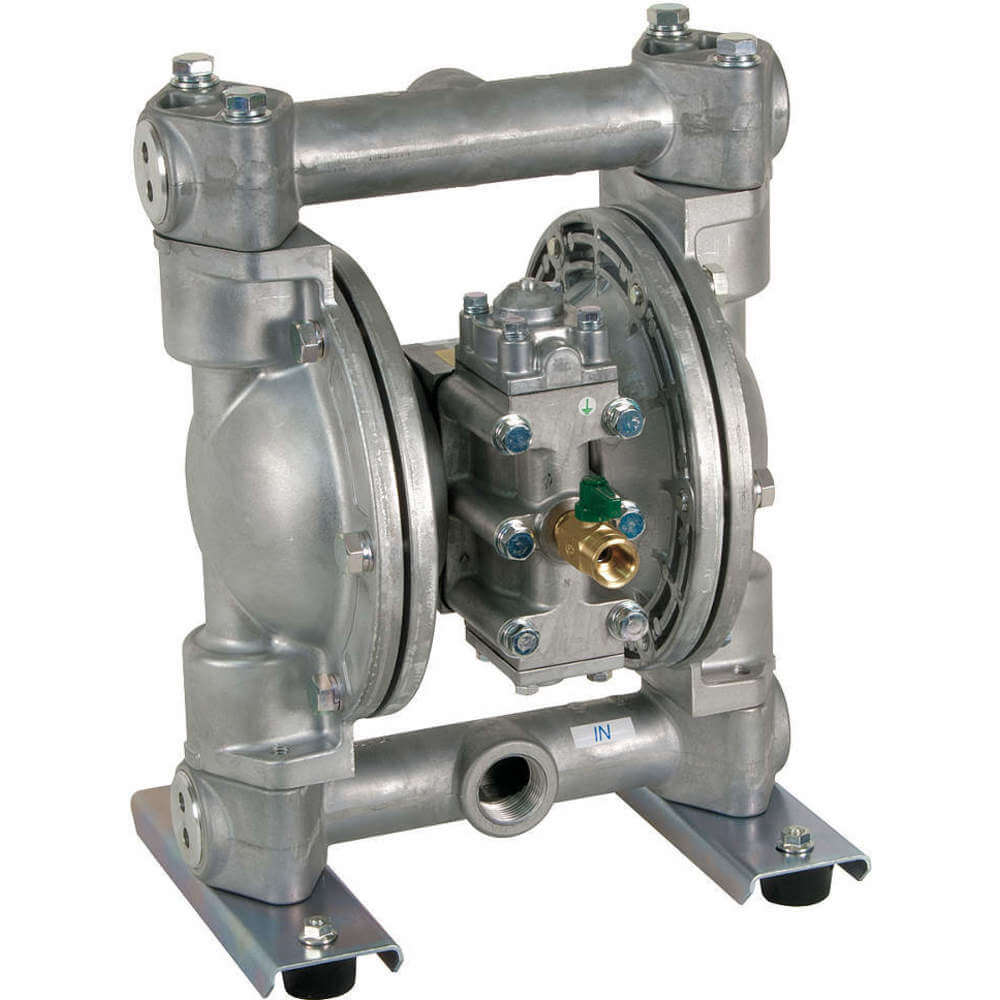

DAYTON 22A593 Pump 1 Inch Npt 46 Gpm Buna N
Get it by Friday, Feb 13
10.00% off
€2,128.70 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Double Diaphragm Pump |
| Air Connection Type | FNPT |
| Air Consumption | 55 SCFM |
| Air Consumption (maximum) | 55 SCFM |
| Air Inlet Size | 3/8" |
| Air Intake Connection Size | 3/8" |
| Air Intake Pressure (maximum) | 100 psi |
| Ball Material | Buna N |
| Body Material | Aluminum |
| Check Seat Material | Aluminum |
| Connection Size | 1" |
| Connection Type | NPT |
| Diaphragm Material | Buna N |
| Discharge Port Size | 1" |
| Discharge Port Size Type | NPT |
| Display Qty | 1 |
| Duty Cycle | Continuous |
| Feet Of Head (maximum) | Not Applicable |
| Flow Rate (maximum) | 46 GPM |
| Flow Rate @ 10 Psi | Not Applicable |
| Flow Rate @ 100 Psi | 50 GPM |
| Flow Rate @ 120 Psi | Not Applicable |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 28 GPM |
| Flow Rate @ 30 Psi | Not Applicable |
| Flow Rate @ 40 Psi | 37 GPM |
| Flow Rate @ 50 Psi | Not Applicable |
| Flow Rate @ 60 Psi | 40 GPM |
| Flow Rate @ 70 Psi | Not Applicable |
| Flow Rate @ 80 Psi | 44 GPM |
| Flow Rate @ 90 Psi | Not Applicable |
| For Use With Potable Systems | No |
| Housing Material | Aluminum |
| Includes | Ball Valve |
| Inlet Size | 3/8" |
| Inlet Type | FNPT |
| Inlet/outlet Size | 1" |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Manufacturers Warranty Length | 1 yr. |
| Max. Dia. Solids | 3/16" |
| Max. Discharge Pressure | 100 psi |
| Max. Flow Gpm | 46 |
| Max. Flow Rate | 46 GPM |
| Max. Media Temp. | 180°F |
| Max. Operating Pressure | 100 psi |
| Max. Solid Dia. | 3/16" |
| Max. Viscosity | 40000 cPS |
| Media Discharge Connection Size | 1" |
| Media Discharge Location | Top |
| Media Intake Connection Size | 1" |
| Media Intake Location | Bottom |
| Min. Media Temp. | 0°F |
| Mounting Hardware Material | Stainless Steel, Steel |
| Nameplate Voltage | Not Applicable |
| Non Wetted Material | Aluminum |
| Non-wetted Housing Material | Aluminum |
| Operating Pressure (maximum) | 100 psi |
| Operation Type | Natural Gas Operated |
| Overall Height | 15.1" |
| Overall Length | 8 1/2" |
| Overall Width | 11.3" |
| Priming | Self Priming |
| Pump Assembly Type | Bolt |
| Pump Operation Type | Gas |
| Self Priming | Yes |
| Self Priming Dry | 18 ft. |
| Self Priming Wet | 28 ft. |
| Self-priming Dry | 18 ft. |
| Self-priming Wet | 28 ft. |
| Series Family | Not Applicable |
| Solid Diameter (maximum) | 0.19" |
| Suction Port | 1" FNPT |
| Valve Material | Buna N |
| Valve Type | Ball |
| Wetted Housing Material | Aluminum |
Shipping Info:
| Ship weight (kg) | 13.68 |
| Ship height (cm) | 38.35 |
| Ship length (cm) | 21.59 |
| Ship width (cm) | 28.7 |
| HS code | 8413500050 |
| Country of Origin | JP |
Product Variants
| Product | Model | Housing Material | Max. Flow Rate | Diaphragm Material | Valve Material | Check Seat Material | Max. Solid Dia. | Max. Media Temp. | Pump Assembly Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HDB1 1/2,SGN8SS. | Stainless Steel | 122 GPM | Neoprene | PTFE | PTFE | 1/4" | 220°F | - | €12,566.35 | |
 |
SPFG10SSS | Stainless Steel | 41 GPM | Santoprene | Santoprene | Stainless Steel | 0.13" | 180°F | Clamp | €9,556.57 | |
 |
E1SJ7X759C-FP-ATEX | Stainless Steel | 49 GPM | Hytrel | Hytrel | PTFE | 0.13" | 220°F | Bolt | €7,790.13 | |
|
E1SJ5F559C-FP-ATEX | Stainless Steel | 49 GPM | PTFE | PTFE | PTFE | 0.13" | 220°F | Bolt | €8,540.34 | |
|
E1SJ5T559C-FP-ATEX | Stainless Steel | 49 GPM | PTFE | PTFE | PTFE | 0.13" | 220°F | Bolt | €8,135.89 | |
|
E1SJYX559C-FP-ATEX | Stainless Steel | 49 GPM | Santoprene | PTFE | PTFE | 0.13" | 220°F | Bolt | €7,467.07 | |
 |
E5SP7X759C | Stainless Steel | 12 GPM | Hytrel | Hytrel | PTFE | 0.06" | 220°F | Bolt | €3,854.19 |
