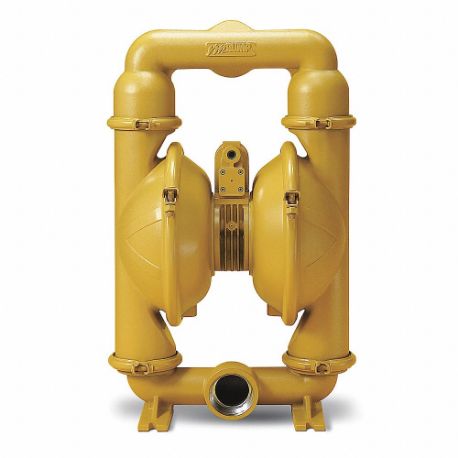

VERSA-MATIC E3AA5T5A0C-ATEX Double Diaphragm Pump, Air, Aluminum, Clamp, 3 Inch Fluid Connection Size, Npt, Ptfe, Ptfe
Get it by Monday, Dec 22
10.00% off
€7,418.34 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Double Diaphragm Pump |
| Air Consumption | 180 SCFM |
| Air Consumption (maximum) | 180 SCFM |
| Air Inlet Size | 1/2" |
| Air Inlet Type | NPT |
| Air Intake Connection Size | 1/2" |
| Air Intake Pressure (maximum) | 125 psi |
| Body Material | Aluminum |
| Center Section Material | Aluminum |
| Check Seat Material | Aluminum |
| Chemical Compatibility | Alcohol, Ammonium Hydroxide, Antifreeze, Diesel, Diesel Exhaust Fluid, Gasoline, Kerosene, Oils, Water |
| Compatible Chemicals | Alcohol, Ammonium Hydroxide, Antifreeze, Diesel, Diesel Exhaust Fluid, Gasoline, Kerosene, Oils, Water |
| Connection Size | 3" |
| Connection Type | NPT |
| Diaphragm Material | PTFE |
| Display Qty | 1 |
| Duty Cycle | Continuous |
| Feet Of Head (maximum) | 320 ft. |
| Flow Rate (maximum) | 273 GPM |
| Flow Rate @ 10 Psi | Not Applicable |
| Flow Rate @ 100 Psi | 241 GPM |
| Flow Rate @ 120 Psi | Not Applicable |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 170.9 GPM |
| Flow Rate @ 30 Psi | Not Applicable |
| Flow Rate @ 40 Psi | 214.1 GPM |
| Flow Rate @ 50 Psi | Not Applicable |
| Flow Rate @ 60 Psi | 226.7 GPM |
| Flow Rate @ 70 Psi | Not Applicable |
| Flow Rate @ 80 Psi | 234 GPM |
| Flow Rate @ 90 Psi | Not Applicable |
| Fluid Intake Connection | 3" Npt |
| Fluid Outlet Connection | 3" Npt |
| For Use With Potable Systems | No |
| Housing Material | Aluminum |
| Inlet Size | 1/2" |
| Inlet Type | NPT |
| Inlet/outlet Size | 3" |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Manufacturers Warranty Length | 1 yr. |
| Max. Dia. Solids | 3/8" |
| Max. Discharge Pressure | 125 psi |
| Max. Flow Rate | 273 GPM |
| Max. Head | 320 ft. |
| Max. Media Temp. | 220°F |
| Max. Outlet Pressure | 125 psi |
| Max. Solid Dia. | 0.38" |
| Media Discharge Connection Size | 3" |
| Media Discharge Location | Center, Top |
| Media Intake Connection Size | 3" |
| Media Intake Location | Bottom, Center |
| Non-wetted Housing Material | Aluminum |
| Operating Pressure (maximum) | 125 psi |
| Operation Type | Air Operated |
| Overall Height | 32.1" |
| Overall Length | 15" |
| Overall Width | 25.1" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Clamp |
| Pump Operation Type | Air |
| Rated Air Pressure | 125 psi |
| Self Priming | Yes |
| Self-priming Dry | 10 ft. |
| Self-priming Wet | 20 ft. |
| Series Family | E3 |
| Solid Diameter (maximum) | 0.38" |
| Standards | Atex |
| Valve Material | PTFE |
| Valve Type | Ball |
| Wetted Housing Material | Aluminum |
Shipping Info:
| Ship weight (kg) | 49.05 |
| Ship height (cm) | 81.53 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 63.75 |
| Country of Origin | US |
