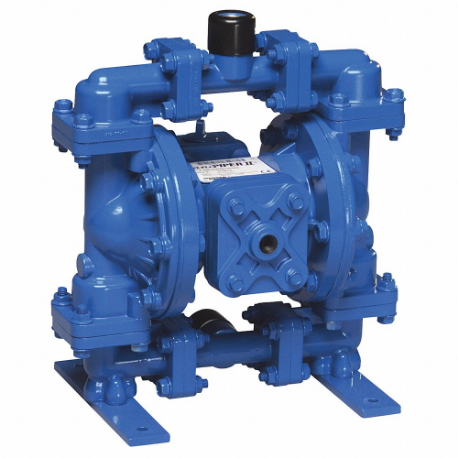

SANDPIPER S05B1A1WANS000. Ball Valve Pump, Metallic, Top Discharge, 15 Lbs.
Get it by Thursday, Jul 2
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€2,072.58 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve Pump |
| Air Consumption | 20 SCFM |
| Air Inlet | 1/4" FNPT |
| Air Intake Connection Size | 1/4" |
| Air Pressure | 125 psi |
| Body Material | Aluminum |
| Center Section Material | Aluminum |
| Check Seat Material | Polyethylene |
| Check Valve Seat Material | UHMW Polyethylene |
| Check Valve Type | Ball |
| Chemical Compatibility | Alcohol, Ammonium Hydroxide, Water |
| Compatible Chemicals | Alcohol, Ammonium Hydroxide, Water |
| Connection Size | 1/2" |
| Connection Type | NPT |
| Design Level | 1 |
| Diaphragm Material | Santoprene |
| Discharge Pipe Size (internal) | 1/2" |
| Discharge Pipe Type(internal) | BSPT, NPT |
| Displacement Per Stroke | 0.026 gal. |
| Display Qty | 1 |
| Elastomers Material | Santoprene |
| Flow Rate @ 10 Psi | Not Applicable |
| Flow Rate @ 100 Psi | 13.4 GPM |
| Flow Rate @ 120 Psi | Not Applicable |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 4.2 GPM |
| Flow Rate @ 30 Psi | Not Applicable |
| Flow Rate @ 40 Psi | 9.3 GPM |
| Flow Rate @ 50 Psi | Not Applicable |
| Flow Rate @ 60 Psi | 11.5 GPM |
| Flow Rate @ 70 Psi | Not Applicable |
| Flow Rate @ 80 Psi | 12.8 GPM |
| Flow Rate @ 90 Psi | Not Applicable |
| Fluid Discharge Connection Size | 1/2" |
| Fluid Discharge Connection Type | NPT |
| Fluid Intake Connection | 1/2" |
| Fluid Intake Connection Type | NPT |
| For Use With Potable Systems | No |
| Height | 11" |
| Housing Material | Aluminum |
| Inlet Size | 1/2" , 1/4" |
| Inlet Type | FNPT , NPT |
| Inlet/outlet Size | 1/2" |
| Intake Pipe Size (internal) | 1/2" |
| Intake Pipe Type(internal) | BSPT, NPT |
| Length | 10" |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Max. Air Consumption | 20 SCFM |
| Max. Air Intake Pressure | 125 psi |
| Max. Dia. Solids | 1/8" |
| Max. Discharge Pressure | 100 psi |
| Max. Feet Of Head | 289 ft. |
| Max. Flow Rate | 0-15 GPM , 15 GPM |
| Max. Head | 289 ft. |
| Max. Media Temp. | 180°F |
| Max. Operating Pressure | 100 psi |
| Max. Outlet Pressure | 100 psi |
| Max. Solid Dia. | 0.13" |
| Media Discharge Connection Size | 1/2" |
| Media Discharge Location | Center, Top |
| Media Intake Connection Size | 1/2" |
| Media Intake Location | Bottom, Center |
| Non Wetted Material | Aluminum |
| Non-wetted Housing Material | Aluminum |
| Operation Type | Air Operated |
| Outlet Size | 1/2" |
| Outlet Type | NPT |
| Overall Height | 11 1/2" |
| Overall Length | 7.1" |
| Overall Width | 10.3" |
| Porting Position Type | NPT |
| Power Source | Air |
| Priming | Self Priming |
| Product Datasheet | sandpiper-s05b1s1wans000-.pdf |
| Pump Assembly Type | Bolt |
| Pump Operation Type | Air |
| Pump Style | Standard |
| Self Priming | Yes |
| Self Priming Dry | 13 ft. |
| Self Priming Wet | 13 ft. |
| Solids Handling | 1/8" |
| Type | Air Powered Double Diaphragm Pump |
| Valve Material | Santoprene |
| Valve Type | Ball |
| Wetted Housing Material | Aluminum |
| Wetted Material | Aluminum |
| Width | 7" |
Shipping Info:
| Ship weight (kg) | 6.75 |
| Ship height (cm) | 27.46 |
| Ship length (cm) | 26.04 |
| Ship width (cm) | 18.57 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Housing Material | Max. Flow Rate | Max. Outlet Pressure | Diaphragm Material | Valve Material | Check Seat Material | Max. Solid Dia. | Max. Media Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
22050 | Aluminum | 20 GPM | 85 psi | Buna N | Buna N | Buna N | 3/4" | 200°F | - | RFQ
|
 |
SB1 SGN5SS. | Stainless Steel | 42 GPM | 125 psi | PTFE | PTFE | Stainless Steel | 1/4" | 220°F | €6,438.16 | |
 |
S05B1SBWANS000. | Stainless Steel | 15 GPM | 100 psi | Buna N | Buna N | Polyethylene | 0.13" | 190°F | €5,052.26 | |
 |
HDB1 1/2 SGN8A. | Aluminum | 122 GPM | 125 psi | Neoprene | PTFE | Stainless Steel | 1/4" | 220°F | €6,610.24 | |
|
HDB1 1/2 SS8A. | Aluminum | 122 GPM | 125 psi | Santoprene | Santoprene | Stainless Steel | 1/4" | 275°F | €5,468.12 | |
 |
S05B2P1TPNI000. | Polypropylene | 14 GPM | 100 psi | Santoprene | Santoprene | PTFE | 3/25" | 275°F | €1,060.65 | |
|
S05B2P2TPNI000. | Polypropylene | 14 GPM | 100 psi | PTFE | PTFE | PTFE | 3/25" | 220°F | €1,306.17 |
