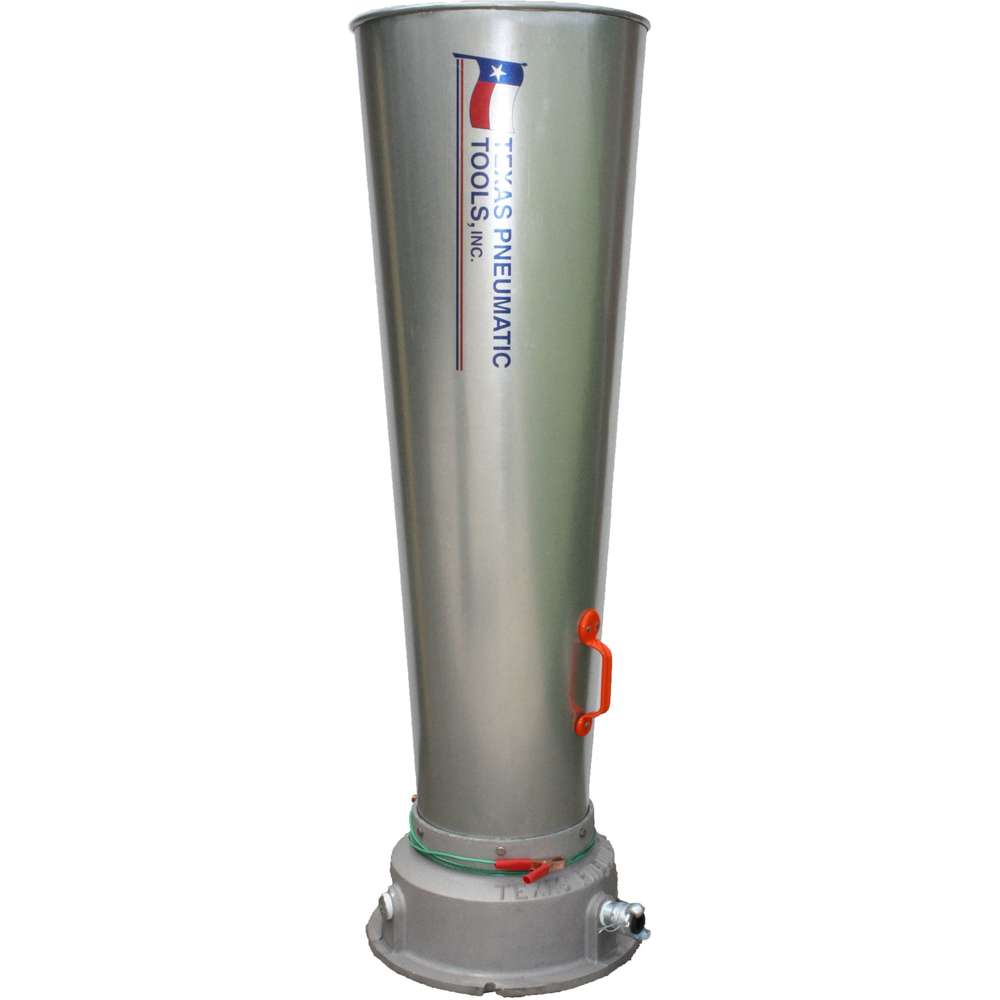

TEXAS PNEUMATIC TOOLS TX-8AM Venturi Air Mover, 3152 - 5435 Cfm, Steel, 1 Inch Size, 46-11/25 Inch Length
Get it by Friday, Dec 26
€1,773.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Venturi Style Pneumatic Air Blower |
| Air Consumed @ 100 Psig | 178 CFM |
| Air Consumed @ 40 Psig | 78 CFM |
| Air Consumed @ 60 Psig | 108 CFM |
| Air Consumed @ 80 Psig | 142 CFM |
| Air Flow Rate @ 100 Psig | 5435 CFM |
| Air Flow Rate @ 40 Psig | 3152 CFM |
| Air Flow Rate @ 60 Psig | 4215 CFM |
| Air Flow Rate @ 80 Psig | 4810 CFM |
| Air Pressure | 60 psi, 80 psi, 100 psi |
| Air Pressure | 40 Psi |
| Base Dia. | 14 1/4" |
| Base Inside Dia. | 8" |
| Base Material | Aluminum |
| Bolt Circle Dia. | 13 1/2" |
| Decibels @ 5 Ft. @ 100 Psig | 81 dBA |
| Decibels @ 5 Ft. @ 40 Psig | 72 dBA |
| Decibels @ 5 Ft. @ 60 Psig | 77 dBA |
| Decibels @ 5 Ft. @ 80 Psig | 79 dBA |
| Dia. Top Of Horn | 14.31" |
| Horn Material | Steel |
| Inlet Type | NPT |
| Overall Length | 46 11/25" |
| Product Datasheet | texas-pneumatic-tools-tx-10am.pdf |
| Slot Dia. | 1/2" |
| Top Dia. | 14.31" |
Shipping Info:
| Ship weight (kg) | 18.9 |
| Ship height (cm) | 36.2 |
| Ship length (cm) | 118.11 |
| Ship width (cm) | 36.2 |
| Country of Origin | US |
Product Details:
- Texas Pneumatic Tools TX-8AM venturi air blower capable of delivering air flow rates up to 5435 cfm when run at 100 psi to disperse fumes, move air into confined spaces and cool machinery in elevated temperature conditions
- Comes with a ground wire connection facility to reduce the risk of static sparks when working in a volatile atmosphere
Documentation:
Product Variants
| Product | Model | Air Pressure | Air Flow Rate @ 40 Psig | Air Flow Rate @ 60 Psig | Air Flow Rate @ 80 Psig | Air Flow Rate @ 100 Psig | Air Consumed @ 40 Psig | Air Consumed @ 60 Psig | Air Consumed @ 80 Psig | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TX-10AM | 60 psi, 80 psi, 100 psi | 4898 CFM | 6182 CFM | 7304 CFM | 8220 CFM | 134 CFM | 189 CFM | 252 CFM | €1,256.06 | |
 |
TX-10AM-NP | 60 psi, 80 psi, 100 psi | 4898 CFM | 6182 CFM | 7304 CFM | 8220 CFM | 134 CFM | 189 CFM | 252 CFM | €1,732.50 | |
 |
TX-10AM-P | 60 psi, 80 psi, 100 psi | 4898 CFM | 6182 CFM | 7304 CFM | 8220 CFM | 134 CFM | 189 CFM | 252 CFM | €1,256.06 | |
 |
TX-10AM-SH | 60 psi, 80 psi, 100 psi | 4898 CFM | 6182 CFM | 7304 CFM | 8220 CFM | 134 CFM | 189 CFM | 252 CFM | €1,645.88 | |
 |
TX-3AM | 60 psi, 80 psi, 100 psi | 1017 CFM | 1135 CFM | 1308 CFM | 1465 CFM | 21 CFM | 31 CFM | 41 CFM | €424.46 | |
 |
TX-3AM-P | 60 psi, 80 psi, 100 psi | 1017 CFM | 1135 CFM | 1308 CFM | 1465 CFM | 21 CFM | 31 CFM | 41 CFM | €424.46 | |
 |
TX-3AM-SH | 60 psi, 80 psi, 100 psi | 1017 CFM | 1135 CFM | 1308 CFM | 1465 CFM | 21 CFM | 31 CFM | 41 CFM | €584.72 |
