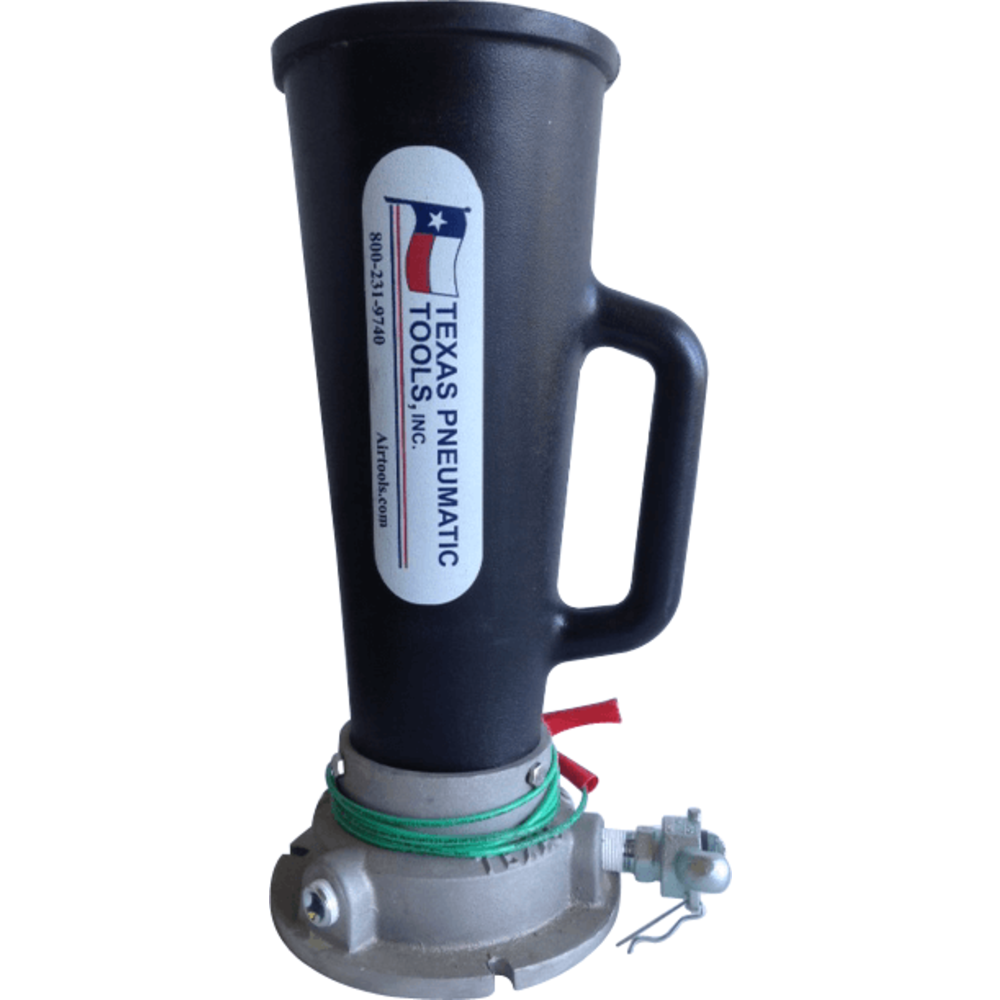

TEXAS PNEUMATIC TOOLS TX-3AMS-P Venturi Air Mover, 815 - 1465 Cfm, Polyurethane, 1/2 Inch Size, 16-1/2 Inch Length
Get it by Thursday, Dec 25
€385.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Venturi Style Pneumatic Air Blower |
| Air Consumed @ 100 Psig | 51 CFM |
| Air Consumed @ 40 Psig | 21 CFM |
| Air Consumed @ 60 Psig | 31 CFM |
| Air Consumed @ 80 Psig | 41 CFM |
| Air Flow Rate @ 100 Psig | 1465 CFM |
| Air Flow Rate @ 40 Psig | 815 CFM |
| Air Flow Rate @ 60 Psig | 1135 CFM |
| Air Flow Rate @ 80 Psig | 1308 CFM |
| Air Pressure | 60 psi, 80 psi, 100 psi |
| Air Pressure | 60 Psi |
| Base Dia. | 7 1/4" |
| Base Inside Dia. | 3" |
| Base Material | Aluminum |
| Bolt Circle Dia. | 6 3/4" |
| Decibels @ 5 Ft. @ 100 Psig | 71 dBA |
| Decibels @ 5 Ft. @ 40 Psig | 64 dBA |
| Decibels @ 5 Ft. @ 60 Psig | 66 dBA |
| Decibels @ 5 Ft. @ 80 Psig | 68 dBA |
| Dia. Top Of Horn | 6" |
| Horn Material | Polyurethane |
| Inlet Size | 1/2" |
| Inlet Type | NPT |
| Overall Length | 16 1/2" |
| Product Datasheet | texas-pneumatic-tools-tx-10am.pdf |
| Slot Dia. | 0.38" |
| Top Dia. | 6.0" |
Shipping Info:
| Ship weight (kg) | 3.6 |
| Ship height (cm) | 18.42 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 18.42 |
| Country of Origin | US |
Product Details:
- Texas Pneumatic Tools TX-3AMS-P venturi blower capable of delivering air flow rates up to 1205 cfm, when run at 100 psi, for ventilating hazardous areas and cooling equipment
- Electrically conductive polymer horn to allow safe discharge of any potential static build-up
- Comes with a ground-wire connection to reduce the risk of static sparks when working in a volatile atmosphere
Documentation:
Product Variants
| Product | Model | Air Pressure | Air Flow Rate @ 40 Psig | Air Flow Rate @ 60 Psig | Air Flow Rate @ 80 Psig | Air Flow Rate @ 100 Psig | Air Consumed @ 40 Psig | Air Consumed @ 60 Psig | Air Consumed @ 80 Psig | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TX-10AM | 60 psi, 80 psi, 100 psi | 4898 CFM | 6182 CFM | 7304 CFM | 8220 CFM | 134 CFM | 189 CFM | 252 CFM | €1,256.06 | |
 |
TX-10AM-NP | 60 psi, 80 psi, 100 psi | 4898 CFM | 6182 CFM | 7304 CFM | 8220 CFM | 134 CFM | 189 CFM | 252 CFM | €1,732.50 | |
 |
TX-10AM-P | 60 psi, 80 psi, 100 psi | 4898 CFM | 6182 CFM | 7304 CFM | 8220 CFM | 134 CFM | 189 CFM | 252 CFM | €1,256.06 | |
 |
TX-10AM-SH | 60 psi, 80 psi, 100 psi | 4898 CFM | 6182 CFM | 7304 CFM | 8220 CFM | 134 CFM | 189 CFM | 252 CFM | €1,645.88 | |
 |
TX-3AM | 60 psi, 80 psi, 100 psi | 1017 CFM | 1135 CFM | 1308 CFM | 1465 CFM | 21 CFM | 31 CFM | 41 CFM | €424.46 | |
 |
TX-3AM-P | 60 psi, 80 psi, 100 psi | 1017 CFM | 1135 CFM | 1308 CFM | 1465 CFM | 21 CFM | 31 CFM | 41 CFM | €424.46 | |
 |
TX-3AM-SH | 60 psi, 80 psi, 100 psi | 1017 CFM | 1135 CFM | 1308 CFM | 1465 CFM | 21 CFM | 31 CFM | 41 CFM | €584.72 |
