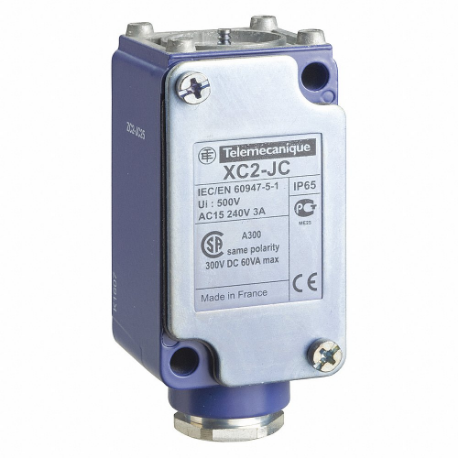

TELEMECANIQUE SENSORS ZC2JC1H5 Limit Switch Body
Item: CU6EVPModel: ZC2JC1H5Cross Ref: 48P607
7 In Stock
Ships within 2 days via
10.00% off
€330.26 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Limit Switch Body |
| Ac Contact Rating | 3A @ 240V |
| Body Configuration | Non Plug In |
| Body Style | EN50041 |
| Compatible With Grainger Part Number | 48P608, 48P609, 48P610 |
| Compatible With Manufacturer Model Number | ZC2JE01, ZC2JE013, ZC2JE01H22, ZC2JE02, ZC2JE03, ZC2JE04, ZC2JE05, ZC2JE053, ZC2JE05H2, ZC2JE06, ZC2JE07, ZC2JE09, ZC2JE09H5, ZC2JE61, ZC2JE62, ZC2JE623, ZC2JE63, ZC2JE64, ZC2JE65, ZC2JE66, ZC2JE70, ZC2JE81, ZC2JE82, ZC2JE83, ZC2JE84, ZC2JE85 |
| Compatible With Series | XC2J Series |
| Contact Form | SPDT |
| Dc Contact Rating | 0.27A @ 250V |
| Display Qty | 1 |
| Electrical Connection | Screw Clamp Terminals |
| Indicating Light | No Indicating Light Included |
| Ip Rating | IP65 |
| Material | Metal |
| Mounting Hole Diameter | 0.22" |
| Mounting Hole Horizontal Center To Center Distance | 30 mm |
| Mounting Hole Vertical Center To Center Distance | 60 mm |
| Nema Enclosure Rating | NEMA 4X, NEMA 12 |
| Number Of Mounting Holes | 2 |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 4.5 |
| Ship length (cm) | 9.5 |
| Ship width (cm) | 4.8 |
| Country of Origin | FR |
Product Variants
| Product | Model | Electrical Connection | Ip Rating | Contact Form | Operating Temp. Range | Price | |
|---|---|---|---|---|---|---|---|
 |
V0 | - | - | 3Pst-No | - | €151.78 | |
 |
9007CO54B2 | Plug In | IP67 | - | -20°F to +185°F | €355.45 | |
 |
9007CO66 | Plug In | IP67 | 2NO/2NC | 0°F to +185°F | €429.35 | |
|
9007CO68 | Plug In | IP67 | 2NO/2NC | 0°F to +185°F | €337.55 | |
 |
V02 | - | - | - | - | €112.83 | |
 |
V6 | - | - | - | - | €687.38 | |
 |
XE2SP2141 | Screw Terminal | Not Rated | 2NC | - | - | RFQ
|
