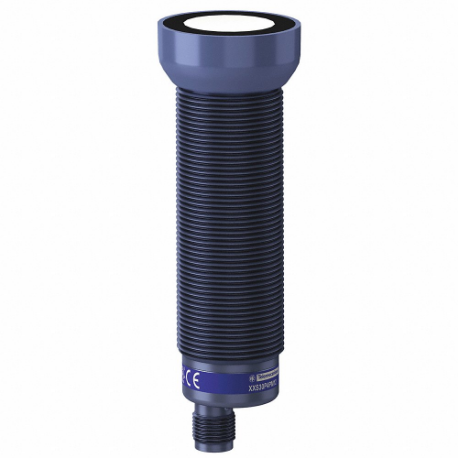

TELEMECANIQUE SENSORS XXS30P4PM12 Cylindrical Ultrasonic Sensor, 30 mm Dia, Pnp, Discrete, 5 Pin M12 Male Connector
Item: CU6EMMModel: XXS30P4PM12Cross Ref: 55WX69
7 In Stock
Ships within 2 days via
5.00% off
€567.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cylindrical Ultrasonic Sensor |
| Body Material | PBT |
| Case Material | Polybutylene Terephthalate |
| Circuit Type | Discrete |
| Depth | 4.69" |
| Dia. | 30 mm |
| Display Qty | 1 |
| Electrical Connection | 5 Pin M12 Male Connector |
| Features | M30 Sensor Body, Reverse Polarity Protection, Software Configurable, Synchronization Mode |
| Ip Rating | IP65, IP67 |
| Length | 1.18" |
| Max. Load Amps | 65 mA |
| Max. Operating Temp. | 158°F |
| Max. Sensing Distance | 400cm |
| Min. Operating Temp. | -13°F |
| Min. Sensing Distance | 42cm |
| No. Of Pins | 5 |
| Nominal Sensor Dia. | M30 Threaded |
| Operating Frequency | 80 kHz |
| Operating Temp. | -13°F to +158°F |
| Output | PNP |
| Output Circuit Contact Form | NO, NC |
| Output Circuit Type | PNP |
| Resistance Properties | Electrical Fast Transient Resistant, Electromagnetic Fields Resistant, Electrostatic Discharge Resistant, Shock Resistant, Vibration Resistant |
| Response Time | 180 ms |
| Sensor Body Style | Cylindrical |
| Sensor Connector Type | M12 |
| Sensor Dia. | 40 mm |
| Sensor Face Orientation | Straight |
| Sensor Height | 119 mm |
| Series | XXS Series |
| Supply Voltage | 10-30V DC |
| Switching Frequency | 80 kHz |
| Width | 1.57" |
Shipping Info:
| Ship weight (kg) | 0.15 |
| Ship height (cm) | 11.91 |
| Ship length (cm) | 3 |
| Ship width (cm) | 3.99 |
| Country of Origin | US |
Product Variants
| Product | Model | Depth | Circuit Type | Operating Frequency | Response Time | Output | Body Material | Case Material | Electrical Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

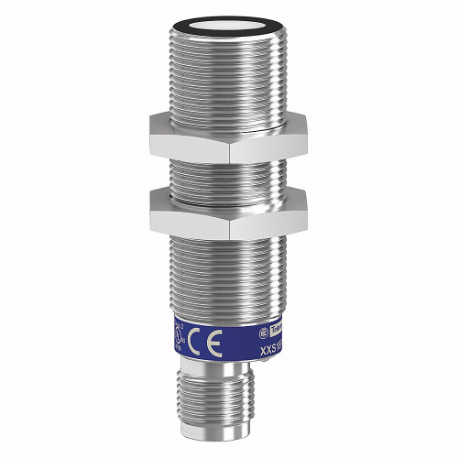

XXS18B1VM12 | 2 13/25" | Analogue | 200 kHz | 100 ms | 0 To 10V | Brass | Nickel Plated Brass | 5 Pin M12 Male Connector | - | RFQ
|
 |

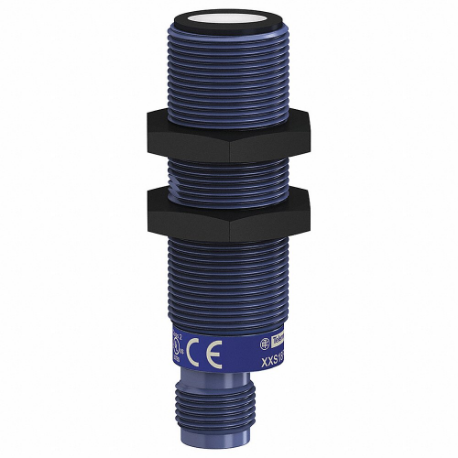

XXS18P1VM12 | 2 13/25" | Analogue | 200 kHz | 100 ms | 0 To 10V | PBT | Polybutylene Terephthalate | 5 Pin M12 Male Connector | - | RFQ
|
|
XXS18S1VM12 | 2 13/25" | Analogue | 200 kHz | 100 ms | 0 To 10V | Stainless Steel | Stainless Steel | 5 Pin M12 Male Connector | - | RFQ
|
 |

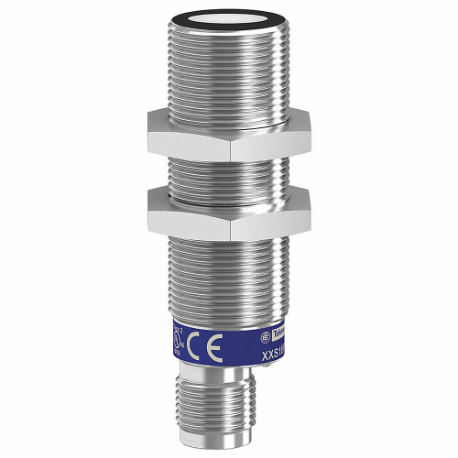

XXS18B1PM12 | 2 13/25" | Discrete | 200 kHz | 45 ms | PNP | Brass | Nickel Plated Brass | 5 Pin M12 Male Connector | €542.66 | |
|
XXS18S1PM12 | 2 13/25" | Discrete | 200 kHz | 45 ms | PNP | Stainless Steel | Stainless Steel | 5 Pin M12 Male Connector | €569.77 | |
 |
XXS18P1PM12 | 2 13/25" | Discrete | 200 kHz | 45 ms | PNP | PBT | Polybutylene Terephthalate | 5 Pin M12 Male Connector | €461.93 | |
 |
XXS30P1VM12 | 2.53" | Analogue | 200 kHz | 100 ms | 0 To 10V | PBT | Polybutylene Terephthalate | 5 Pin M12 Male Connector | €616.41 |
