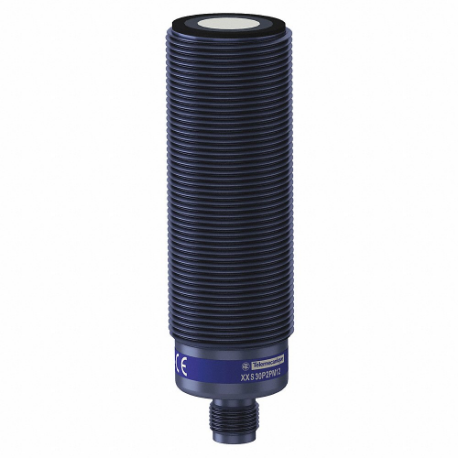

TELEMECANIQUE SENSORS XXS30P2PM12 Cylindrical Ultrasonic Sensor, 30 mm Dia, Pnp, Discrete, 5 Pin M12 Male Connector
Item: CU6EMFModel: XXS30P2PM12Cross Ref: 55WX66
7 In Stock
Ships within 2 days via
10.00% off
€517.93 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cylindrical Ultrasonic Sensor |
| Body Material | PBT |
| Case Material | Polybutylene Terephthalate |
| Circuit Type | Discrete |
| Depth | 4.02" |
| Diameter | 30 mm |
| Display Qty | 1 |
| Electrical Connection | 5 Pin M12 Male Connector |
| Features | M30 Sensor Body, Reverse Polarity Protection, Software Configurable, Synchronization Mode |
| Ip Rating | IP65, IP67 |
| Length | 1.18" |
| Load Current - Maximum | 65 mA |
| Nominal Sensor Diameter | M30 Threaded |
| Number Of Pins | 5 |
| Operating Frequency | 120 kHz |
| Operating Temp. | -13°F to +158°F |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Output | PNP |
| Output Circuit Contact Form | NO, NC |
| Output Circuit Type | PNP |
| Resistance Properties | Electrical Fast Transient Resistant, Electromagnetic Fields Resistant, Electrostatic Discharge Resistant, Shock Resistant, Vibration Resistant |
| Response Time | 90 ms |
| Sensing Distance - Maximum | 200cm |
| Sensing Distance - Minimum | 16cm |
| Sensor Body Style | Cylindrical |
| Sensor Connector Type | M12 |
| Sensor Diameter | 30 mm |
| Sensor Face Orientation | Straight |
| Sensor Height | 102 mm |
| Series | XXS Series |
| Supply Voltage Rating | 10-30V DC |
| Switching Frequency | 120 kHz |
| Width | 1.18" |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 10.21 |
| Ship length (cm) | 3 |
| Ship width (cm) | 3 |
| Country of Origin | US |
Product Variants
| Product | Model | Depth | Circuit Type | Operating Frequency | Response Time | Diameter | Output | Body Material | Case Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XXS18B1VM12 | 2 13/25" | Analogue | 200 kHz | 100 ms | 18 mm | 0 To 10V | Brass | Nickel Plated Brass | - | RFQ
|
 |
XXA18S1VM12 | 3.11" | Analogue | 200 kHz | 100 ms | 18 mm | 0 To 10V | Stainless Steel | Stainless Steel | - | RFQ
|
 |
XXS18P1VM12 | 2 13/25" | Analogue | 200 kHz | 100 ms | 18 mm | 0 To 10V | PBT | Polybutylene Terephthalate | - | RFQ
|
|
XXS18S1VM12 | 2 13/25" | Analogue | 200 kHz | 100 ms | 18 mm | 0 To 10V | Stainless Steel | Stainless Steel | - | RFQ
|
 |
XXA18P1VM12 | 3.11" | Analogue | 200 kHz | 100 ms | 18 mm | 0 To 10V | PBT | Polybutylene Terephthalate | - | RFQ
|
 |
XXA18B1VM12 | 3.11" | Analogue | 200 kHz | 100 ms | 18 mm | 0 To 10V | Brass | Nickel Plated Brass | - | RFQ
|
 |
XXS18B1PM12 | 2 13/25" | Discrete | 200 kHz | 45 ms | 18 mm | PNP | Brass | Nickel Plated Brass | €542.66 |
