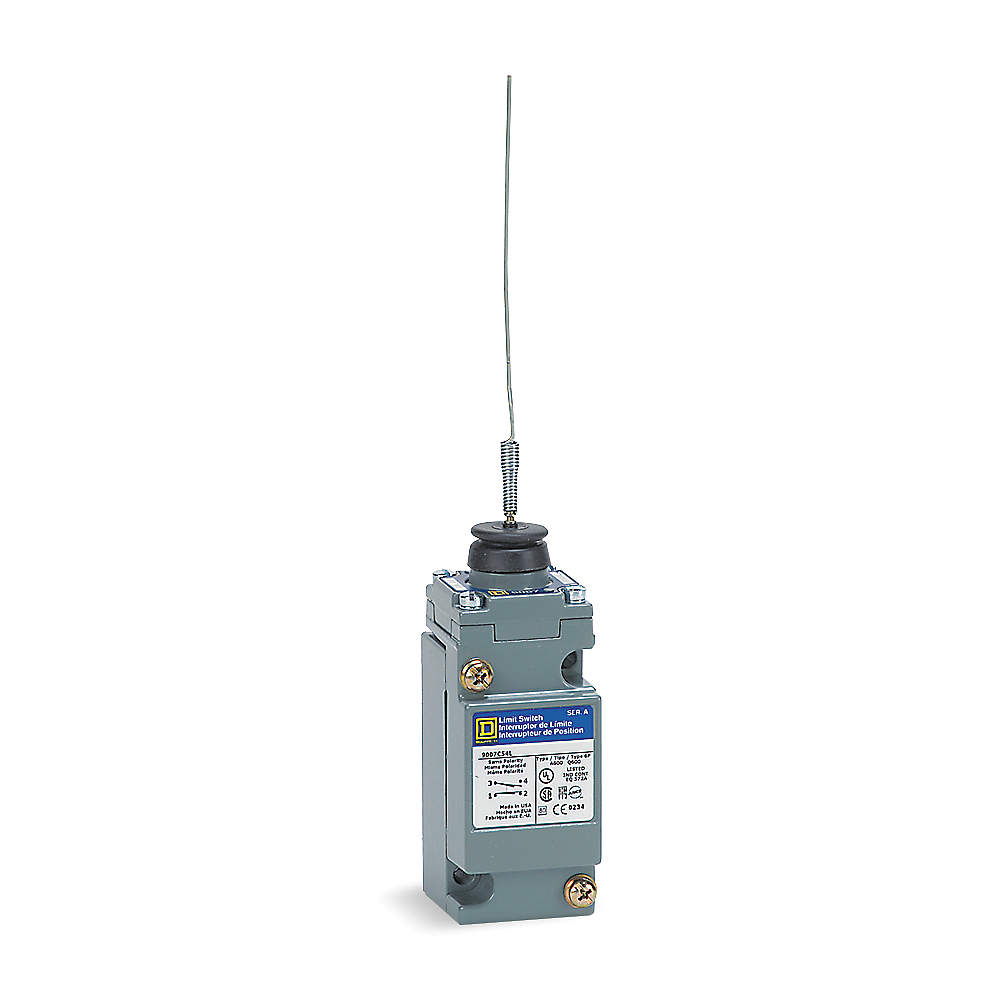

TELEMECANIQUE SENSORS 9007C62L Heavy Duty Limit Switch Top Actuator 2no/2nc
Item: AF9JYLModel: 9007C62LCross Ref: 2UYP1
7 In Stock
Ships within 2 days via
5.00% off
€318.17 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Heavy Duty Limit Switch |
| Ac Contact Rating | 10A @ 600V |
| Actuator Length | 5.05" |
| Actuator Location | Top |
| Actuator Style | Wobble Stick |
| Actuator Type | Cat Whisker |
| Body Configuration | Plug In |
| Body Depth | 1.14" |
| Body Height | 2.5" |
| Body Material | Zinc |
| Body Style | X |
| Body Width | 0.83" |
| Boot Sealed Actuator | No Boot Included |
| Contact Form | 2NO/2NC |
| Dc Contact Rating | 10A @ 600V |
| Depth | 1.79" |
| Directional Movement | Omnidirectional |
| Electrical Connection | Screw Clamp Terminals |
| Height | 4.02" |
| Ip Rating | IP67 |
| Max. Operating Temp. | 185°F |
| Max. Operating Torque | 0.44 lbs.-in. |
| Min. Operating Temp. | -20°F |
| Mounting Hole Dia. | 1/5" |
| Mounting Hole Horizontal Center To Center Distance | 30 mm |
| Mounting Hole Vertical Center To Center Distance | 60 mm |
| Mounting Style | Surface |
| Movement | Any Direction |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 4, NEMA 6, NEMA 6P, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 4, NEMA 6, NEMA 6P |
| No. Of Mounting Holes | 2 |
| Operating Temp. | 0°F to +185°F |
| Overall Depth | 1.79" |
| Overall Height | 9.07" |
| Overall Width | 1.55" |
| Pre-travel | 20° |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Series | 9007C Series |
| Total Travel | 90° |
| Travel Length | 90° |
| Width | 1.55" |
Shipping Info:
| Ship weight (kg) | 0.56 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 24.64 |
| Ship width (cm) | 5.84 |
| HS code | 8536509055 |
| Country of Origin | MX |
Product Variants
| Product | Model | Electrical Connection | Height | Body Width | Actuator Style | Actuator Location | Operating Temp. | Travel Length | Boot Sealed Actuator | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9007C52A2 | Screw Clamp Terminals | 3.14" | 0.83" | Rotary Lever Arm | Side | -20°F to +185°F | 90° | No Boot Included | €342.61 | |
|
9007C52B2 | Screw Clamp Terminals | 3.14" | 0.83" | No Lever, Rotary Head | Side | -20°F to +185°F | - | No | €376.67 | |
 |
9007C52D | Screw Clamp Terminals | 3.14" | 0.83" | Roller Plunger | Top | 0°F to +185°F | 1/4" | No Boot Included | €426.92 | |
 |
9007C52E | Screw Clamp Terminals | 3.14" | 0.83" | Plunger | Top | 0°F to +185°F | 1/4" | No Boot Included | €387.55 | |
 |
9007C52F | Screw Clamp Terminals | 3.14" | 0.83" | Roller Plunger | Side | 0°F to +185°F | 1/4" | No Boot Included | €428.18 | |
 |
9007C52J | Screw Terminal | 3.14" | - | Wobble Stick | Top | 0°F to +185°F | 90° | - | €401.73 | |
 |
9007C52N2 | Screw Clamp Terminals | 3.14" | 0.83" | No Lever, Rotary Head | Side | -20°F to +185°F | 90° | No Boot Included | €381.81 |
