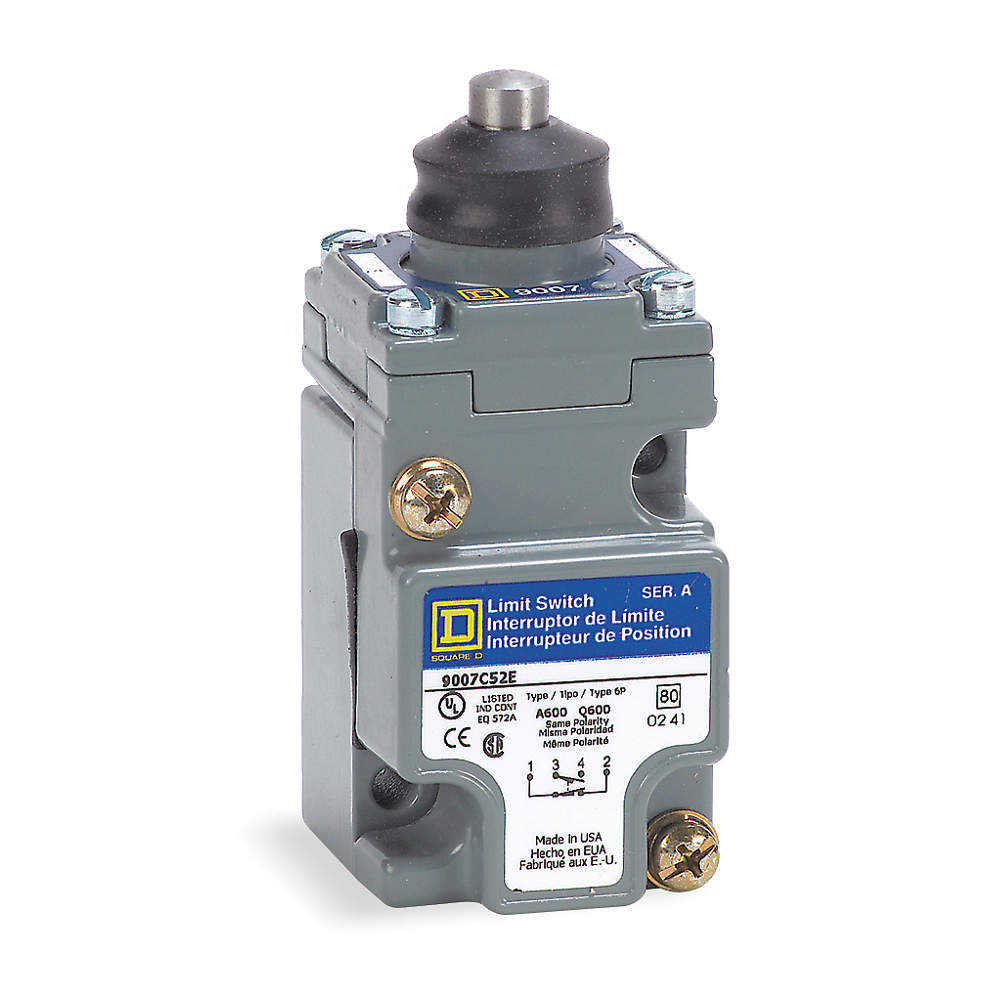

TELEMECANIQUE SENSORS 9007C52E Heavy Duty Limit Switch Top Actuator 1no/1nc
Item: AF9FWUModel: 9007C52ECross Ref: 2EF76
7 In Stock
Ships within 2 days via
5.00% off
€368.17 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Heavy Duty Limit Switch |
| Ac Contact Rating | 10A @ 600V |
| Actuator Length | 12/25" |
| Actuator Location | Top |
| Actuator Style | Plunger |
| Body Configuration | Plug In |
| Body Depth | 1.14" |
| Body Height | 2.5" |
| Body Material | Zinc |
| Body Material Type | Metallic |
| Body Width | 0.83" |
| Boot Sealed Actuator | No Boot Included |
| Contact Form | 1NO/1NC |
| Dc Contact Rating | 10A @ 600V |
| Depth | 1.79" |
| Directional Movement | Linear |
| Electrical Connection | Screw Clamp Terminals |
| Height | 3.14" |
| Ip Rating | IP67 |
| Max. Operating Force | 3 lbf. |
| Max. Operating Temp. | 185°F |
| Min. Operating Temp. | -20°F |
| Mounting Hole Dia. | 1/5" |
| Mounting Hole Horizontal Center To Center Distance | 30 mm |
| Mounting Hole Vertical Center To Center Distance | 60 mm |
| Mounting Style | Surface |
| Movement | Vertical |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 4, NEMA 6, NEMA 6P |
| Nema Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 4, NEMA 6, NEMA 6P |
| No. Of Mounting Holes | 2 |
| Operating Force | 3 lbs. |
| Operating Temp. | 0°F to +185°F |
| Overall Depth | 1.79" |
| Overall Height | 3.62" |
| Overall Width | 1.55" |
| Pre-travel | 0.08" |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Series | 9007C Series |
| Standards | Csa, Ul Listed |
| Travel Length | 1/4" |
| Width | 1.55" |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 4.06 |
| Ship length (cm) | 13.21 |
| Ship width (cm) | 5.08 |
| HS code | 8536509055 |
| Country of Origin | MX |
Product Variants
| Product | Model | Actuator Style | Electrical Connection | Contact Form | Height | Travel Length | Body Width | Boot Sealed Actuator | Body Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9007C52A2 | Rotary Lever Arm | Screw Clamp Terminals | 1NO/1NC | 3.14" | 90° | 0.83" | No Boot Included | 1.14" | €342.61 | |
|
9007C52B2 | No Lever, Rotary Head | Screw Clamp Terminals | 1NO/1NC | 3.14" | - | 0.83" | No | 1.14" | €376.67 | |
 |
9007C52D | Roller Plunger | Screw Clamp Terminals | 1NO/1NC | 3.14" | 1/4" | 0.83" | No Boot Included | 1.14" | €426.92 | |
 |
9007C52F | Roller Plunger | Screw Clamp Terminals | 1NO/1NC | 3.14" | 1/4" | 0.83" | No Boot Included | 1.14" | €428.18 | |
 |
9007C52J | Wobble Stick | Screw Terminal | - | 3.14" | 90° | - | - | - | €401.73 | |
 |
9007C52N2 | No Lever, Rotary Head | Screw Clamp Terminals | 1NO/1NC | 3.14" | 90° | 0.83" | No Boot Included | 1.14" | €381.81 | |
 |
9007C54ED | Plunger | Screw Clamp Terminals | 1NO/1NC | 4.02" | 1/4" | 1.55" | No Boot Included | 1.79" | €389.13 |
